399100303 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 399100303

399100303: Description10.16mm; CategoryThe connector terminals; File Size488KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

399100303 Overview

10.16mm

399100303 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	25 weeks 5 days
Other features	VALOX 420SEO; PBT
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	3
Rated current	40 A
Rated voltage	600 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	6 mm2
Wire gauge	8 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0399100303

Active

10.16mm (.400") Beau™ Eurostyle™, Fixed Mount PCB Terminal Block, High Voltage,

High Power 40A, 3 Circuits

Documents:

3D Model

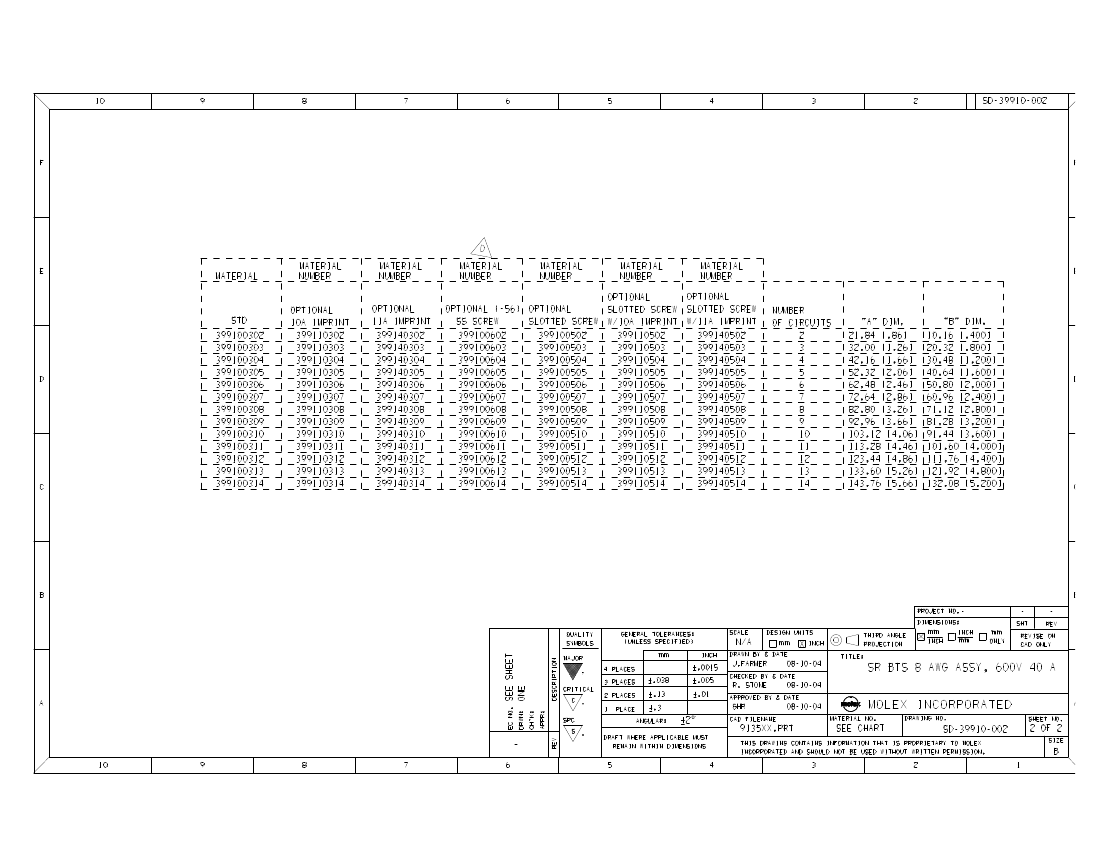

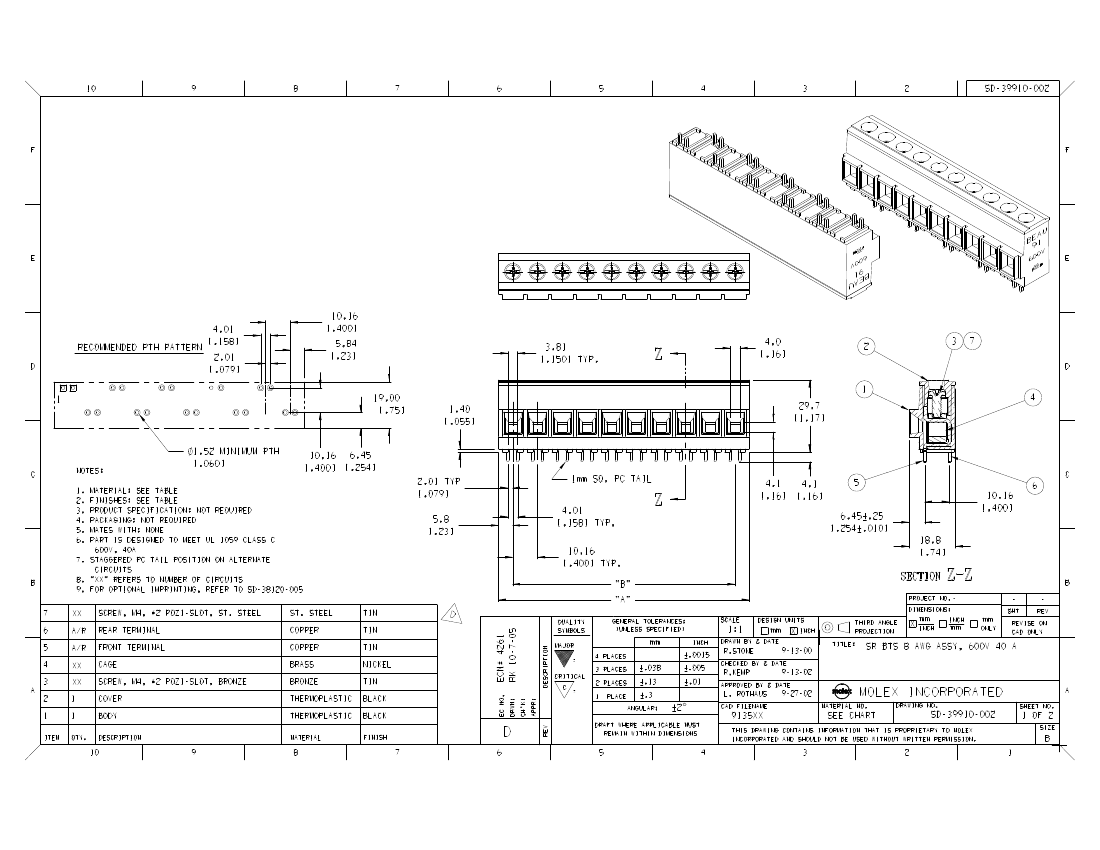

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39910

Wire-to-Board

One Piece

USA-199

Eurostyle™Fixed Mount

Euro Block

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Black

Horizontal

94V-0

None

Brass, Copper

Tin

Polyester

Vertical

0.160 In

4.10 mm

None

0.400 In

10.16 mm

0.400 In

10.16 mm

150

3.75

150

3.75

Yes

Fully

130°C

Through Hole

10, 12, 14, 16, 18, 8

0.75 - 6.0

Search Parts in this Series

39910Series

Mates With

N/A

Electrical

399100303 Related Products

	399100303	913503
Description	10.16mm	10.16mm
Maker	Molex	Molex
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Other features	VALOX 420SEO; PBT	VALOX 420SEO; PBT
Fastening method	SCREW	SCREW
Installation type	BOARD	BOARD
Number of layers	1	1
Rows	1	1
Number of channels	3	3
Rated current	40 A	40 A
Rated voltage	600 V	600 V
safety certificate	UL	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Conductor cross section	6 mm2	6 mm2
Wire gauge	8 AWG	8 AWG
Base Number Matches	1	1
