399200708 Overview

15.00mm

This document was generated on 05/10/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0399200708
Active
15.00mm (.591") Beau™ Eurostyle™, Fixed Mount PCB Terminal Block, High Voltage,
High Power 115.0A, 8 Circuits
Documents:
3D Model

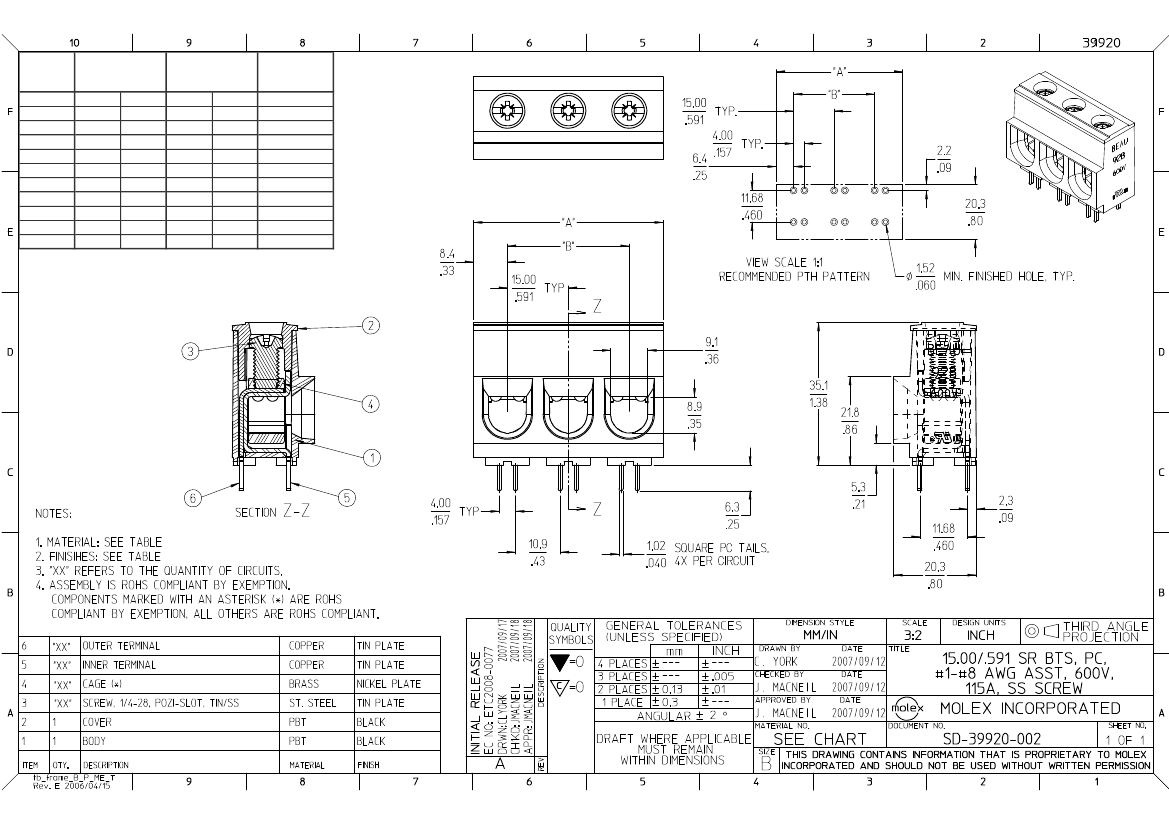

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
39920
Wire-to-Board
One Piece
Eurostyle™Fixed Mount
Euro Block
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Wire Size mm²
8
8
Black
Vertical
94V-0
None
Brass
Tin
Tin
Polyester
1
Vertical
0.250 In
6.30 mm
Yes
0.125 In
3.18 mm
No
0.000 In
0.00 mm
0.591 In
15.00 mm
150
3.75
150
3.75
Yes
Fully
No
No
-40°C to +130°C
Through Hole
1, 2, 3, 4, 6, 8
2.50 - 25
Search Parts in this Series
39920Series
Mates With
N/A
