0399500103
Active
8.00mm (.315") Pitch Beau™ Eurostyle™ Fixed Mount, High Voltage PCB Terminal
Block, Vertical, 3 Circuits
Documents:
3D Model

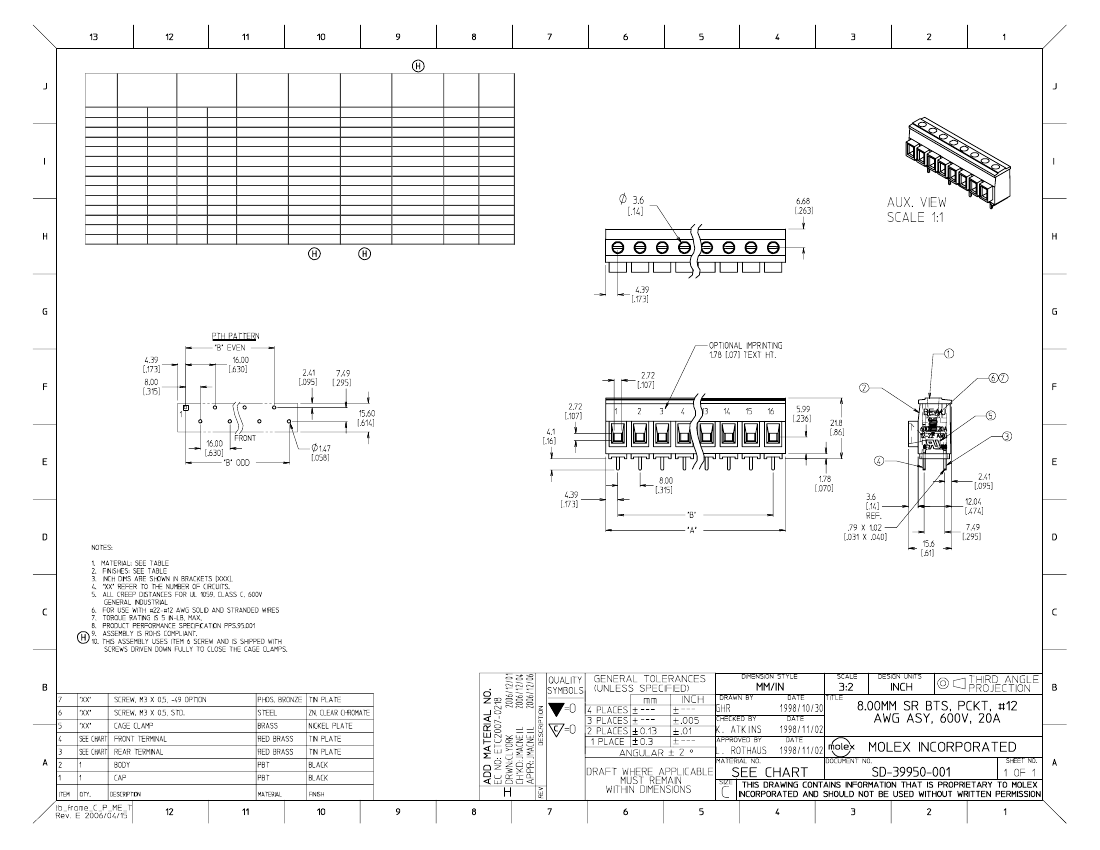

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39950
Wire-to-Board
High Power
One Piece
USA-199
Eurostyle™Fixed Mount
Euro Block
Physical
Circuits (Loaded)
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
3
Horizontal
94V-0
None
Brass
Tin
Tin
1
Vertical
0.160 In
4.06 mm
None
0.102 In
2.60 mm
No
0.315 In
8.00 mm
150
3.75
150
3.75
N/A
No
130°C
12, 14, 16, 18, 20, 22
0.50 - 4.00
Search Parts in this Series
39950Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
20A
600V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Embedded System
