A-4094-03A501 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> A-4094-03A501

A-4094-03A501: Description3 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size454KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

A-4094-03A501 Overview

3 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

A-4094-03A501 Parametric

Parameter Name	Attribute value
Contact materials	BRASS
Terminal spacing	2.54 mm
Total number of contacts	3
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	4094
Contact surface matching	GOLD OVER NICKEL
Contact coated terminals	GOLD OVER NICKEL
Connection Type	TWO PART BOARD CONNECTOR
Connector male and female	MALE
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of load rows	1
Terminal type	SOLDER
UL flammability code	94V-0

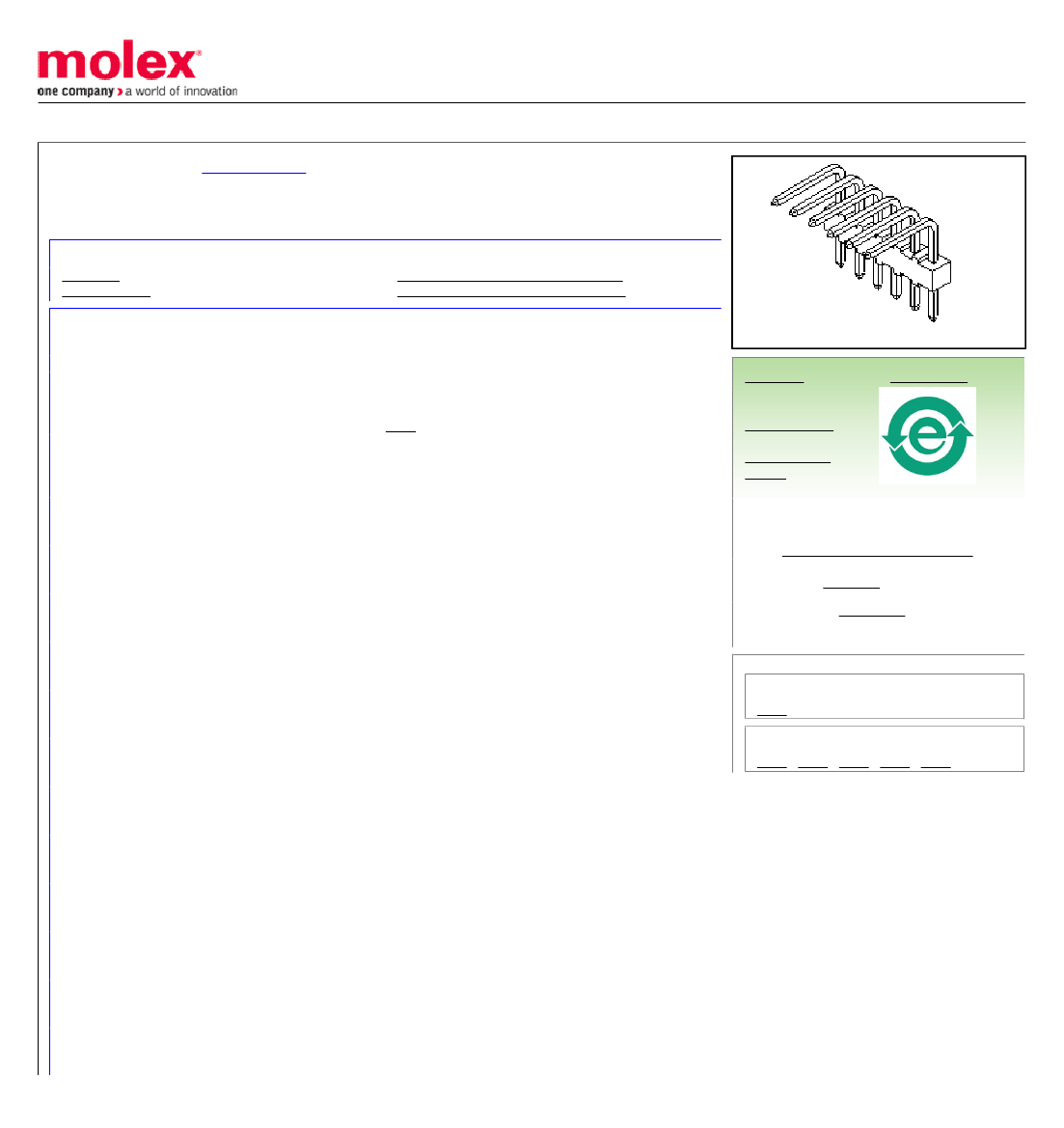

Preview

Download Datasheet

View All

This document was generated on 04/09/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0022122031

Active

2.54mm (.100") Pitch KK® Wire-to-Board Header, Single Row, Right Angle, 3 Circuits,

PA Polyamide Nylon, Gold (Au) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-10-07 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Product Name

PCB Headers

4094

Board-to-Board, Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural (White)

100

94V-0

None

Brass

Gold

Nylon

Right Angle

0.124 In

3.15 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

0.5

Yes

0°C to +75°C

Through Hole

Search Parts in this Series

4094Series

Mates With

2695 , 6471 , 7880 , 4455 , 7720
