22-45-7044

Description
4 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC
CategoryThe connector    The connector
File Size483KB,20 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

22-45-7044 Overview

4 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC

22-45-7044 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresKK, DOUBLE CANTILEVER CONTACTS, POLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number7720
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeIDC
Total number of contacts4
UL Flammability Code94V-2
Base Number Matches1
This document was generated on 05/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0022457044
Active
kk
2.54mm (.100") KK® IDT Double Cantilever Contact, 4 Circuits, Gold (Au), Feed-To, 24
Stranded, Solid, Fused, Topcoat, and 26 Fused and Topcoat, Brown ID Strip
Documents:
3D Model
Drawing (PDF)
Product Specification PS-7720-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series

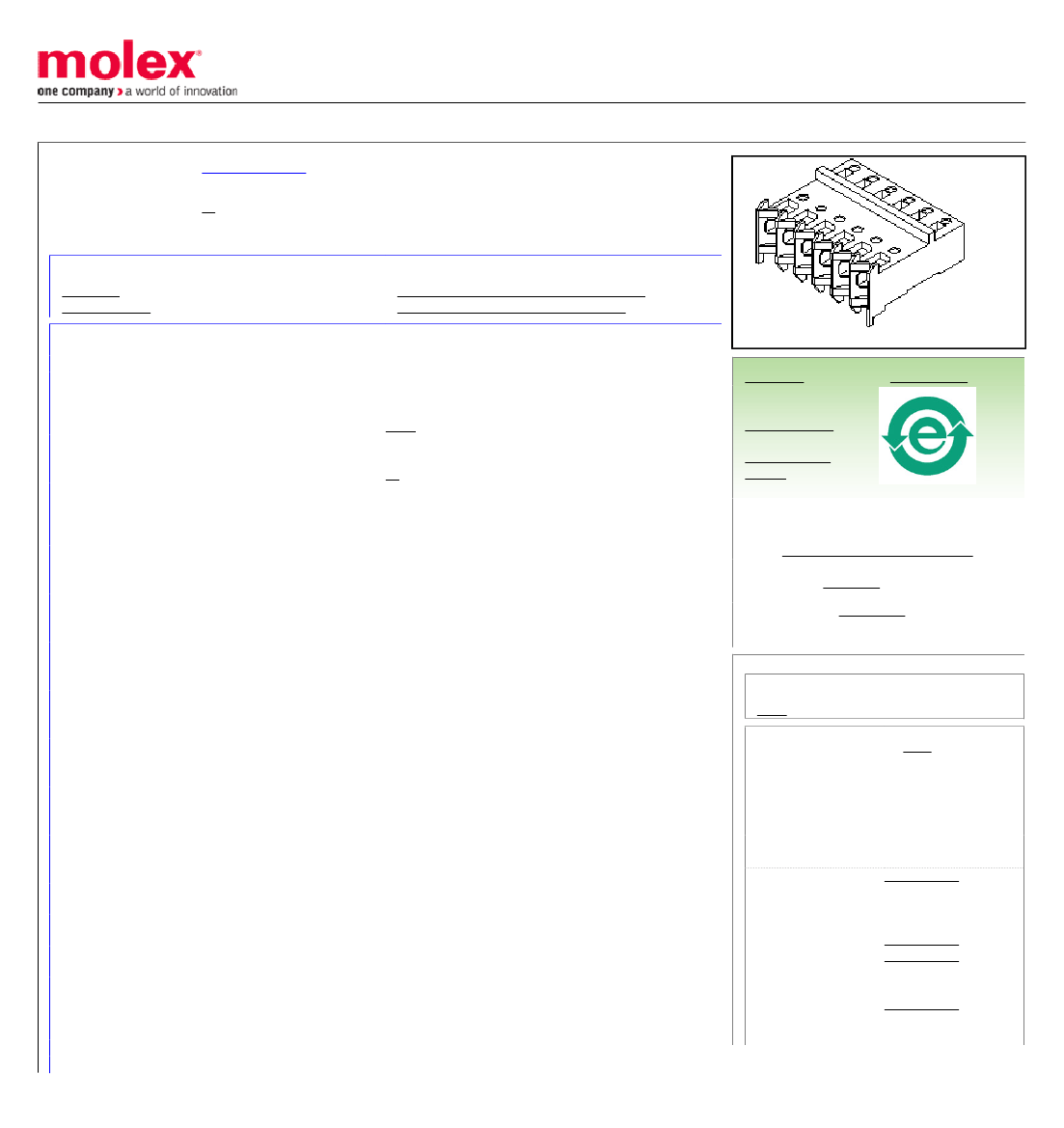

image - Reference only
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Comments
Crimp Quality Equipment
Overview
Product Name
IDT and Solder Connectors
7720
Double Cantilever contact
Yes
kk
KK®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
4
Natural
5
94V-2
Female
No
Yes
Phosphor Bronze
Gold
Gold
Nylon
1
Bag
No
0.100 In
2.54 mm
Yes
0°C to +75°C
IDT or Pierce
1.52mm (.060") max.
26 Solid, 26 Stranded, 28 Solid, 28 Stranded, 28
Stranded Topcoat
Search Parts in this Series
7720Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Insertion Tool for
0638133504
2.54mm (.100") Pitch
KK® IDT Crimp
Terminals
IDT - Manual Press 0011200179
IDT - Semi-automatic 0011200412
- Bench-Top
Terminator
IDT - Semi-automatic 0011200771
- Bench-Top
Terminator
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V
Material Info
Old Part Number
A-7720-E04A501A
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-7720-001
PS-7720-001
SD-7720-001

22-45-7044 Related Products

22-45-7044 A-7720-E04A501A 0022457044
