Part Number:
Status:
Overview:
Description:
0026116085
Active
kk
3.96mm (.156") Pitch KK® PC Board Connector, Bottom Entry, Nylon Connector,
1.0µm (40µ") Tin (Sn), 8 Circuits
Documents:
3D Model

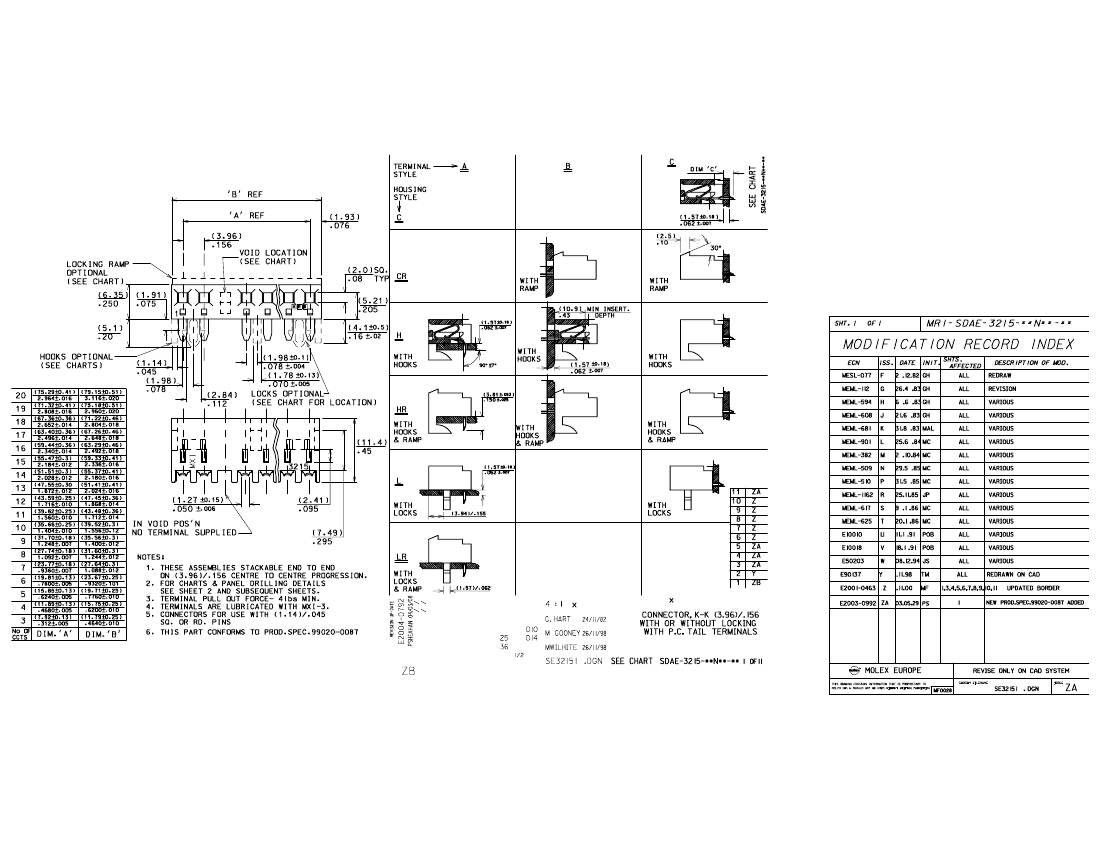

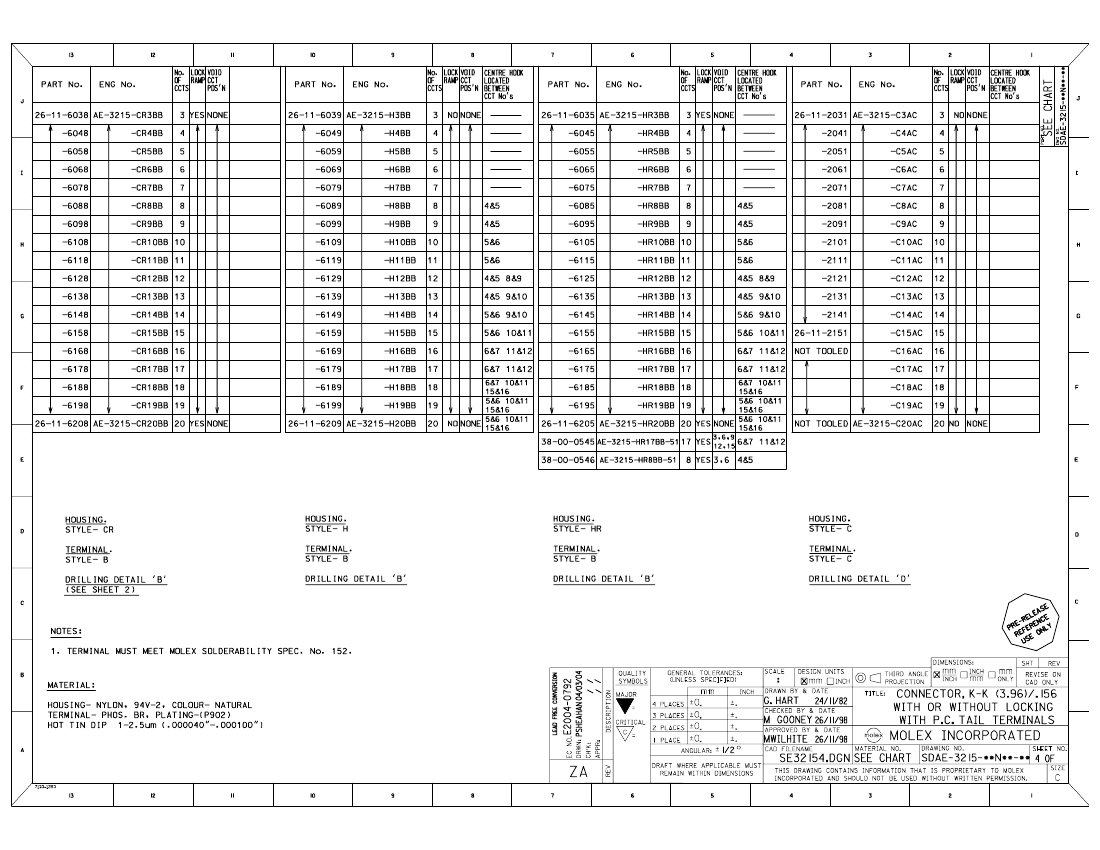

Drawing (PDF)
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Series

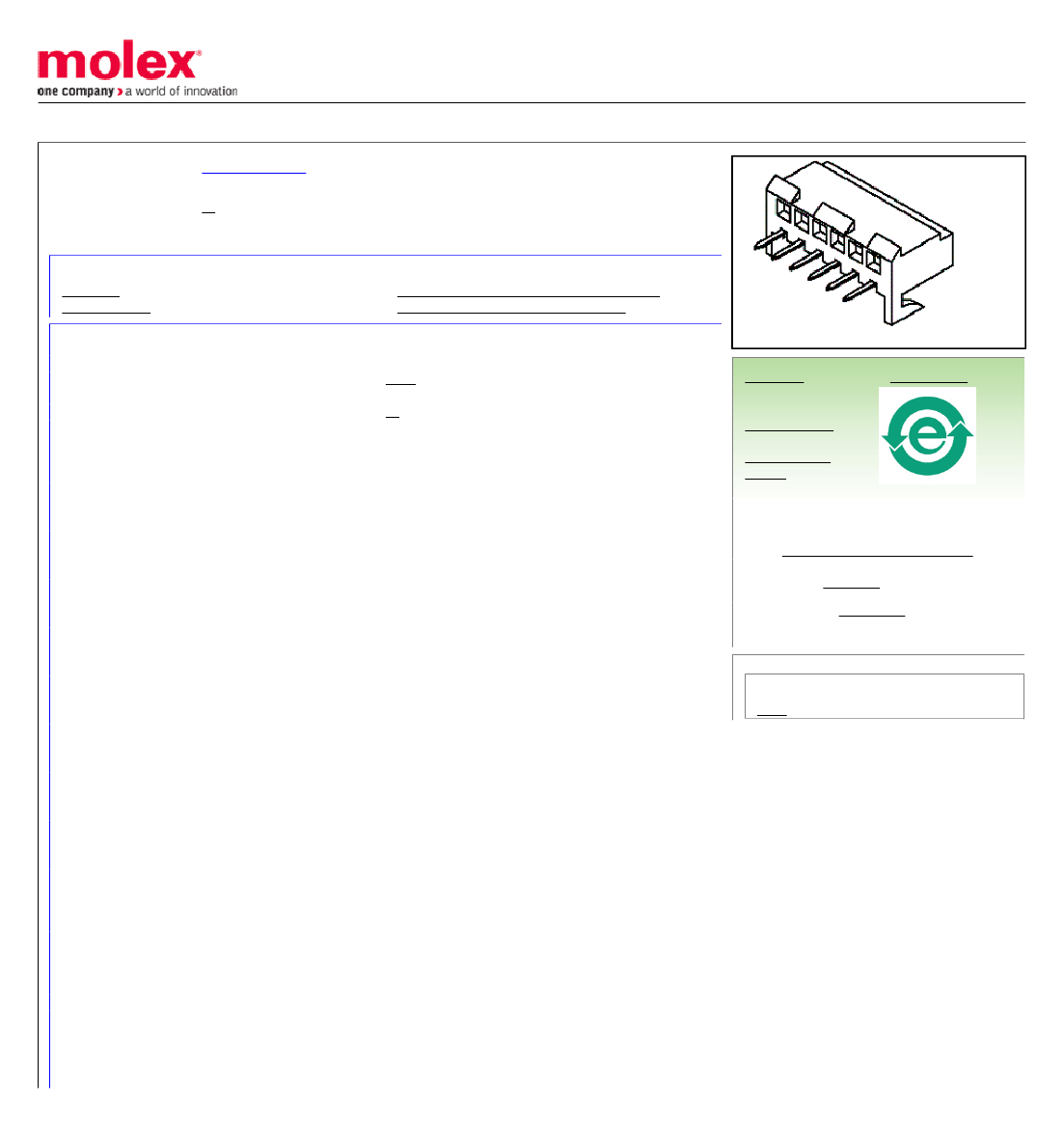

image - Reference only
PCB Receptacles
3215
Board-to-Board
kk
KK®
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
Physical
Circuits (Loaded)
Color - Resin
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
8
Natural
No
Yes
Yes
Phosphor Bronze
Tin
Tin
Nylon
1
Bottom Entry
0.160 In
4.06 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
40.00
1.000
40.00
1.00
No
0°C to +75°C
Through Hole
Search Parts in this Series
3215Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
5A
250V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
3215HR08BB
Reference - Drawing Numbers
