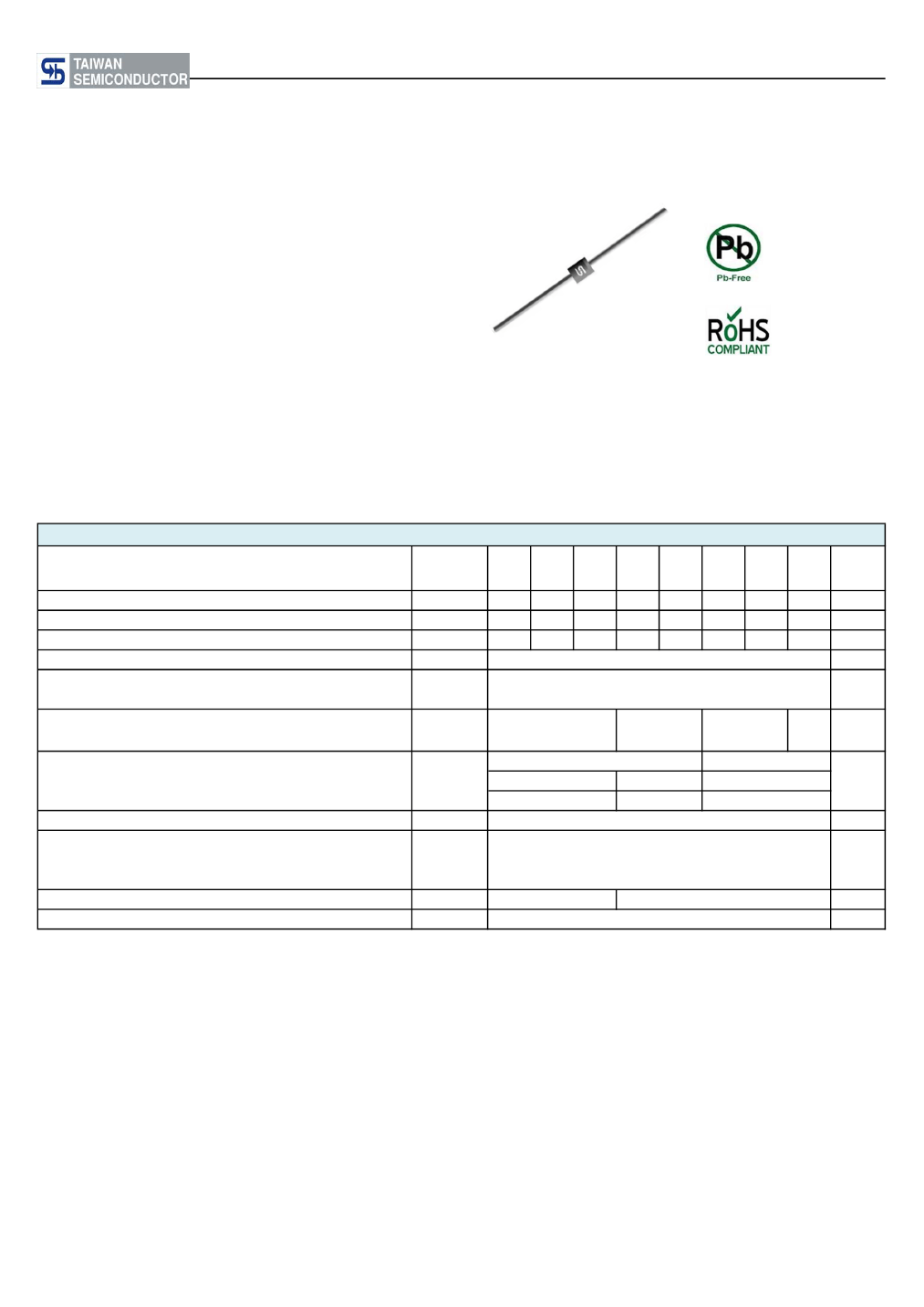

SR202 thru SR215
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low forward voltage drop
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Schottky Barrier Rectifier
MECHANICAL DATA
Case:
DO-204AC (DO-15)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Weight:
0.4g (approximately)
DO-204AC (DO-15)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@2A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=100℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
I
R
dV/dt
R
θJC
R
θJL
R
θJA
T
J
T
STG
- 55 to +125
10
-
5
-
10000
14
21.7
75
- 55 to +150
- 55 to +150
SR
202
20
14
20
SR
203
30
21
30
SR
204
40
28
40
SR
205
50
35
50
2
50
0.70
0.85
0.1
-
2
V/μs
O
SR
206
60
42
60
SR
209
90
63
90
SR
210
100
70
100
SR
215
150
105
150
UNIT
V
V
V
A
A
0.95
V
mA
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300
μs,
1% duty cycle
C/W
O
O
C
C
Document Number: D1308006
Version: H13
SR202 thru SR215
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
SR2xx
(Note 1)
A0
Prefix "H"
R0
B0
Suffix "G"
PACKING CODE
GREEN
COMPOUND
DO-15
DO-15
DO-15
1,500 / Ammo box
3,500 / 13" Paper reel
1,000 / Bulk packing
PACKAGE
PACKING
Note 1: "xx" defines voltage from 20V (SR202) to 150V (SR215)
EXAMPLE
PREFERRED P/N PART NO.
SR206 A0
SR206 A0G
SR206HA0
SR206
SR206
SR206
H
AEC-Q101
QUALIFIED
PACKING CODE
A0
A0
A0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION
RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)

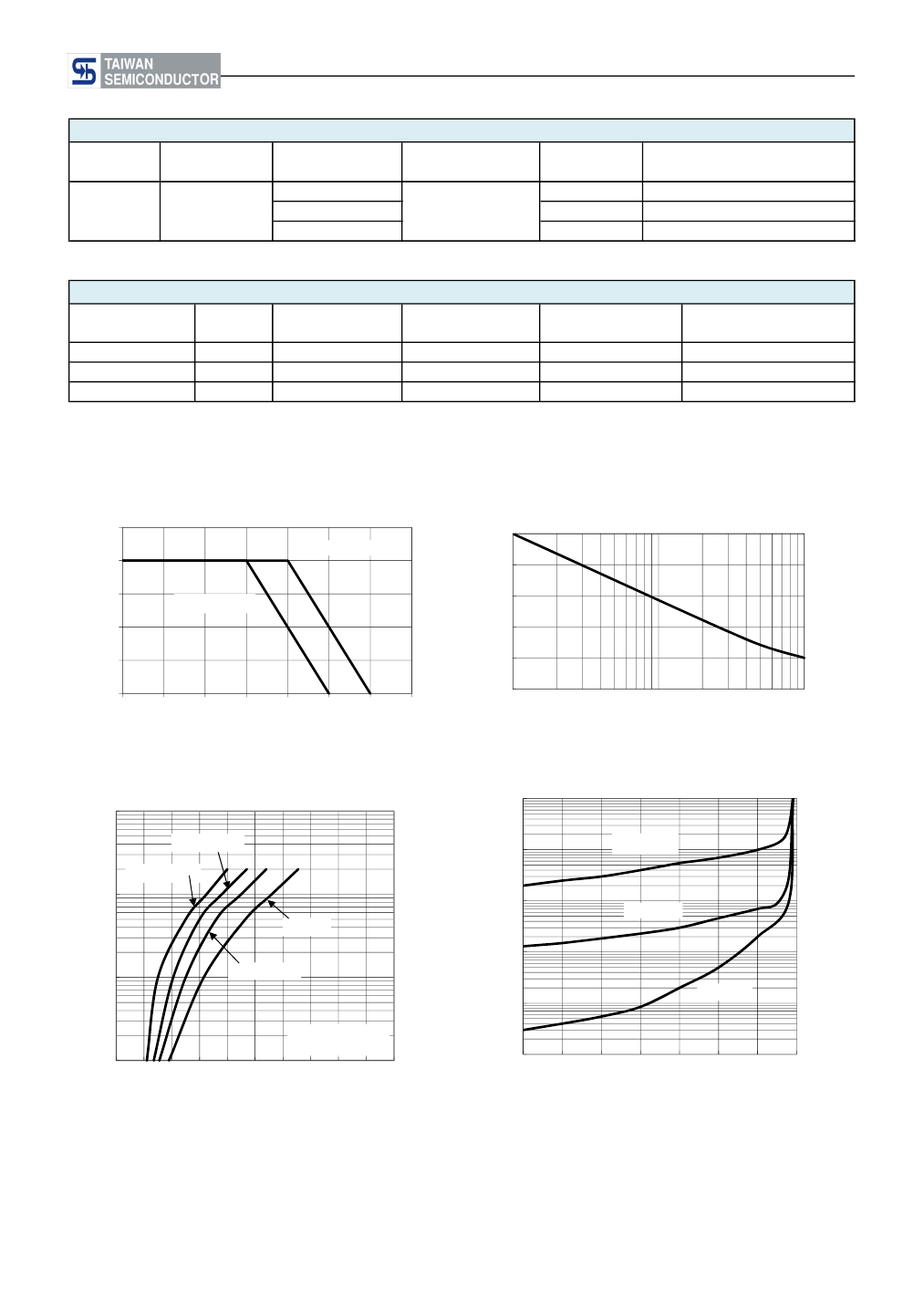

FIG.1- FORWARD CURRENT DERATING CURVE
2.5
AVERAGE FORWARD CURRENT (A)
2
1.5
1
0.5
0
0
25
50
75
100
125
150
175
LEAD TEMPERATURE (
o
C)
SR205 - SR215
40
50
FIG. 2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
SR202 - SR204
CURRENT (A)
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3- TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT. (mA)
INSTANTANEOUS FORWARD CURRENT (A)
SR205-SR206
SR202-SR204
10
SR215
100
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
10
TJ=125℃
1
TJ=75℃
0.1
1
SR209-SR210
0.01
TJ=25℃
Pulse Wudth=300μs
1% Duty Cycle
0.1
0.3
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.1
0.1
FORWARD VOLTAGE (V)
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
Document Number: D1308006
Version: H13
SR202 thru SR215
Taiwan Semiconductor
CREAT BY ART

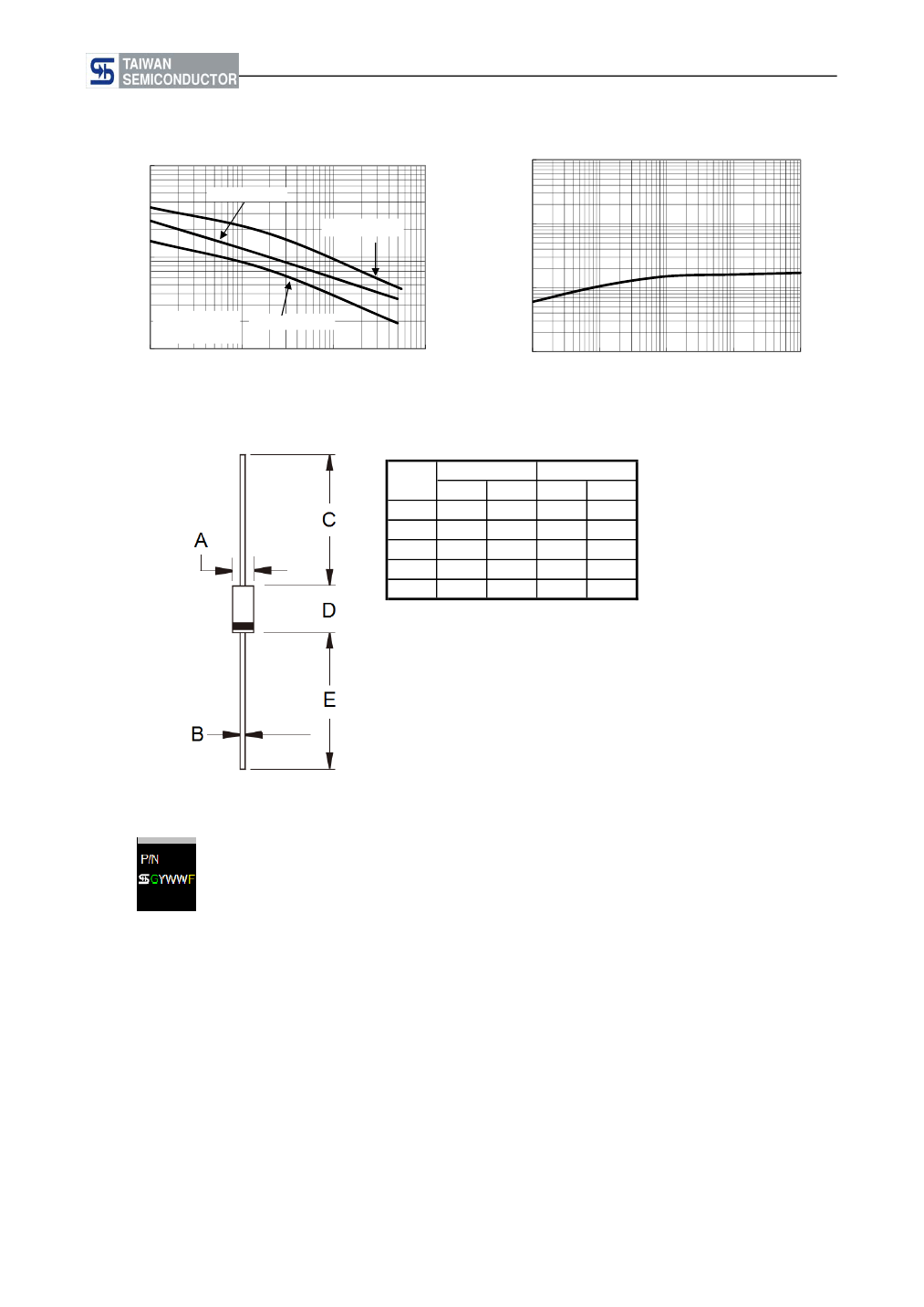

FIG. 5- TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE (pF)
SR205-SR206
TRANSIENT THERMAL
IMPEDANCE (℃/W)
SR202-SR204
100
FIG. 6- TYPICAL TRANSIENT THERMAL
CHARACTERISTICS
10
100
1
f=1.0MHz
Vsig=50mVp-p
SR209-SR215
10
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
10
100
T-PILSE DURATION (sec)
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.60
0.70
25.40
5.80
25.40
Max
3.60
0.90
-
7.60
-
Unit (inch)
Min
0.102
0.028
1.000
0.228
1.000
Max
0.142
0.035
-
0.299
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Document Number: D1308006
Version: H13
SR202 thru SR215
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: D1308006
Version: H13
