Part Number:
Status:
Description:
0399800403
Active
5.08mm (.200") Pitch Beau™ Eurostyle™ Surface Mount Compatible Locking Header,
3 Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E48521
Series

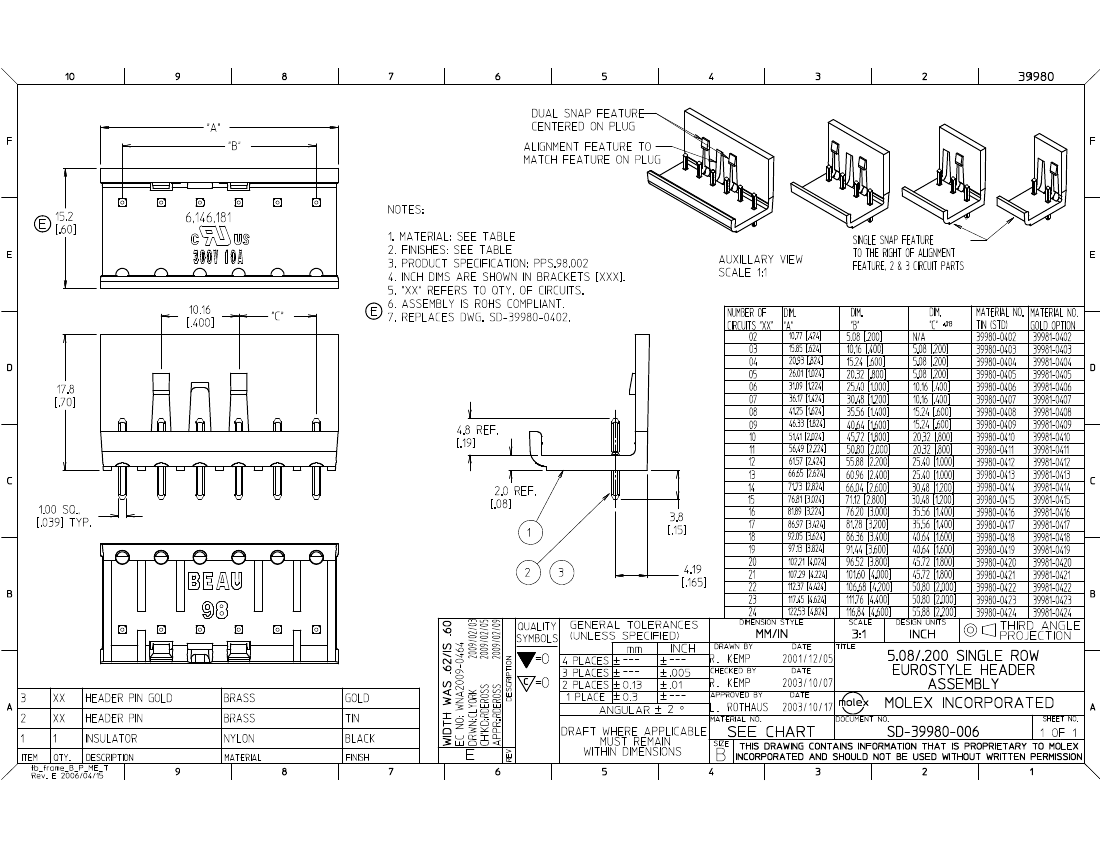

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39980
Wire-to-Board
Gold plating available
PCB Header
USA-267
Eurostyle™Pluggable
Euro Block
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
3
Black
N/A
94V-0
Yes
Tin
Tin
Nylon
1
Vertical
0.150 In
3.81 mm
None
0.062 In
1.60 mm
No
0.200 In
5.08 mm
0.200 In
5.08 mm
150
3.75
150
3.75
Yes
No
No
No
140°C
N/A
Search Parts in this Series
39980Series
Mates With
399802103 Spring Clamp Plug, 39980-0303
Screw Clamp Plug
Electrical
Current - Maximum per Contact
10A
