42022-01C Overview

1 CONTACT(S), FEMALE, POWER CONNECTOR

Preview

Download Datasheet

View All

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0050842012

Active

mlx

2.13mm (.084") Diameter MLX™ Pin and Socket Receptacle, 1 Circuit

Documents:

3D Model

Drawing (PDF)

Product Specification PS-42022-0001 (PDF)

Product Specification PSX-42022-0002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

42022

Glow Wire Equivalent Part Number 366440001

mlx

MLX™

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-0

Female

None

Yes

Nylon

Bag

Yes

0.000 In

0.00 mm

Yes

-55°C to +105°C

Search Parts in this Series

42022Series

Mates With

42021 MLX™ Power Crimp Housing Plug

Use With

MLX Crimp Terminal 42023 , 42024

Material Info

Old Part Number

42022-01C

Reference - Drawing Numbers

Packaging Specification

Product Specification

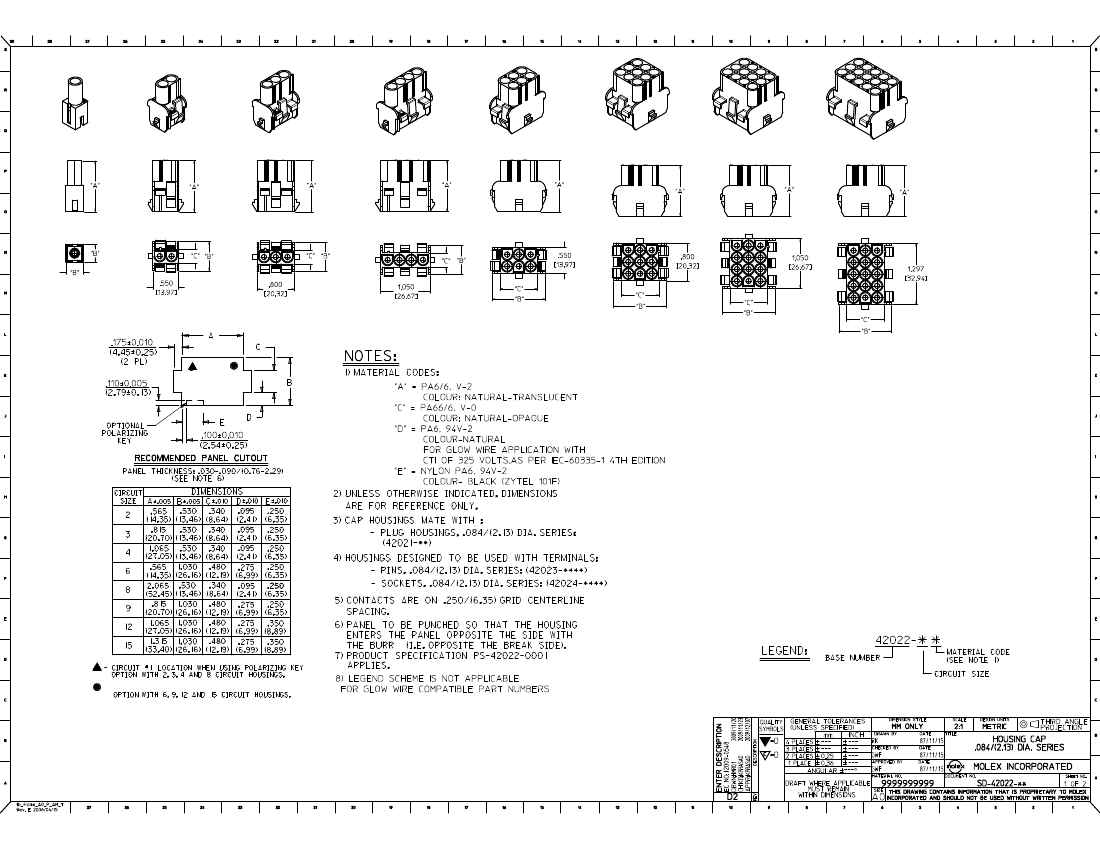

Sales Drawing

PK-42022-**

PS-42022-0001, PSX-42022-0002

SD-42022-**

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
