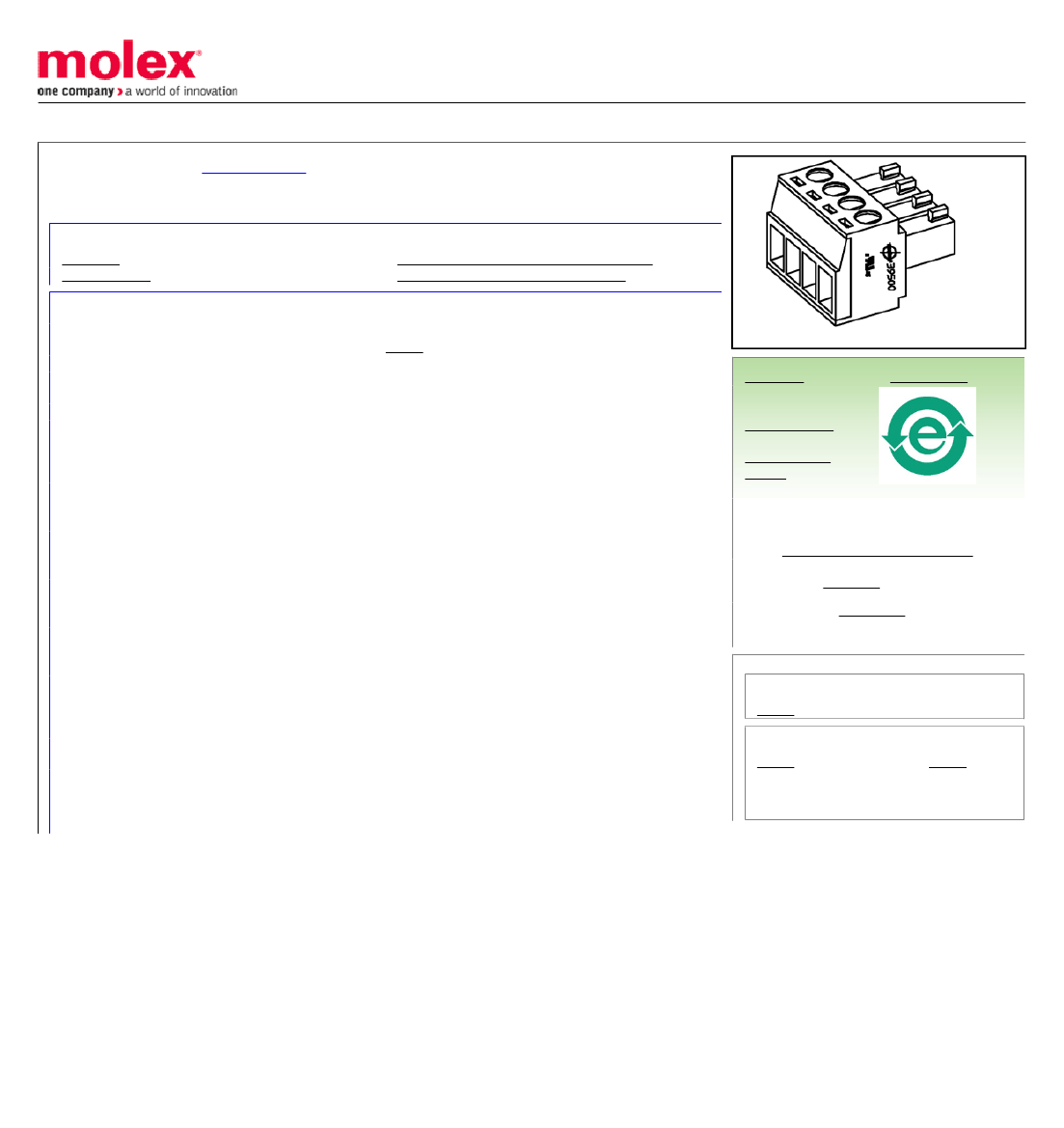

This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
0395000003
Active
3.50mm (.138") Pitch Eurostyle™ Horizontal Plug, 3 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Terminal Blocks
39500
Wire-to-Board
Plug
USA-355
ESE, Eurostyle™Pluggable
Euro Block
image - Reference only
Series
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
3
Vertical
None
1
Horizontal
No
0.138 In
3.50 mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24
0.20 - 1.31
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Search Parts in this Series
39500Series
Mates With
39501 Vertical PCB Header, 39502
Horizontal PCB Header, Most 3.50mm
(.138") Pitch Industry Standard PCB
Headers
Material Info
Reference - Drawing Numbers
Product Specification

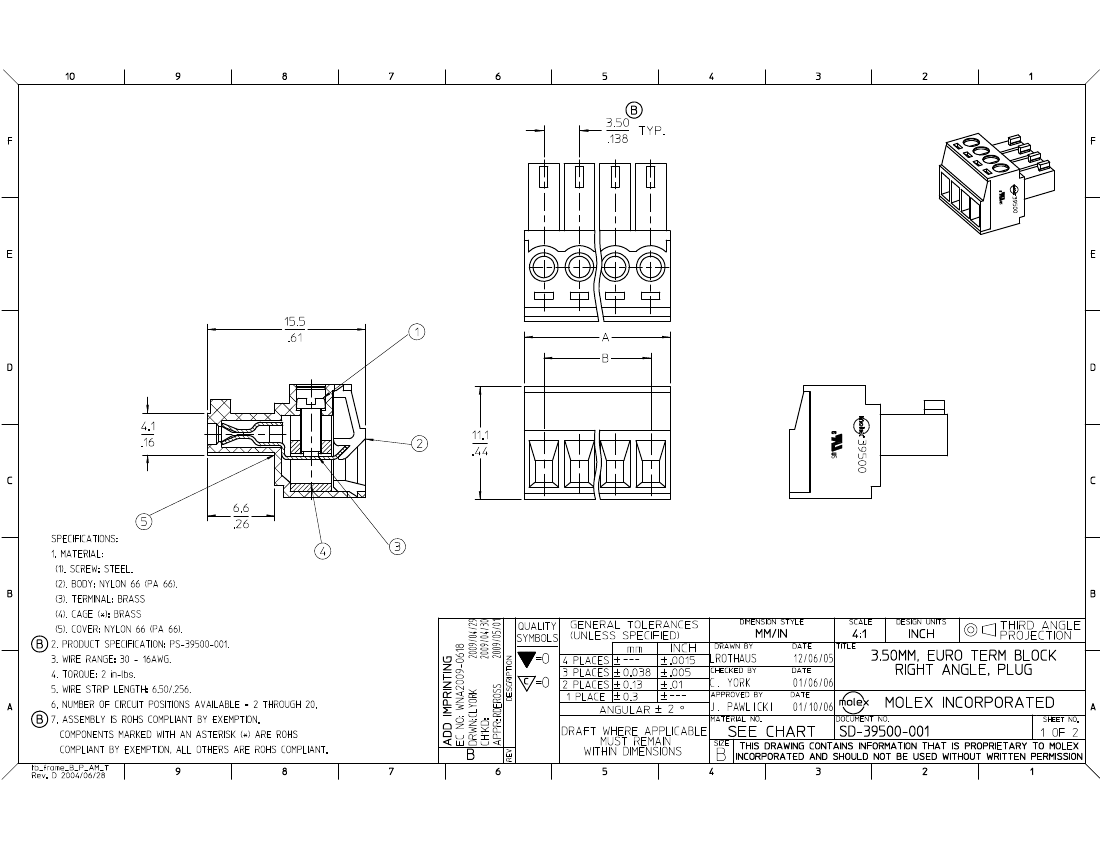

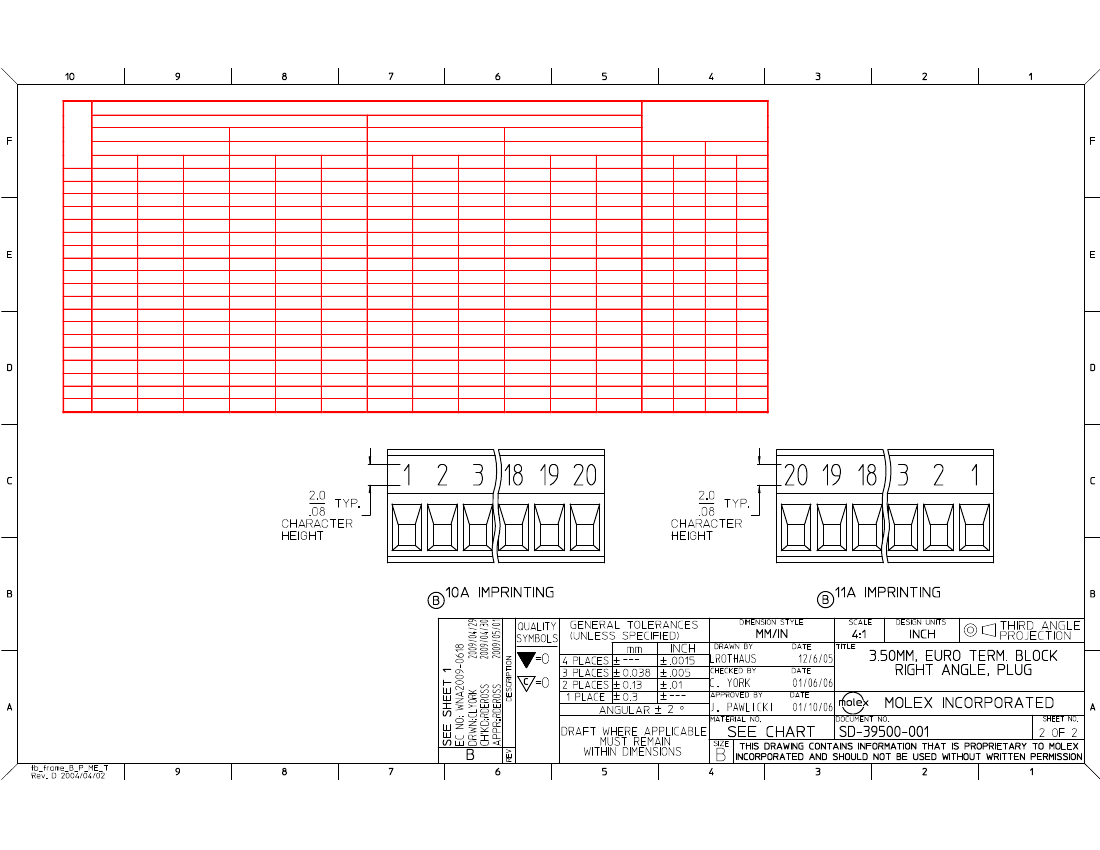

Sales Drawing
PS-39500-001
SD-39500-001
This document was generated on 04/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
