395233007 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 395233007

Preview

395233007: Description5.00mm; CategoryThe connector terminals; File Size130KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395233007 Overview

5.00mm

395233007 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PA66
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	7
Rated current	15 A
Rated voltage	300 V
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/23/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0395233007

Active

5.00mm (.197") Pitch Eurostyle™ Vertical Plug, Front Wire Entry, 7 Circuits

Documents:

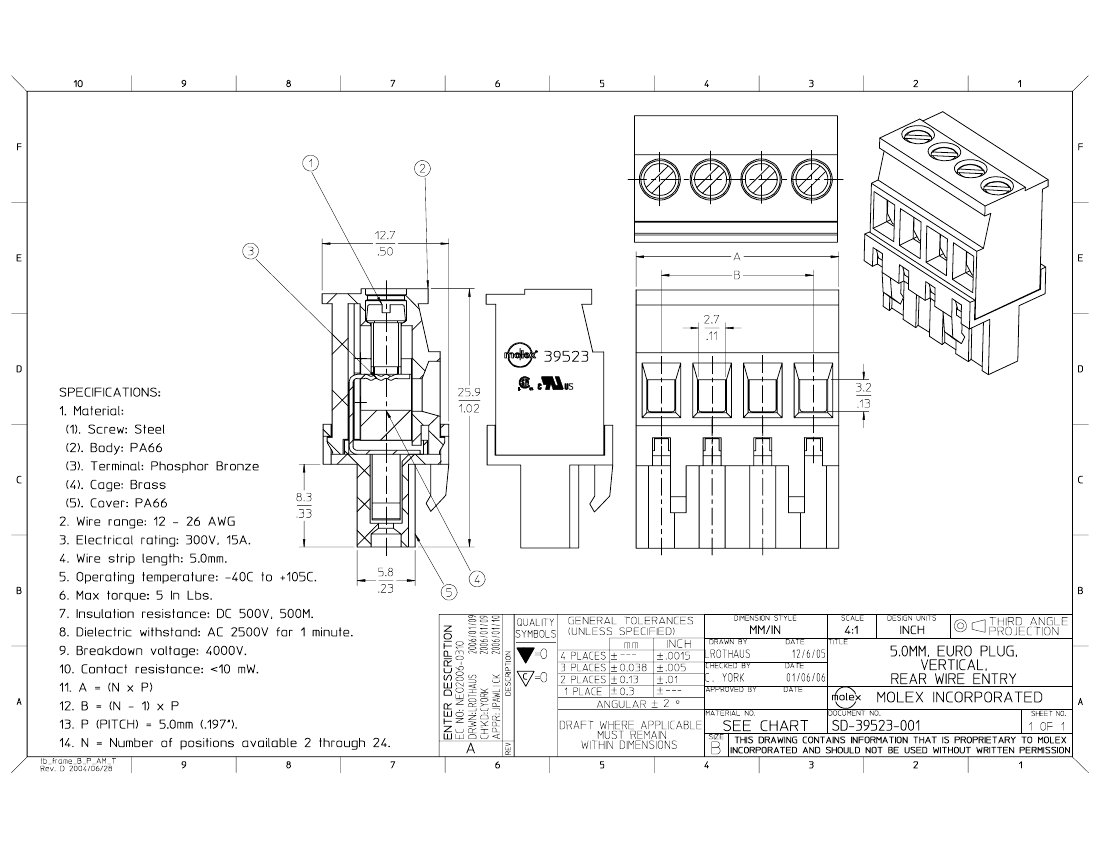

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Comments

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39523

Wire-to-Board

Front Wire Entry

Plug

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

7

Horizontal

Yes

1

Vertical

No

0.197 In

5.00 mm

Yes

No

-40°C to +105°C

12, 14, 16, 18, 20, 22, 24, 26

0.13 - 3.31

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Search Parts in this Series

39523Series

Mates With

39521 Vertical PCB Header, 39522

Horizontal PCB Header, Most 5.00mm

(.197") Pitch Industry Standard PCB

Headers, 39528 Dual Level PCB Header,

Open Ends

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39523-001

This document was generated on 04/23/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
