3-1376430-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1376430-0

3-1376430-0: DescriptionCombination Line Connector, 135 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size881KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1376430-0 Overview

Combination Line Connector, 135 Contact(s), Male, Solder Terminal

3-1376430-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	135

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

0.64

16.9

0.2

15 0.1

(4 PLC INDIVISUALY)

0.2

DETAIL

SCALE

20:1

0.1

0.025

0.1

( n0.425 )

(TOP OF POST)

LOC

REVISIONS

変更

LTR

DESCRIPTION

ECN

2000

( 11.1 )

DIST

DATE

DWN

APVD

1.5

4.5

7.5

4.5

ADDED 3--1, 3--2

REVISED

ECR-10-005413

ECR-12-001355

ECR-12-009464

ECR-16-003774

11MAR10

23JAN2012

20JUN2012

31OCT2016

3.7

0.5

2.5

5.5

0.64

0.05

SEE DETAIL

5.45

1.3

3.5

45.75

0.3

3.5

6.7

9.9

13.1

16.3

19.5

0.3

3.5

6.7

13.1

16.3

19.5

28.6

31.8

38.2

44.6

47.8

54.7

57.9

64.3

67.5

70.7

73.9

77.1

85.2

92.6

28.6

31.8

38.2

44.6

47.8

54.7

57.9

64.3

67.5

70.7

73.9

77.1

85.2

88.4

91.6

94.8

101.2

104.4

9.9

0.1

1.5

( 12 )

5.45

135x

n1.2

0.1

0.64

0.05

(TOP OF TAB)

1 0.05

(TOP OF TAB)

9.6

6.4

3.2

6.4

9.6

9.9

5.5

1.1

3.3

7.7

3.3

1.1

5.5

9.9

24.6

0.1

-0.1

9.5

2.2

6.6

15.4

19.8

4.4

8.8

13.2

17.6

3.5

5.5

0.1

4.4

2.2

6.6

15.4

19.8

C-C

8.8

13.2

17.6

8.5

5.3

112.7

0.5

2.1

1.1

10.7

11.8

7.5

6.6

2.2

6.6

12.1

7.7

3.3

1.1

5.5

9.9

8.8

4.4

8.8

26.8

0.1

28.3

32.7

37.1

41.5

45.9

26.1

30.5

34.9

39.3

43.7

48.1

54.4

58.8

63.2

67.6

76.4

45.75

26.1

30.5

34.9

39.3

43.7

48.1

92.6

54.4

58.8

63.2

67.6

76.4

28.3

32.7

37.1

41.5

45.9

8.6

2.2

9.9

5.5

1.1

3.3

7.7

12.1

0.1

7.7

3.3

1.1

5.5

9.9

24.6

0.1

-0.1

56.6

0.1

65.4

69.8

74.2

78.6

56.6

65.4

69.8

74.2

78.6

4.2

10.6

7.4

9.6

6.4

3.2

9.9

5.5

1.1

3.3

7.7

87.1

91.5

95.9

100.3

104.7

84.9

89.3

93.7

98.1

102.5

88.4

91.6

94.8

101.2

104.4

84.9

89.3

93.7

98.1

102.5

87.1

91.5

95.9

100.3

104.7

3.2

6.4

9.6

19.5

( 36.85 )

7.2

4.2

1.2

2.6

22.5

22.7

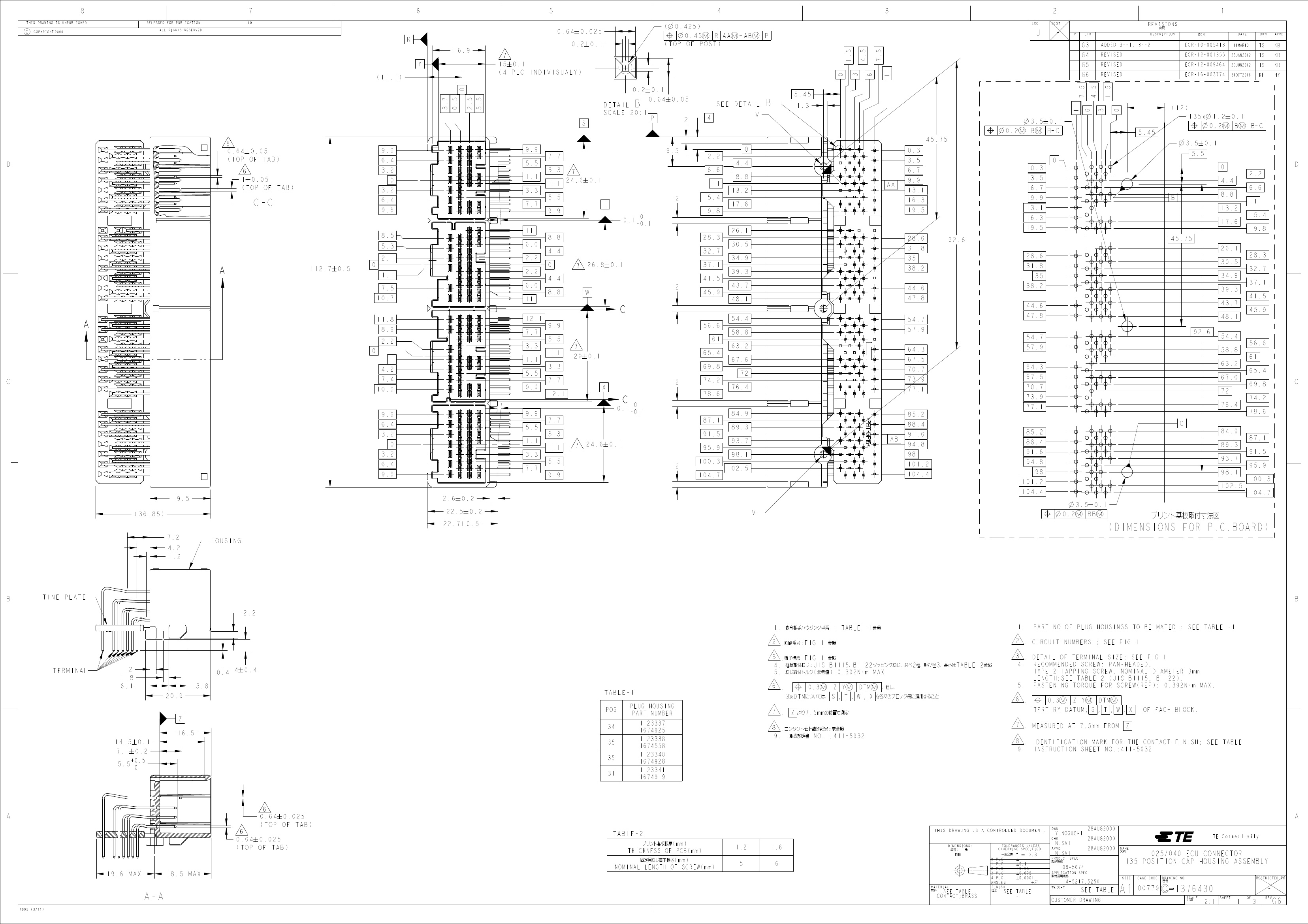

HOUSING

0.2

0.5

3.5

0.1

プリント基板取付寸法図

(DIMENSIONS FOR P.C.BOARD)

TINE PLATE

2.2

1. 嵌合相手ハウジング型番 : TABLE -1参照

2 .回路番号；FIG 1 参照

3 .端子構成 FIG 1 参照

4. 推奨取付ねじ：JIS B1115、B1122タッピングねじ、なべ2種、呼び径3、長さはTABLE-2参照

5. ねじ締付トルク(参考値)：0.392N・m MAX

TABLE-1

POS

PLUG HOUSING

PART NUMBER

1123337

1674925

1123338

1674558

1123340

1674928

1123341

1674919

6 .

3次DTMについては、 S , T , W , X を各々のブロック毎に適用すること

Z より7.5mmの½½で測定

0.3 m

Z Y m DTM m 、½し、

1. PART NO OF PLUG HOUSINGS TO BE MATED : SEE TABLE -1

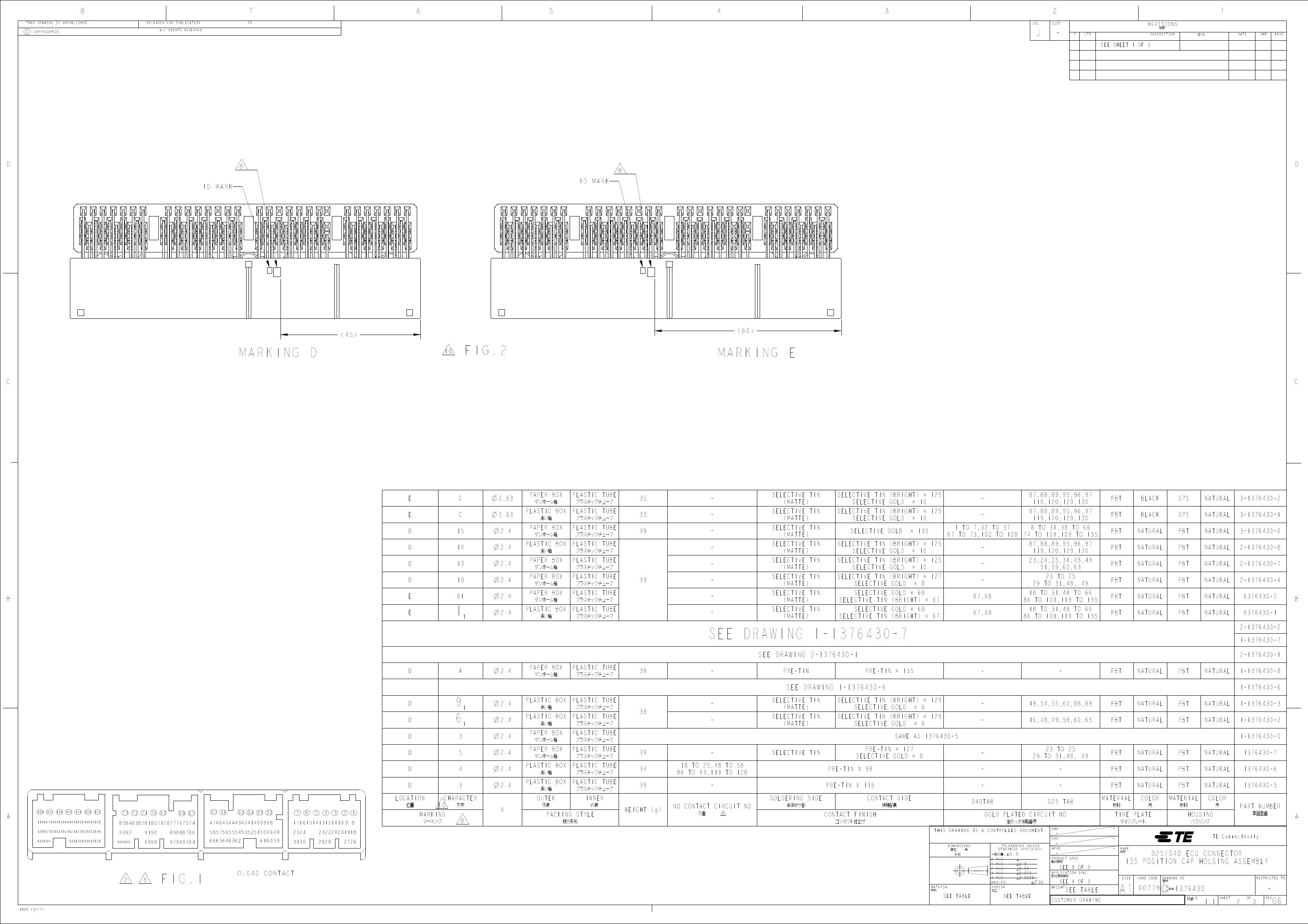

2 . CIRCUIT NUMBERS ; SEE FIG 1

3 . DETAIL OF TERMINAL SIZE; SEE FIG 1

4. RECOMMENDED SCREW: PAN-HEADED,

TYPE 2 TAPPING SCREW, NOMINAL DIAMETER 3mm

LENGTH:SEE TABLE-2 (JIS B1115, B1122).

5. FASTENING TORQUE FOR SCREW(REF): 0.392N・m MAX.

6 .

TERTIRY DATUM;

0.3 m

Z Y m DTM m

S , T , W , X OF EACH BLOCK.

TERMINAL

1.8

6.1

0.4

20.9

5.8

0.4

7 .

14.5

7.1

5.5

+0.5

0.2

0.1

16.5

8 .コンタクト仕上識別記号；表参照

9. 取扱説明書 NO. ;411-5932

7 . MEASURED AT 7.5mm FROM

8 . IDENTIFICATION MARK FOR THE CONTACT FINISH; SEE TABLE

9. INSTRUCTION SHEET NO.;411-5932

0.64

0.025

(TOP OF TAB)

0.64

0.025

(TOP OF TAB)

TABLE-2

プリント基板板厚(mm)

THICKNESS OF PCB(mm)

1.2

1.6

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

Y.NOGUCHI

N.SAI

28AUG2000

名称

NAME

TE Connectivity

単½: 粍

19.6

MAX

18.5

MAX

固定用ねじ首下長さ(mm)

NOMINAL LENGTH OF SCREW(mm)

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A-A

4805 (3/11)

材料

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

SEE TABLE

CONTACT;BRASS

仕上

FINISH

一般公差 = # 0.3

0.1

0.05

0.025

0.0001

3 $

APVD

½品規格

PRODUCT SPEC

取付適用規格

WEIGHT

APPLICATION SPEC

108-5674

025/040 ECU CONNECTOR

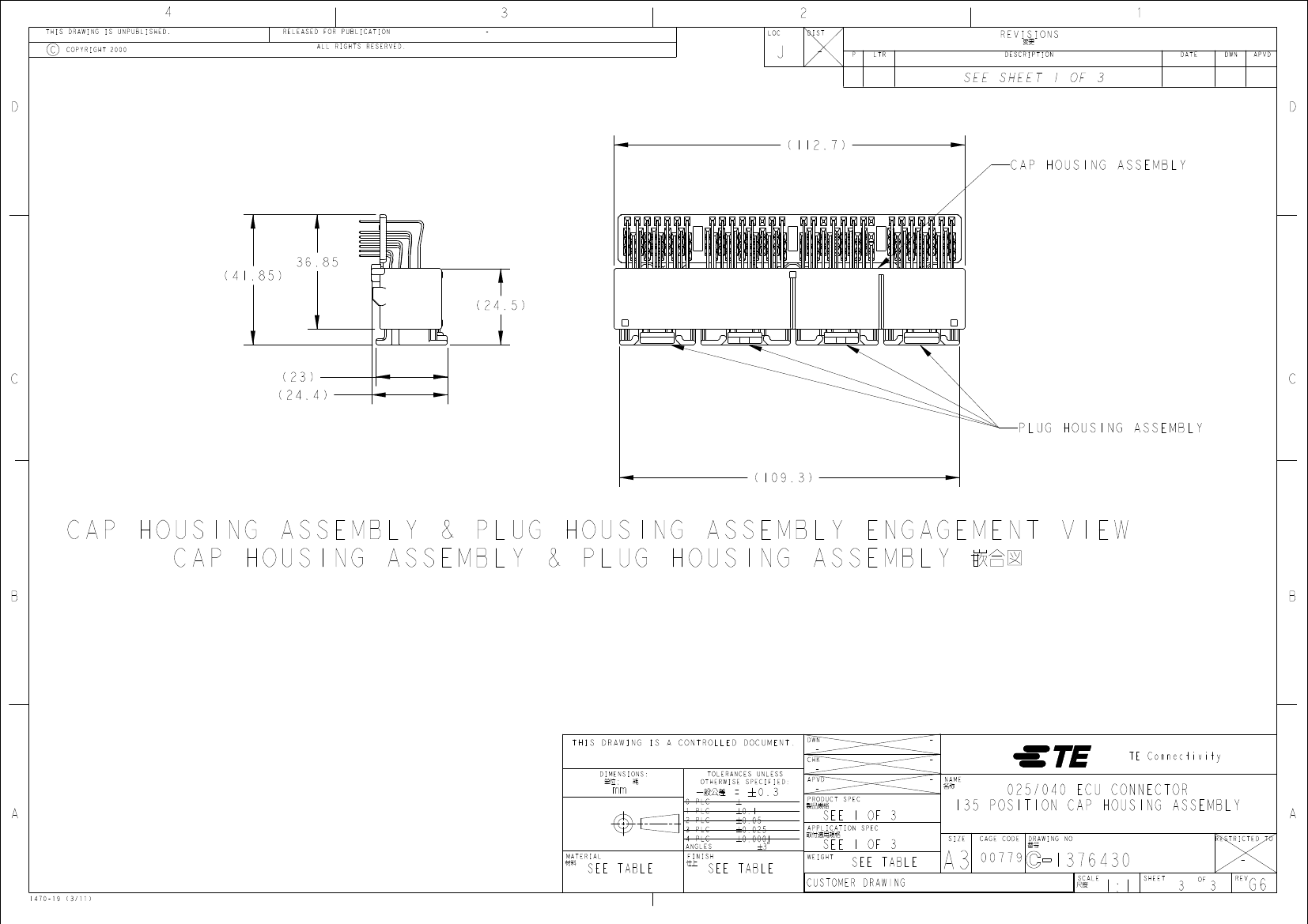

135 POSITION CAP HOUSING ASSEMBLY

CAGE CODE

DRAWING NO

114-5217,5250

SEE TABLE

CUSTOMER DRAWING

SIZE

00779

番号

1376430

SCALE

RESTRICTED TO

SHEET

尺度

2:1

REV
