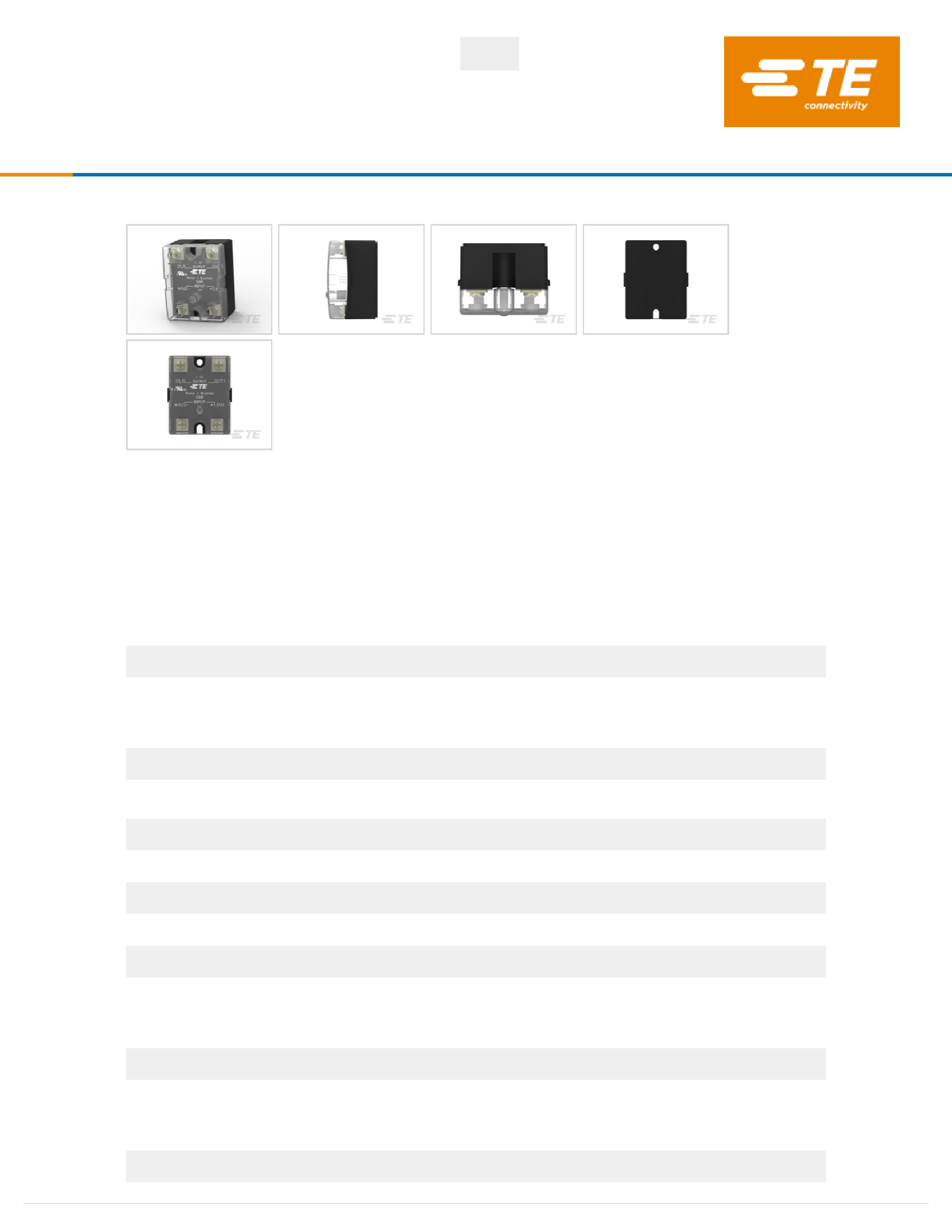

SSR SRS,PANEL MNT,50A,480V AC,R-DC I/P
TE Part # 3-1393030-8
TE Internal #: SSR-480D50R
SSR SRS,PANEL MNT,50A,480V AC,R-DC I/P
Potter & Brumfield
|
Potter & Brumfield SSR
ACTIVE
TE Part # 3-1393030-8
TE Internal #: SSR-480D50R
View on TE.com >
Relays, Contactors & Switches
>
Relays
>
Power Relays
Power Relay Type:
Solid State
Contact Arrangement:
1 Form A (SPST-NO)
Relay Mounting Type:
Chassis Mount
Features
Product Type Features
Output Type
Power Relay Type
Configuration Features
Output Switching
Electrical Characteristics
Input Voltage Typical
Output Voltage Rating (AC Relays)
Output Current Rating
Output Current (Min)
Output Voltage (Max)
Input Voltage
Body Features
Product Weight
Case Color
Contact Features
Switch Arrangement
Contact Arrangement
1 Form A (SPST-NO)
1 Form A (SPST-NO)
98 g[3.45 oz]
Black
4 – 32 VDC
48 – 660 Vrms
.1 – 50 Arms
.1 A
660 V
4 – 32 VDC
Random
AC
Solid State
For support call+1 800 522 6752
09/12/2019 07:23AM | Page 1
SSR SRS,PANEL MNT,50A,480V AC,R-DC I/P
TE Part # 3-1393030-8
TE Internal #: SSR-480D50R
Contact Arrangement
Termination Features
Relay Termination Type
Mechanical Attachment
Coupling
Relay Mounting Type
Housing Features
Relay Housing Style
Dimensions
Dimensions (L x W x H) (Approximate)
Usage Conditions
Operating Temperature Range
Operation/Application
R-Switch & slimSSR Relays
1 Form A (SPST-NO)
Screws
Optical
Chassis Mount
Hockey Puck
45 x 57.8 x 43.4 mm[1.772 x 2.276 x 1.709 in]
-30 – 80 °C
No
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Not Yet Reviewed
Not Yet Reviewed
Not reviewed for China RoHS compliance
Current ECHA Candidate List: JAN 2019
(197)
Candidate List Declared Against: JUN 2013
(144)
Halogen Content
Solder Process Capability
Not Yet Reviewed for halogen content
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
For support call+1 800 522 6752
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
09/12/2019 07:23AM | Page 2
SSR SRS,PANEL MNT,50A,480V AC,R-DC I/P
TE Part # 3-1393030-8
TE Internal #: SSR-480D50R
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.

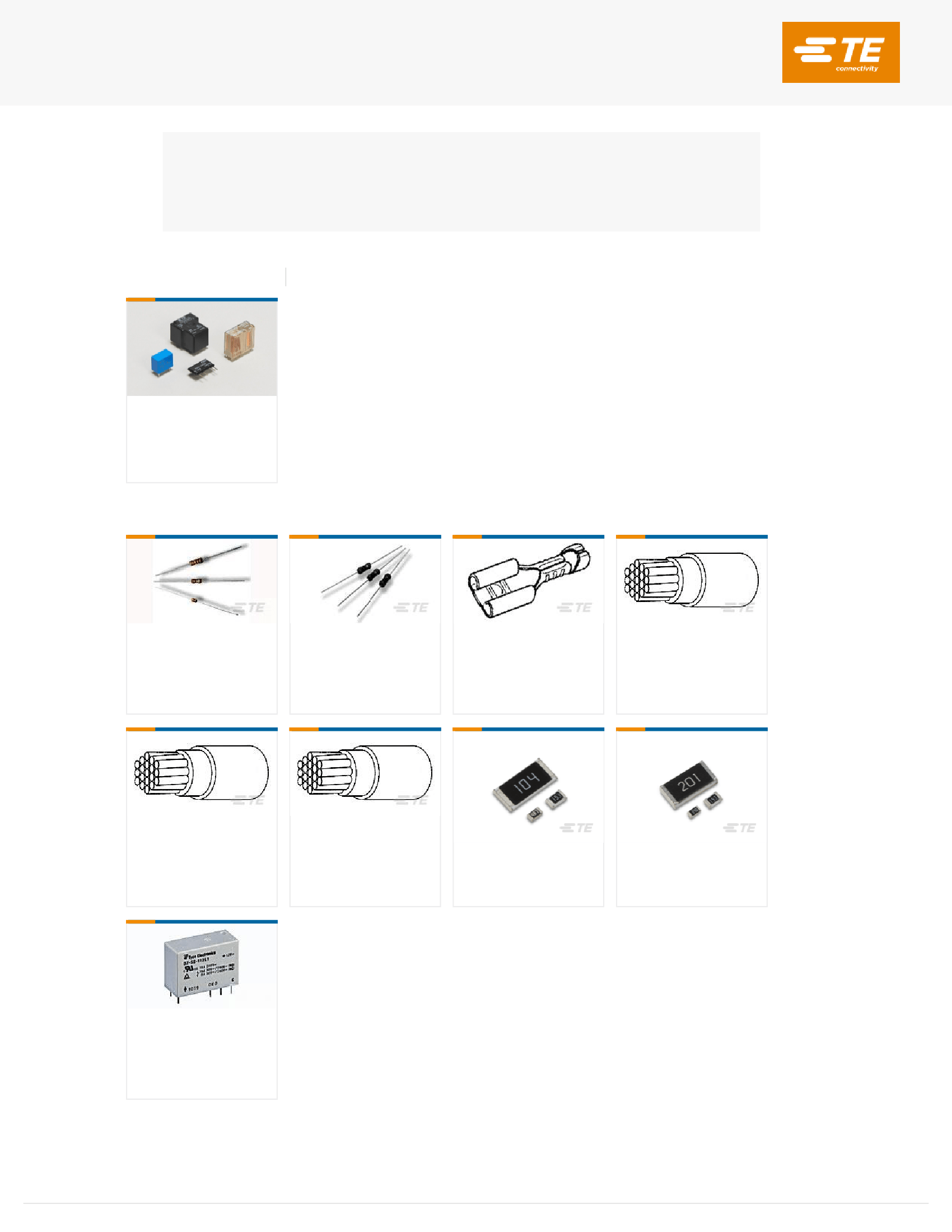

Also in the Series
Potter & Brumfield SSR
Power Relays(24)
Customers Also Bought
TE Part #1-1623927-2
CFR16 5% 150K
TE Part #7-1879352-7
RR02 5% 470R AMMO
TE Part #1-1627194-2
H953B/150
TE Part #9044313001
99M0111-12-8
TE Part #8641653001
99M0111-22-45
TE Part #3001913001
99M0111-22-7
TE Part #2-2176346-3
CRGCQ 1210 4K7 5%
TE Part #2176325-9
CRGP 0402 47R 1%
TE Part #1-1440002-7
OZ-SS-106LM1,200
Documents
CAD Files
3D PDF
For support call+1 800 522 6752
09/12/2019 07:23AM | Page 3
SSR SRS,PANEL MNT,50A,480V AC,R-DC I/P
TE Part # 3-1393030-8
TE Internal #: SSR-480D50R
3D PDF
3D
Customer View Model
ENG_CVM_CVM_3-1393030-8_A.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_3-1393030-8_A.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_3-1393030-8_A.3d_stp.zip
English
Datasheets & Catalog Pages
SSR Hockey Puck Solid State Relay With Paired SCR Output
English
