399800318 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 399800318

399800318: Description5.08mm; CategoryThe connector terminals; File Size206KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

399800318 Overview

5.08mm

399800318 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LATCHED, POLARIZED, POLYAMIDE, 94V-0
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	18
Rated current	10 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

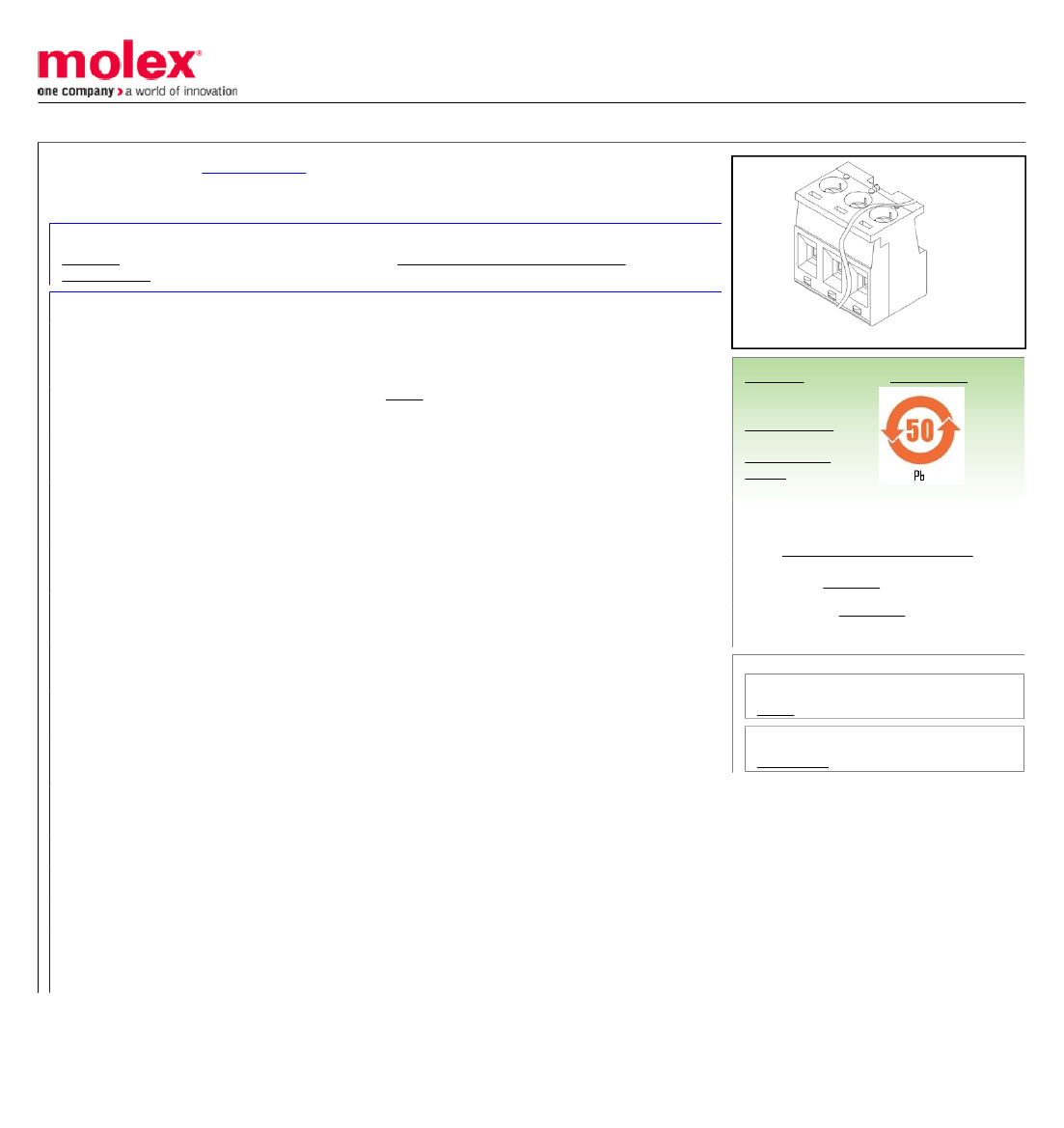

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

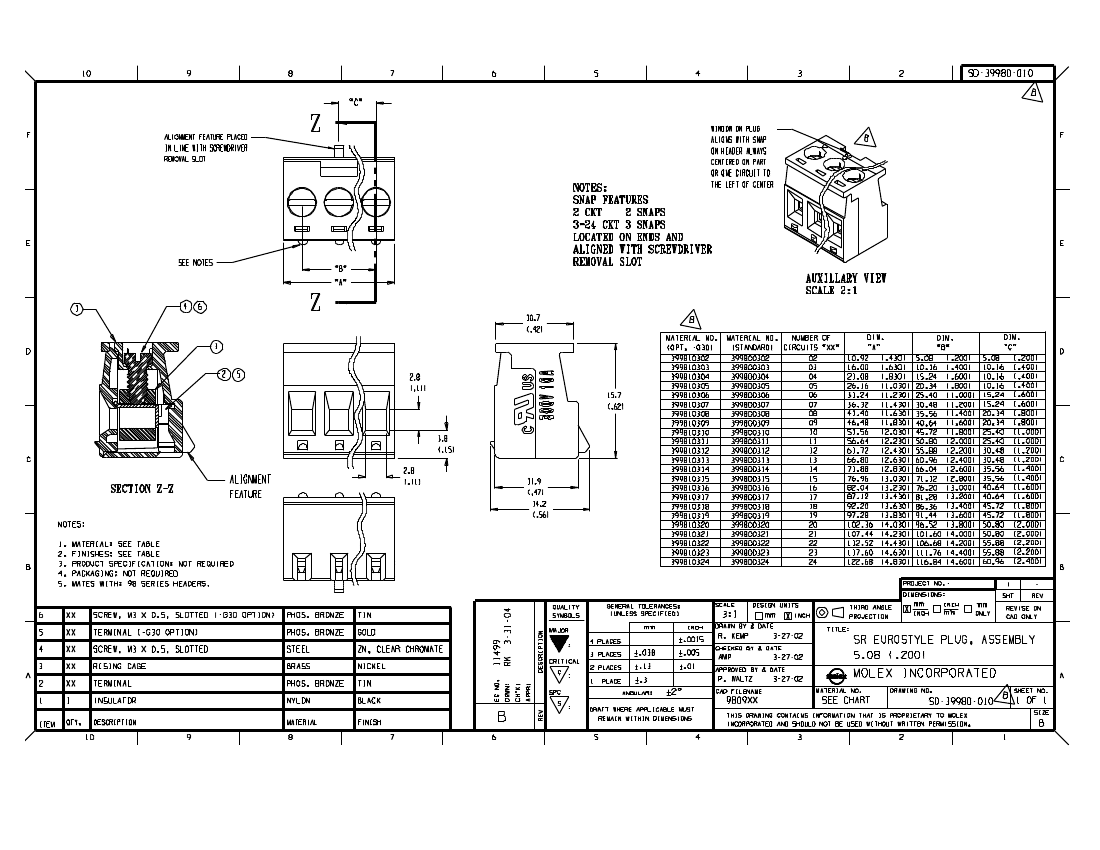

Drawing (PDF)

0399800318

Active

5.08mm (.200") Pitch Beau™ Eurostyle™ Screw Clamp Plug, 18 Circuits

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

Series

image - Reference only

EU RoHS

China RoHS

RoHS Compliant by

Exemption

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39980

Wire-to-Board

Gold plating available

Plug

USA-267

Eurostyle™Pluggable

Euro Block

Physical

Circuits (Loaded)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Resin

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Black

Horizontal

94V-0

Yes

Brass

Nylon

Vertical

N/A

0.200 In

5.08 mm

Yes

Fully

110°C

Surface Mount

12, 14, 16, 18, 20, 22, 24

Search Parts in this Series

39980Series

Mates With

39980-0418

Electrical

Current - Maximum per Contact

Voltage - Maximum

10A

300V

Material Info

Old Part Number

980918

Reference - Drawing Numbers

Sales Drawing

SD-39980-010

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

399800318 Related Products

	399800318	980918
Description	5.08mm	5.08mm
Reach Compliance Code	compli	unknow
ECCN code	EAR99	EAR99
Other features	LATCHED, POLARIZED, POLYAMIDE, 94V-0	LATCHED, POLARIZED, POLYAMIDE, 94V-0
Fastening method	SCREW	SCREW
Installation type	CABLE	CABLE
Number of layers	1	1
Rows	1	1
Number of channels	18	18
Rated current	10 A	10 A
Rated voltage	300 V	300 V
safety certificate	UL	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Conductor cross section	2.5 mm2	2.5 mm2
Wire gauge	12 AWG	12 AWG
