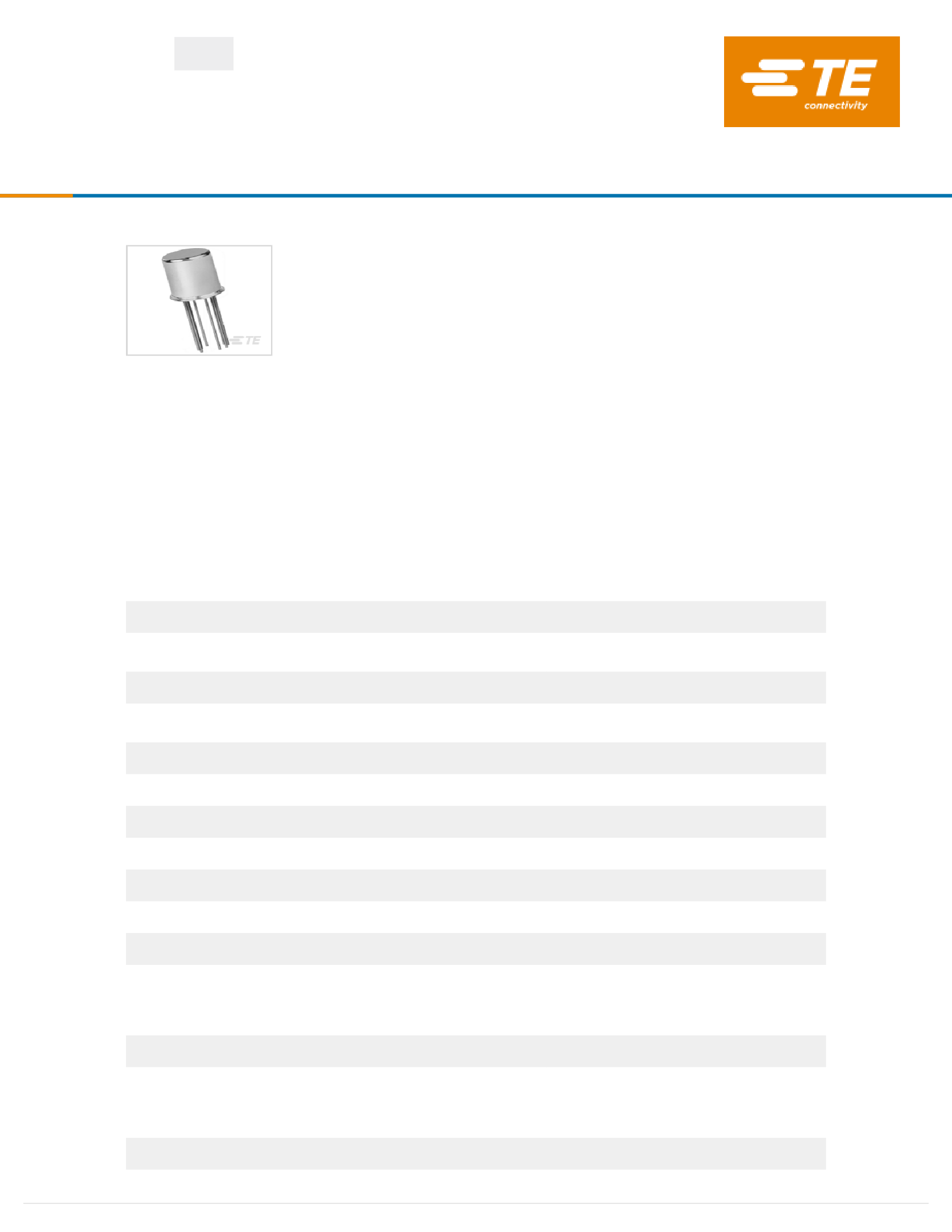

J1MAP-12XP
J1MAP-12XP = M39016/7-
Mil-Spec: [M39016/7-020P]
J1MAP-12XP
CII
ACTIVE
TE Internal #: 3-1617118-6
TE Internal Description: J1MAP-12XP = M39016/7-
Mil-Spec: [M39016/7-020P]
View on TE.com >
Relays, Contactors & Switches
>
Relays
>
Mil-Aero Relays
>
TO-5/.100 Grid Relays
Contact Arrangement:
1 Form C, SPDT, 1 C/O
Input Voltage:
12 VDC
Coil Suppression Diode:
Without
MOSFET Driver:
Without
Transistor Driver:
Without
Features
Product Type Features
MOSFET Driver
Configuration Features
Transistor Driver
Electrical Characteristics
Coil Power Measurement
Input Voltage
Coil Suppression Diode
Coil Voltage
Coil Resistance
Coil Power Rating (DC)
Coil Polarity Protection Diode
Contact Switching Voltage (Max)
Contact Features
Contact Arrangement
Contact Current Rating
Mechanical Attachment
Mounting Type
Printed Circuit Board
1 Form C, SPDT, 1 C/O
1A
Milliwatts
12 VDC
Without
12 VDC
500 Ω
288 mW
Without
28
Without
Without
For support call+1 800 522 6752
Usage Conditions
10/21/2019 05:55AM | Page 1
J1MAP-12XP
J1MAP-12XP = M39016/7-
Mil-Spec: [M39016/7-020P]
Usage Conditions
Operating Temperature Range
-65 – 125 °C
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Not Compliant
Not Compliant
Restricted Materials Above Threshold
欧洲化学品管理局最新发布的SvHCs候选清
单:
2019年7月（201）
SvHCs候选清单的声明更新至: 2019年1月
（197）
不含REACH
SVHC
欧洲化学品管理局最新发布的SvHCs候选清
单:
2019年7月（201）
SvHCs候选清单的声明更新至: 2019年1月
（197）
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Not lead free process capable
EU REACH Regulation (EC) No. 1907/2006
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.

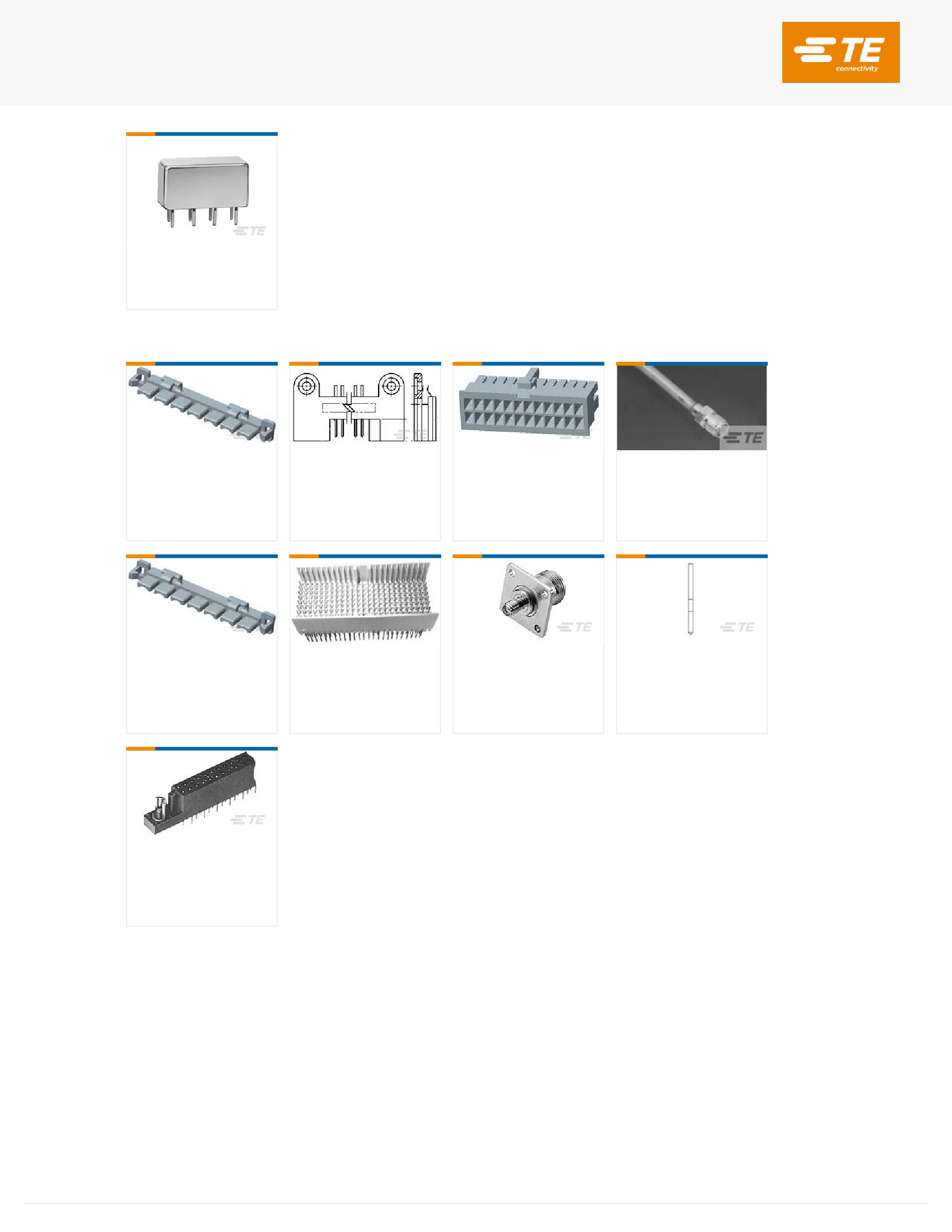

Compatible Parts
