GLASS WIRE WOUND
SENSOR TYPE GX
RTD Temperature Sensor
SPECIFICATIONS
Temperature sensor
Large temperature range
From -200°C to +400°C
No hysteresis
High vibrations resistant
Resistant to external forces and pressures
Small dimensions
High temperature stability
Short response time
One or two platinum bands layout are wounded on a glass tube
and are protected from environment by a glass layer
SENSOR SOLUTIONS
///GLASS WIRE WOUND SENSOR TYPE GX
09/2015
Page 1
GLASS WIRE WOUND SENSOR TYPE GX
RTD Temperature Sensor
FEATURES
Nominal value: 100
at 0°C
Tolerance according to IEC 60751: class W 0.3,
W 0.15 and W 0.1
Temperature coefficient
= 3850 ppm/K
Closer tolerances in restricted temperature range
Connection wires: Platinum coated nickel
The lead wires connection is pull up force
resistant
Housing advise: To be used preferably in dry
environment
Options: - Lead wires length
- Extension cable
APPLICATIONS
Environments subject to high vibrations
Cryogenics
Accurate temperature measurement with high
temperature gradient
Limited mounting space required
Food industry
H.V.A.C.
PERFORMANCE SPECIFICATIONS
Type
Desi-
Reference
gnation
Nominal
reference
(Ohm at 0°C)
L WL D AL1 AL2
(Dimensions in mm)
A
Self-
heating
in air
(K/mW)
Response time (s)
Air
v = 1 m/s
t0,5 t0,9
8
4
8
8
4
12
8
4
8
4
12
8
4
8
4
30
12
30
30
12
45
30
12
30
12
45
30
12
30
12
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
2Pt100
1Pt100
1Pt100
1Pt100
1Pt100
2Pt100
1Pt100
1Pt100
1Pt100
1Pt100
GX 518
GX 1013
GX 1018
GX 1218
GX 1513
GX 1528
GX 518
GX 1013
GX 1218
GX 1513
GX 1528
GX 518
GX 1013
GX 1218
GX 1513
Water
v = 0,4 m/s
t0,5
t0,9
Tolerance Class W 0.3 = ± (0.3+0.005 ItI) From -196°C to + 400°C
32 205 108
100
5 3 1,8 10
- 0,20
0,36
0,14
0,35
100
10 6 1,3 10
- 0,20
0,39
0,4
1,30
32 205 113
32 205 118
100
10 6 1.8 10
- 0,20
0.36
0.14
0.35
100
12 3 1.8 6
- 0,20
0.36
0.14
0.35
34 015 120
100
15 6 1.3 10
- 0,20
0.39
0.4
1.3
SB0921
32 205 228
100
15 7 2,8 10 12 0,25
0,20
0,3
1,0
Tolerance Class W 0.15 = ± (0.15+0.002 ItI) From -100°C to + 250°C
32 205 074
100
5 3 1,8 10
- 0,20
0,36
0,14
0,35
32 205 458
100
10 6 1,3 10
- 0,20
0,39
0,4
1,30
34 015 121
100
12 3 1.8 6
- 0,20
0.36
0.14
0.35
SB0920
100
15 6 1.3 10
- 0,20
0.39
0.4
1.3
32 205 241
100
15 7 2,8 10 12 0,25
0,20
0,3
1,0
Tolerance Class W 0.1 = ± (0.1+0.0017 ItI) From 0°C to + 150°C
32 205 101
100
5 3 1,8 10
- 0,20
0,36
0,14
0,35
32 205 463
100
10 6 1.3 10
- 0.20
0.39
0.4
1.3
34 015 123
100
12 3 1.8 6
- 0,20
0.36
0.14
0.35
SB0919
100
15 6 1.3 10
- 0,20
0.39
0.4
1.3
SENSOR SOLUTIONS
/// GLASS WIRE WOUND SENSOR
09/2015TYPE GX
Page 2
GLASS WIRE WOUND SENSOR TYPE GX
RTD Temperature Sensor
VALUES FOR PT100
°C
-200
-150
-100
-50
0
50
100
Ohms
18.52
39.72
60.26
80.31
100
119.40
138.51
Ohms/°C
0.432
0.417
0.405
0.397
0.391
0.385
0.379
°C
150
200
250
300
350
400
Ohms
157.33
175.86
194.10
212.05
229.72
247.09
Ohms/°C
0.374
0.368
0.362
0.356
0.350
0.345

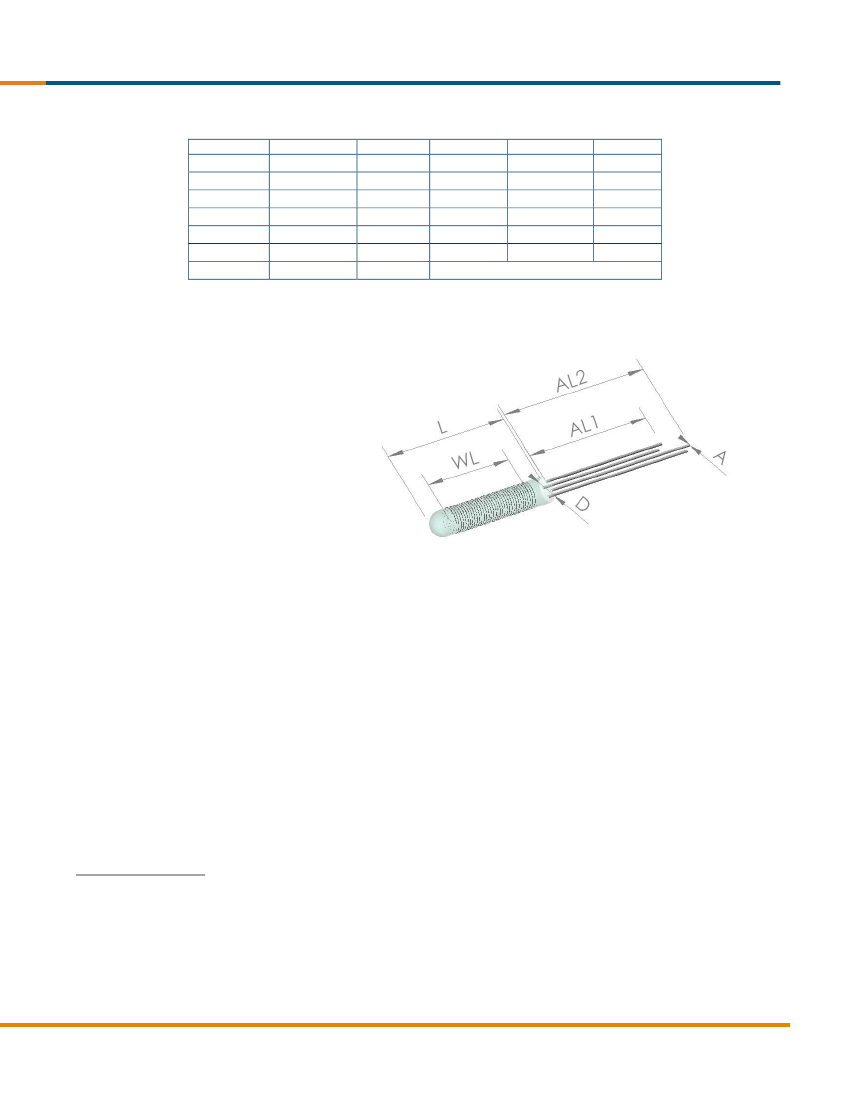

BLOCK DIAGRAM
DIMENSIONAL TOLERANCES:
L
D
AL
A
(length of body)
(diameter of body)
(connection wire length)
(connection wire diameter)
=
1mm
= +0,1;-0,3mm
=
2mm
=
0,02 mm
ORDERING INFORMATION
