5569-06A1MS-210 datasheet, PDF

Datasheet> All Categories > 5569-06A1MS-210

Preview

5569-06A1MS-210: Description4.20mm; File Size343KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

5569-06A1MS-210 Overview

4.20mm

Preview

Download Datasheet

View All

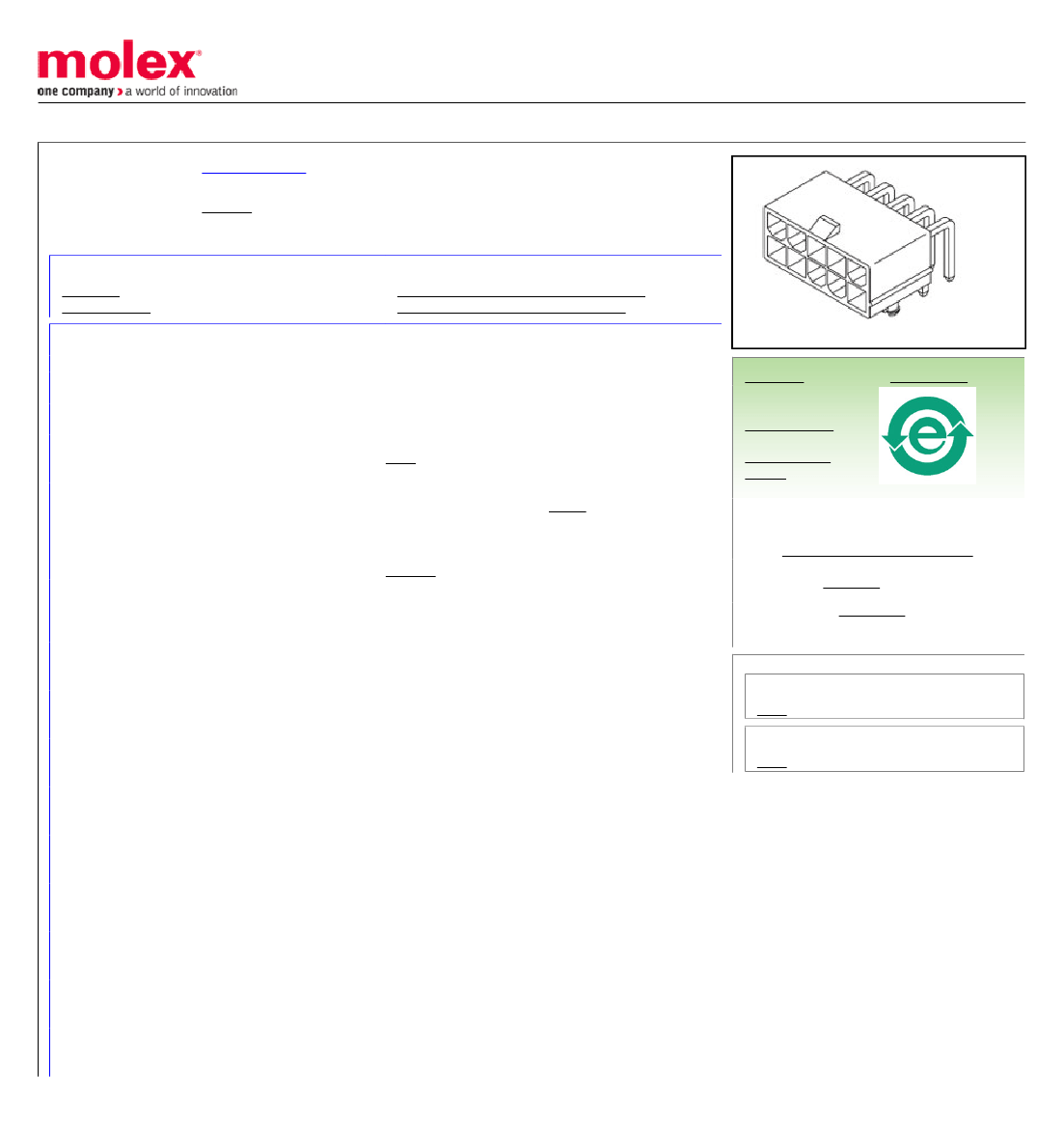

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0050362379

Active

minifit_jr

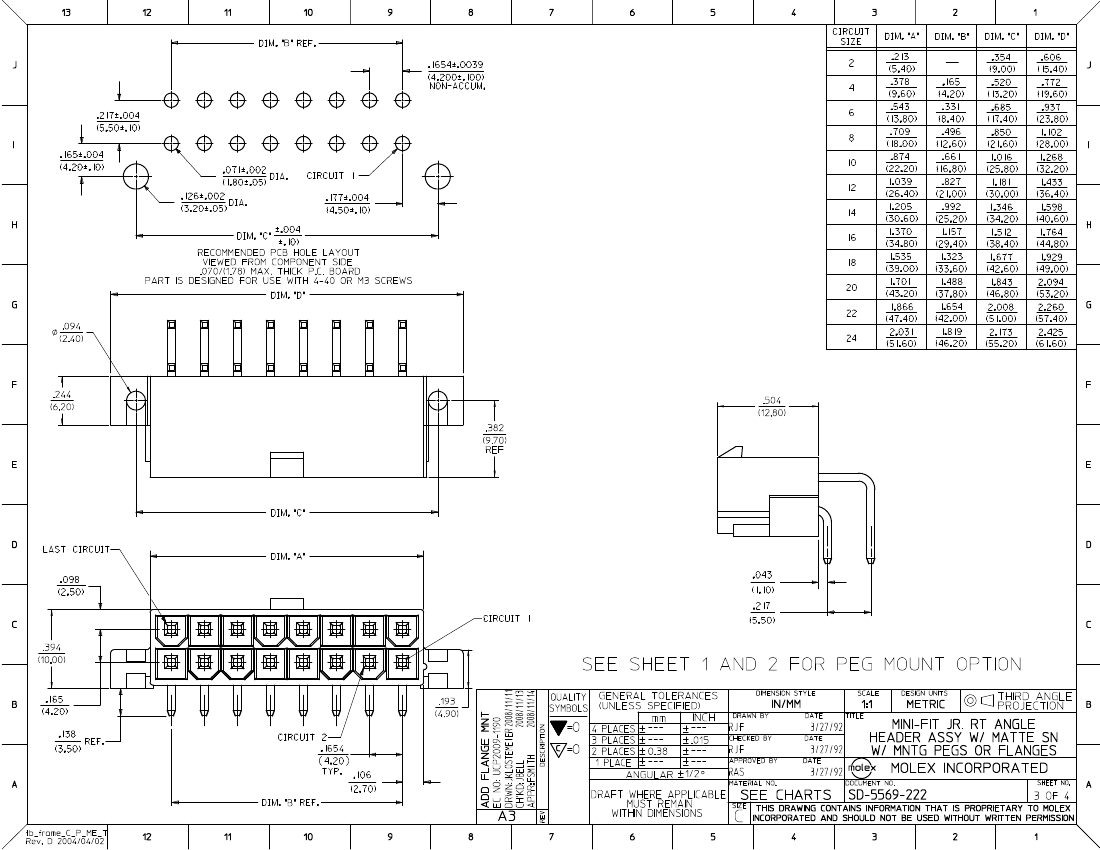

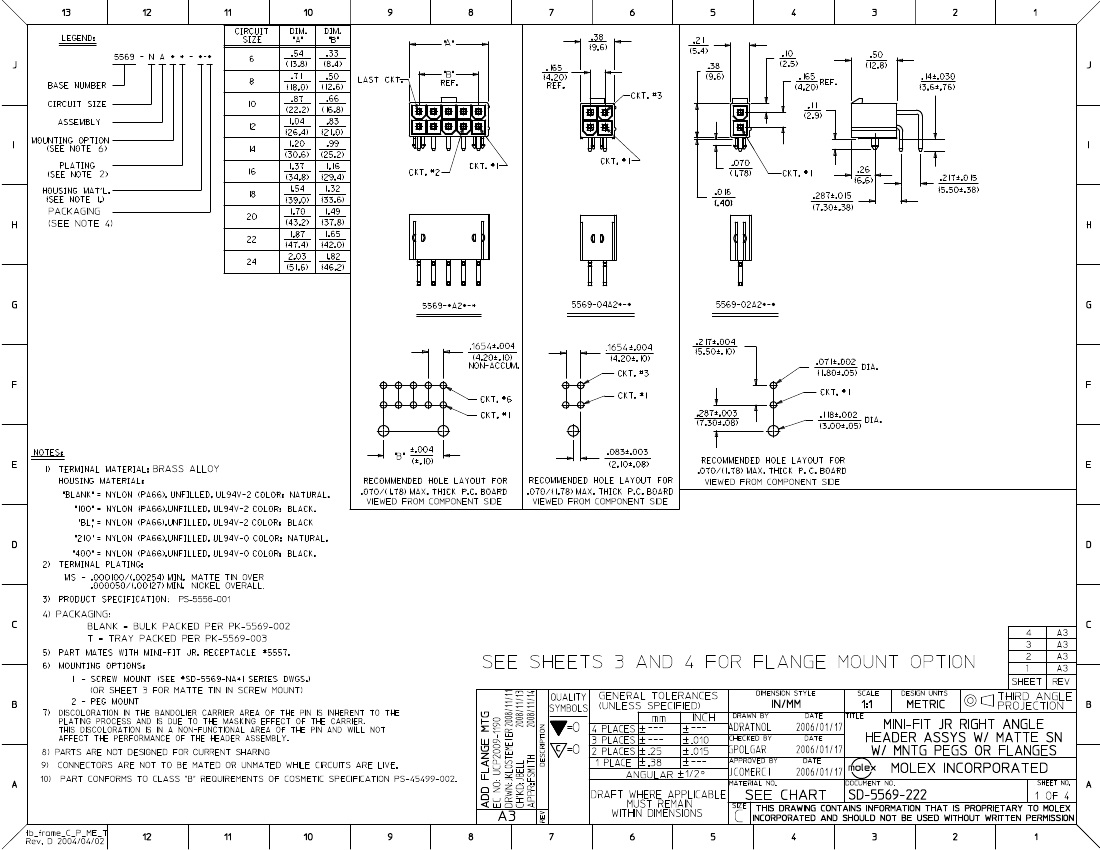

4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with PCB

Mounging Peg, 6 Circuits, PA Polyamide Nylon 6/6, 94V-2, Matte Tin (Sn)

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Comments

PCB Headers

5569

Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex Product specification PS-5556-001 for additional

current de-rating information.

minifit_jr

Mini-Fit Jr.™

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Natural

94V-2

None

Yes

Brass

Tin

Nickel

Nylon

Right Angle

0.142 In

3.60 mm

Yes

0.070 In

1.78 mm

Bag

0.165 In

4.20 mm

0.165 In

Search Parts in this Series

5569Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing

5569-06A1MS-210 Related Products

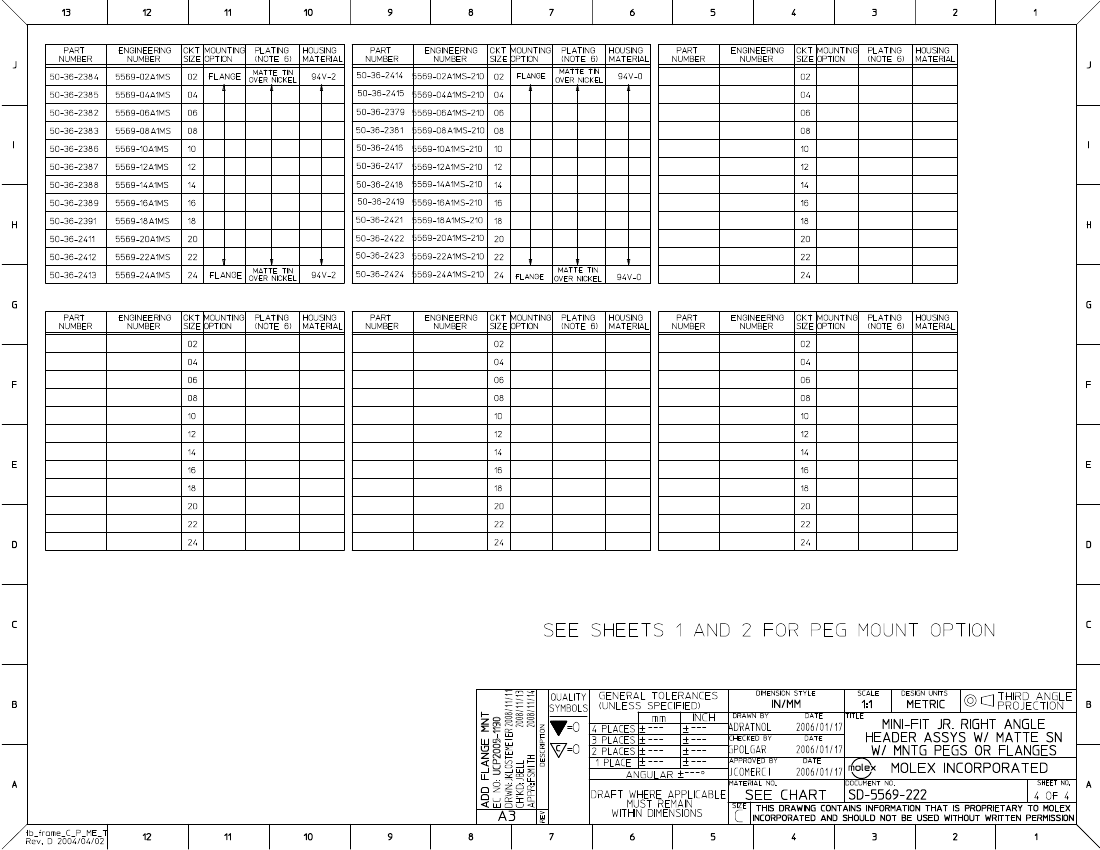

	5569-06A1MS-210	50-36-2379	0050362379	0050362381
Description	4.20mm	4.20mm	4.20mm (.165") pitch mini-fit Jr.? header, dual row, right angle, with pcb mounging peg, 6 circuits, PA polyamide nylon 6/6, 94v-2, matte tin (Sn)	Board Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Natural Insulator, Plug
