5962-01-305-3123 datasheet, PDF

5962-01-305-3123: DescriptionProgrammable Logic Device, 30ns, PAL-Type, CMOS, CDIP24,; CategoryProgrammable logic devices Programmable logic; File Size751KB，13 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

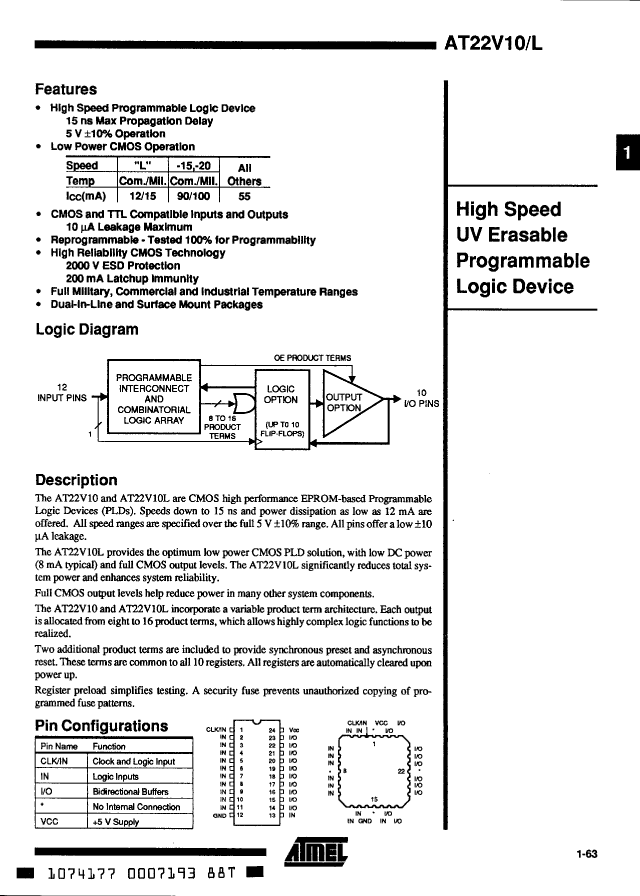

5962-01-305-3123 Overview

Programmable Logic Device, 30ns, PAL-Type, CMOS, CDIP24,

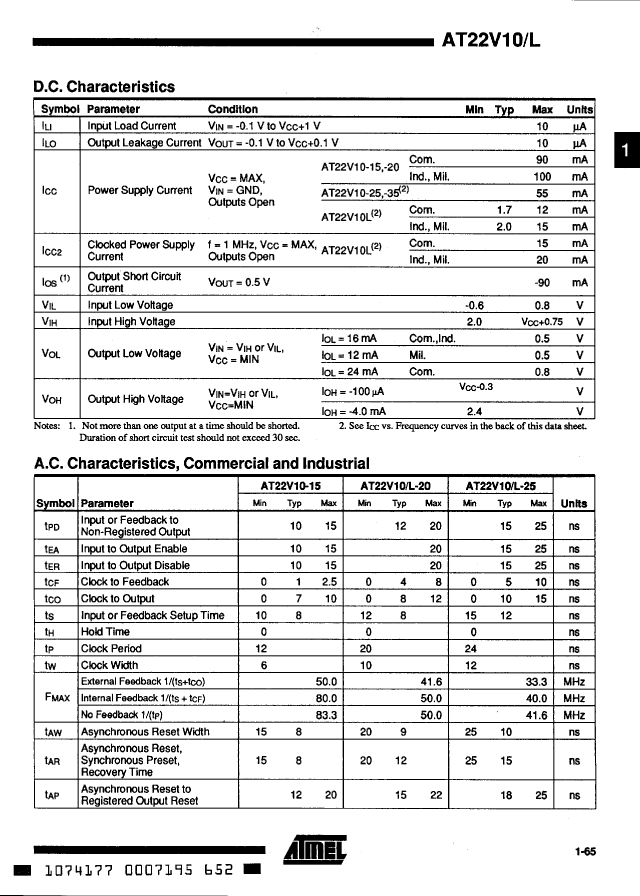

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
package instruction	DIP, DIP24,.3
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C

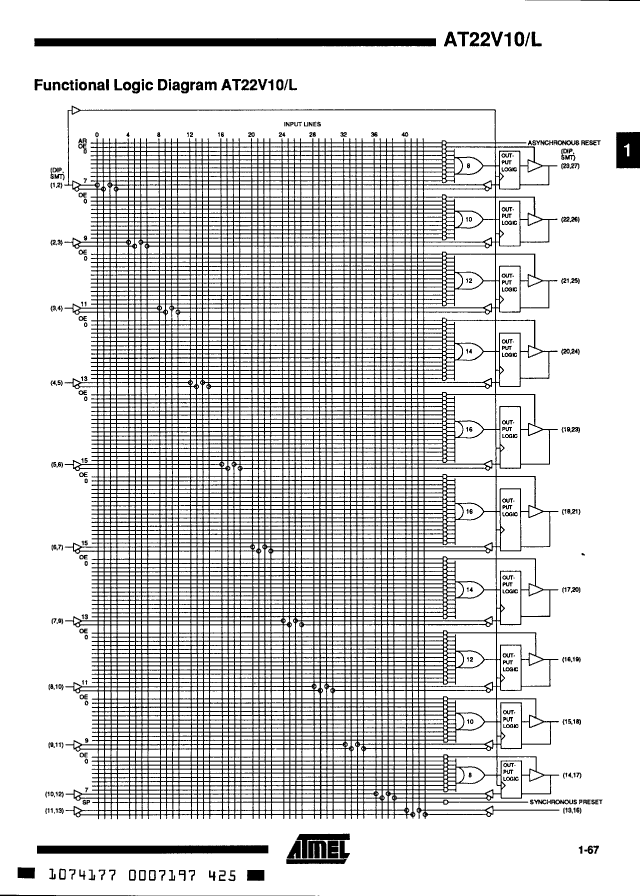

Architecture	PAL-TYPE
maximum clock frequency	25 MHz
JESD-30 code	R-XDIP-T24
Number of entries	22
Output times	10
Number of product terms	132
Number of terminals	24

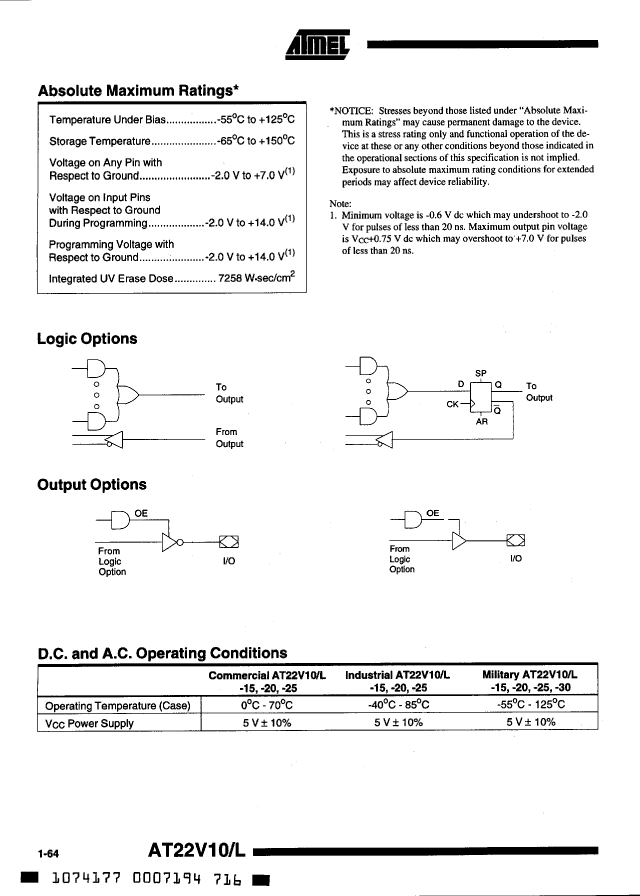

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output function	MACROCELL
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V

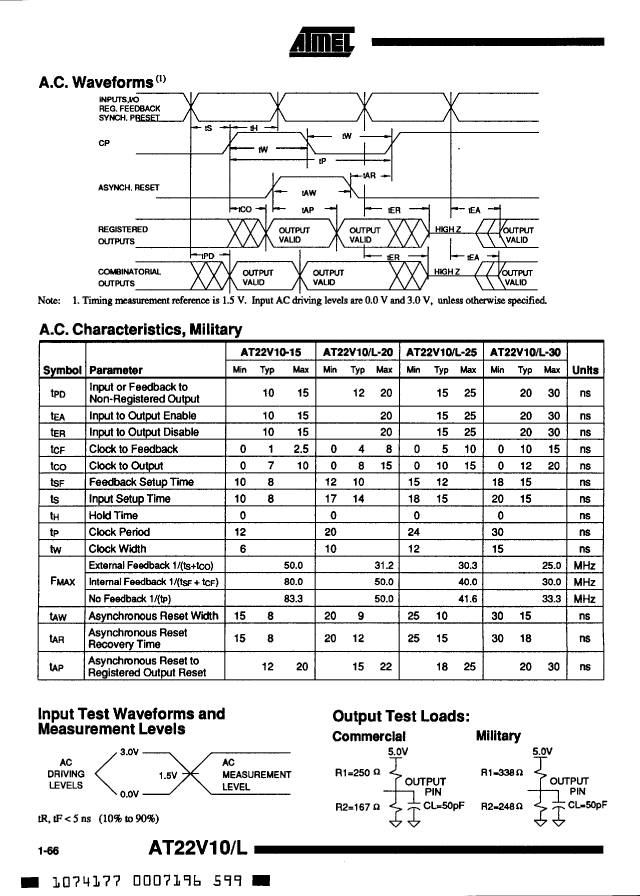

propagation delay	30 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
