O-1.000000M-AVCQO08-25-3.3-B-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> O-1.000000M-AVCQO08-25-3.3-B-T

Preview

O-1.000000M-AVCQO08-25-3.3-B-T: DescriptionCMOS/TTL Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, DIL-8/4; CategoryPassive components oscillator; File Size396KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric View All

O-1.000000M-AVCQO08-25-3.3-B-T Overview

CMOS/TTL Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, DIL-8/4

O-1.000000M-AVCQO08-25-3.3-B-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Auris
package instruction	ROHS COMPLIANT, DIL-8/4
Reach Compliance Code	unknown
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	25%
linearity	10%
Manufacturer's serial number	AVCQO08
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/TTL
physical size	13.0mm x 13.0mm x 5.9mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %

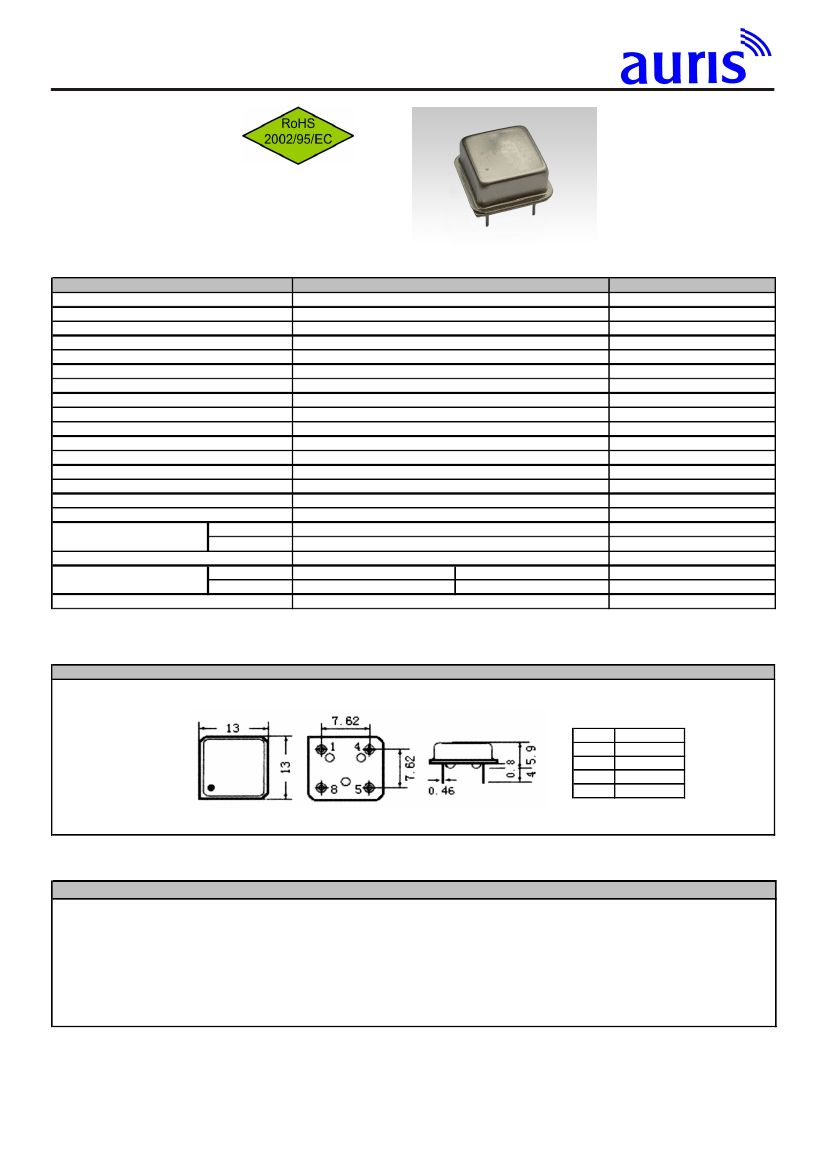

O-1.000000M-AVCQO08-25-3.3-B-T Preview

Oscillator THT, voltage-controlled

AVCQO 08

Features:

- Standard DIL 8 package

- Wide frequency range

- Pulling range ±100 ppm

- Clipping sine wave

Specifications

Series

Norminal frequency range

Frequency stability

Absolute pull range

Operating temp. range

Control voltage range

Center frequency

Linearity

Input impedance

Modulation bandwidth

Supply voltage

Supply current

Storage temperature range

Rise & Fall Time

Output Waveform

Symmetry

Output Voltage

Output Current

Phase Noise

Start-up Time

V

OH

V

OL

10HZ

10KHz

Specifications

AVCQO 08

1.00MHz ~ 160.00 MHz

±25ppm ~ ±100ppm

±50ppm min ~ ±100ppm min

0°C ~ + 70°C ~ -40°C ~ + 85°C

1.65V ±1.65V or 2.5V ±2.0V

1.65V ±0.05V or 2.5V ±0.05V

±10%

10k Ohm

>10 kHz

+3.3 V or +5.0 V, ±5%

50mA

-40°C ~ +85°C

10ns

CMOS,TTL

50% ±10%

2.4Vdd or 0.9Vdd

0.4Vdd or 0.1Vdd

±8mA

-75dbc/Hz (1.0MHz~40.0MHz)

-145dbc/Hz (1.0MHz~40.0MHz)

-50dbc/Hz (40.0MHz~160.0MHz)

-90dbc/Hz (40.0MHz~160.0MHz)

Remarks

Please specify

Min

Please specify

Max

Min

Max

10ms

Max

Drawing

AVCQO 08

1

4

5

8

Connection

VC

GND

OUT

VDC

Dimensions in mm

Order key

O

Part

O=Oscillator

- 40.000000M

Frequency

M=MHz

- AVCQO 08

Type/Package

AVCQO=Voltage controlled QO

08=DIL 8

- 50

Tolerance

±ppm

- 5.0

Voltage

5.0=5.0Volt

3.3=3.3Volt

-A

Temperature

A=

0°C ~ +70°C

-T

Option

X=Special options

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

E= -40°C ~ +85°C

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.

3.8

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
