TX-4020-EAJ-7081-25M0000000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TX-4020-EAJ-7081-25M0000000

TX-4020-EAJ-7081-25M0000000: DescriptionHCMOS Output Clock Oscillator, 25MHz Nom; CategoryPassive components oscillator; File Size619KB，4 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TX-4020-EAJ-7081-25M0000000 Overview

HCMOS Output Clock Oscillator, 25MHz Nom

TX-4020-EAJ-7081-25M0000000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vectron International, Inc.
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	5 ppm
frequency stability	0.07%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	13.5 pF
physical size	20.7mm x 13.1mm x 9.3mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

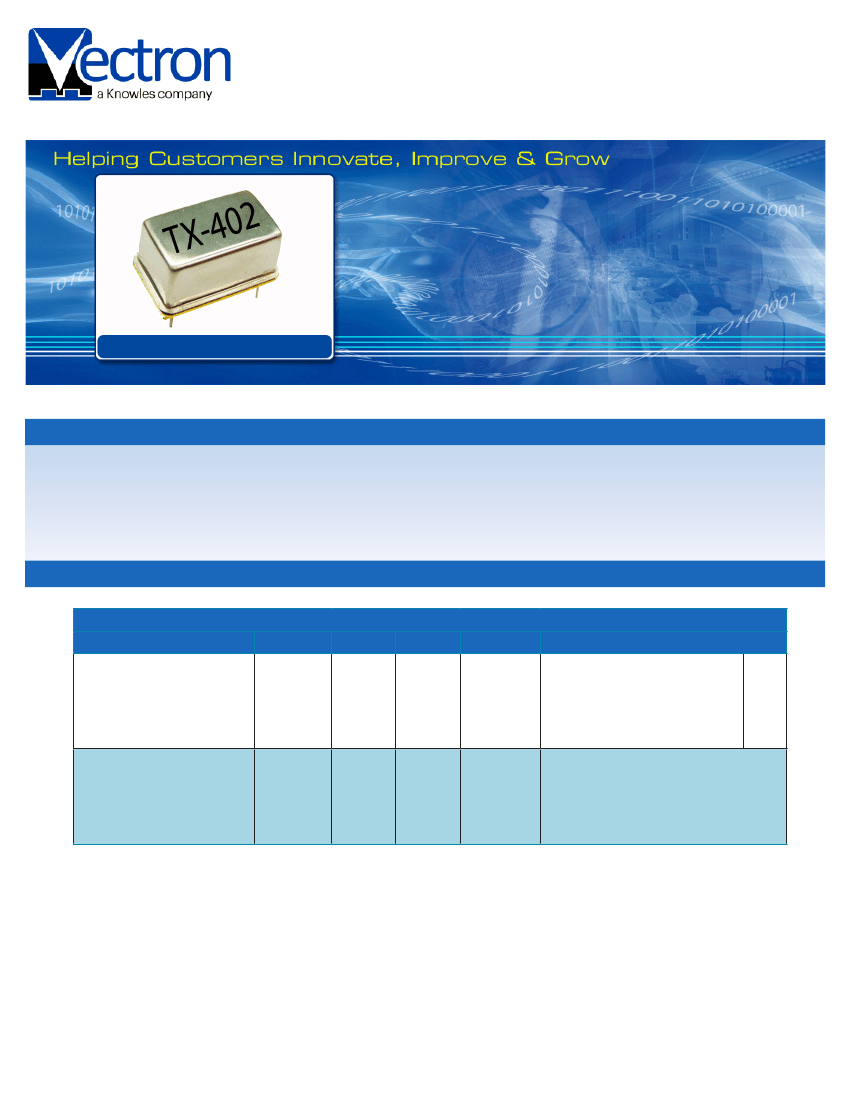

Temperature Compensated Crystal Oscillator

High Precision

TX-402

Features

• High Precision TCXO

• OCXO Replacement

• OCXO Temperature Performance

• Low power consumption

• Low cost

• Tight Tolerances

Applications

• Base Station

• Test Equipment

• Femto Base Station

• Communication Equipment

• Digital Switching

Performance Specifications

Frequency Stabilities

(Standard - 6.4 to 50 MHz)

Parameter

vs. operating temperature range

(referenced to +25°C)

Min

-280

-140

-100

-70

-50

-0.5

-10

-1.0

-3.0

Typical

Max

+280

+140

+100

-100

+70

+50

+0.5

+10

+1.0

+3.0

Units

ppb

ppm

ppb

ppm

Condition

-40 to +85°C

-40 to + 85°C for some frequencies

-20 to +70°C

-20 to + 70°C for some frequencies

at time of shipment, nominal EFC

±5% static

Load ±5% static

after 30 days of operation

Options

Initial tolerance

vs. supply voltage change

vs. load change

vs. aging / day

vs. aging / year

vs. aging / 10 years

Page 1 of 4

Vectron International • 267 Lowell Road, Suite 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com

TX-4020-EAJ-7081-25M0000000 Related Products

	TX-4020-EAJ-7081-25M0000000	TX-4020-DAJ-5081-25M0000000	TX-4020-DAJ-7081-25M0000000	TX-4020-EAJ-5081-25M0000000
Description	HCMOS Output Clock Oscillator, 25MHz Nom	HCMOS Output Clock Oscillator, 25MHz Nom	HCMOS Output Clock Oscillator, 25MHz Nom	HCMOS Output Clock Oscillator, 25MHz Nom
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.
Reach Compliance Code	compliant	compliant	compliant	compliant
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Maximum control voltage	3 V	4.5 V	4.5 V	3 V
Minimum control voltage	0.3 V	0.5 V	0.5 V	0.3 V
maximum descent time	5 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO
Frequency offset/pull rate	5 ppm	5 ppm	5 ppm	5 ppm
frequency stability	0.07%	0.05%	0.07%	0.05%
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	25 MHz	25 MHz	25 MHz	25 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS
Output load	13.5 pF	13.5 pF	13.5 pF	13.5 pF
physical size	20.7mm x 13.1mm x 9.3mm	20.7mm x 13.1mm x 9.3mm	20.7mm x 13.1mm x 9.3mm	20.7mm x 13.1mm x 9.3mm
longest rise time	5 ns	5 ns	5 ns	5 ns
Maximum supply voltage	3.465 V	5.25 V	5.25 V	3.465 V
Minimum supply voltage	3.135 V	4.75 V	4.75 V	3.135 V
Nominal supply voltage	3.3 V	5 V	5 V	3.3 V
surface mount	NO	NO	NO	NO
maximum symmetry	60/40 %	60/40 %	60/40 %	60/40 %
