Spec Sheet
Soft Termination MLCC for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
HMJ316B7472MFHT
Features
Item Summary
4700pF±20%, 100V,
X7R, 1206/3216 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
4700 pF ± 20 %
1206/3216
100 V
3.5 %
X7R
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.15 mm
1.6 ±0.15 mm
1.15 ±0.10 mm
0.60 +0.4/-0.3 mm
2018.11.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

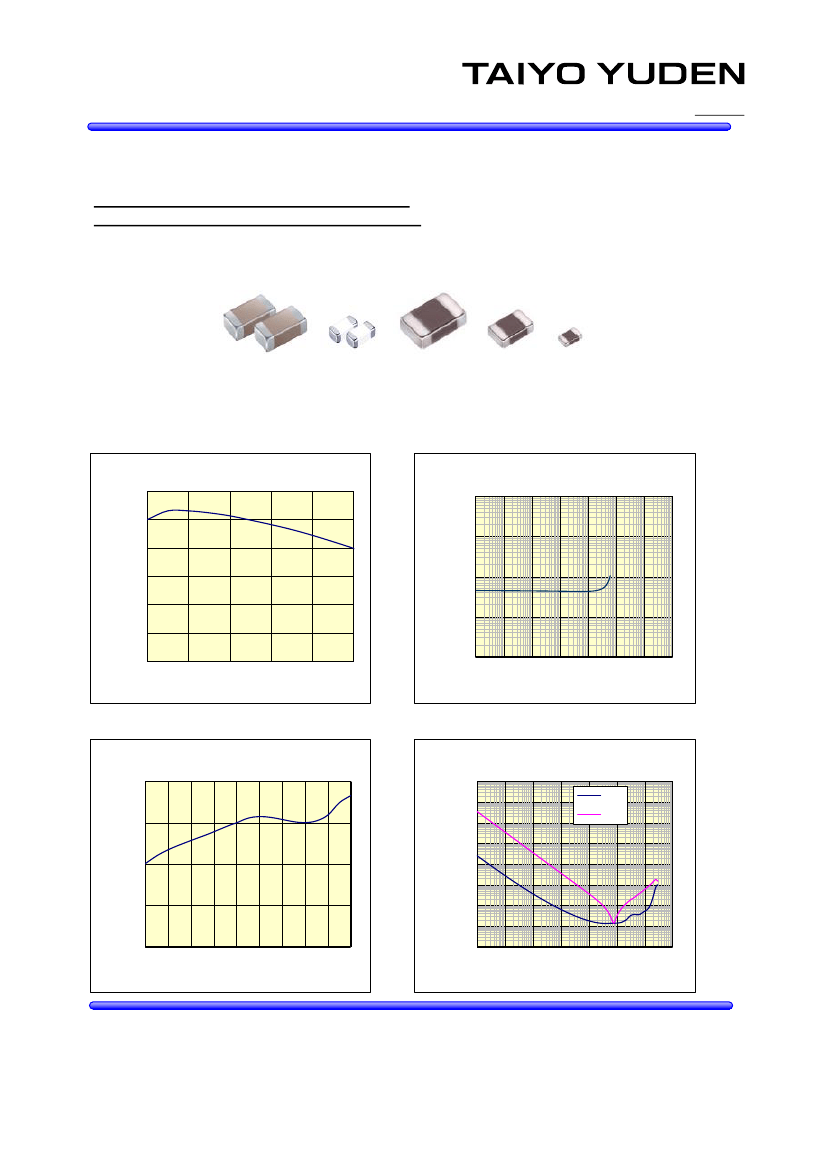

Multi Layer Ceramic Capacitor
○HMJ316B7472MFHT
100V 3216 X7R 4700pF +/- 20% t=1.25mmMAX
100V 1206 X7R 4700pF +/- 20% t=0.049inchMAX
-Electrical Characteristics Data-
17QA07
RoHS compliance product
10
0
HMJ316B7472MFHT
DC Bias Char.
1000000
HMJ316B7472MFHT
Capacitance Freq.
100000
-20
Capacitance[pF]
-10
dC/C[%]
10000
-30
-40
1000
-50
0
20
40
60
80
DC Bias Voltage[V]
100
100
0.001 0.01 0.1
1
10
100 1000 10000
Frequency[MHz]
HMJ316B7472MFHT
Capacitance Temp.
10
1000000
100000
0
10000
HMJ316B7472MFHT
Impedance,ESR Freq.
ESR
Z
-10
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
-20
0.1
-30
0.01
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
