Compact Technology
MBR360 thru MBR3200
REVERSE VOLTAGE -
60
to
200
Volts
FORWARD CURRENT -
3.0
Amperes
SCHOTTKY BARRIER RECTIFIERS
FEATURES
Metal-Semiconductor junction with guard ring
Epitaxial construction
Low forward voltage drop
High current capability
The plastic material carries UL recognition 94V-0
For use in low voltage,high frequency inverters,free
wheeling,and polarity protection applications
A
DO-201AD
B
A
C
D
MECHANICAL DATA
Case : JEDEC DO-201AD molded plastic
Polarity : Color band denotes cathode
Weight : 1.071grams
Mounting position : Any
Dim.
A
B
C
DO-201AD
Min.
Max.
25.4
8.50
1.20
-
9.50
1.30
5.60
5.0
D
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
1
of 2
MBR360
thru
MBR3200
Compact Technology
MBR360 thru MBR3200

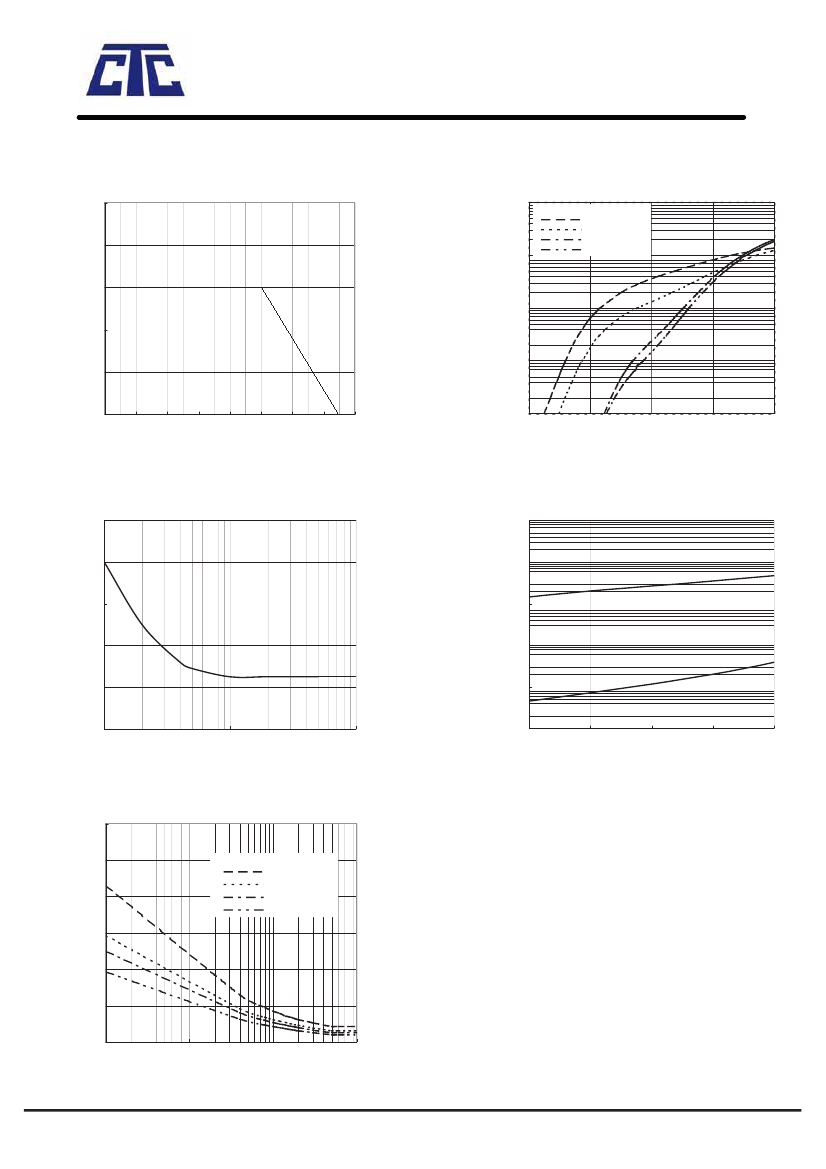

FIG. 2-TYPICAL FORWARD CHARACTERISTICS
100.00
INSTANTANEOUS FORWARD CURRENT (A)
MBR360
MBR380~MBR3100
MBR150
MBR3200
FIG. 1-TYPICAL FORWARD CURRENT DERATING CURVE
5.0
AVERAGE FORWARD CURRENT,(A)
4.0
10.00
3.0
1.00
2.0
0.10
1.0
0.0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE ( )
0.01
0.2
0.4
0.6
FORWARD VOLTAGE (V)
0.8
1.0
FIG. 3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT
100
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
100.000
PEAK FORWARD SURGE CURRENT (A)
REVERSE LEAKAGE CURRENT (mA)
80
10.000
100
60
1.000
40
0.100
20
0.010
25
0
1
10
NUMBER OF CYCLES AT 60Hz
100
0.001
20%
40%
60%
80%
100%
PERCENTAGE RATED PEAK REVERSE VOLTAGE (%)
FIG. 5-TYPICAL JUNCTION CAPACITANCE
600
500
JUNCTION CAPACITANCE (pF)
MBR360
MBR380~MBR3100
400
MBR3150
MBR3200
300
200
100
0
0
1
10
100
REVERSE VOLTAGE (V)
2
of 2
MBR360
thru
MBR3200
