361205 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 361205

361205: Description5 CONTACT(S), FEMALE, POWER CONNECTOR, CLAMP SCREW; CategoryThe connector The connector; File Size268KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric Compare View All

361205 Overview

5 CONTACT(S), FEMALE, POWER CONNECTOR, CLAMP SCREW

361205 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compli
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	CLAMP SCREW
Total number of contacts	5
UL Flammability Code	94V-2

Preview

Download Datasheet

View All

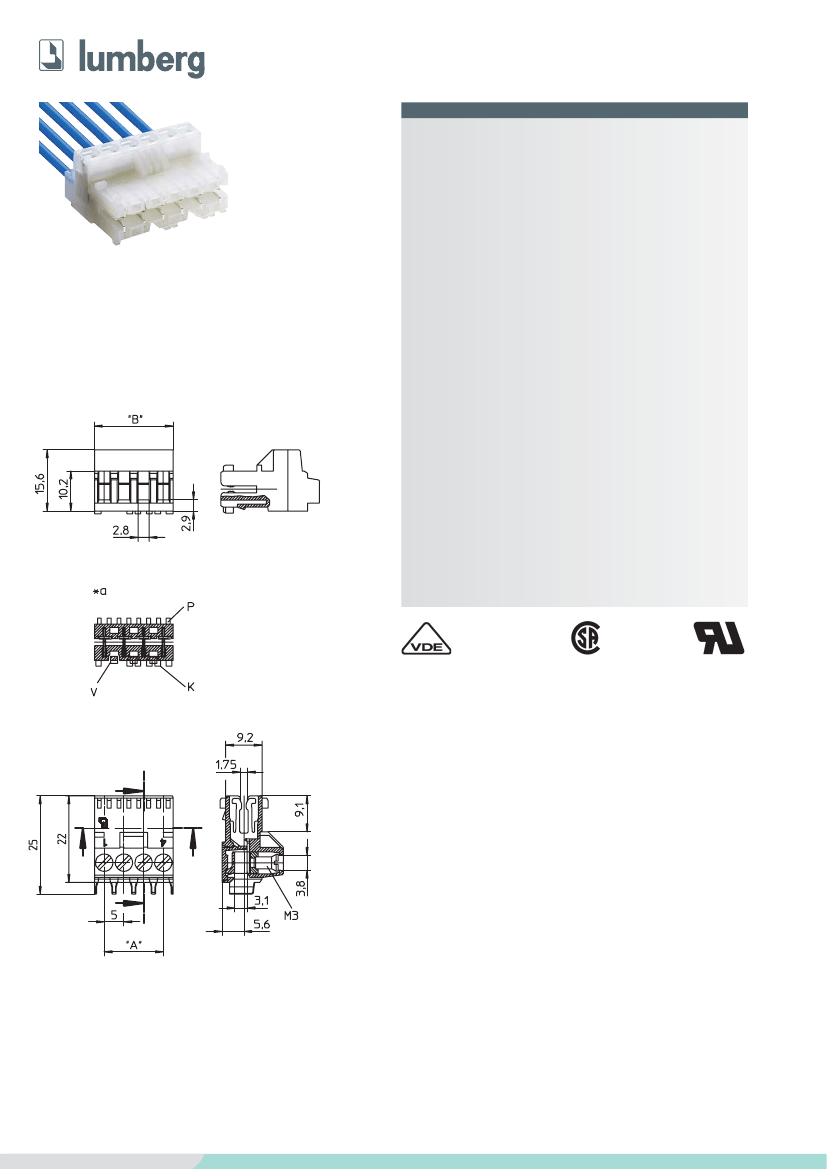

RAST-5-Steckverbinder, Raster 5,0 mm

RAST 5 connectors, pitch 5.0 mm

Connecteurs RAST 5, pas 5,0 mm

3612

RAST-5-Steckverbinder für direktes Stecken, mit Schraub-

anschluss, mit Fahrstuhlklemmkörper mit Untersteckschutz,

mit Innenverrastung, ohne Teilungsverlust anreihbar

1. Temperaturbereich

3612

3612 M08

2. Werkstoffe

Kontaktträger 3612

Kontaktträger 3612 M08

Kontaktfeder

Klemmkörper

Schraube

3. Mechanische Daten

≤

4,0 N

≥

1,0 N

0,5 Nm

Leiterplatte 1,5 ± 0,14 mm in Ver-

bindung mit Führungsrahmen 3602

Anschließbare Leiter Schraubanschluss

Max. Querschnitt

Massivleiter

4,0 mm

Litzenleiter

2,5 mm

Litzenleiter mit Aderendhülse

2,5 mm

Kodiervorschläge im Internet unter www.lumberg.com

Steckkraft/Kontakt

Ziehkraft/Kontakt

Prüfdrehmoment/Schraube

Kontaktierung mit

4. Elektrische Daten

Durchgangswiderstand

Bemessungsstrom

Bemessungsspannung

Isolierstoffgruppe 3612

Isolierstoffgruppe 3612 M08

Kriechstrecke

Luftstrecke

Isolationswiderstand

-40 °C/+125 °C

-40 °C/+130 °C

PA, V2 nach UL 94

CuSn, verzinnt

CuZn, vernickelt

Stahl, verzinkt und chromatiert

≤

5 mΩ

6 A bei T

70 °C

250 V AC

I (CTI

≥

600)

IIIa (CTI

≥

275)

≥

2,6 mm

≥

2,6 mm

> 10 GΩ

Bauteil glühdrahtbeständig (GWT 750 °C), Prüfung nach IEC 60695-2-11,

Beurteilung nach IEC 60335-1 (Flamme < 2 s)

gemessen mit einem polierten Stahlflachstift, Nennmaß 1,5 mm

nach DIN EN 60999

nach DIN EN 60664/IEC 60664

Reg.-Nr. B317

*a K = Kodierung

K = keying

K = codage

P = Positionierung

P = positioning

P = positionnement

V = Innenverrastung

V = interior locking

V = verrouillage intérieur

361205 Related Products

	361205	3612	361202	361203	361204	361206
Description	5 CONTACT(S), FEMALE, POWER CONNECTOR, CLAMP SCREW	2 CONTACT(S), FEMALE, POWER CONNECTOR, CLAMP SCREW	2 CONTACT(S), FEMALE, POWER CONNECTOR, CLAMP SCREW	3 CONTACT(S), FEMALE, POWER CONNECTOR, CLAMP SCREW	4 CONTACT(S), FEMALE, POWER CONNECTOR, CLAMP SCREW	6 CONTACT(S), FEMALE, POWER CONNECTOR, CLAMP SCREW
Maker	Lumberg	-	Lumberg	-	Lumberg	Lumberg
Reach Compliance Code	compli	-	compli	-	compli	compli
Connector type	RECTANGULAR POWER CONNECTOR	-	RECTANGULAR POWER CONNECTOR	-	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN	-	TIN	-	TIN	TIN
Contact point gender	FEMALE	-	FEMALE	-	FEMALE	FEMALE
DIN compliance	NO	-	NO	-	NO	NO
empty shell	NO	-	NO	-	NO	NO
Filter function	NO	-	NO	-	NO	NO
IEC compliance	NO	-	NO	-	NO	NO
MIL compliance	NO	-	NO	-	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO	-	NO	NO
Installation type	CABLE	-	CABLE	-	CABLE	CABLE
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE	-	POLYAMIDE	-	POLYAMIDE	POLYAMIDE
Termination type	CLAMP SCREW	-	CLAMP SCREW	-	CLAMP SCREW	CLAMP SCREW
Total number of contacts	5	-	2	-	4	6
UL Flammability Code	94V-2	-	94V-2	-	94V-2	94V-2
