380011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 380011

380011: Description11 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET; CategoryThe connector The connector; File Size87KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric View All

380011 Overview

11 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET

380011 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MULTIMODUL
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	3800
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

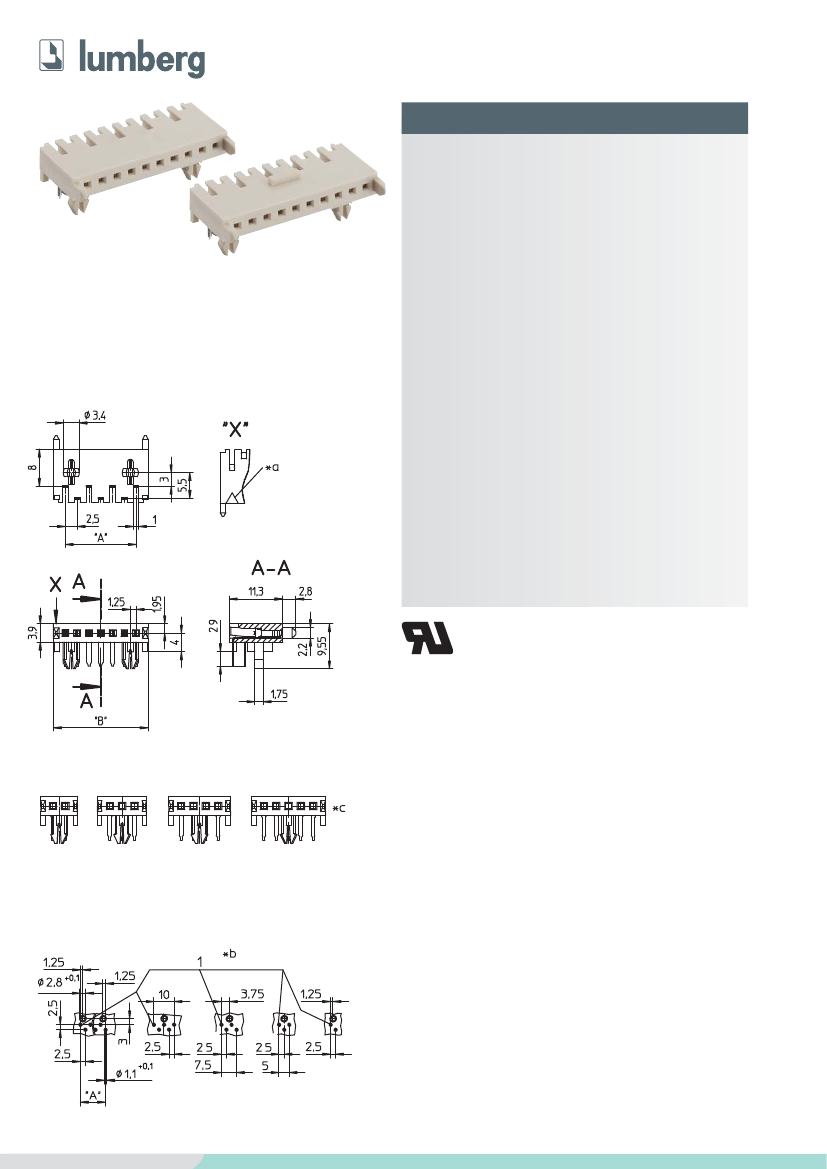

Multimodul™-Steckverbinder, Raster 2,5 mm

Multimodul™ connectors, pitch 2.5 mm

Connecteurs Multimodul™, pas 2,5 mm

3800

3801

Multimodul™-Buchsenleiste, abgewinkelt, mit Haltekrallen

3800: ohne Verriegelungsnase

3801: mit Verriegelungsnase

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktfeder

3. Mechanische Daten

PA GF, V0 nach UL 94

CuSn, verzinnt

-40 °C/+120 °C

3800

3801

Steckkraft/Kontakt

Ziehkraft/Kontakt

Kontaktierung

3800 mit

3801 mit

4. Elektrische Daten

≤

4,0 N

≥

0,5 N

Stiftleiste 3851

Stiftleiste 3855

Bemessungsstrom

3 A bei T

25 °C

250 V AC

Bemessungsspannung

IIIa (CTI

≥

250)

Isolierstoffgruppe

Kriechstrecke

≥

3 mm

Luftstrecke

≥

3 mm

Isolationswiderstand

> 1 GΩ

Bauteil glühdrahtbeständig (GWT 750 °C), Prüfung nach IEC 60695-2-11,

Beurteilung nach IEC 60335-1 (Flamme < 2 s)

gemessen mit einem polierten Stahlstift, Nennmaß 0,65 mm

nach DIN EN 60664/IEC 60664

in Vorbereitung

in preparation

en préparation

*a Markierung Kontakt 1

marking of contact 1

marque du contact 1

*b Lochbild in der Leiterplatte, von der Lötseite gesehen

printed circuit board layout, solder side view

modèle de la carte imprimée, vue du côté à souder

*c 2- bis 5-polig mit nur einer Haltekralle

2 to 5 poles with only one retaining hook

2 à 5 pôles avec un seul crochet de fixation

www.lumberg.com

11/2009
