DBCIDCC310AG1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBCIDCC310AG1

DBCIDCC310AG1: DescriptionIDC IDC BOX HEADER STRAIGHT; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCC310AG1 Overview

IDC IDC BOX HEADER STRAIGHT

DBCIDCC310AG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DUBILIER
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.358 inch
subject depth	0.358 inch
body length	0.799 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

IDC

Industry compatible

Competitively priced

Gold plated contacts

1.27mm pitch

2.54mm row spacing

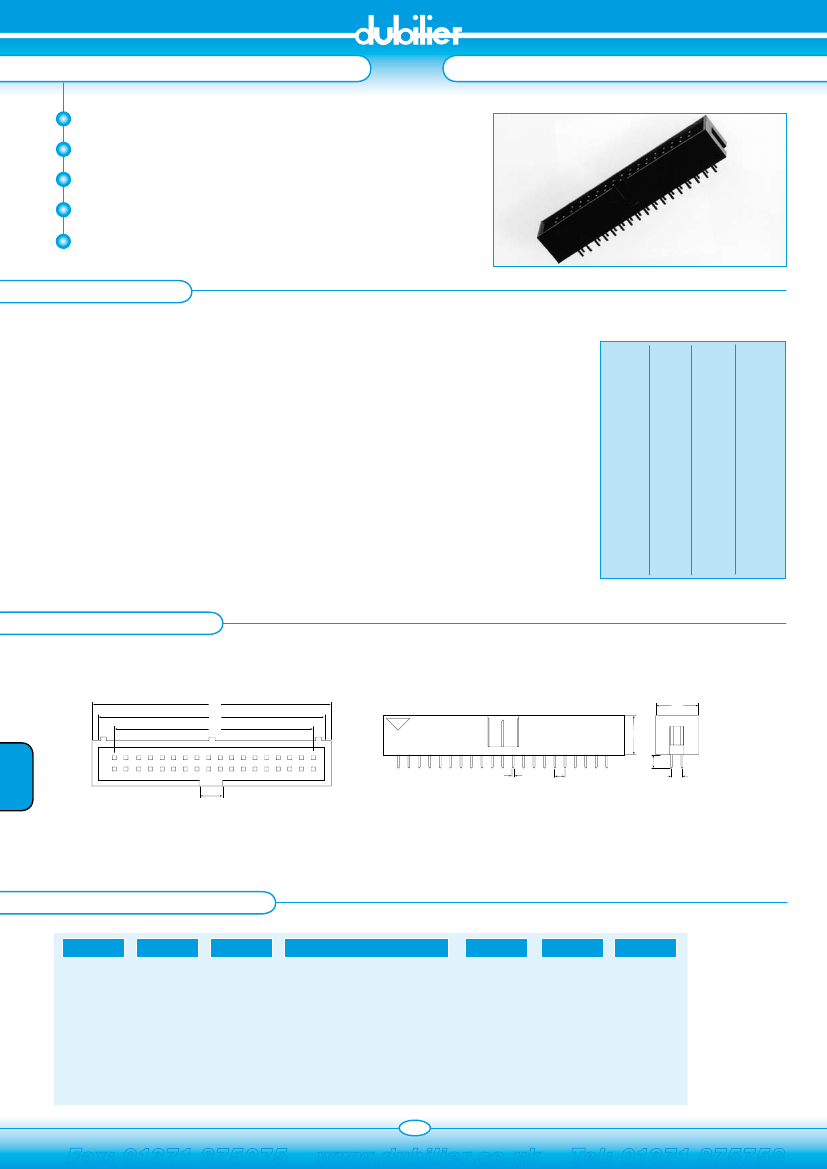

IDC BOX HEADER STRAIGHT

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL-94V-0

2 A DC

30M Ω Max

3000M Ω Min

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

500V AC for One Minute

-40°C to + 105°C

Position

20.30

25.38

27.92

33.00

38.08

40.62

45.70

50.78

58.40

63.48

68.56

71.10

83.80

88.88

18.10

23.18

25.72

30.80

35.88

38.42

43.50

48.58

56.20

61.28

66.36

68.90

81.60

86.88

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

53.34

58.42

60.96

73.66

78.74

Operating Temperature:

OUTLINE DRAWING

4.4

9.1

3.2

0.64

2.54

SECTION 15

4.4

9.1

ORDERING INFORMATION

DBC

Dubilier

Connectors

9.1

3.2

IDC

Connector

0.64

Series

2.54

Nº of Ways

08=8way

10=10way

12=12way

14=14way

16=16way

20=20way

24=24way

26=26way

30=30way

34=34way

40=40way

44=44way

50=50way

60=60way

64=64way

Contact Material

A=Brass

Contact Plating

G= Gold Flash

Colour

1=Black

322

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
