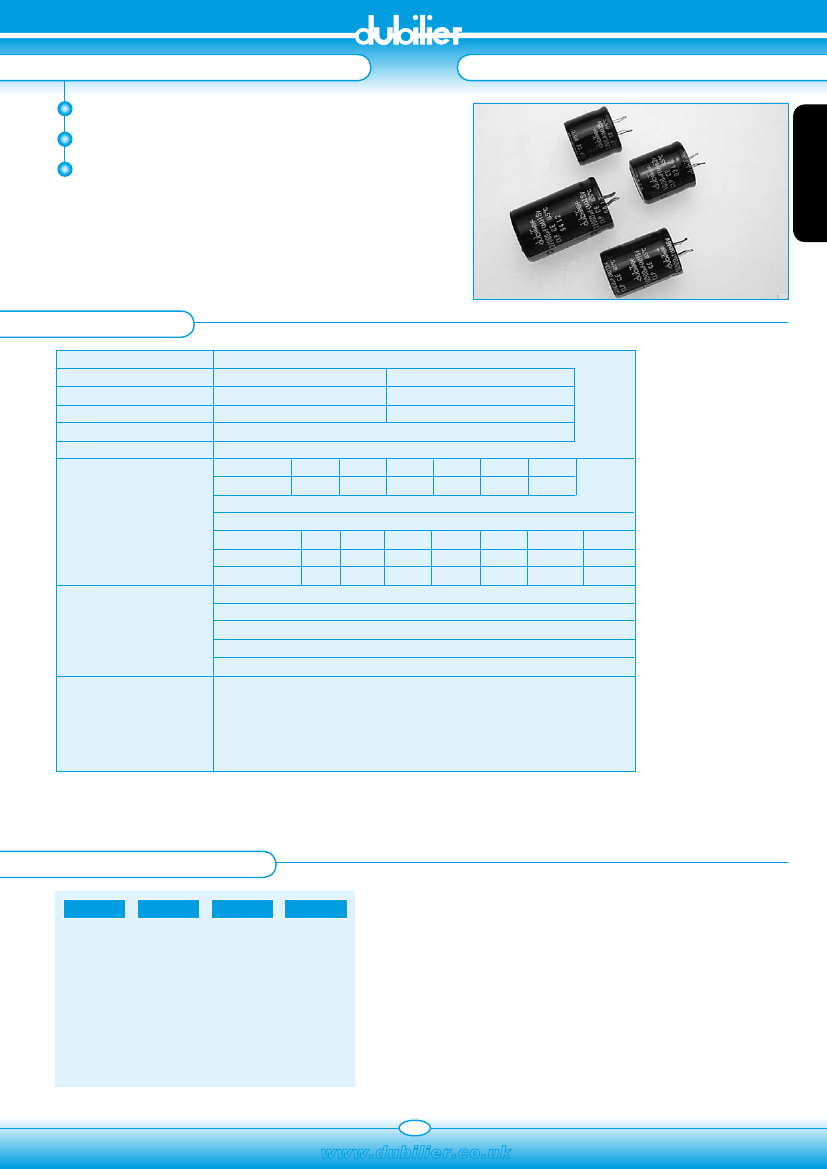

CAPACITORS
Very high CV value
Standard snap-in pin style
2000 hour long-life grade
The CLP is a snap-in electrolytic capacitor featuring the very highest
volumetric efficiency ever offered by Dubilier.
The product is suitable for all applications requiring high CV values, and
the high-voltage parts are particularly suited to SMPS units.
ALUMINIUM ELECTROLYTIC STANDARD TEMP. SNAP-IN CLP
SECTION 1
SPECIFICATION
Item
Voltage Range
Capacitance Range
Temperature Range
Capacitance Tolerance
Leakage Current
Dissipation Factor (tan ∂)
Performance Characteristics
16~100V
160~450V
470~68000µF
47~2700µF
-40~ +85°C
-25~ +85°C
-20~ +20°C (at 20°C, 120Hz)
1=0.02CV (µA) (After 5 minutes)
Rated Voltage(v)
16
25
35~50 63~100 160~200 250~450
D.F(%)
40
35
35
20
10*
15
Note * (15%) for case size D L (mm) = 35x20
The Value of D.F(%) is increased by 2% for every addition of 1000µF
Rated Voltage(v)
16
25
35
05-63
80-100 160-400
Z(-25°C)/Z(20°C)
5
4
4
3
3
4
Z(-40°C)/Z(20°C) 18
15
10
10
10
8
The following specifications shall be satisfied when the capacitors are
restored to 20°C after the rated voltage applied for 2000 hours at 85°C.
Capacitance Change
Within ± 20% of initial value
D.F. tan ∂
200% or less of initial specified value
Leakage Current
Initial specified value or less
At 85°C no voltage applied after 500 hours the capacitors shall meet the
following limits
Capacitance Change
≤ ± 20% of initial value
Dissipation Factor
≤ 150% of initial specified value
Leakage Current
Not exceed initial specified value
450
8
-
Load Life
Shelf Life
ORDERING INFORMATION
CLP
Range
1000
Capacitance
CF
200
Voltage
Case code
(see below)
Two letter case code CF = 30mm dia. x 45mm height.
Diameter
A = 22.4mm
B = 25mm
C = 30mm
D = 35.5mm
Height (length)
A = 20mm
B = 25mm
C = 30mm
D = 35mm
E = 40mm
F = 45mm
G = 50mm
65
www.dubilier.co.uk
