Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP87CK34BN

Preview

TMP87CK34BN: DescriptionCMOS 8-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size7MB，139 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

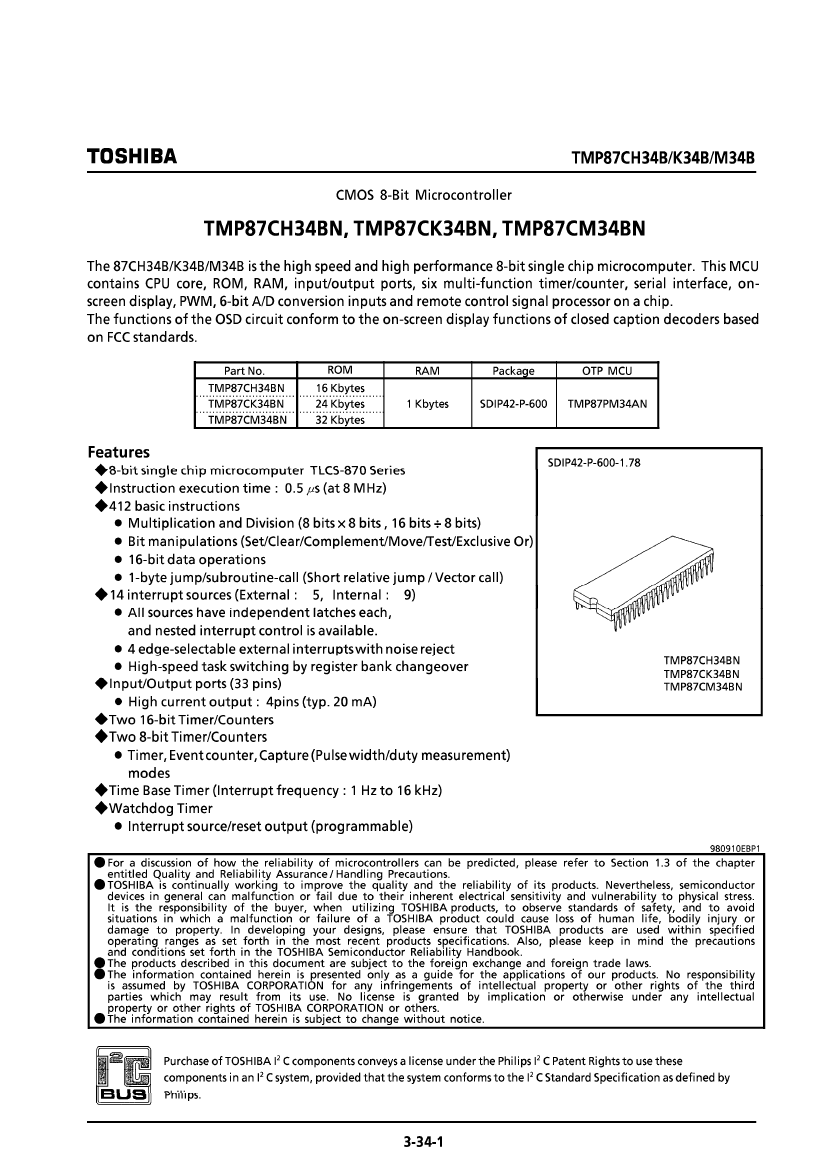

TMP87CK34BN Overview

CMOS 8-BIT MICROCONTROLLER

TMP87CK34BN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP42,.6
Contacts	42
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	8
CPU series	TLCS-870
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
length	38 mm
Number of I/O lines	33
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	1024
rom(word)	24576
ROM programmability	MROM
Maximum seat height	4.5 mm
speed	8 MHz
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

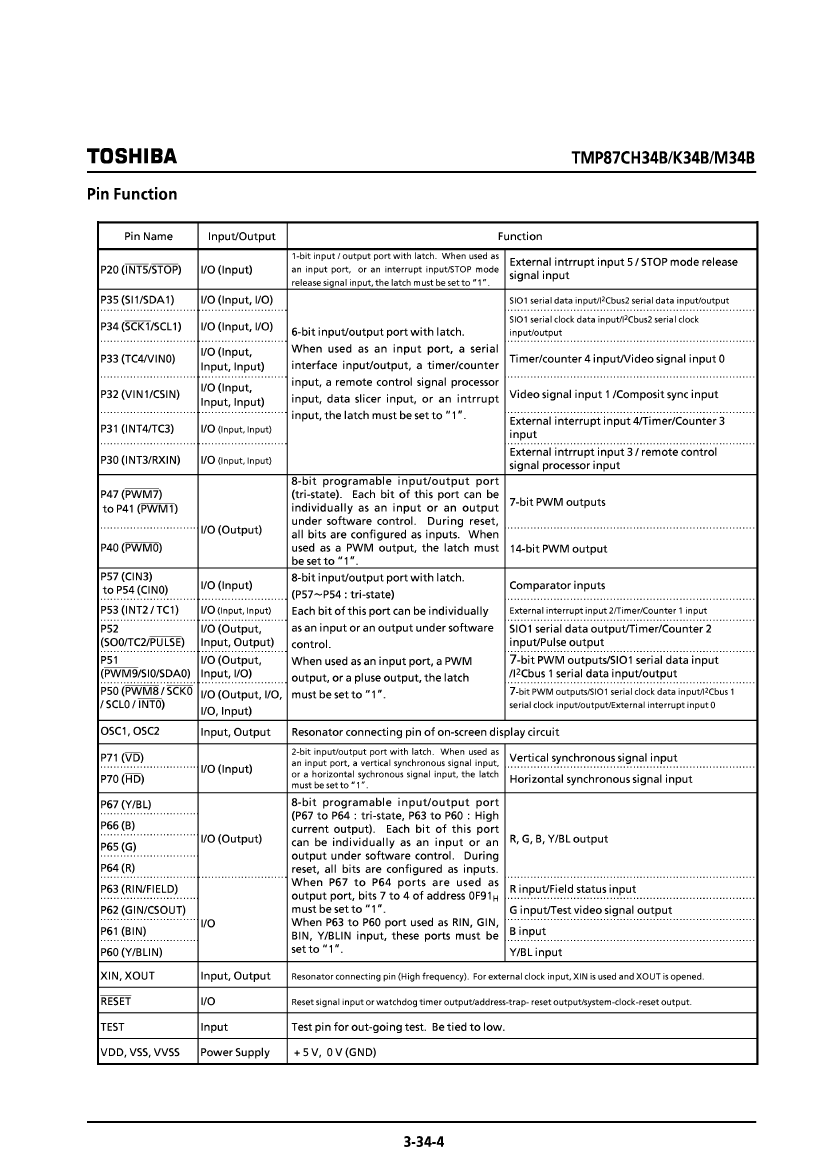

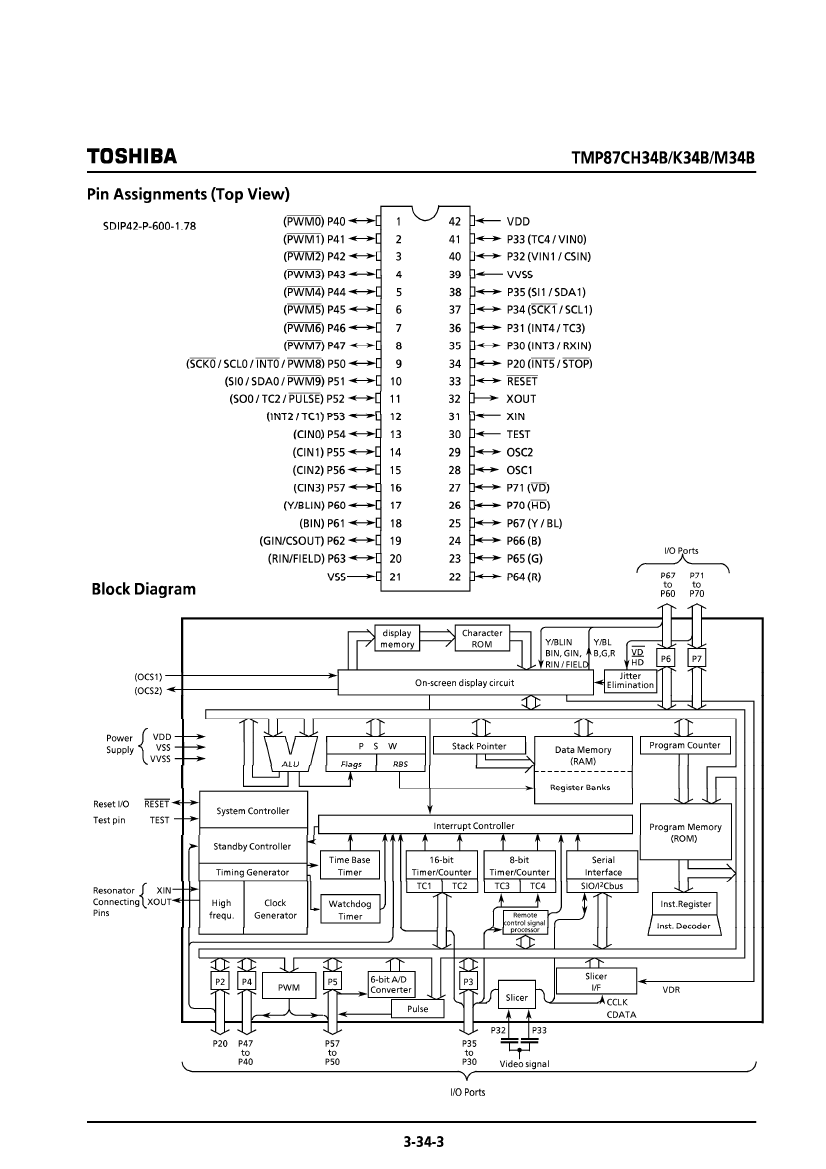

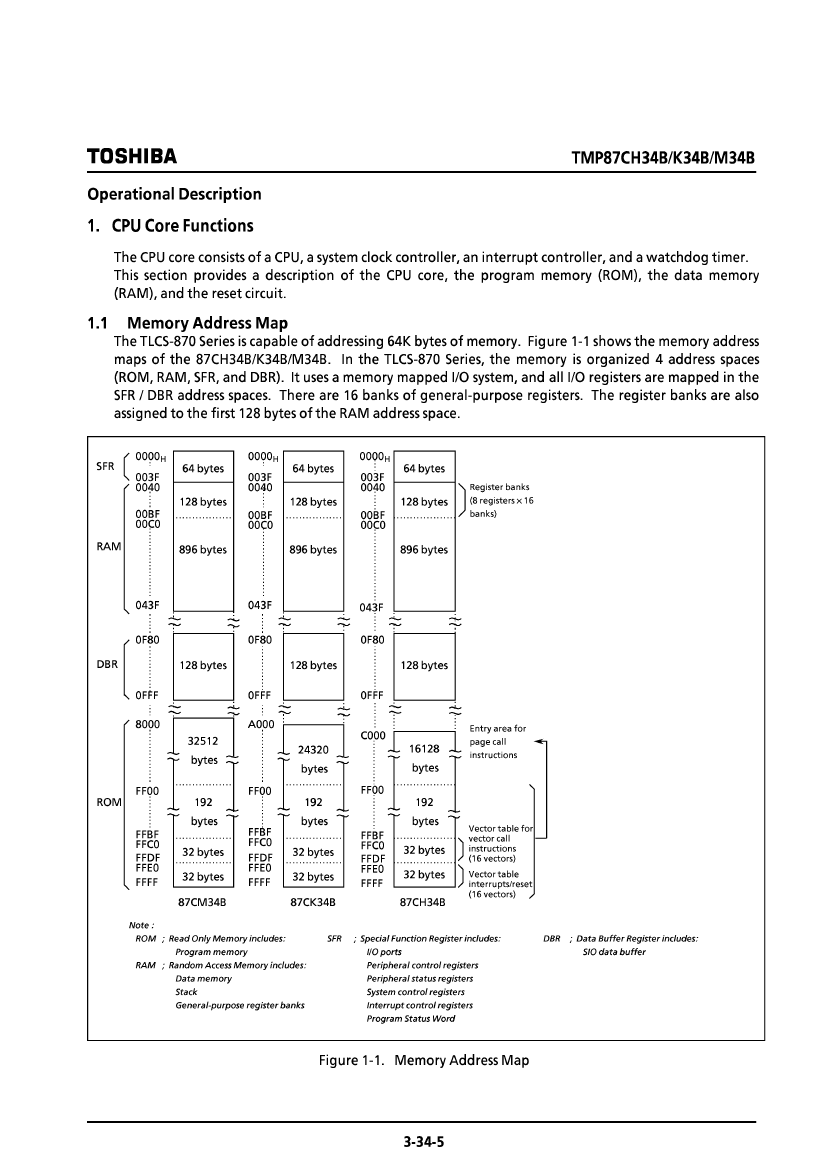

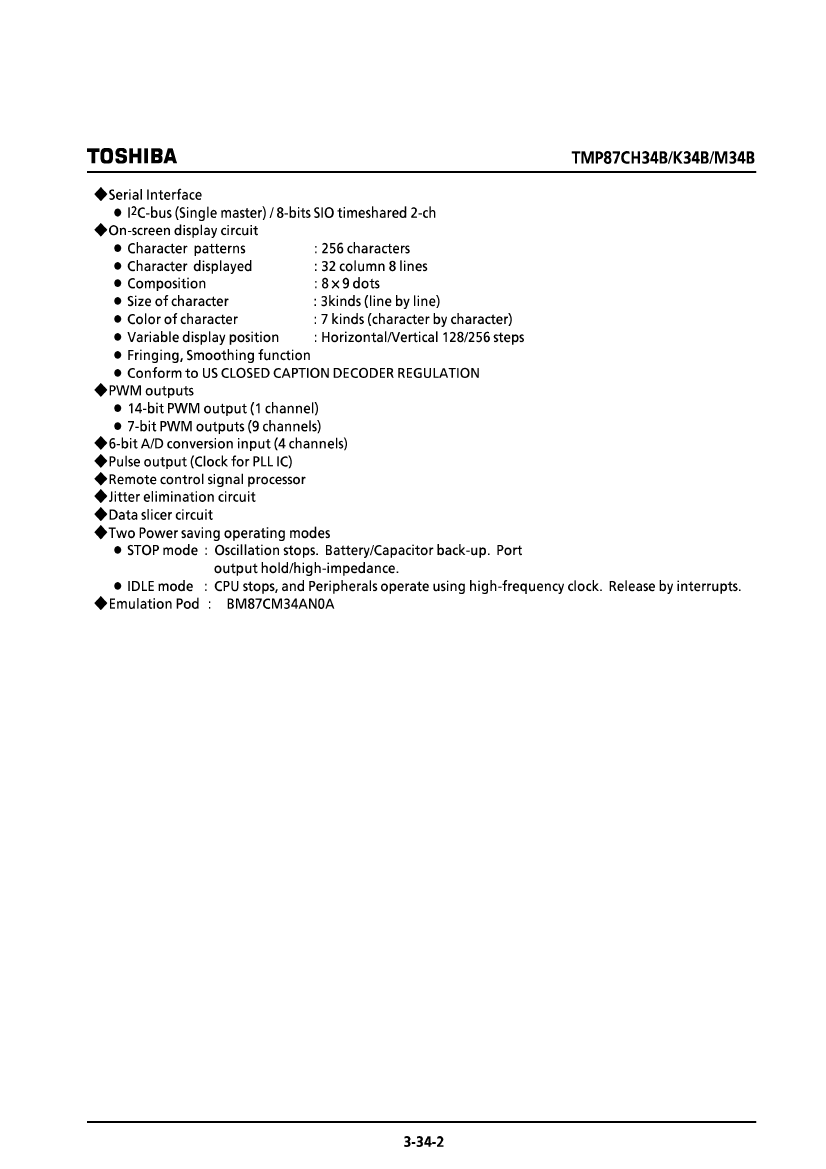

Preview

Download Datasheet

View All

TMP87CK34BN Related Products

	TMP87CK34BN	TMP87CH34	TMP87CM34BN	TMP87CH34BN
Description	CMOS 8-BIT MICROCONTROLLER	CMOS 8-BIT MICROCONTROLLER	CMOS 8-BIT MICROCONTROLLER	CMOS 8-BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	-	incompatible	incompatible
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIP	-	DIP	DIP
package instruction	SDIP, SDIP42,.6	-	SDIP, SDIP42,.6	SDIP, SDIP42,.6
Contacts	42	-	42	42
Reach Compliance Code	unknow	-	unknow	unknow
Has ADC	YES	-	YES	YES
bit size	8	-	8	8
CPU series	TLCS-870	-	TLCS-870	TLCS-870
maximum clock frequency	8 MHz	-	8 MHz	8 MHz
DAC channel	NO	-	NO	NO
DMA channel	NO	-	NO	NO
JESD-30 code	R-PDIP-T42	-	R-PDIP-T42	R-PDIP-T42
length	38 mm	-	38 mm	38 mm
Number of I/O lines	33	-	33	33
Number of terminals	42	-	42	42
Maximum operating temperature	70 °C	-	70 °C	70 °C
Minimum operating temperature	-30 °C	-	-30 °C	-30 °C
PWM channel	YES	-	YES	YES
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	-	SDIP	SDIP
Encapsulate equivalent code	SDIP42,.6	-	SDIP42,.6	SDIP42,.6
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	-	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	-	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified
RAM (bytes)	1024	-	1024	1024
rom(word)	24576	-	32768	16384
ROM programmability	MROM	-	MROM	MROM
Maximum seat height	4.5 mm	-	4.5 mm	4.5 mm
speed	8 MHz	-	8 MHz	8 MHz
Maximum slew rate	25 mA	-	25 mA	25 mA
Maximum supply voltage	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage	5 V	-	5 V	5 V
surface mount	NO	-	NO	NO
technology	CMOS	-	CMOS	CMOS
Temperature level	OTHER	-	OTHER	OTHER
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.778 mm	-	1.778 mm	1.778 mm
Terminal location	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	-	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	MICROCONTROLLER	MICROCONTROLLER
