TMP8155 datasheet, PDF - EEWORLD Datasheet

TMP8155: DescriptionIC,RIOT,256X8,MOS,DIP,40PIN,PLASTIC; Categorysemiconductor The embedded processor and controller; File Size339KB，16 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

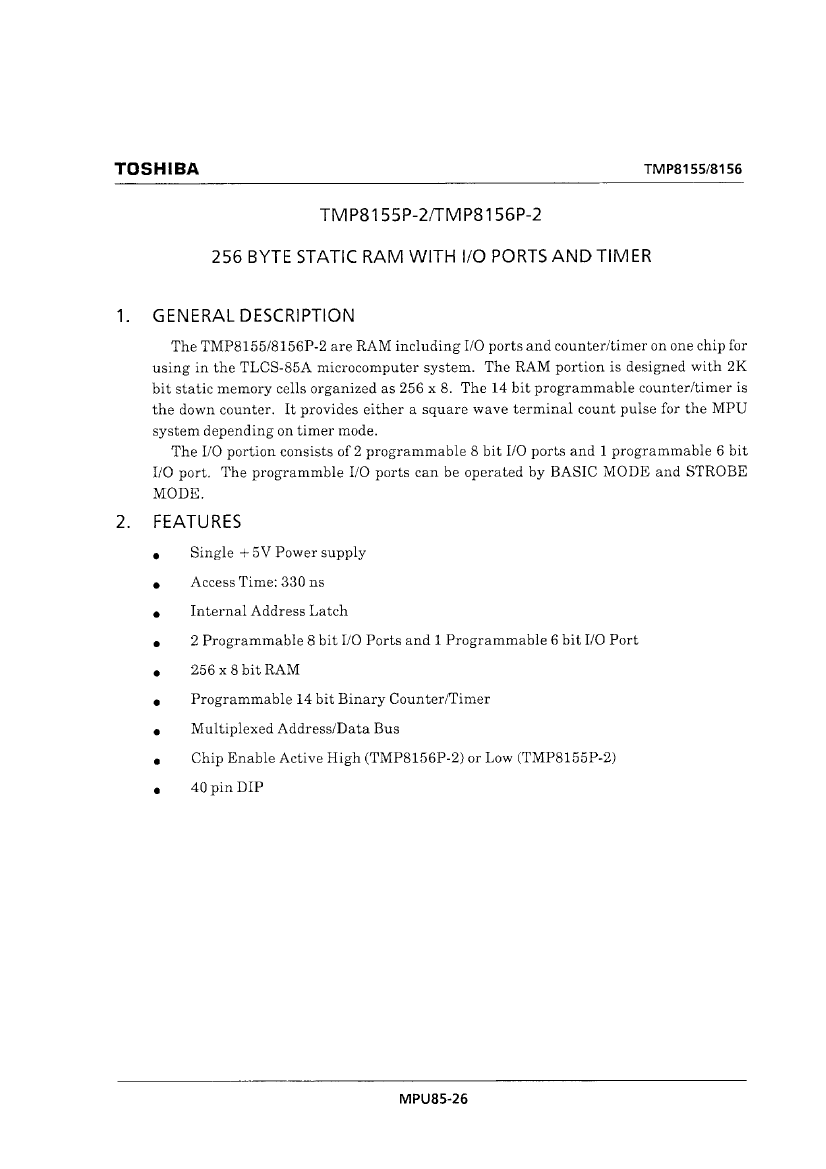

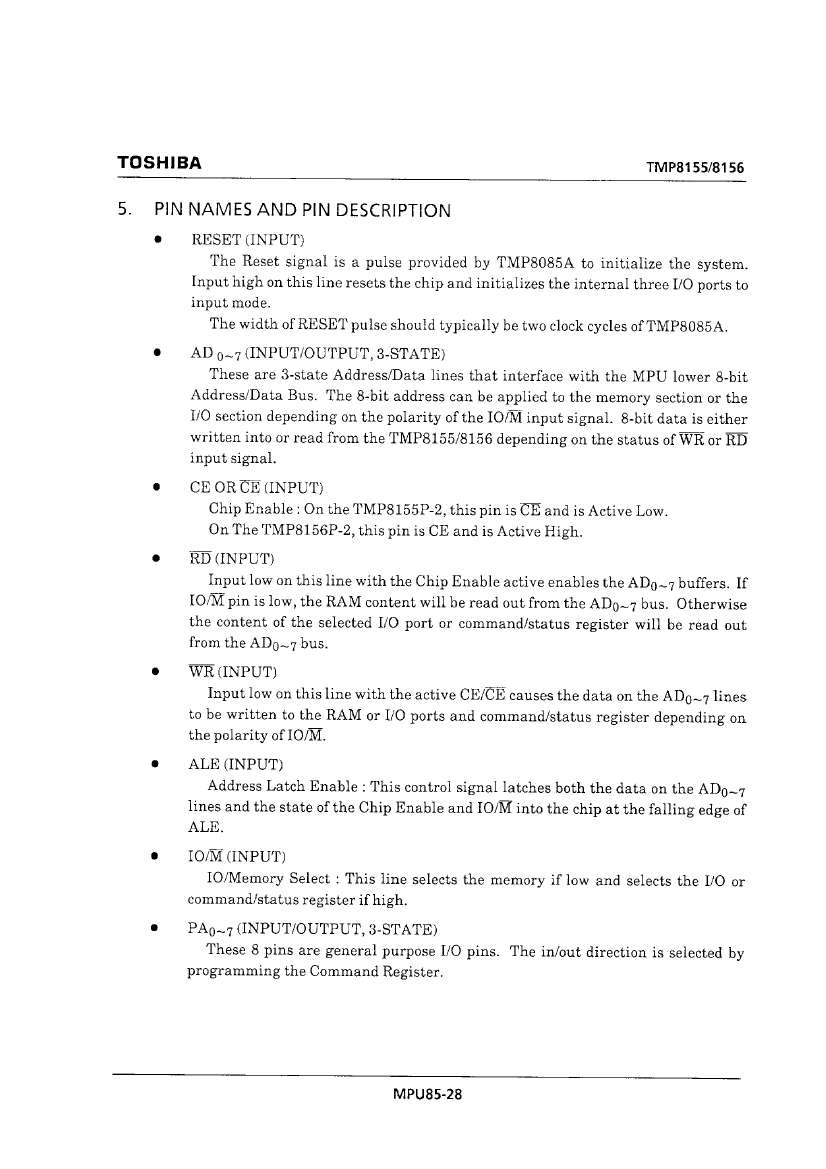

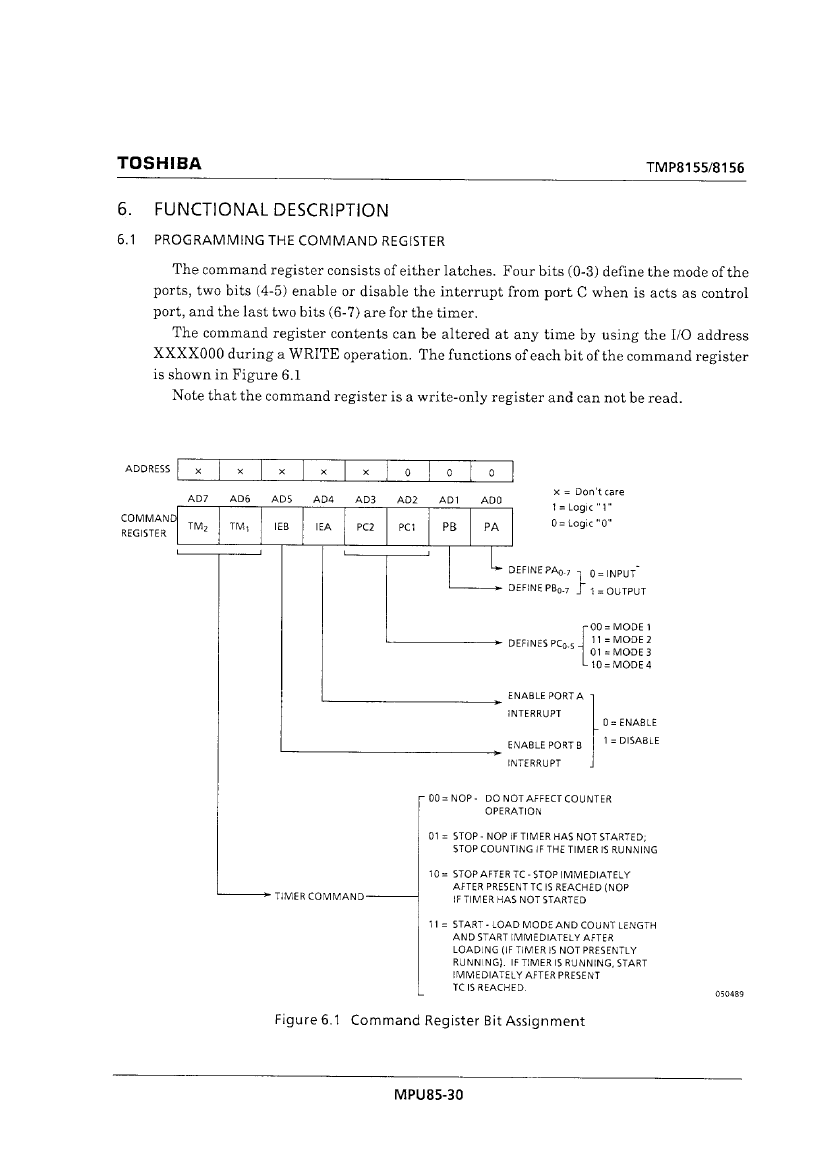

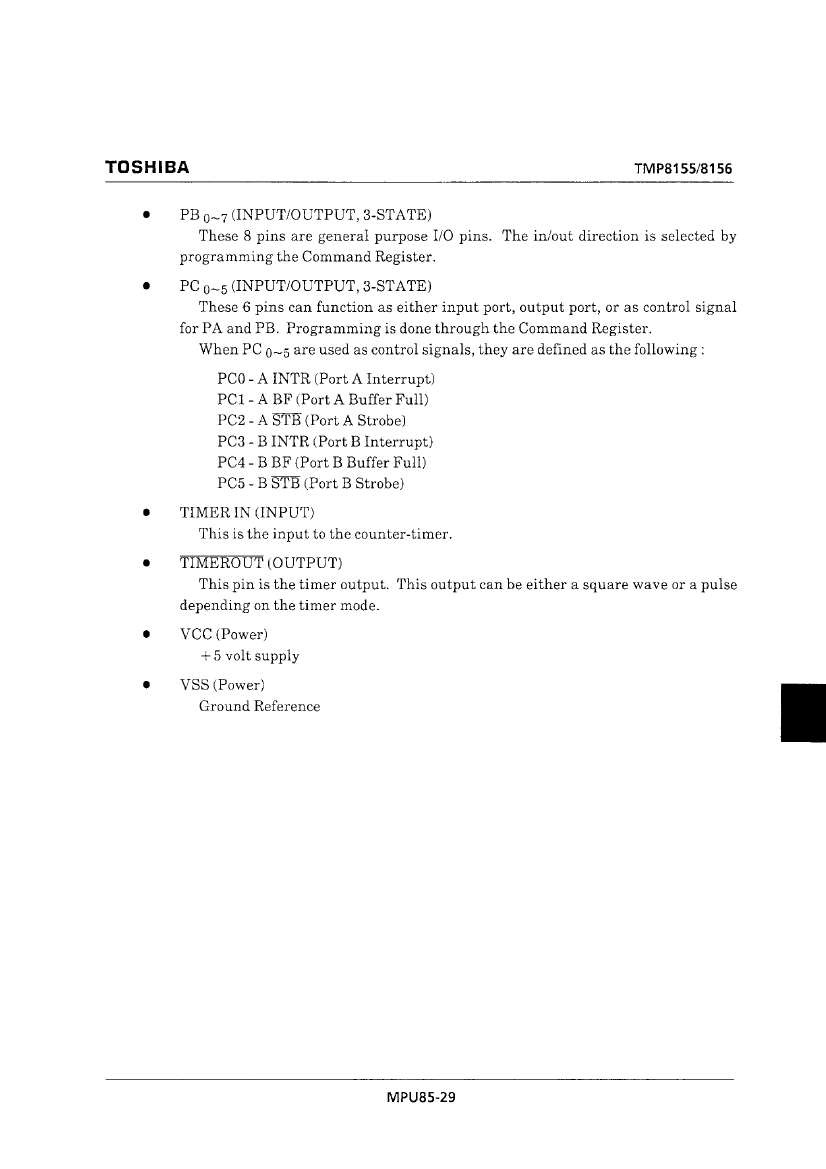

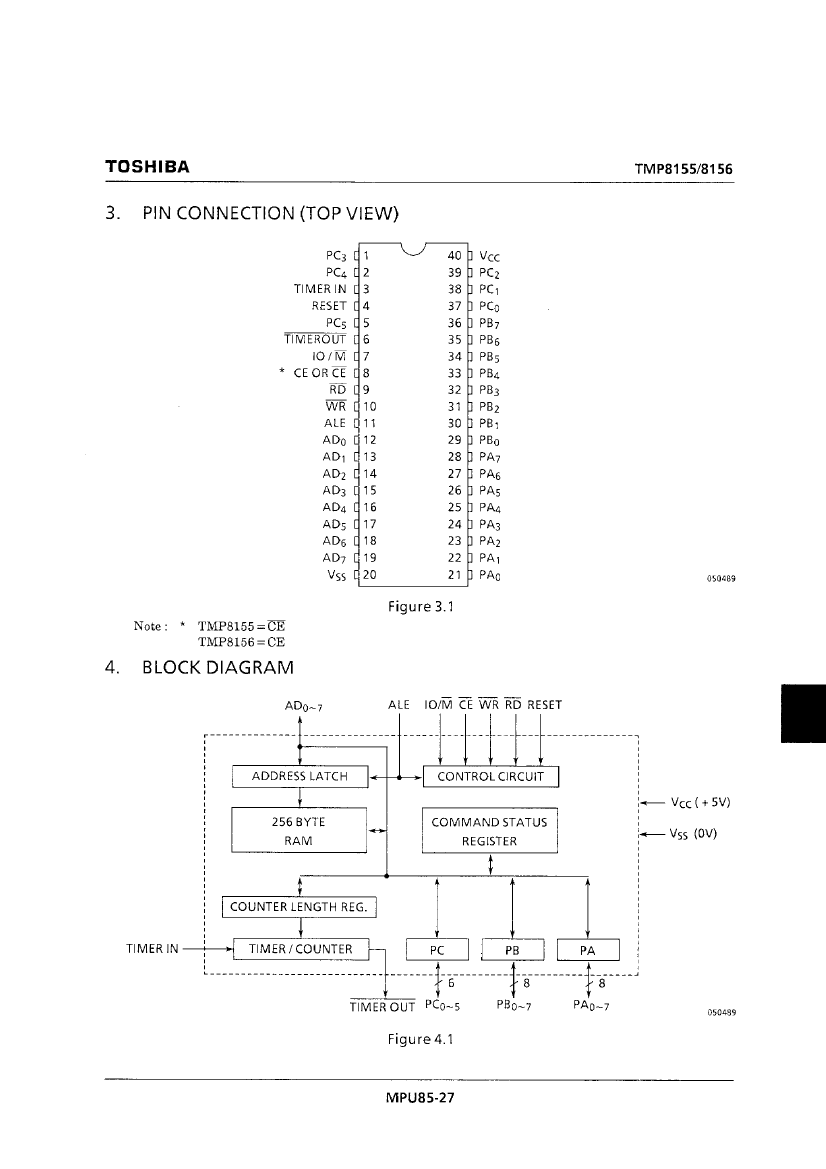

TMP8155 Overview

IC,RIOT,256X8,MOS,DIP,40PIN,PLASTIC

Parameter Name	Attribute value
Number of terminals	40
Minimum operating temperature	0.0 Cel
Maximum operating temperature	70 Cel
state	Active-Unconfirmed
cpu_family	8085
jesd_30_code	R-PDIP-T40
memory_organizati	256X8
Number of digits	14
Number of ports	3
Number of timers	1
Packaging Materials	PLASTIC/EPOXY
ckage_code	DIP
ckage_equivalence_code	DIP40,.6
packaging shape	RECTANGULAR
Package Size	IN-LINE
wer_supplies	5
qualification_status	COMMERCIAL
sub_category	Parallel IO P
Maximum supply voltage	180 mA
Rated supply voltage	5 V
surface mount	NO
Craftsmanship	MOS
Temperature level	Commercial
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
Terminal location	DUAL

	TMP8155	TMP8156P-2	TMP8155P-2
Description	IC,RIOT,256X8,MOS,DIP,40PIN,PLASTIC	IC,RIOT,256X8,MOS,DIP,40PIN,PLASTIC	IC,RIOT,256X8,MOS,DIP,40PIN,PLASTIC
Number of terminals	40	40	40
Maximum operating temperature	70 Cel	70 °C	70 °C
Number of ports	3	3	3
Maximum supply voltage	180 mA	5.25 V	5.25 V
surface mount	NO	NO	NO
Temperature level	Commercial	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Is it Rohs certified?	-	incompatible	incompatible
Maker	-	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	-	DIP	DIP
package instruction	-	DIP,	DIP,
Contacts	-	40	40
Reach Compliance Code	-	unknow	unknow
ECCN code	-	EAR99	EAR99
JESD-30 code	-	R-PDIP-T40	R-PDIP-T40
JESD-609 code	-	e0	e0
length	-	50.7 mm	50.7 mm
Number of I/O lines	-	22	22
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified
Maximum seat height	-	4.8 mm	4.8 mm
Minimum supply voltage	-	4.75 V	4.75 V
Nominal supply voltage	-	5 V	5 V
technology	-	CMOS	CMOS
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	-	2.54 mm	2.54 mm
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
width	-	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	-	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
