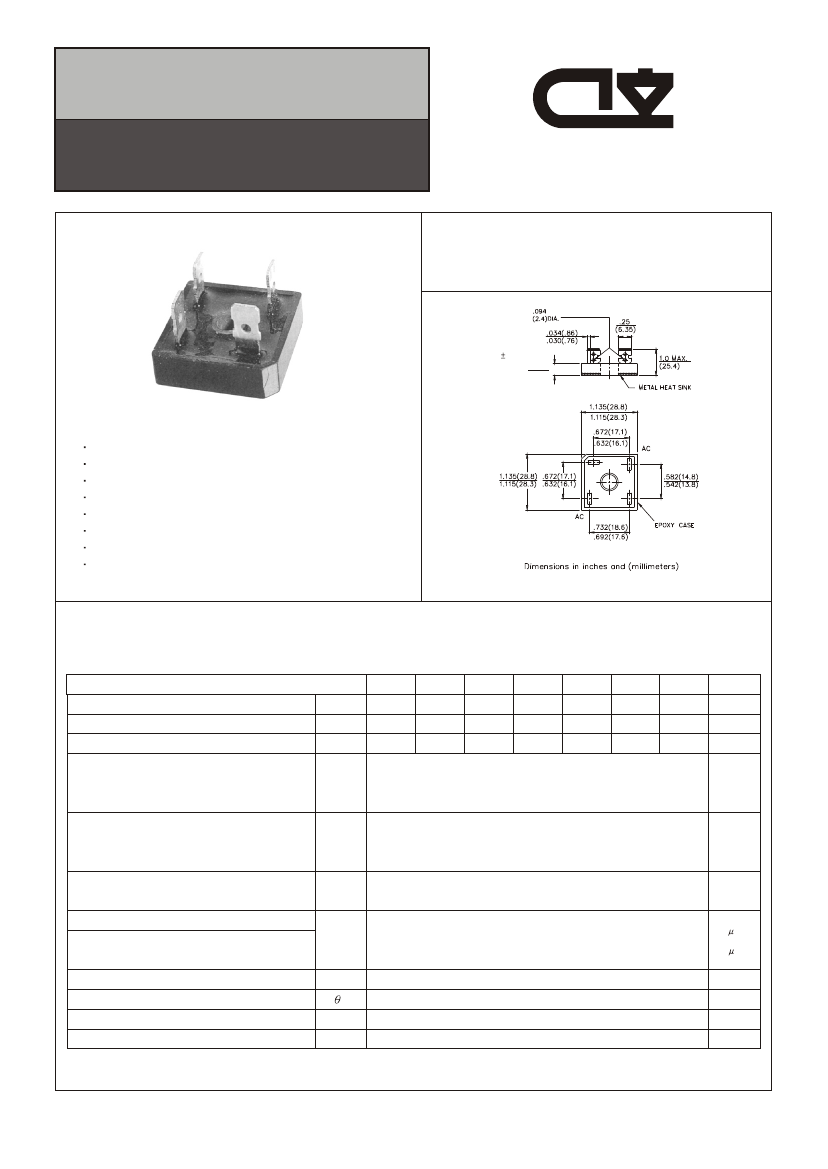

MP15,25,35 CT SERIES
15/25/35 AMPS.
SILICON BRIDGE RECTIFIERS
CHENG- YI
ELECTRONIC
VOLTAGE RANGE
50 TO 1000 VOLTS PRV
CURRENT
15.25.35. Amperes
7.8 0.3mm
0.31
0.28
FEATURES
Rating to 1000V PRV
400 Amperes surge capability
High efficiency
Weight:0.7 ounce 20 grams
For maximum heat dissipation
Mounting: thru hole for #8 screw
Case:Molded plastic isolated with heatsink interally
Electrically Isolated base 1800 Volt
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
0
C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MP 15/25/35
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Output Current @
TC=55 C
0
MP005
MP01
100
70
100
MP02
200
140
200
MP04
400
280
400
15
25
35
MP06
600
420
600
MP08
800
560
800
MP10
1000
700
1000
UNITS
V
V
V
V
RRM
V
RMS
V
DC
50
35
50
MP12
MP25
MP35
V
(AV)
A
Peak Forward Surge Current
8.3 ms single half sine-wave
superimposed on rated load
(JEDEC Mehtod)
Maximum Forward Voltage
per Bridge element
MP15
MP25
MP35
MP15
7.5A
MP25 at IF 12.5A
MP35
17.5A
I
FSM
250
300
400
A
V
F
1.1
V
Maximum DC Reverse Current at Rated DC
Blocking Voltage per
Bridge element
I
2
t Rating for fusing (t<8.3ms)
Typical Thermal Resistance(Note.1)
Operating Temperature Range
Storage Temperature Range
2
2
@ TA=25
0
C
@ TA=100
0
C
I
R
I
2
t
R
JC
T
J
T
STG
5
200
374/664
2.0
0
A
A
A
2
S
C/W
0
-55 to +125
-55 to +150
C
C
0
NOTE: 1.Mounted on a 11.8in X 0.06 in thick (300mm X 1.5mm thick ) Copper plate.
2.Fast Recovery, Controlled avalanche bridges are available. Please consuit with factory.
MP15,25,35 CT SERIES
15/25/35 AMPS.
SILICON BRIDGE RECTIFIERS
CHENG- YI
ELECTRONIC
RATING AND CHARACTERISTICS CURVES
MP15,25,35CT SERIES
Fig. 1
-
FORWARD DERATING CURVE
PEAK FORWARD SURGE CURRENT, (A)
35
AVERAGE FORWARD CURRENT
AMPERES
RESISTIVE OR
INDUCTIVE
LOAD
Fig. 2
-
PAEK FORWARD SURGE CURRENT
400
300
200
30
83ms Single Half Sine-Wave
MP35A
MP15A
MP25A
25
20
MP35A
MP25A
15
10
5
100
MP15A
60
1
10
100
NUMBER OF CYCLES AT 60 Hz
0
20
40
60
80
100
120
140
160
CASE TEMPERATURE,
0
C
Fig. 3 - TYPICAL FORWARD
CHARACTERISTICS
1000
INSTANTANEOUS FORWARD CURRENT, AMPERES
Fig. 4
-
TYPICAL REVERSE CHARACTERISTICS
10
100
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
1.0
10
TJ=25
0
C
0.1
TJ=25
0
C
Pulse Width-300 s
1.0
.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE
0.1
.6
.8
1.0
1.2
1.4
1.6
1.8
2.0
INSTANTANEOUS FORWARD VOLT
AGE, VOLTS
