TMP47C434N datasheet, PDF - EEWORLD Datasheet

TMP47C434N: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size843KB，27 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TMP47C434N Overview

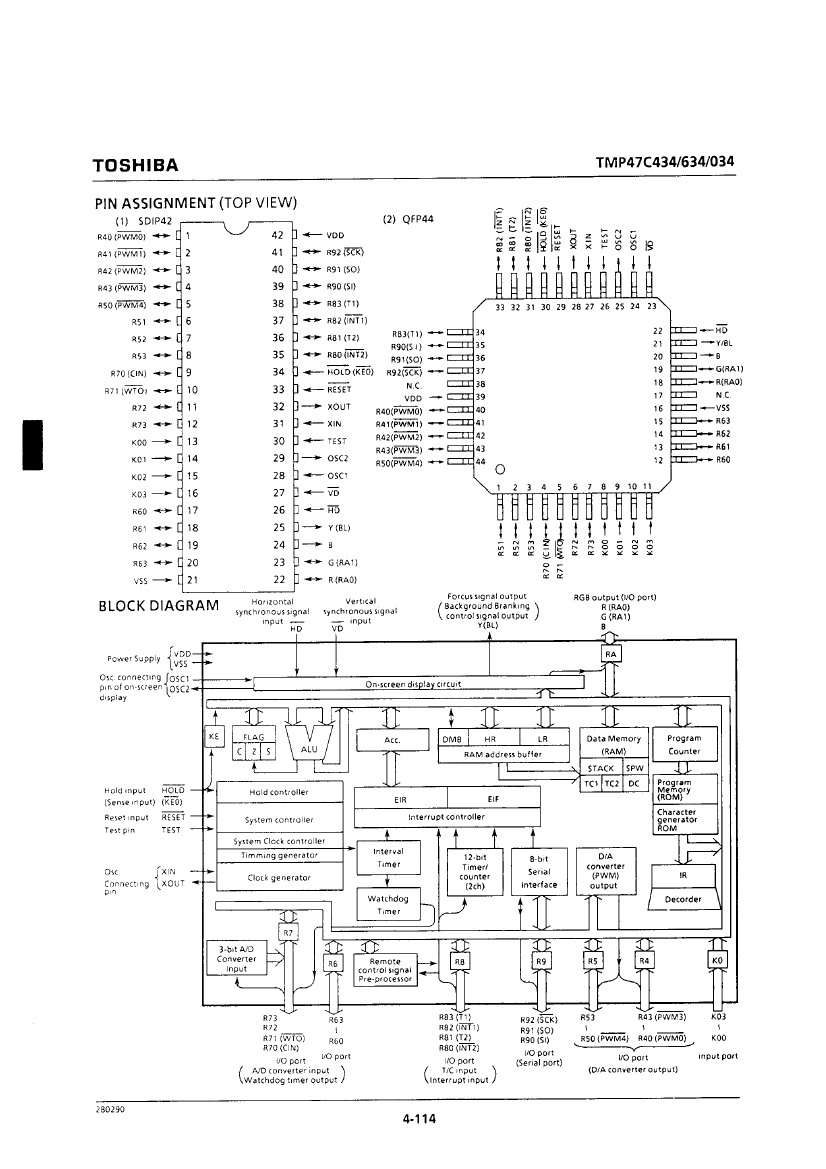

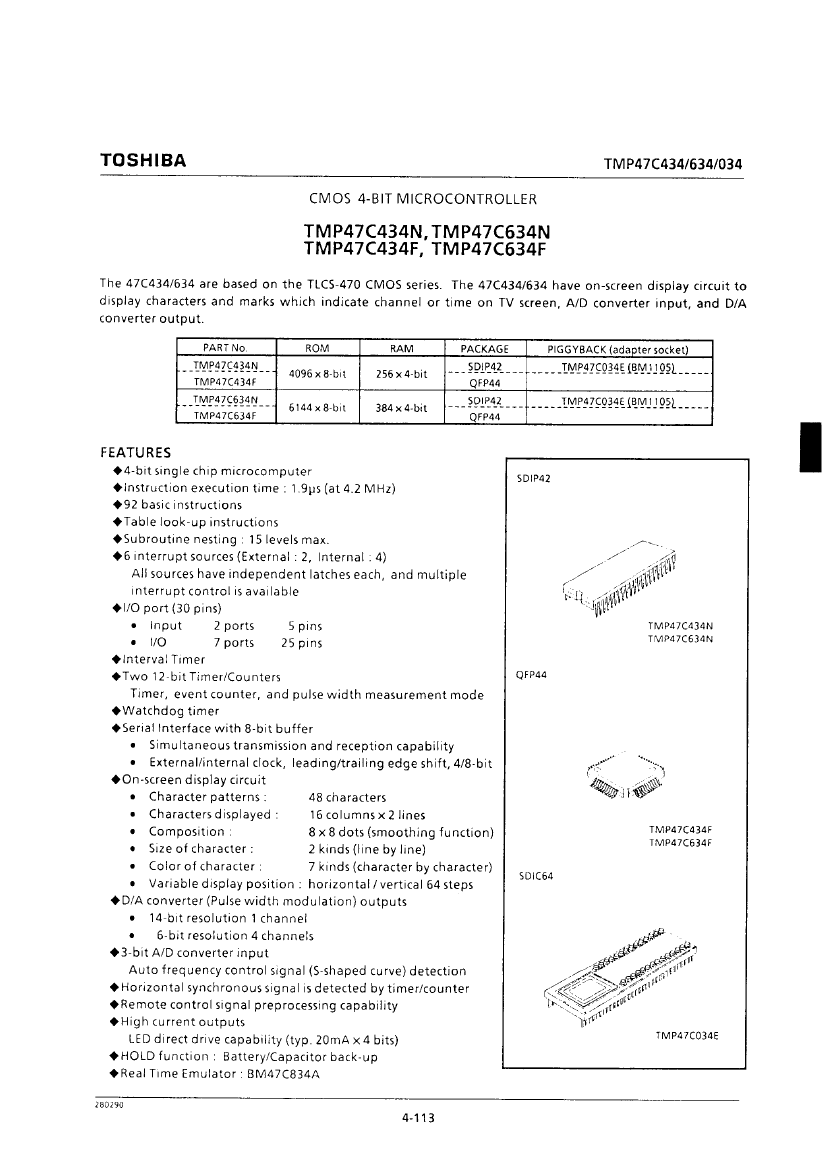

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Reach Compliance Code	unknow
Has ADC	YES
Address bus width	14
bit size	4
CPU series	TLCS-470
DAC channel	YES
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
Number of I/O lines	30
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	4096
ROM programmability	MROM
speed	4.2 MHz
Maximum slew rate	6.3 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.78 mm
Terminal location	DUAL
