Document 352-1

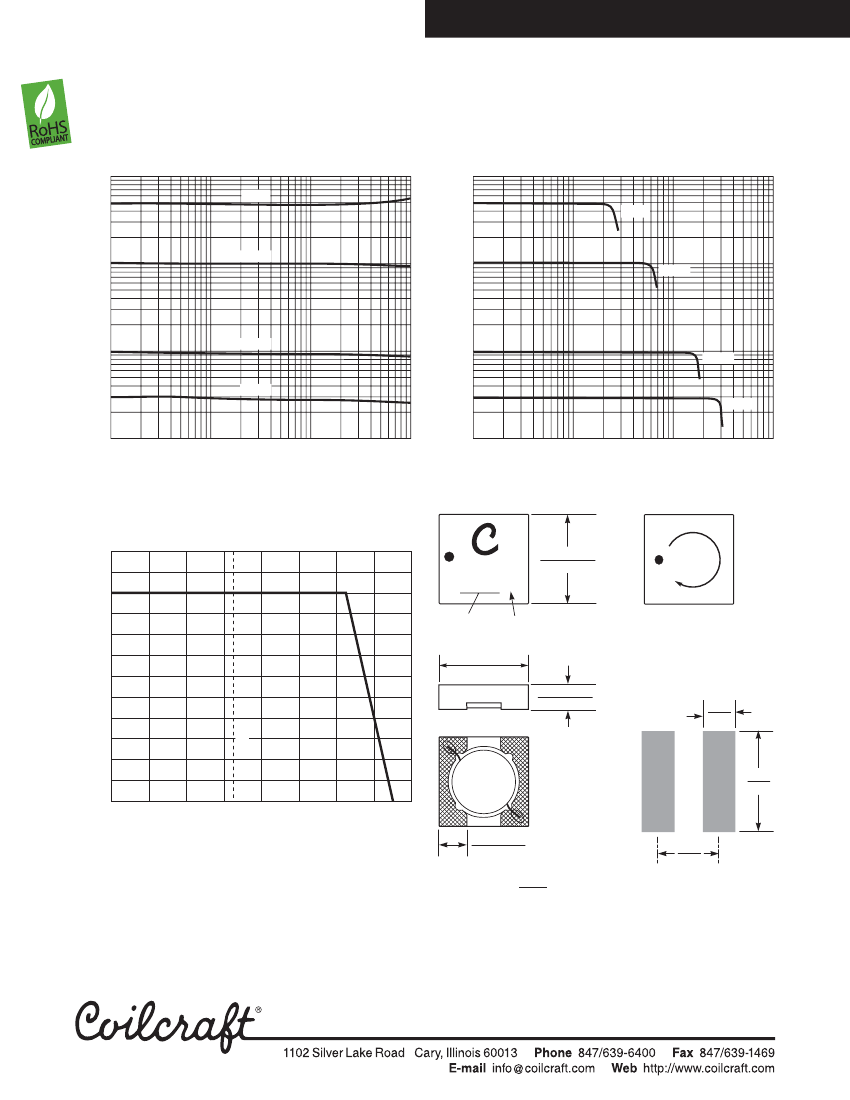

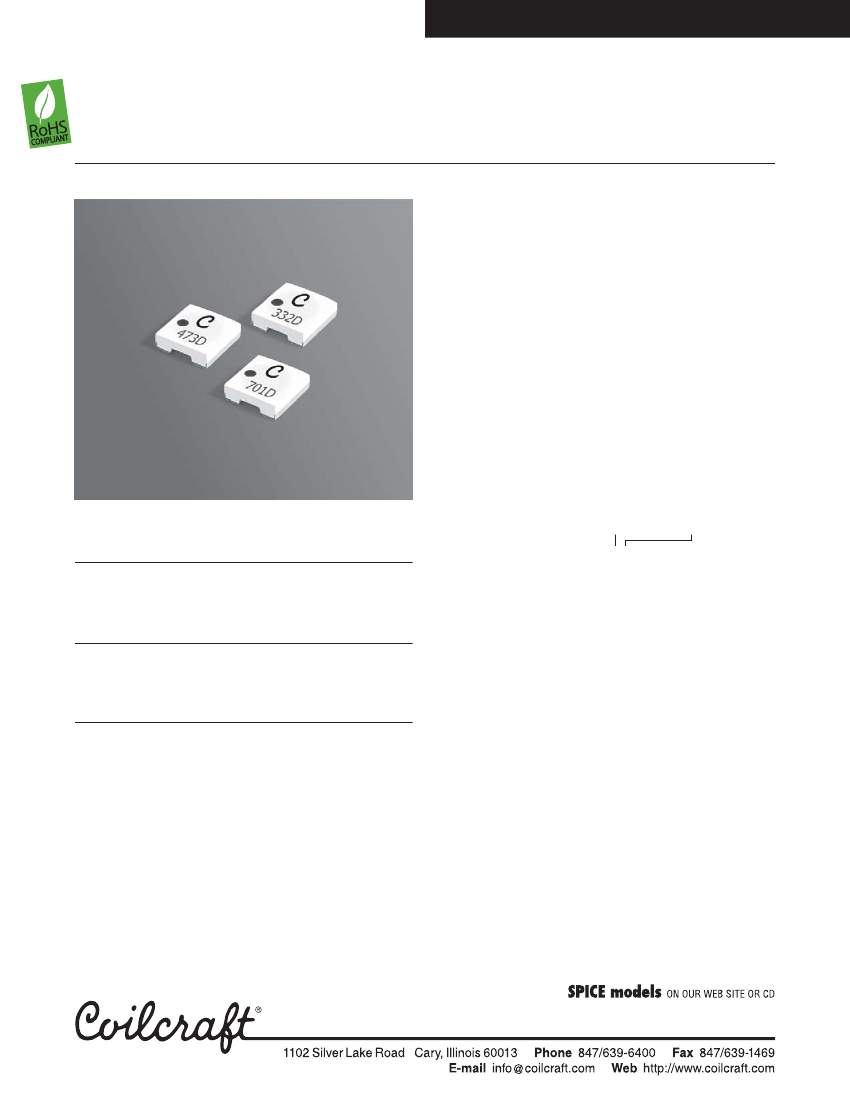

SMT Power Inductors - LPO3310 Series
• Only 1.0 mm high, 3.3 mm square
• Handles current up to 2.8 Amps
Designer’s Kit C375
contains 3 each of all values
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
28.0 – 31.3 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+110°C with derated current
Storage temperature
Component: –40°C to +110°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth
Recommended pick and place nozzle
OD: 3.3 mm; ID:
≤1.65
mm
PCB washing
Only pure water or alcohol recommended
Part number
1
LPO3310-301ML_
LPO3310-471ML_
LPO3310-701ML_
LPO3310-102ML_
LPO3310-152ML_
LPO3310-222ML_
LPO3310-332ML_
LPO3310-472ML_
LPO3310-682ML_
LPO3310-822ML_
LPO3310-103ML_
LPO3310-153ML_
LPO3310-223ML_
LPO3310-333ML_
LPO3310-473ML_
L
2
DCR
3
SRF
4
±20%
max
typ
(µH) (Ohms) (MHz)
0.30
0.040
420
0.47
0.042
310
0.70
0.068
200
1.0
0.076
180
1.5
0.12
153
2.2
0.15
112
3.3
0.20
91
4.7
0.28
80
6.8
0.36
68
8.2
0.50
58
10
0.52
52
15
0.80
36
22
1.20
34
33
1.78
27
47
2.15
22
1. When ordering, please specify
termination
and
packaging
codes:
Isat
5
(A)
2.8
2.3
1.9
1.6
1.4
1.1
0.95
0.80
0.66
0.65
0.57
0.45
0.37
0.30
0.25
Irms
6
(A)
2.8
2.3
1.9
1.6
1.4
1.1
0.95
0.80
0.66
0.65
0.57
0.45
0.37
0.30
0.25
LPO3310-473MLC
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (3500 parts per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4192A.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 8753ES or equivalent.
5. DC current at which the inductance drops 10% (typ) from its value
without current.
6. Current that causes a 25°C temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 352-1
Revised 10/14/08
© Coilcraft, Inc. 2009
