TMP47C421AF datasheet, PDF - EEWORLD Datasheet

TMP47C421AF: DescriptionCMOS 4-BIT MICROCONTOROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size497KB，22 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

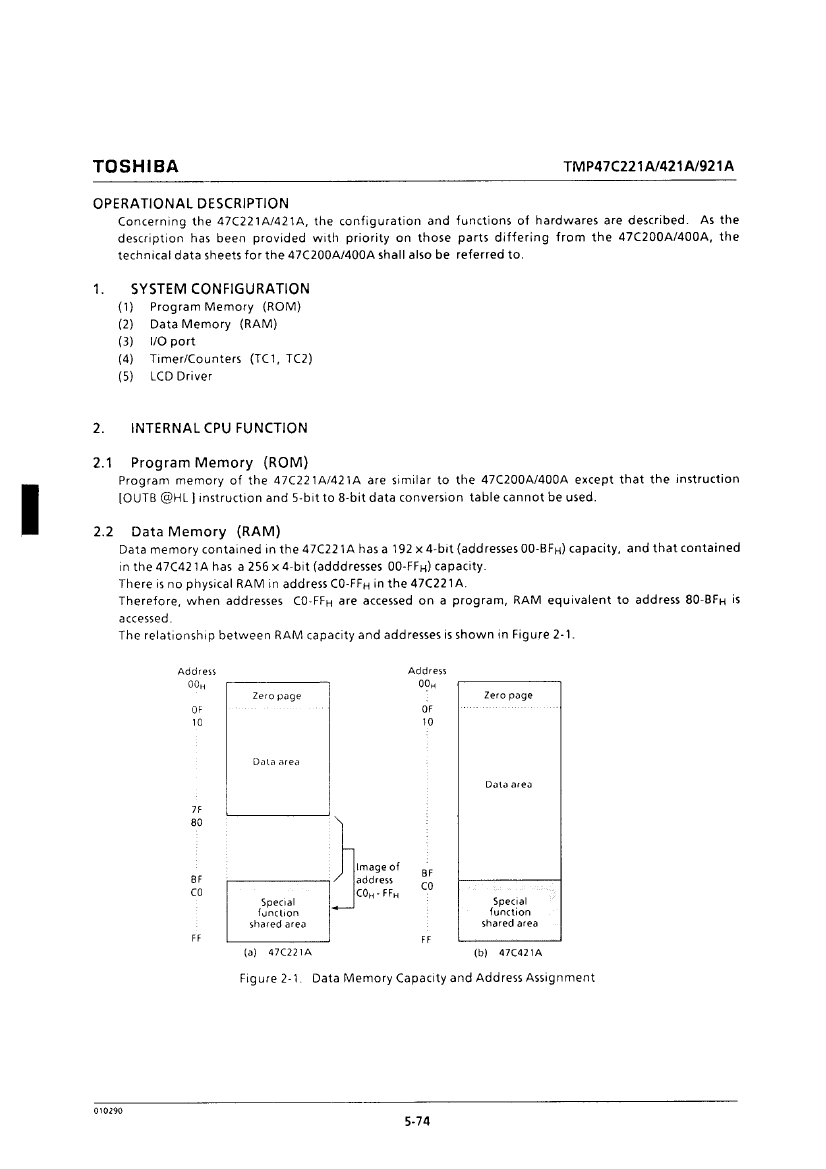

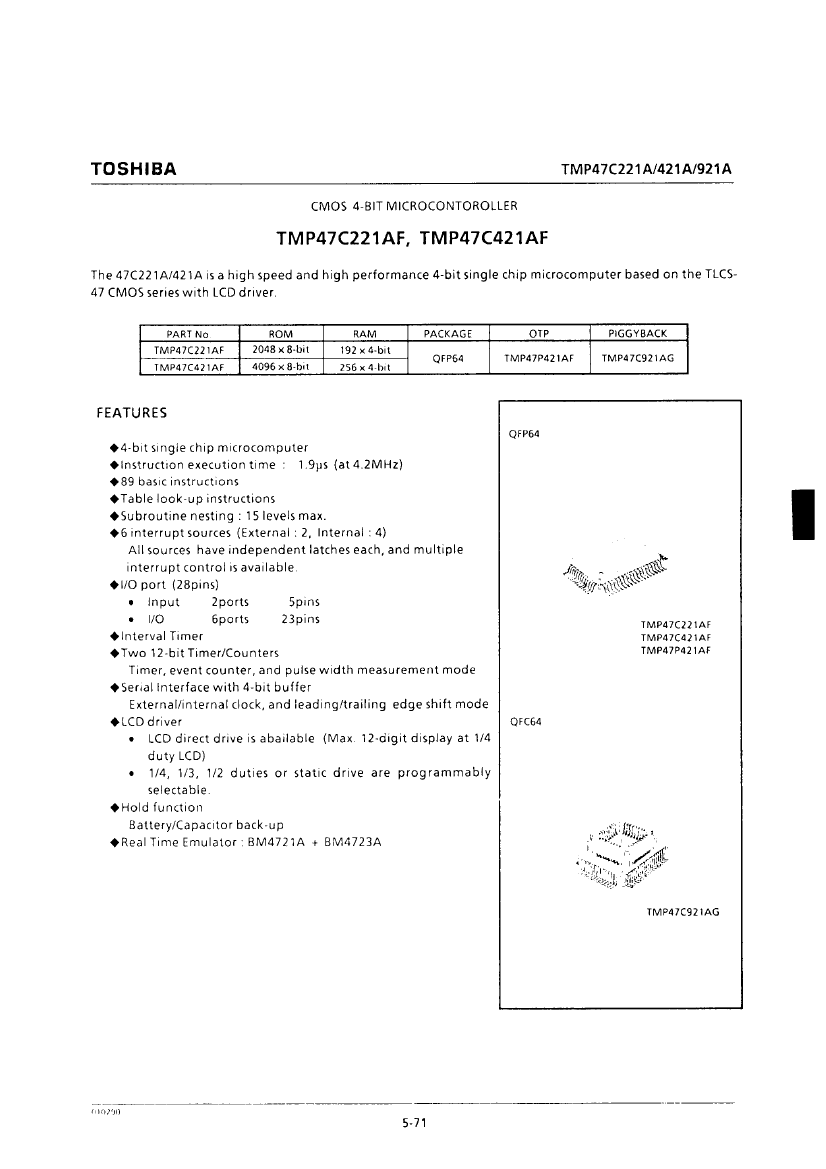

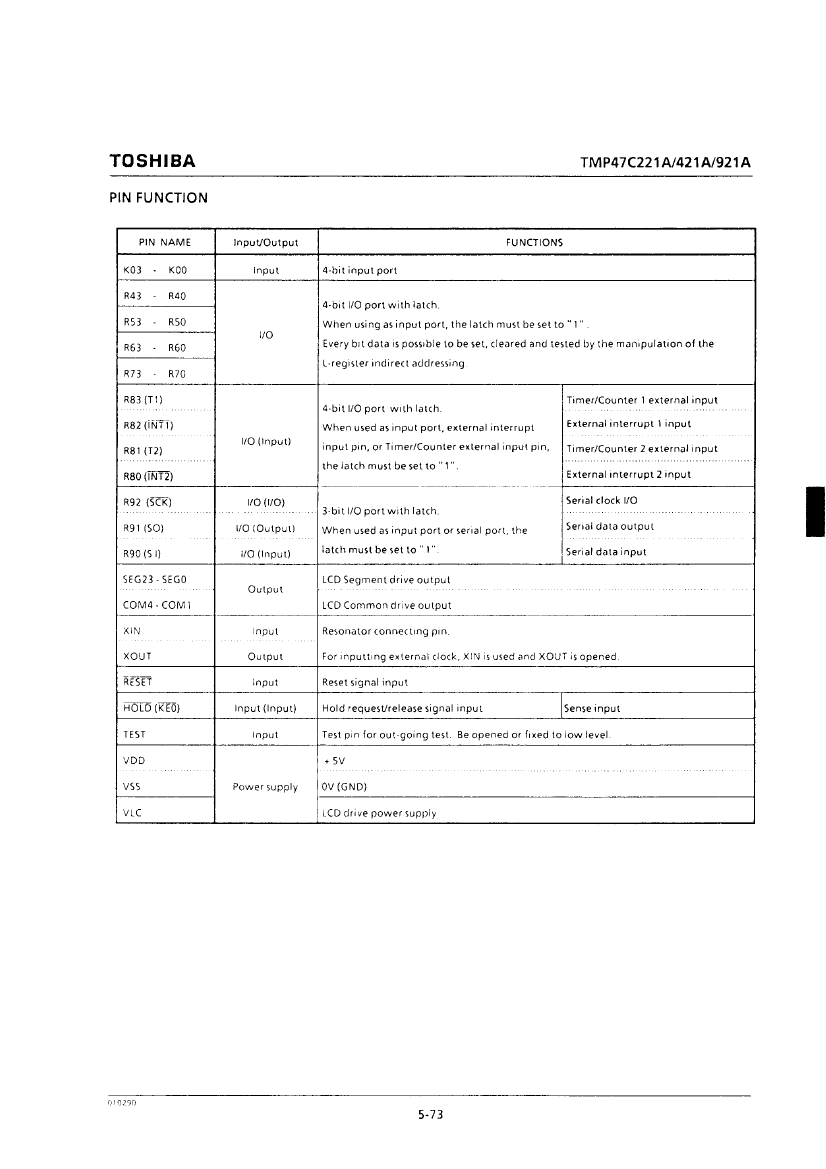

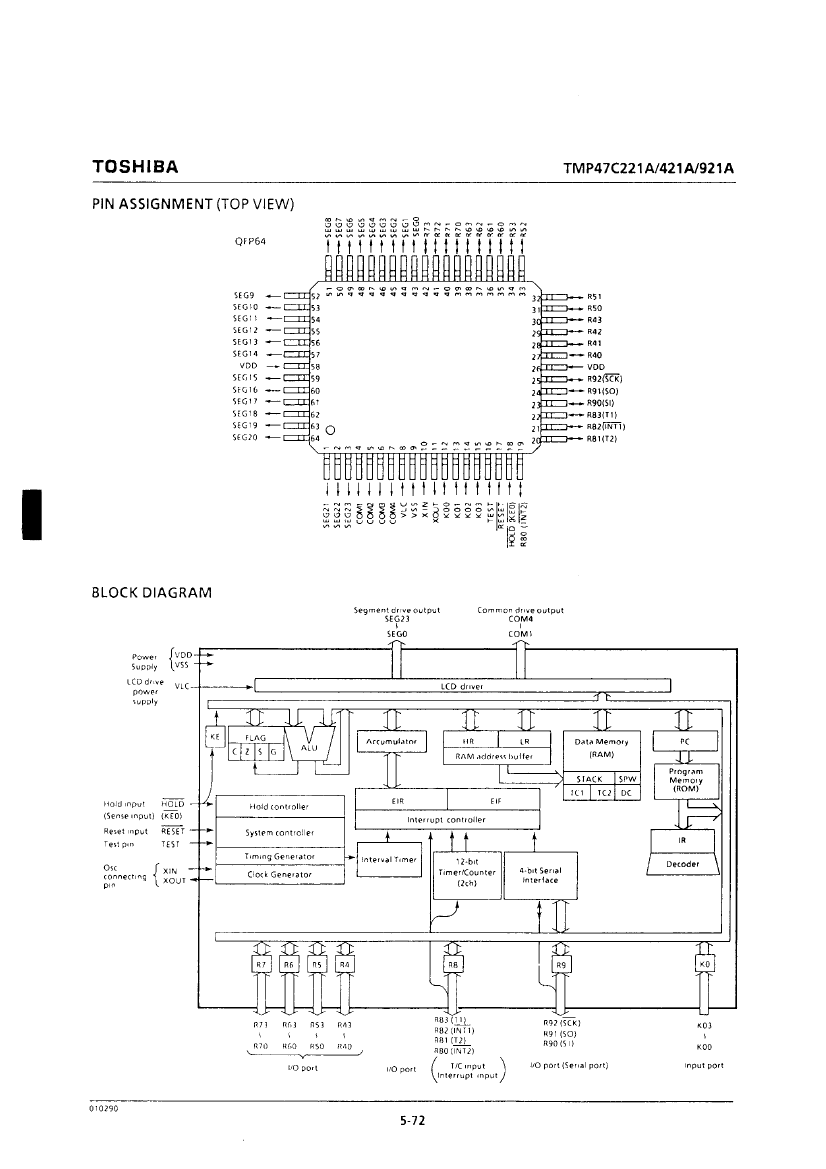

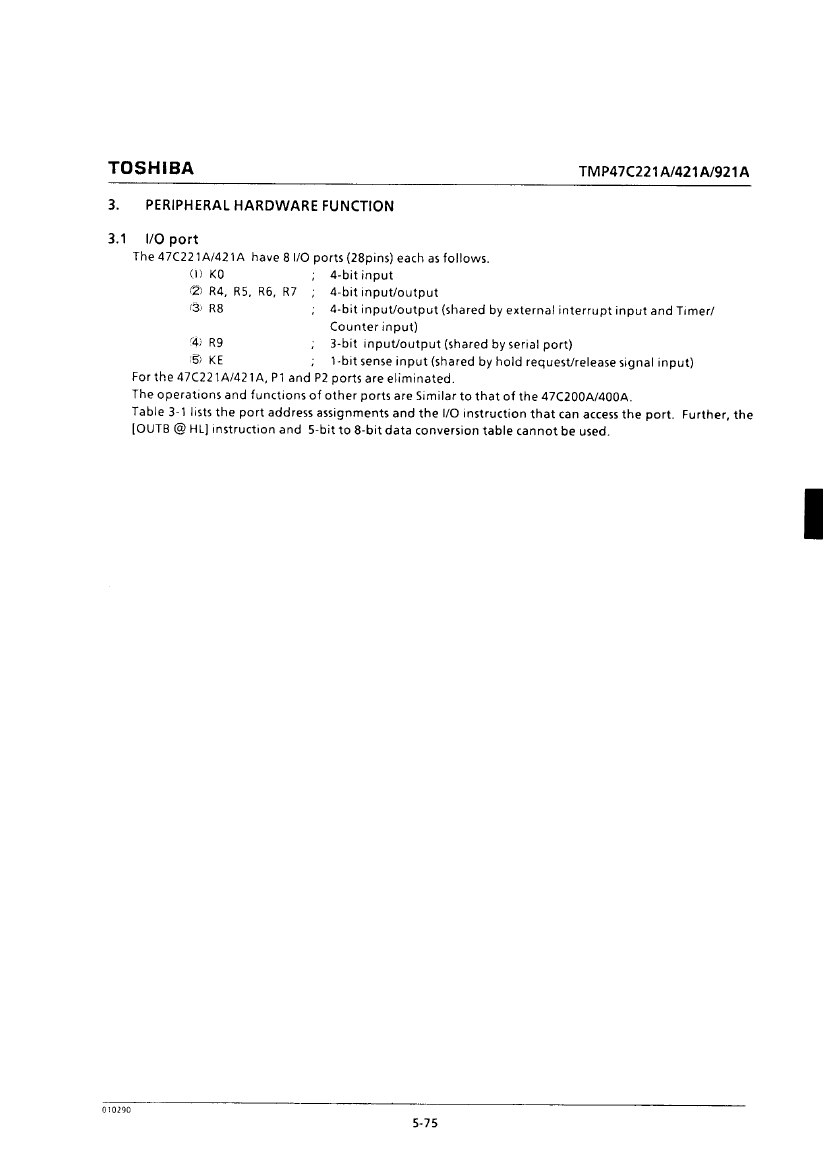

TMP47C421AF Overview

CMOS 4-BIT MICROCONTOROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP,
Contacts	64
Reach Compliance Code	unknow
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	14 mm
Number of I/O lines	28
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	3.15 mm
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	TMP47C421AF	TMP47C221AF
Description	CMOS 4-BIT MICROCONTOROLLER	CMOS 4-BIT MICROCONTOROLLER
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	QFP	QFP
package instruction	QFP,	QFP,
Contacts	64	64
Reach Compliance Code	unknow	unknow
JESD-30 code	S-PQFP-G64	S-PQFP-G64
JESD-609 code	e0	e0
length	14 mm	14 mm
Number of I/O lines	28	28
Number of terminals	64	64
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
Maximum seat height	3.15 mm	3.15 mm
Maximum supply voltage	6 V	6 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
