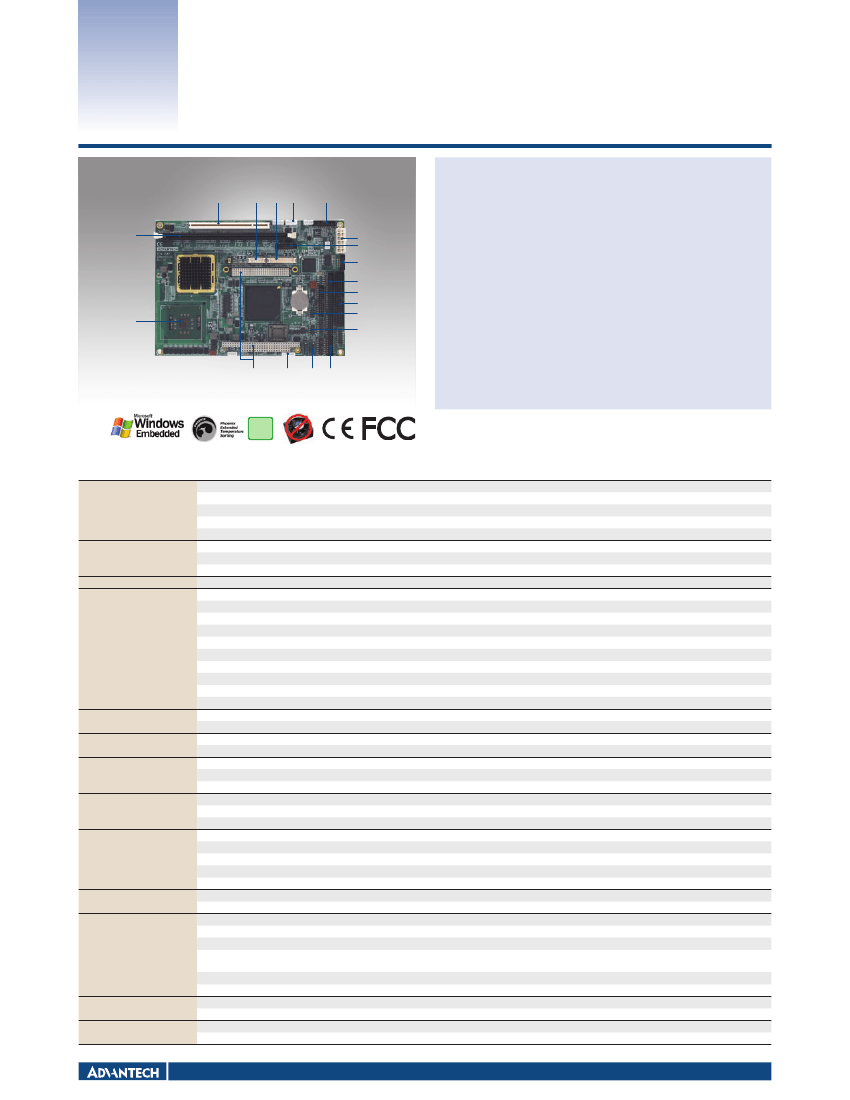

PCM-9587F-M0A1E: DescriptionOnboard IntelÂ® CeleronÂ® M CPU on board EBX SBC with LAN/ LVDS/DVI/VGA/Audio/4 COM/4 USB/2 SATA/PC/104-Plus; File Size317KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Compare View All

PCM-9587F-M0A1E Overview

Onboard IntelÂ® CeleronÂ® M CPU on board EBX SBC with LAN/ LVDS/DVI/VGA/Audio/4 COM/4 USB/2 SATA/PC/104-Plus

Preview

Download Datasheet

View All

PCM-9587

PCI

DVI LVDS TV-Out

Audio

DIMM up

to 1 GB

Power

VGA

Ethernet

FDD

LPT

1st IDE

USB3, 4

USB1, 2

Onboard Intel

Celeron

M CPU on board

EBX SBC with LAN/ LVDS/DVI/VGA/Audio/

4 COM/4 USB/2 SATA/PC/104-Plus

Features



Embedded Intel

Celeron

M 600 MHz/ Celeron

M 1.0 GHz



Supports ECC DDR memory up to 1 GB, accept 128/256/512/1024 MB

DDR200/266 DRAM



EBX form factor standard and support for PC/104-Plus bus



Supports up to 10/100Base-T Ethernet



Supports up to two channel 36-bit LVDS interface



Wide temperature optional



2 x SATA 150 (RAID 0/1), 4 x COM, 4 x USB 2.0, 8 bit GPIO



Support PC/104-Plus (PCI + 8-bit ISA), Mini PCI and 1 x PCI Slot

Intel

Celeron M

Processor

PC/104+ KB/Mouse SATA 4 COM

RoHS

COMPLIANT

2002/95/EC

Specifications

Processor System

CPU

Front Side Bus

L2 Cache

Chipset

BIOS

Technology

Max. Capacity

Socket

CompactFlash

LPT

FDD

RS-232

RS-232/422/485

K/B

Mouse

USB

Audio

GPIO

SMBus

Max. Data Transfer Rate

Channel

Mode

Channel

PCI

miniPCI

PC/104-Plus

Speed

Controller

Interface

Controller

VRAM

LVDS LCD

TV-Out

Dual Independent Display

Operation Temperature

Operating Humidity

Power Type

Power Supply Voltage

Power Consumption: Typical

Power Consumption:

Max, test in HCT

Power Management

Battery

Output

Interval

Dimensions (L x W)

Weight

Intel ULV Celeron M 600 MHz/ 1.0 GHz

400 MHz

512 KB/ 0 KB

Intel 852GM + 6300ESB

Award 4 Mbit

DDR 200/266, ECC

1 GB

1 x 184-pin DIMM

Card Type I, Type II (shared 2nd IDE Channel)

4 x USB 2.0

AC97, Speaker out, CD-input, Line-in, Line-out, Mic-in

8-bit general purpose input/output

Supported

150 (RAID 0/1)

UDMA 100

1 (8-bit ISA)

10/100Mbps

Intel 82551ER, optional 82541PI (Giga LAN)

RJ-45 by cable

Intel 852GM

Optimized Shared Memory Architecture up to 32 MB system memory

1 x 36-bit LVDS

Supports both NTSC/PAL, S-video and Composite Video (optional)

CRT + LVDS, DVI + LVDS, TV-out +LVDS, CRT + DVI

0 ~ 60° C (32 ~ 140° F)

0% ~ 90% relative humidity, non-condensing

ATX/ AT(Optional)

+5 V ± 5%, +12 V ±5%

2.62 A @ 5 V, 0.03 A @ 12 V (Celeron M 600 with 256 MB DDR266)

2.63 A @ 5 V, 0.03 A @ 12 V (Celeron M 600 with 256 MB DDR266)

APM, ACPI

Lithium 3 V / 196 mAH

System reset

Programmable 1 ~ 255 sec

203 x 146 mm (8" x 5.75")

0.85 kg (1.87 lb) (weight of total package)

Memory

SSD

I/O Interface

SATA

EIDE

Expansion Slot

Ethernet

Display

Environment

Power

Watchdog Timer

Physical Characteristics

Embedded Single Board Computers

All product specifications are subject to change without notice

Last updated : 08-Sep-2009
