LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
SURFACE MOUNT LED TAPE AND REEL
Pb
Lead-Free Parts
LSIR9033/TR1
DATA SHEET
DOC. NO
REV.
DATE
:
QW0905-L SIR9033/TR1
: E
: 26 - Dec - 2005
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LSIR9033/TR1
Page 1/7

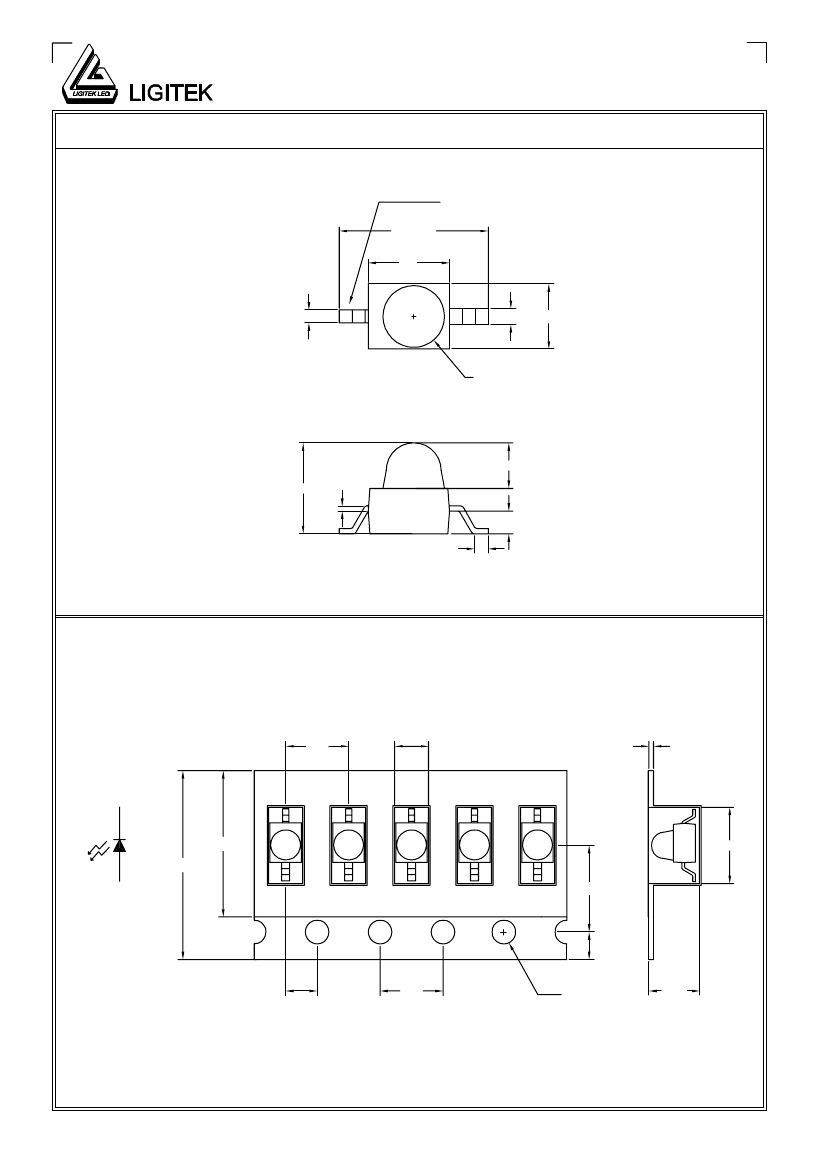

Package Dimensions
Cathode
4.6
±
0.5
2.5
0.4
±
0.1
0.5
±
0.1 2.0
ψ
1.9
1.4
2.8
0.16
0.7
0.4
Note : 1.All dimension are in millimeter tolerance is
±
0.2mm unless otherwise noted.
2.Specifications are subject to change without notice.
Carrier Type Dimensions
4.0
2.16
0.3
9.3
12¡ Ó
0.3
5.5
4.85
Polarity
1.75
4.0
3.32
2.0
1.5
Note : The tolerances unless mentioned is
±
0.2mm,Angle
±
0.5. Unit=mm.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LSIR9033/TR1
Page 2/7
Reel Dimensions
16.0
±
1.0
ψ
178
±
2.0
14.2
±
1.0
74.0
±
1.5
Description
12.0mm tape,7"reel
Quantity/Reel
1500 devices
Features:
1. High radiant intensity.
2. Suitable for pulsed applications.
3. Low average degradation.
Descriptions:
The LSIR9033/TR1 series are super-high efficiency Gallium Aluminum Arsenide infrared
emitting diodes encapsulated in water clear plastic T-1 3/4 package individually
Device Selection Guide:
PART NO
LSIR9033/TR1
MATERIAL
GaAIAs
LENS COLOR
Water Clear
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LSIR9033/TR1
Page 3/7
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
SIR
Power Dissipation
Peak Forward Current
(300PPS,1
μ
s Pulse)
Forward Current
Reverse Voltage
Electrostatic Discharge
Operating Temperature
Storage Temperature
Soldering Temperature
PD
I
FP
I
F
Vr
ESD
T
opr
Tstg
Tsol
100
1
50
5
UNIT
mW
A
mA
V
2000
-55 ~ +100
-55 ~ +100
Max 260
℃
for 5 sec Max
(2mm from body)
V
℃
℃
Electrical Optical Characteristics (Aa=25
℃
)
PARAMETER
Radiant Intensity
Aperture Radiant Incidence
Peak Emission Wavelength
Spectral Line Half Width
Forward Voltage
Reverse Current
Viewing Angle
SYMBOL
Le
Ee
Min.
1.2
0.15
Typ.
2.0
0.3
880
70
1.4
Max.
UNIT
mW/sr
mW/cm
nm
nm
2
TEST CONDITION
IF=20mA
IF=20mA
IF=20mA
IF=20mA
IF=20mA
VR=5V
λ
peak
△λ
VF
IR
2
θ
1/2
1.7
100
V
μ
A
deg
20
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The radiant intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LSIR9033/TR1
Page 4/7

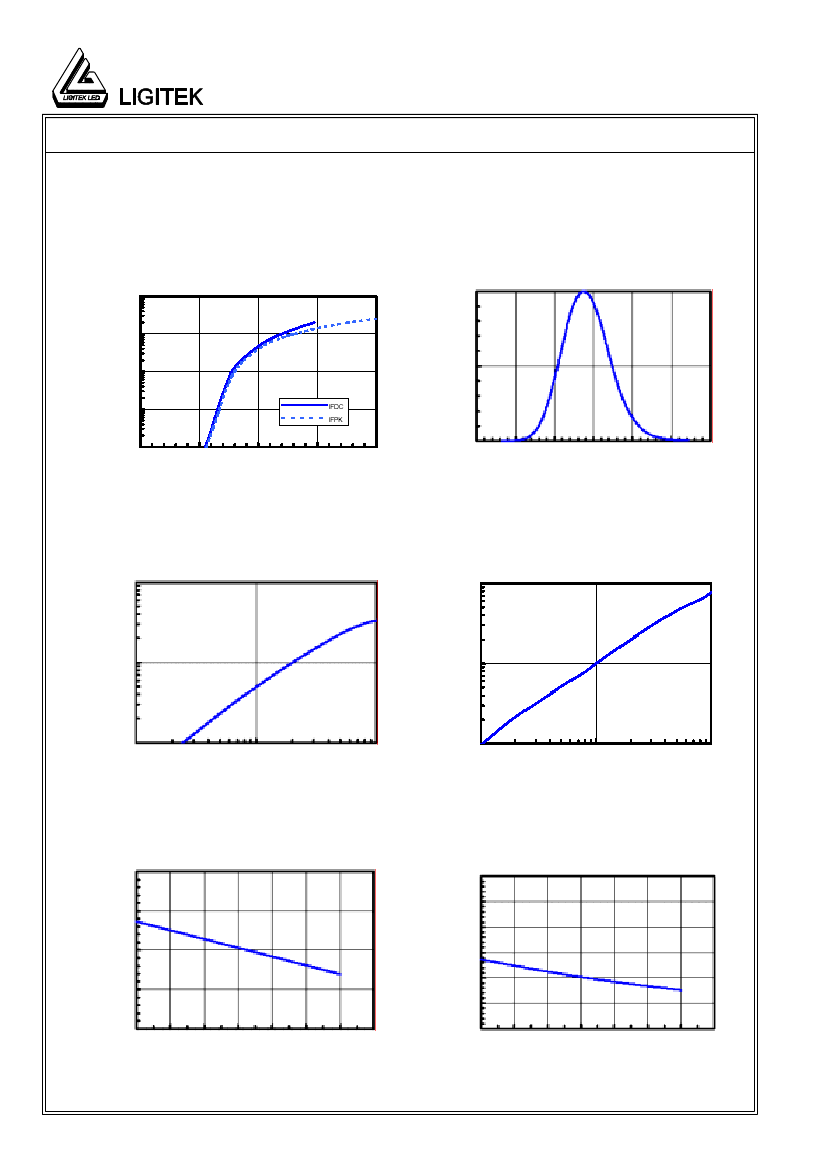

Typical Electro-Optical Characteristics Curve
SIR CHIP
Fig.1 Forward Current vs. Rorward Voltage
1000
Fig.2 Relative Radiant Intensity vs. Wavelength
1.0
100
10
1
0.1
0.5
Relative Radiant Intensity
Normalize @20mA
Forward Current(mA)
0.5
1.0
1.5
2.0
2.5
0.0
750
800
850
900
950
1000
1050
Forward Voltage(V)
Wavelength(nm)
Fig.3 Relative Radiant Power
vs. Forward DC Current
10.0
Fig.4 Relative Radiant Power
vs. Forward Peak Current
10.0
Relative Radiant Power
Normalize @20mA
Relative Radiant Power
Normalize @100 mA
10
100
1.0
1.0
0.1
1
0.1
10
100
1000
I
FDC
(mA)
I
FPK
(mA)
Fig.5 Forward DC Voltage vs. Temperature
Forward DC Voltage @20 mA
Normalize @ 25
℃
1.2
Fig.6 Relative Radiant Power vs. Temperature
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-40
1.1
1.0
0.9
0.8
-40
-20
0
20
40
60
80
100
Relative Radiant Power
Normalize @ 20mA,25
℃
-20
0
20
40
60
80
100
Ambient Temperature
[℃]
Ambient Temperature[
℃
]
