10118F datasheet, PDF - EEWORLD Datasheet

10118F: DescriptionOR-AND Gate, 10K Series, 2-Func, 6-Input, ECL, CDIP16; Categorylogic logic; File Size102KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

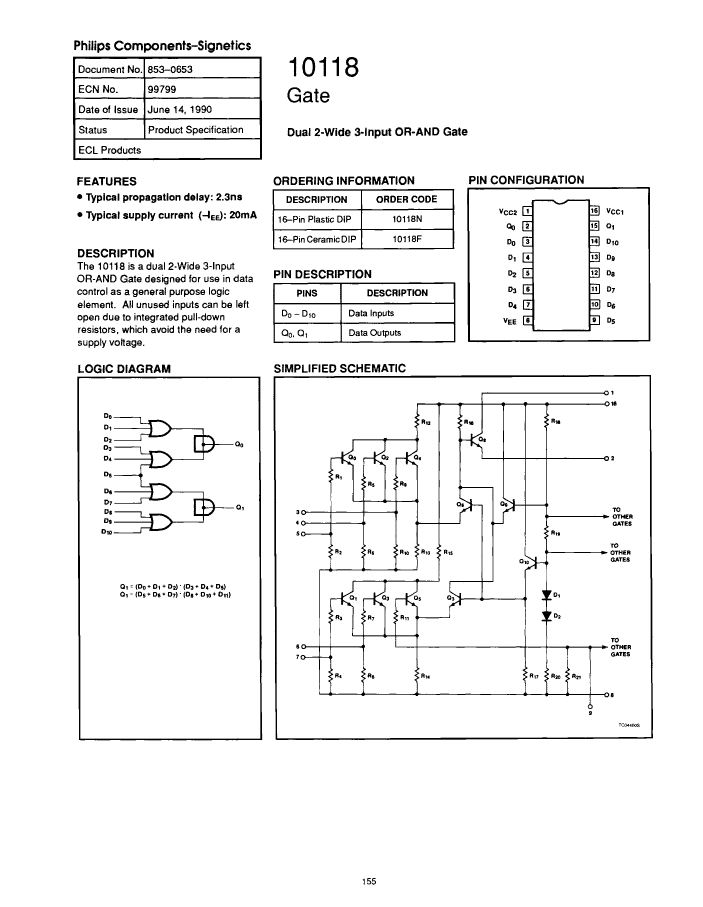

10118F Overview

OR-AND Gate, 10K Series, 2-Func, 6-Input, ECL, CDIP16

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	COMMON INPUT
series	10K
JESD-30 code	R-GDIP-T16
Load capacitance (CL)	3 pF
Logic integrated circuit type	OR-AND GATE
Number of functions	2
Number of entries	6
Number of terminals	16

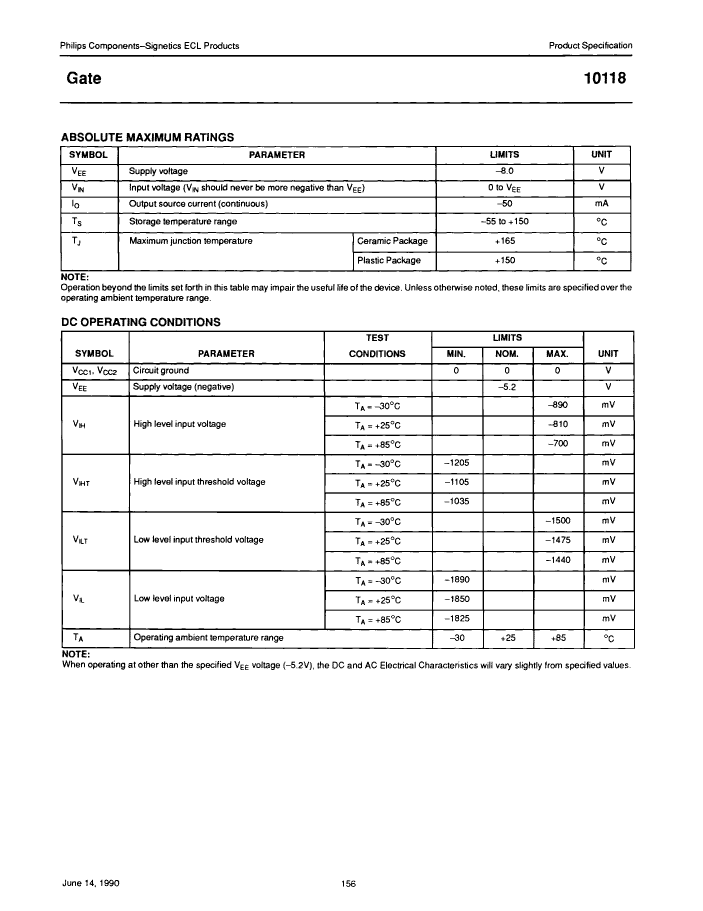

Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE

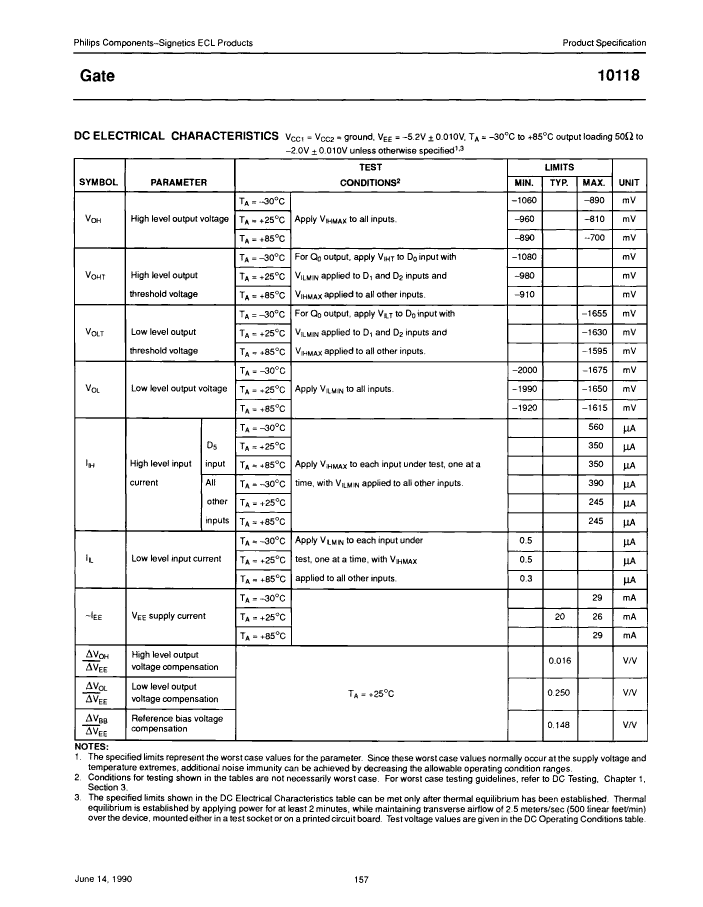

Maximum supply current (ICC)	29 mA
propagation delay (tpd)	3.8 ns
Certification status	Not Qualified
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	10118F	10118N
Description	OR-AND Gate, 10K Series, 2-Func, 6-Input, ECL, CDIP16	OR-AND Gate, 10K Series, 2-Func, 6-Input, ECL, PDIP16
Maker	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown
Other features	COMMON INPUT	COMMON INPUT
series	10K	10K
JESD-30 code	R-GDIP-T16	R-PDIP-T16
Load capacitance (CL)	3 pF	3 pF
Logic integrated circuit type	OR-AND GATE	OR-AND GATE
Number of functions	2	2
Number of entries	6	6
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Maximum supply current (ICC)	29 mA	29 mA
propagation delay (tpd)	3.8 ns	3.8 ns
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	ECL	ECL
Temperature level	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
