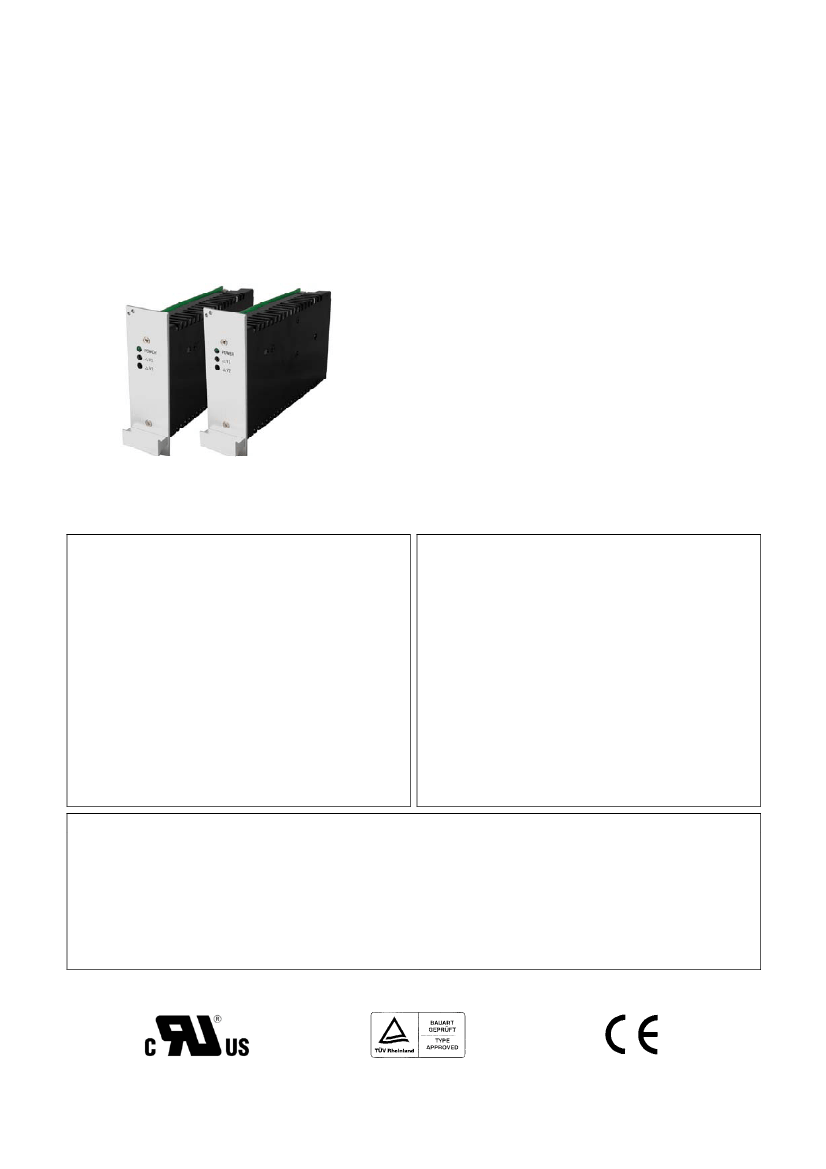

H HiTRON

UNIVERSAL AC INPUT HARMONIC CORRECTION

AC-DC 19" COMPATIBLE EUROCARD MULTI-OUTPUT 60 WATTS

SWITCHING MODE POWER SUPPLIES HPU60 SERIES

FEATURES:

ACCOMMODATE UNIVERSAL AC SOURCES

MEET IEC 61000-3-2 HARMONIC CORRECTION

MEET UNIVERSAL SAFETY STANDARDS

19” COMPATIBLE EUROCARD FORMAT

EMI MEET EN 55022 & FCC CLASS B

CE MARKING COMPLIANCE

3U X 8HP X 160MM FOR VMEbus STANDARD

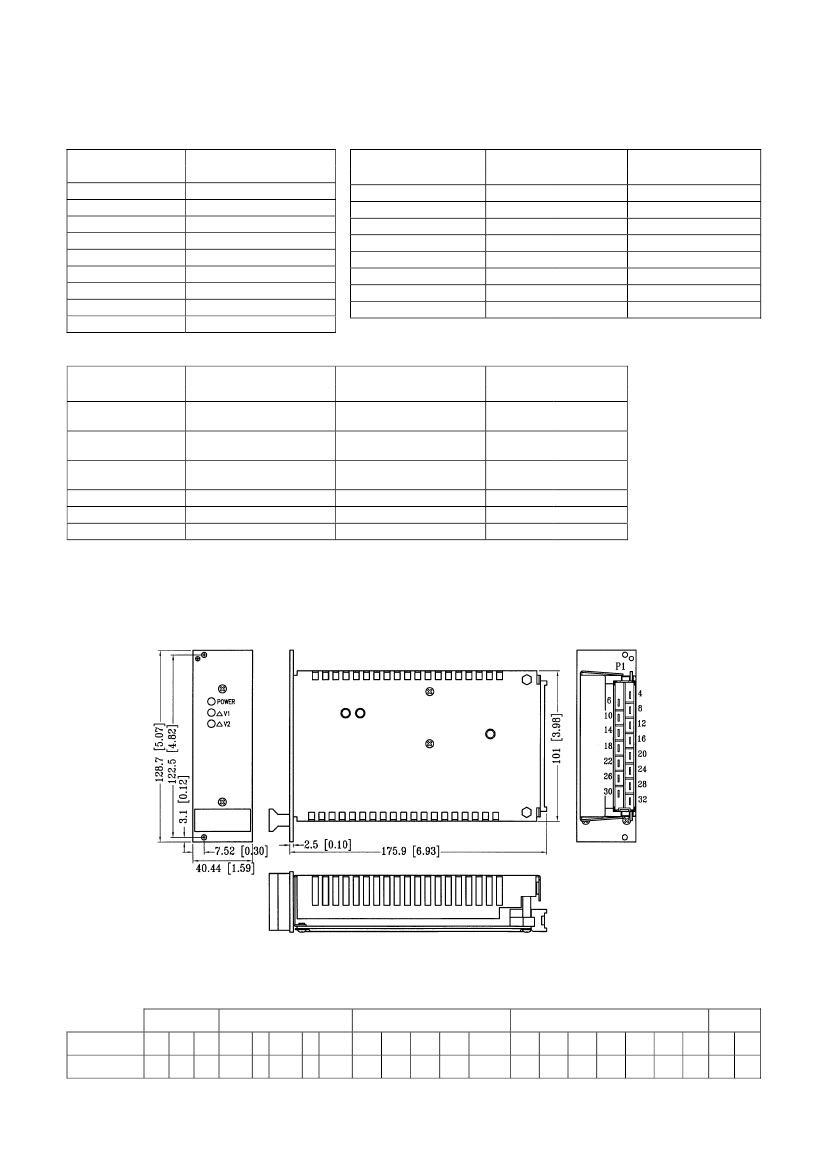

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Typ. 90-264Vac with PFC.

Input Connector:

DIN 41612 at rear.

Input Frequency:

47-63Hz.

Inrush Current:

Typ.

≤30.6A

@ 230Vac.

Input Current:

0.73A @ 115Vac, 0.37A @ 230Vac.

Dielectric Withstand:

Meet IEC 60950-1.

EMI/RFI:

Meet EN 55022 & FCC B.

Power Indicator:

Green LED.

Power Failure Signal:

Installed.

Remote On/Off:

Installed.

Power Factor Correction:

Meet Harmonic Correction

IEC 61000-3-2 .PF typ. 0.97-0.98.

Hold-up Time:

41mS @ 115Vac & 230Vac.

Earth Leakage:

Less than 0.40mA @ 230Vac.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Connector:

DIN 41612 at rear.

Line Regulation:

Typ. 0.5%.

Load Regulation:

Main VO1 typ. ±1.0%.

Aux.VO2 typ. ±2.0% (Mag. Amp.)

typ. ±3.0%.(P.R.).

Aux.VO3 typ. ±3.0%(P.R.).

Noise & Ripple:

Typ. 1% peak to peak.

OVP:

Built-in at main VO1.

Adjustability:

Available at VO1 & VO2.

Overload Protection (OLP):

Fully protected against

output overload and short circuit.

Consult the factory for OLP setting.

GENERAL SPECIFICATION

Efficiency:

Typ. 73%.

Switching Frequency:

Fixed frequency 83K Hz.

Circuit Topology:

Fixed frequency forward circuit.

Transient Response:

Output voltage returns in less than

3mS following a 25% load change.

Safety Standard:

IEC 60950-1/UL 60950-1 Class I.

Power Density:

1.52 Watts / Cubic Inch.

Operating Temperature:

0 to +50°C.

Storage Temperature:

-25 to +85°C.

Temperature Coefficient:

Typ. 0.03% /°C.

Cooling:

Forced air flow is recommended for full load

>+40°C operation.

Construction format:

3U x 8HP(TE) x 160mm.

VMEbus standard Eurocard format.

Note: Due to requests in market and advances in technology, specifications subject to change without notification.
