5962-01-198-2491 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-01-198-2491

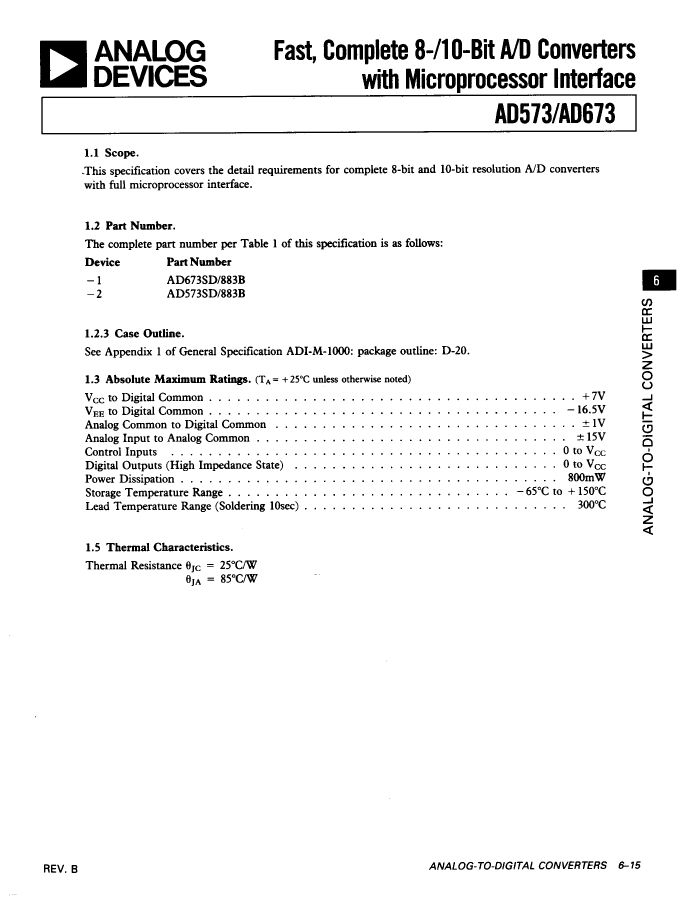

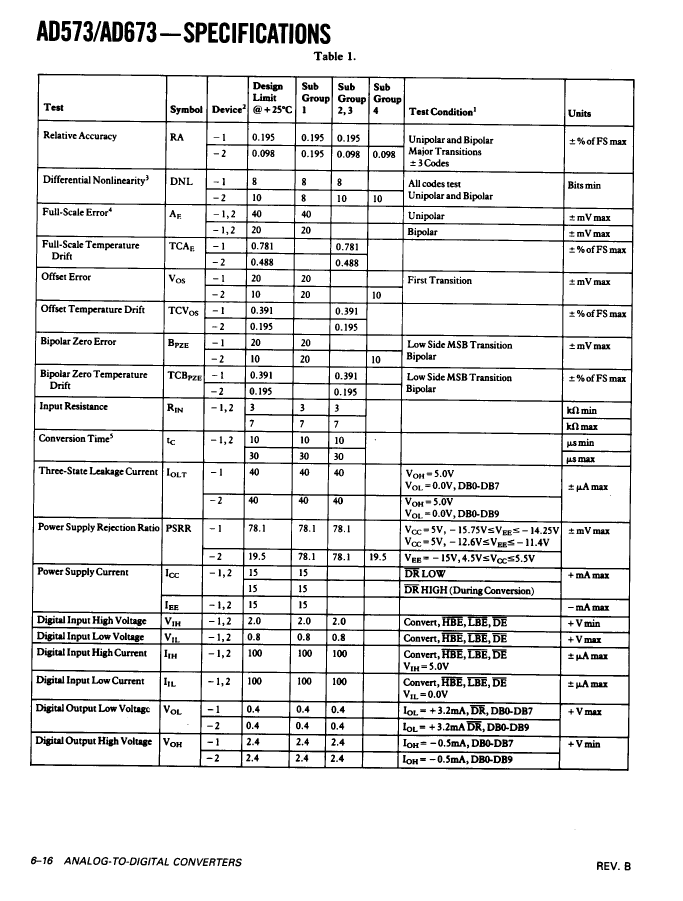

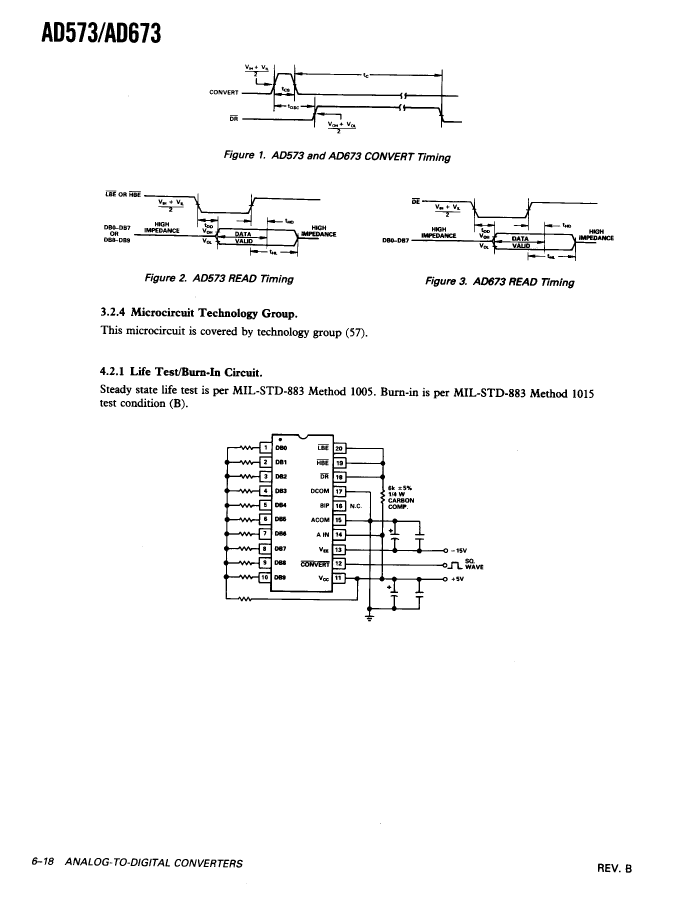

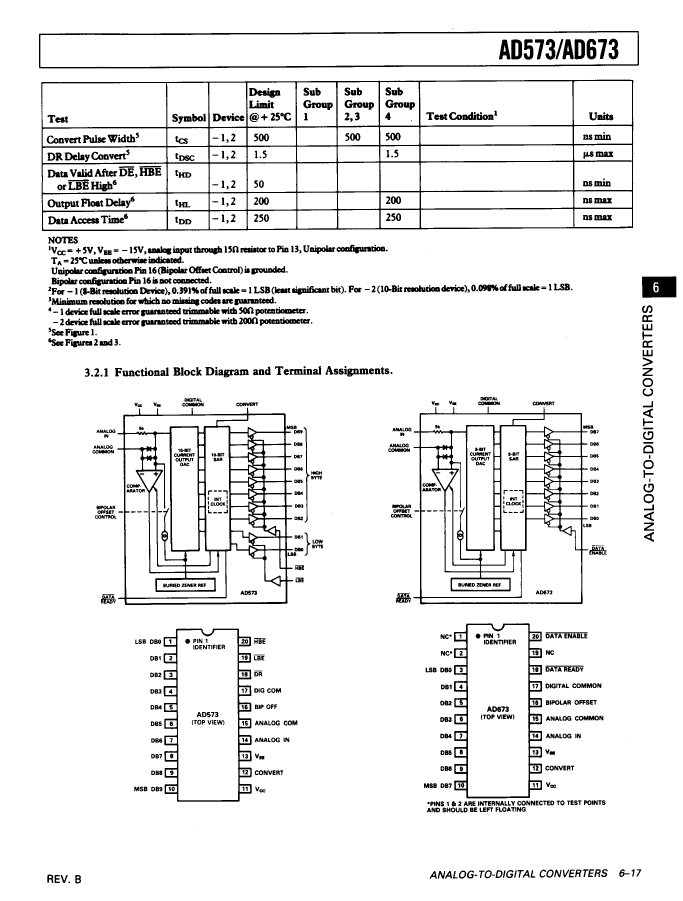

5962-01-198-2491: DescriptionIC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,20PIN; CategoryAnalog mixed-signal IC converter; File Size191KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-198-2491 Overview

IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,20PIN

5962-01-198-2491 Parametric

Parameter Name	Attribute value
Maker	ADI
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	10 V
Converter type	A/D CONVERTER
JESD-30 code	R-XDIP-T20
Maximum linear error (EL)	0.2%
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,-12/-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

5962-01-198-2491 Related Products

	5962-01-198-2491	AD573JD/+	AD573KN/+	AD673JN/+	AD573JN/+	5962-01-346-6387	5962-01-272-0926
Description	IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,20PIN	IC IC,A/D CONVERTER,SINGLE,10-BIT,BIPOLAR,DIP,20PIN, Analog to Digital Converter	IC IC,A/D CONVERTER,SINGLE,10-BIT,BIPOLAR,DIP,20PIN, Analog to Digital Converter	IC IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,20PIN, Analog to Digital Converter	IC IC,A/D CONVERTER,SINGLE,10-BIT,BIPOLAR,DIP,20PIN, Analog to Digital Converter	IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,20PIN	IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,20PIN
Maker	ADI	ADI	ADI	ADI	ADI	ADI	ADI
Reach Compliance Code	unknown	not_compliant	not_compliant	not_compliant	unknown	unknown	unknow
ECCN code	3A001.A.2.C	EAR99	EAR99	EAR99	EAR99	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Converter type	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER
JESD-30 code	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-XDIP-T20
Maximum linear error (EL)	0.2%	0.1%	0.05%	0.2%	0.1%	0.2%	0.2%
Number of digits	8	10	10	8	10	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP20,.3	-	-	-	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	-	-
JESD-609 code	-	e0	e0	e0	e0	-	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
