LT3846N: DescriptionSwitching Controller; CategoryPower/power management The power supply circuit; File Size604KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LT3846N Overview

Switching Controller

LT3846N Parametric

Parameter Name	Attribute value
Maker	ADI
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	40 V
Minimum input voltage	8 V
Nominal input voltage	15 V
JESD-30 code	R-PDIP-T16
length	19.558 mm
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	0.01 A
Maximum output voltage	5.2 V
Minimum output voltage	5 V
Nominal output voltage	5.1 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.08 mm
surface mount	NO
Switch configuration	PUSH-PULL
Maximum switching frequency	47 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

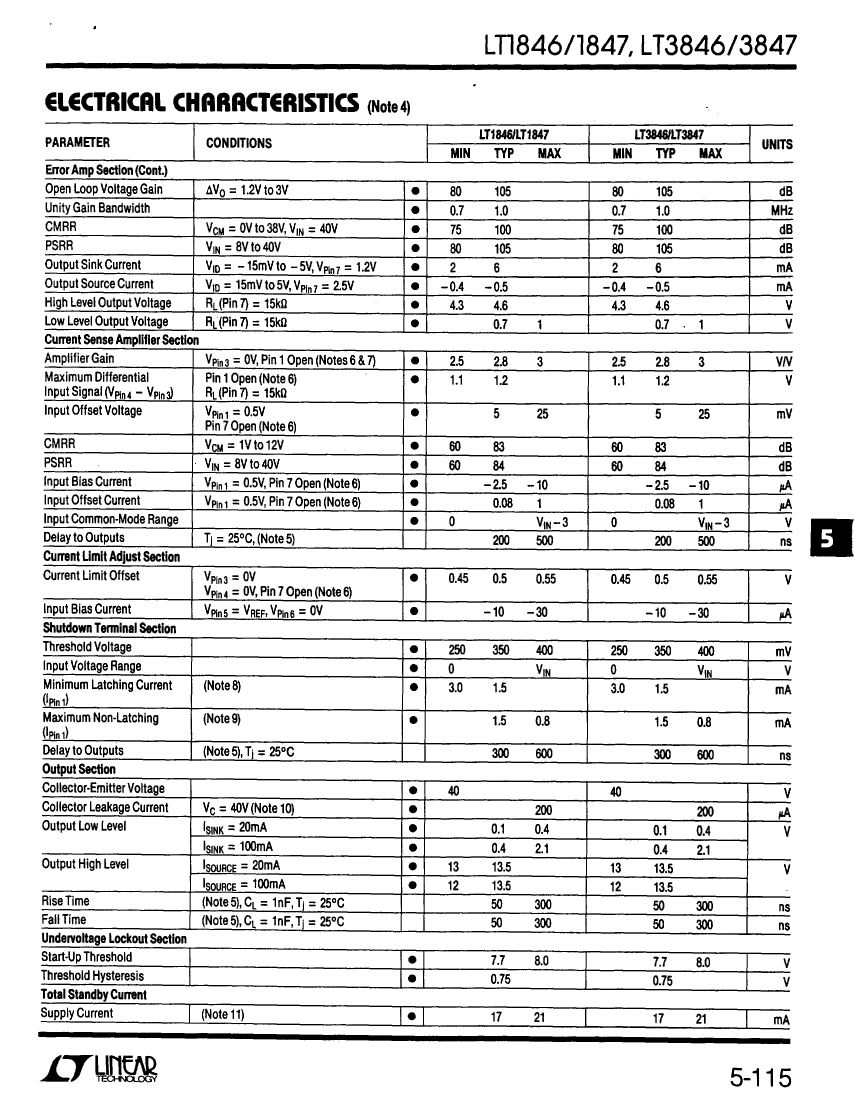

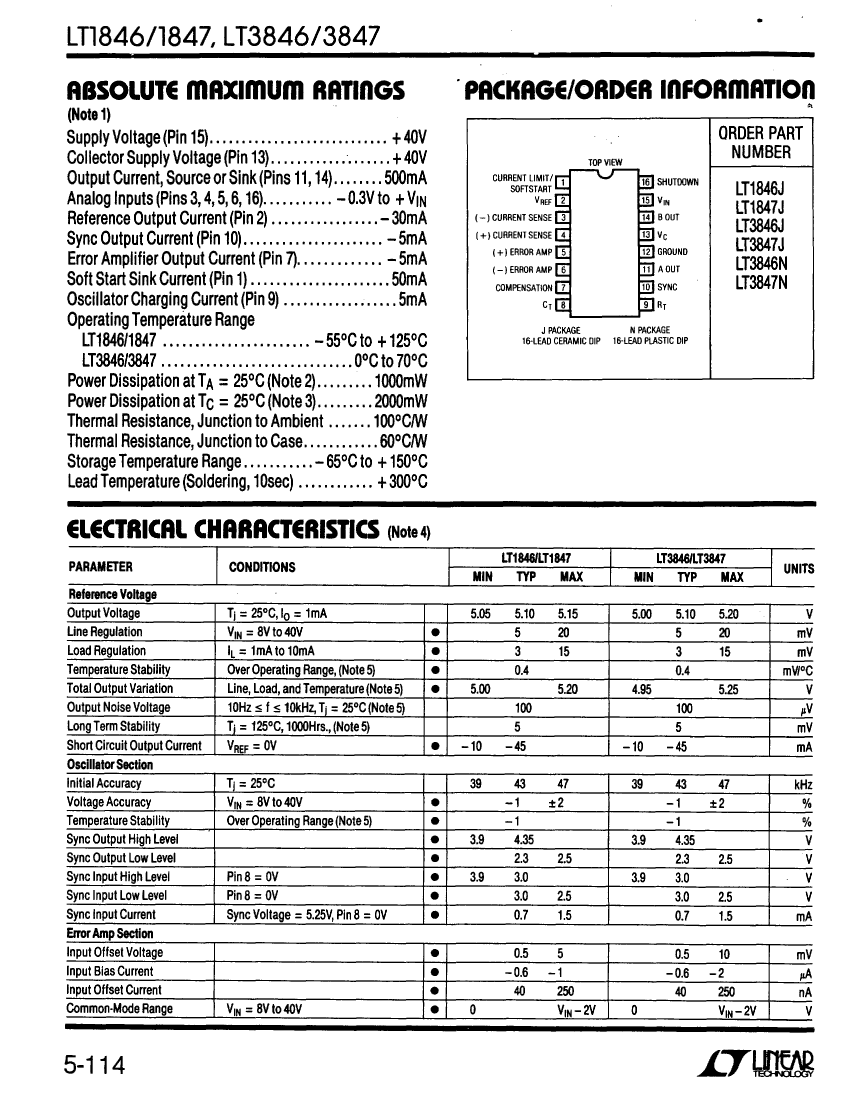

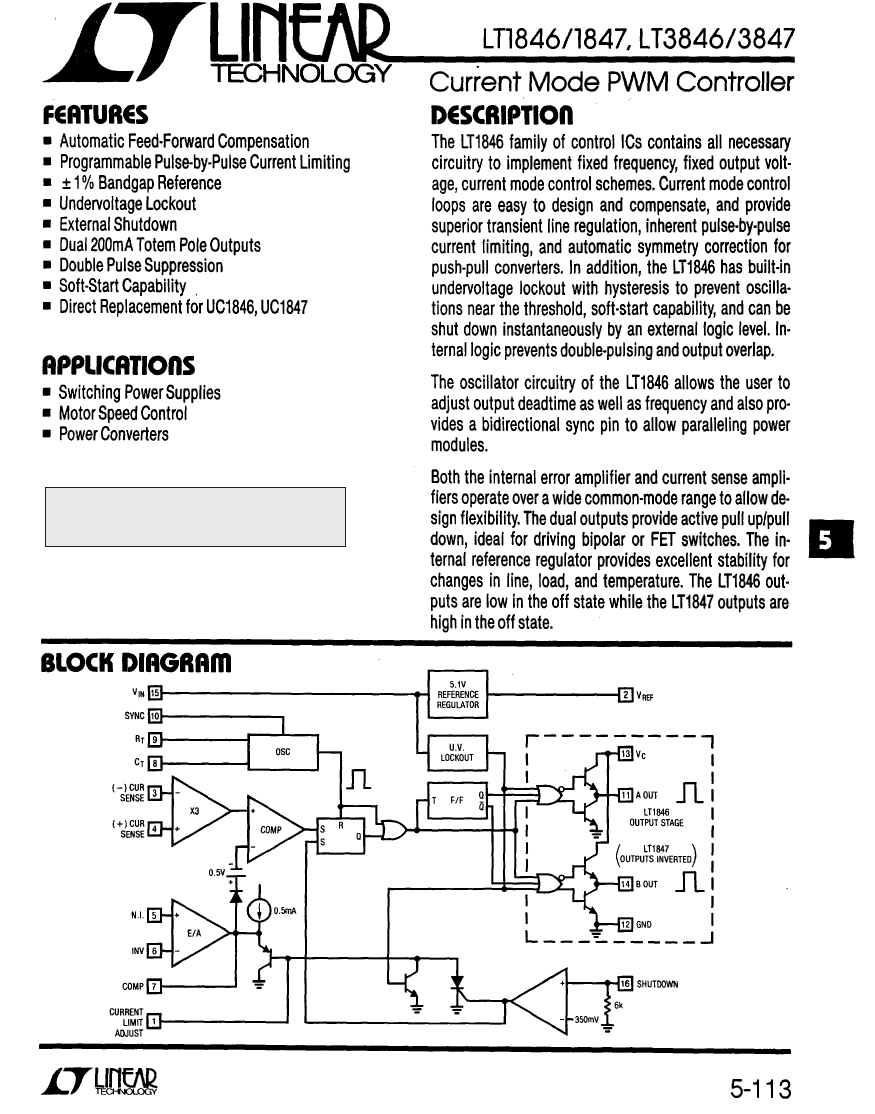

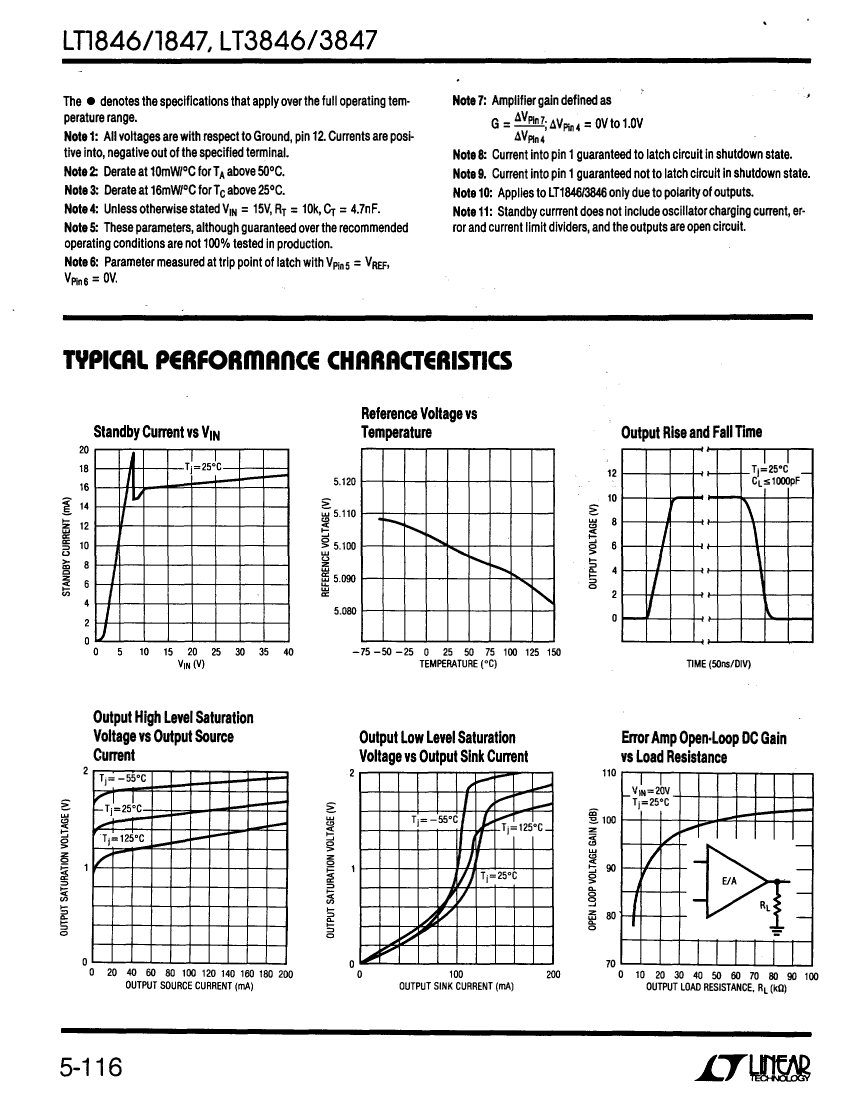

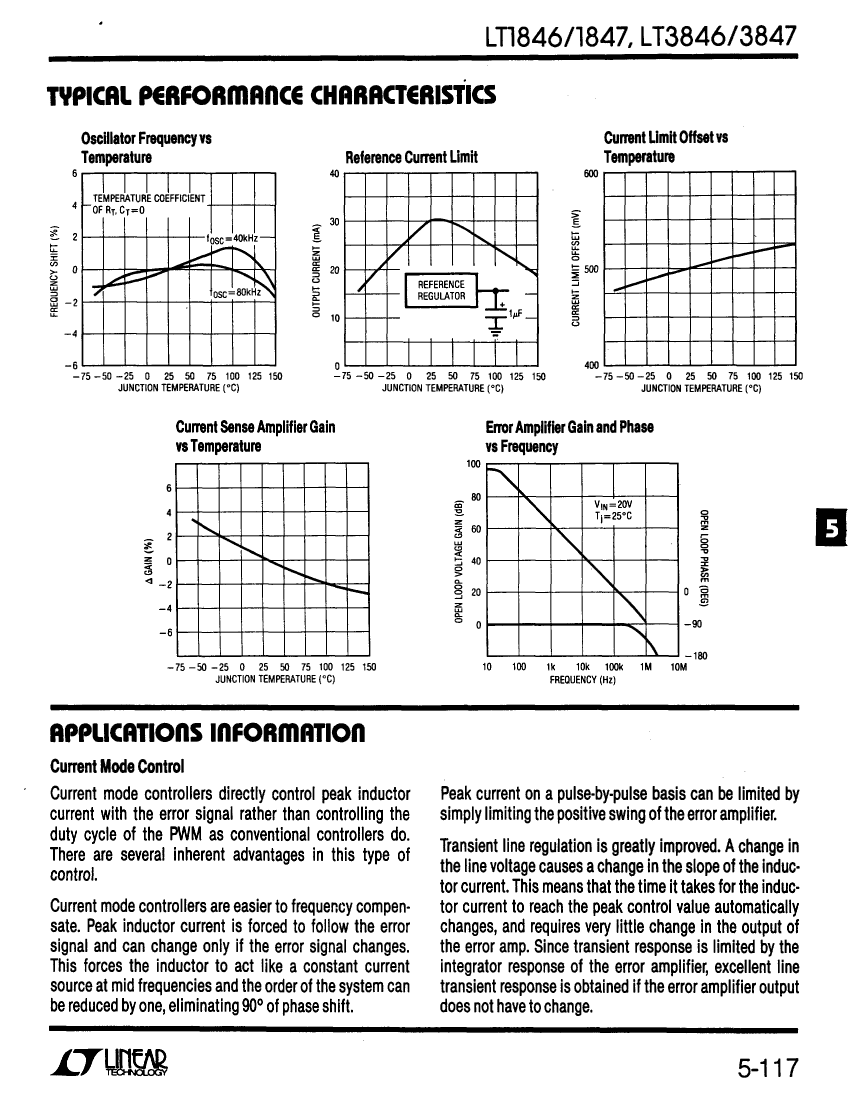

LT3846N Preview

Contact Linear Technology for Potential Replacement

FOR INFORMATION PURPOSES ONLY

OBSOLETE:

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LT3846N Related Products

	LT3846N	LT1846J	LT1847J	LT3846J	LT3847J	LT3847N
Description	Switching Controller	Switching Controller	Switching Controller	Switching Controller	Switching Controller	Switching Controller
Maker	ADI	ADI	ADI	ADI	ADI	ADI
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	40 V	40 V	40 V	40 V	40 V	40 V
Minimum input voltage	8 V	8 V	8 V	8 V	8 V	8 V
Nominal input voltage	15 V	15 V	15 V	15 V	15 V	15 V
JESD-30 code	R-PDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-PDIP-T16
length	19.558 mm	21.336 mm	21.336 mm	21.336 mm	21.336 mm	19.558 mm
Number of functions	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Maximum output current	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A
Maximum output voltage	5.2 V	5.15 V	5.15 V	5.2 V	5.2 V	5.2 V
Minimum output voltage	5 V	5.05 V	5.05 V	5 V	5 V	5 V
Nominal output voltage	5.1 V	5.1 V	5.1 V	5.1 V	5.1 V	5.1 V
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
surface mount	NO	NO	NO	NO	NO	NO
Switch configuration	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL
Maximum switching frequency	47 kHz	47 kHz	47 kHz	47 kHz	47 kHz	47 kHz
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
