1500W Single Output with PFC Function

Preview

Download Datasheet

View All

ELECTRONIC COMPONENTS

RSG

■

RSG Electronic Components GmbH Sprendlinger Landstr. 115 D-63069 Offenbach/Germany

Tel. +49 69 984047-0 Fax +49 69 984047-77 info@rsg-electronic.de

www.rsg-electronic.de

■

Änderungen vorbehalten / subject to change without notice

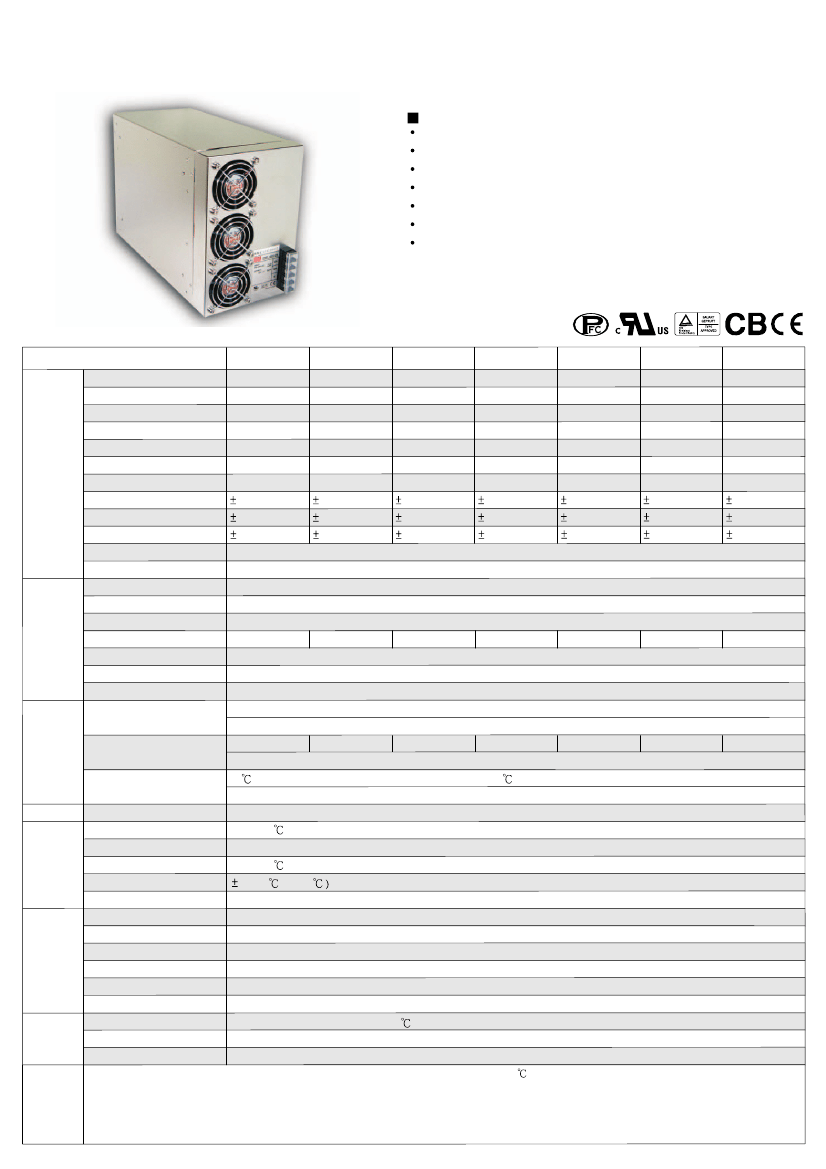

1500W Single Output with PFC Function

PSP-1500

series

Features :

AC input active surge current limiting

Built-in active PFC function

Protections:Short circuit/Over load/Over voltage/Over temperature

Built-in constant current limiting circuit

Built-in remote ON-OFF control

Built-in remote sense function

3 years warranty

SPECIFICATION

MODEL

DC VOLTAGE

RATED CURRENT

CURRENT RANGE

RATED POWER

PSP-1500-5

217.5A

0 ~ 217.5A

1087.5W

Note.4

1200W

PSP-1500-12

12V

112.5A

0 ~ 112.5A

1350W

1500W

PSP-1500-13.5

13.5V

100.5A

0 ~ 100.5A

1356.75W

1500W

150mVp-p

12 ~ 15V

2.0%

0.3%

0.5%

PSP-1500-15

15V

90A

0 ~ 90A

1350W

1500W

150mVp-p

13.5 ~ 18V

2.0%

0.3%

0.5%

PSP-1500-24

24V

56.4A

0 ~ 56.4A

1353.6W

1500W

150mVp-p

20 ~ 26.4V

1.0%

0.2%

0.5%

PSP-1500-27

27V

50.4A

0 ~ 50.4A

1360.8W

1500W

150mVp-p

24 ~ 30V

1.0%

0.2%

0.5%

PSP-1500-48

48V

28.5A

0 ~ 28.5A

1368W

1500W

200mVp-p

41 ~ 56V

1.0%

0.2%

0.5%

PEAK LOAD

OUTPUT

150mVp-p

RIPPLE & NOISE (max.)

Note.2

100mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10 ~ 13.2V

3.0%

VOLTAGE TOLERANCE

Note.3

6.0%

0.3%

0.5%

LINE REGULATION

0.5%

2.0%

LOAD REGULATION

1500ms, 50ms/230VAC at full load

SETUP, RISE TIME

HOLD TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

POWER FACTOR (Typ.)

24ms/230VAC at full load

176 ~ 264VAC

47 ~ 63Hz

0.96/230VAC at full load

77%

8.4A/230VAC

80A/230VAC

<3.5mA / 240VAC

115 ~ 140% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

5.75 ~ 6.75V

13.8 ~ 16.2V

15.5 ~ 18.2V

18 ~ 21V

27.6 ~ 32.4V

31 ~ 36.5V

Protection type : Shut down o/p voltage, re-power on to recover

95 (TSW1) Detect on the heatsink of PFC MOSFET

90 (TSW2) Detect the winding of output choke

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

RC+/RC-: 0 ~ 0.8V=power on ; 4 ~ 10V=power off

sink current <30mA

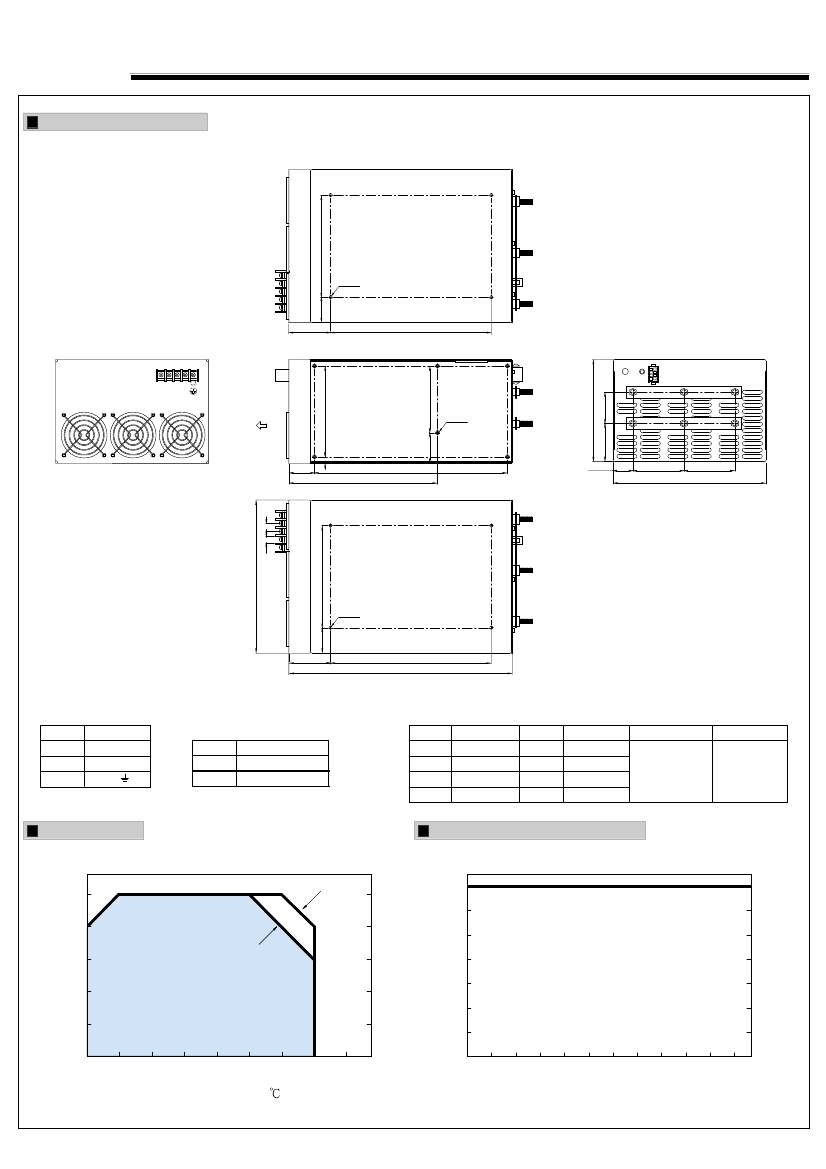

-10 ~ +60 (Refer to output load derating curve)

248 ~ 370VDC

INPUT

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

OVER LOAD

84%

85%

86%

57.6 ~ 67.2V

PROTECTION

OVER VOLTAGE

OVER TEMPERATURE

FUNCTION

REMOTE CONTROL

WORKING TEMP.

WORKING HUMIDITY

20 ~ 90% RH non-condensing

-20 ~ +85

, 10 ~ 95% RH

ENVIRONMENT

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

0.03%/ (0 ~ 50

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

UL60950-1, TUV EN60950-1 Approved

WITHSTAND VOLTAGE

SAFETY & ISOLATION RESISTANCE

EMC

(Note 5)

I/P-O/P:3KVAC

I/P-FG:1.5KVAC

O/P-FG:0.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

Compliance to EN61000-3-2,-3

HARMONIC CURRENT

Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A

EMS IMMUNITY

MTBF

OTHERS

DIMENSION

PACKING

NOTE

43.4K hrs min. MIL-HDBK-217F (25

278*129*190.5mm (L*W*H)

7.4Kg; 2pcs/15.5Kg/1.28CUFT

)

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. 10% Duty cycle maximum within every 30 seconds(max.). Average output power should not exceed the rated power.

5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets

EMC directives.

File Name:PSP-1500-SPEC 2006-04-13
