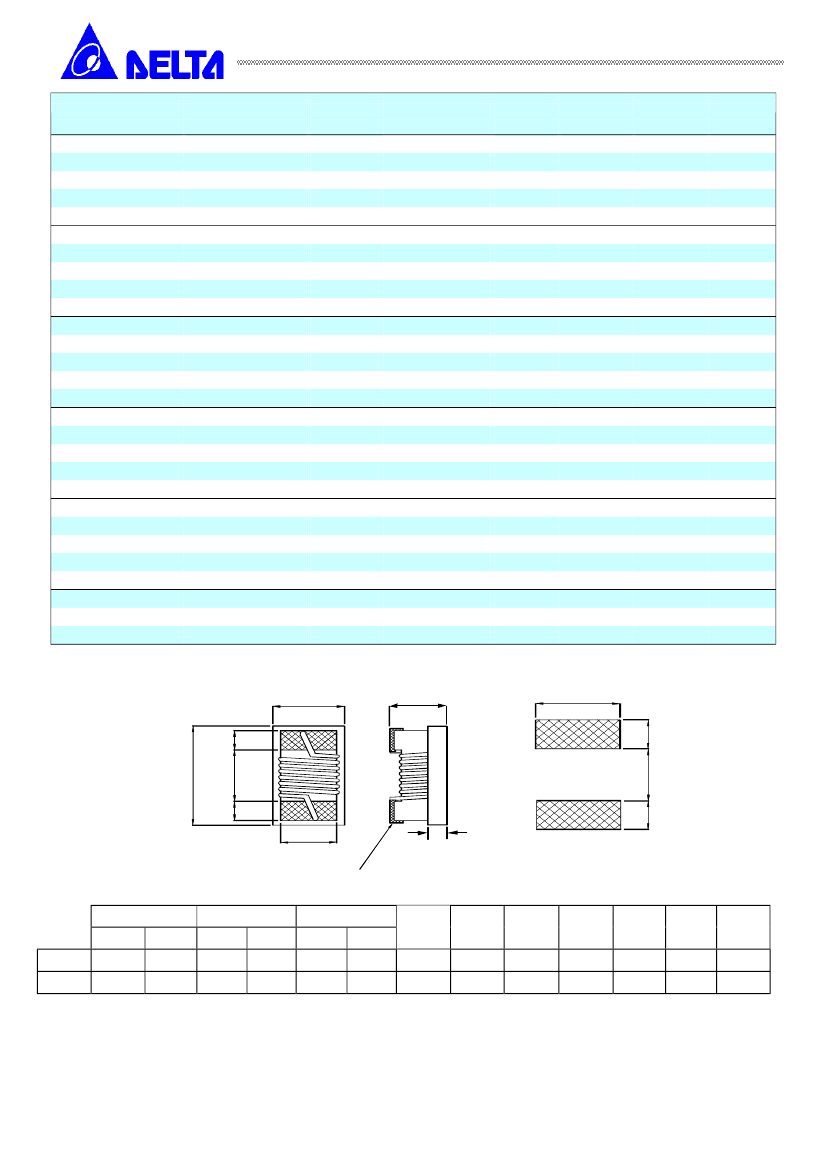

A1206HS-270K: DescriptionGeneral Purpose Inductor, 0.027uH, 10%, 1 Element, Ceramic-Core, SMD, CHIP, 1206; CategoryPassive components inductor; File Size54KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric View All

A1206HS-270K Overview

General Purpose Inductor, 0.027uH, 10%, 1 Element, Ceramic-Core, SMD, CHIP, 1206

A1206HS-270K Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
package instruction	CHIP, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
core material	CERAMIC
DC Resistance	0.11 Ω
Nominal inductance(L)	0.027 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	A1206HS
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	50
Maximum rated current	1 A
self resonant frequency	1800 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 300MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	10%
