LFPPXO023134BULK

Description
CRYSTAL OSCILLATOR, CLOCK, 18.432 MHz, CMOS OUTPUT, ROHS AND REACH COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-4
CategoryPassive components    oscillator
File Size710KB,2 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFPPXO023134BULK Overview

CRYSTAL OSCILLATOR, CLOCK, 18.432 MHz, CMOS OUTPUT, ROHS AND REACH COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-4

LFPPXO023134BULK Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerIQD Frequency Products
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time4 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
JESD-609 codee4
Installation featuresSURFACE MOUNT
Nominal operating frequency18.432 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeCMOS
Output load50 pF
physical size7.0mm x 5.0mm x 1.7mm
longest rise time4 ns
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountYES
maximum symmetry45/55 %
Terminal surfaceGold (Au)

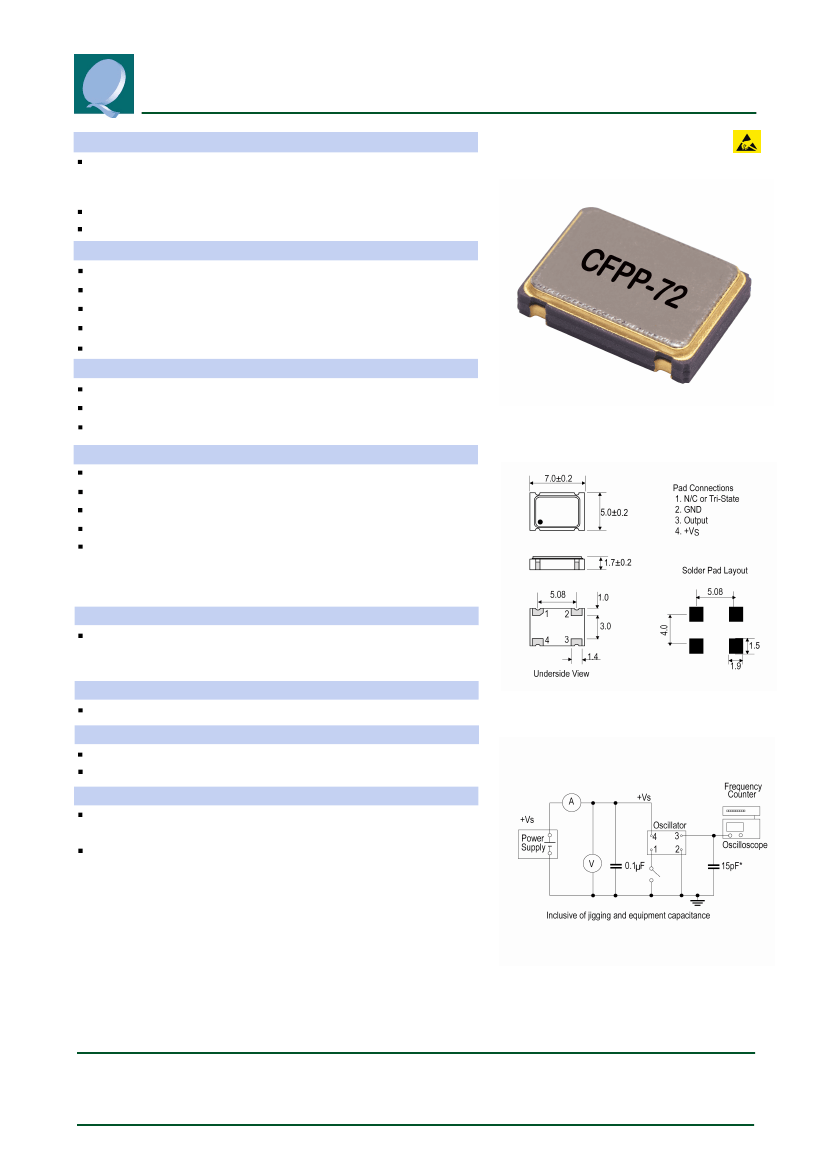

IQD Frequency Products
Incorporating IQD FOQ GmbH
Oscillator Specification
Part No. + Packaging:
LFPPXO023134BULK
Description
PLL based, one time only factory programmable for a fast lead time
Crystal oscillator in a hermetically sealed ceramic package with a
metal lid
Model
Model Issue number
Frequency Parameters
CFPP-72
11
Frequency
Frequency Tolerance @ 25°C
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
18.4320MHz
INCLUSIVE
±50.00ppm
-40.00 to 85.00°C
±5ppm max in 1st year @ 25°C
Supply Voltage
Supply Voltage Tolerance
Current Draw
Output Details
5.0V
±0.5V
45mA max
Outline (mm)
Output Compatability
Output Load
Rise and Fall time (10% - 90%)
Duty Cycle
CMOS
50pF max
4ns max
45/55%
Logic ‘1’ to pad 1 enables oscillator output
Logic ‘0’ to pad 1 disables oscillator output; when disabled the
oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Noise Parameters
Jitter pk-pk:
1 to 33MHz 250ps max
>33MHz
175ps max
Environmental Parameters
Storage Temperature Range: –55 to 125°C
Compliance
Test Circuit
RoHS Status
REACh Status
Packaging
Compliant
Compliant
Pack Type: Bulk
Pack Size
Alternative packing option available
Loose in bulk pack
1
This document is correct at the time of printing; please contact your
local office for the latest version.
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: +49 (0)7264 9145-0
Printed on 27 Jan 14 11:08
France: +33 (0)5 34 50 91 18
USA: +1 (0)408.273.4530
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
