LFSPXO010573BULK

Description
HCMOS Output Clock Oscillator, 15.36MHz Nom
CategoryPassive components    oscillator
File Size661KB,2 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFSPXO010573BULK Online Shopping

Suppliers Part Number Price MOQ In stock
LFSPXO010573BULK - - View Buy Now

LFSPXO010573BULK Overview

HCMOS Output Clock Oscillator, 15.36MHz Nom

LFSPXO010573BULK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerIQD Frequency Products
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time7 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
Installation featuresSURFACE MOUNT
Nominal operating frequency15.36 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Oscillator typeHCMOS
Output load50 pF
physical size7.5mm x 5.0mm x 1.3mm
longest rise time7 ns
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountYES
maximum symmetry45/55 %

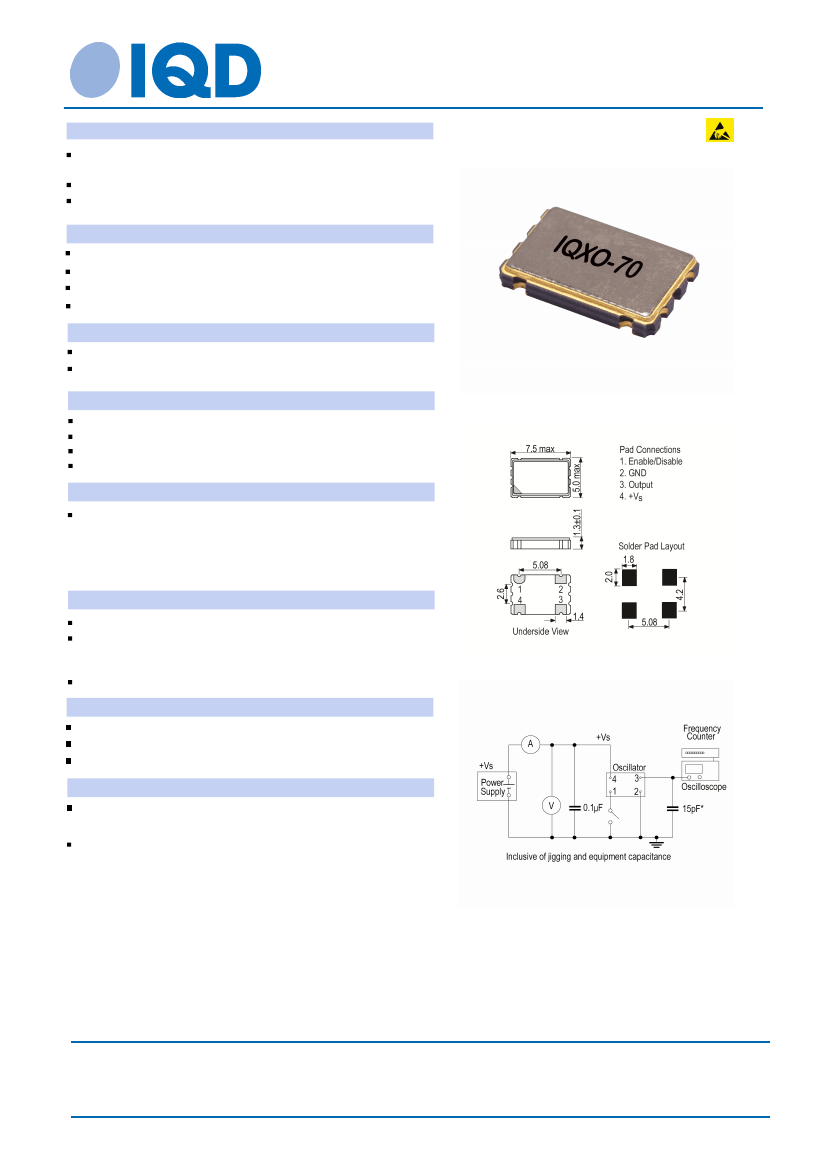

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO010573Bulk
Description
Surface mount oscillator in a ceramic package with a
hermetically sealed metal lid
Model
IQXO-70
Model Issue number
11
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
15.360MHz
±100.00ppm
-10.00 to 70.00°C
±5ppm max in 1st year
Supply Voltage
Current Draw
Output Details
5.0V ±0.5V
27.00mA
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
HCMOS
50pF max
7.0ns max
45/55%
Outline (mm)
Tri-state Operation:
Logic ‘1’ (2.2V min) to pad 1 enables oscillator output
Logic ‘0’ (0.8V max) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Environmental Parameters
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G, frequency range 10-2000Hz 2hrs in 3 mutually
perpendicular planes (total 6hrs)
Storage Temperature Range: –55 to 125°C
Compliance
Test Circuit
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
