LFSPXO018074REEL

Description
HCMOS Output Clock Oscillator, 18MHz Nom
CategoryPassive components    oscillator
File Size737KB,2 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFSPXO018074REEL Online Shopping

Suppliers Part Number Price MOQ In stock
LFSPXO018074REEL - - View Buy Now

LFSPXO018074REEL Overview

HCMOS Output Clock Oscillator, 18MHz Nom

LFSPXO018074REEL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerIQD Frequency Products
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TR
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
Installation featuresSURFACE MOUNT
Nominal operating frequency18 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Oscillator typeHCMOS
Output load15 pF
physical size7.5mm x 5.0mm x 1.3mm
longest rise time6 ns
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry45/55 %

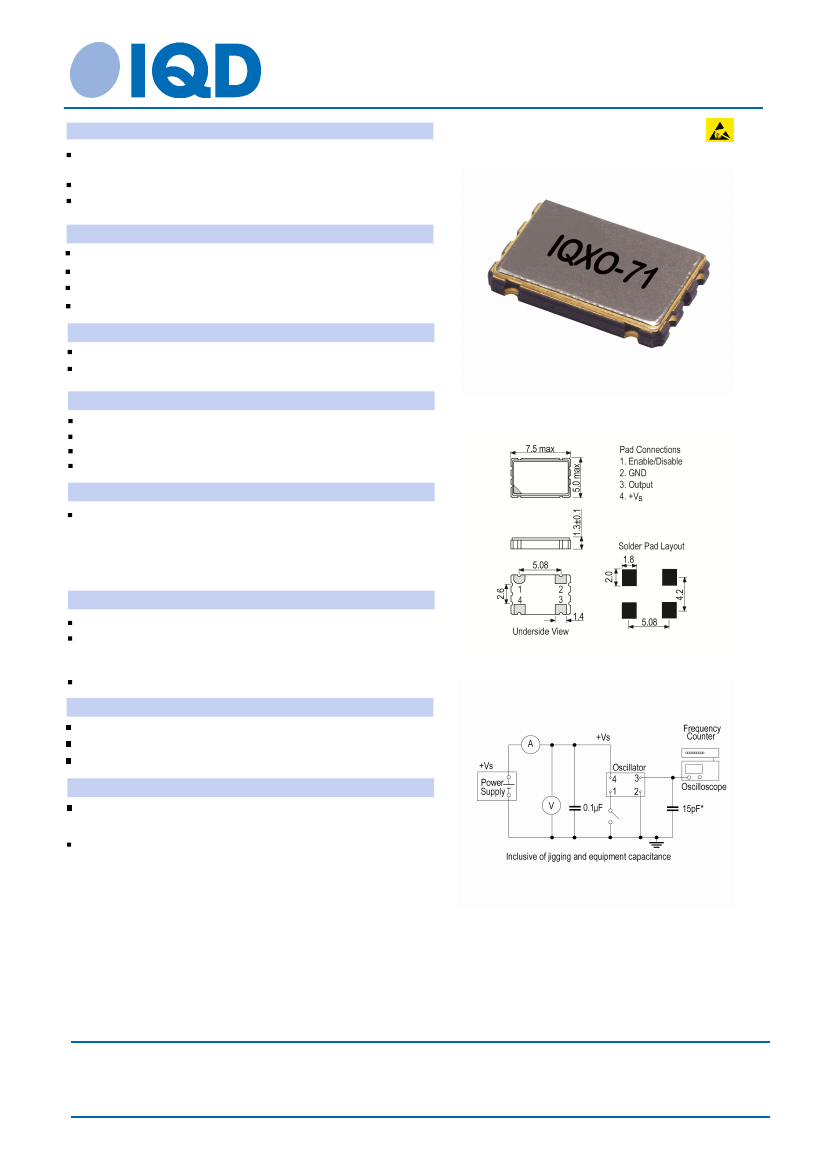

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO018074Reel
Description
Surface mount oscillator in a ceramic package with a
hermetically sealed metal lid
Model
IQXO-71
Model Issue number
11
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
18.0MHz
±50.00ppm
-10.00 to 70.00°C
±5ppm max in 1st year
Supply Voltage
Current Draw
Output Details
3.3V ±0.3V
12.00mA
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
HCMOS
15pF max
6.0ns max
45/55%
Outline (mm)
Tri-state Operation:
Logic ‘1’ (0.7Vs min) to pad 1 enables oscillator output
Logic ‘0’ (0.3Vs max) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Environmental Parameters
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G, frequency range 10-2000Hz 2hrs in 3 mutually
perpendicular planes (total 6hrs)
Storage Temperature Range: –55 to 125°C
Compliance
Test Circuit
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
