1.5KE300CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1.5KE300CA

1.5KE300CA: DescriptionTrans Voltage Suppressor Diode, 1500W, 256V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size470KB，6 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric Compare View All

1.5KE300CA Overview

Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2

1.5KE300CA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
Parts packaging code	DO-201AE
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	315 V
Minimum breakdown voltage	285 V
Breakdown voltage nominal value	300 V
Shell connection	ISOLATED
Maximum clamping voltage	414 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-201AE
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	256 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

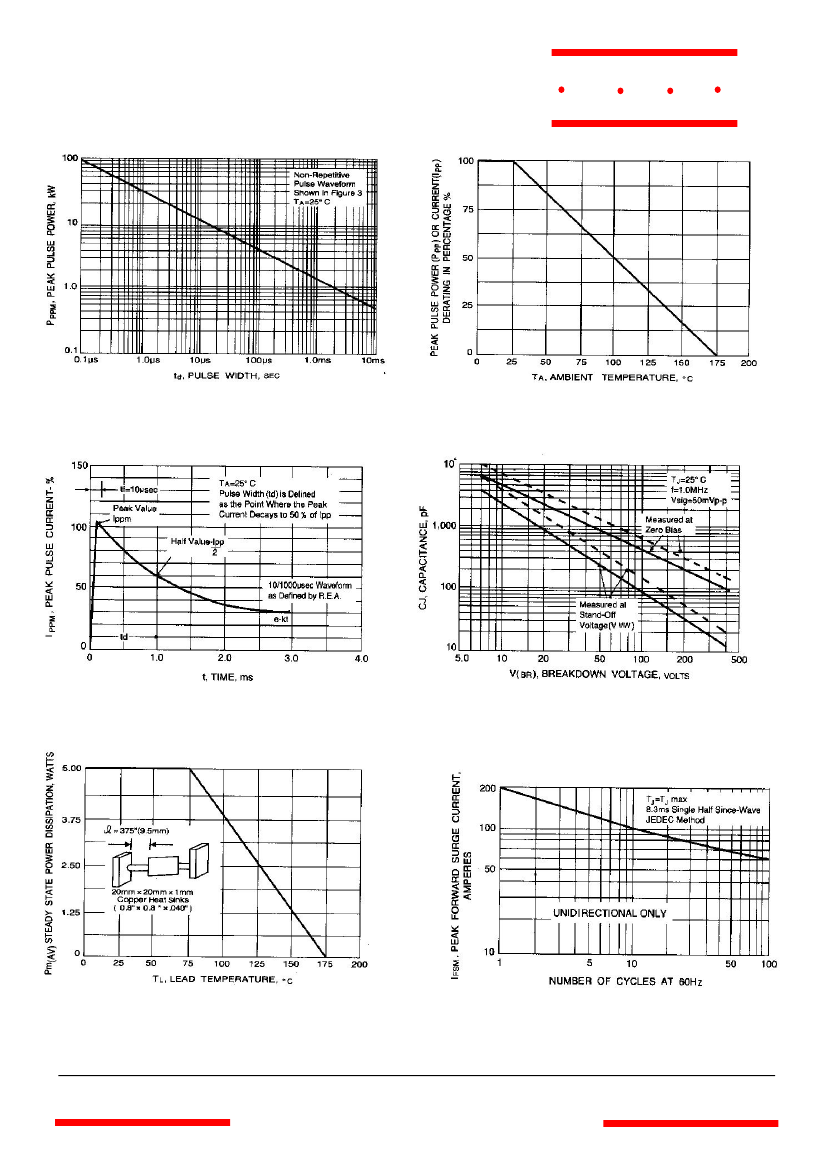

Preview

Download Datasheet

View All

MCC

Features

omponents

21201 Itasca Street Chatsworth

!"#

$ % !"#

1.5KE6.8

THRU

1.5KE440CA

•

' ( )*+ +)+ ,

- # +"../' (

01 2, 3

6,27

Maximum Ratings

2, 3

001

+5 3

0 1 8

9:!0

*+ ;< +=)+ ;0< +

4 + 4 8

, "00:0

$ +,4 7 4

? + 0

88@

4.0 .

> +

4 +,5(+>

> + ' 4 '

( + 4 .

, ,

,' ++, A,

$ +/ 4 /

' A, 0' % ,+ 5

$)+ 5

'4/

.' +,+

8 3 2 4 , +,( + $("+

APPLICATION

www.mccsemi.com

1.5KE300CA Related Products

	1.5KE300CA	1.5KE440CA	1.5KE170CA	1.5KE250CA	1.5KE350CA
Description	Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2	Trans Voltage Suppressor Diode, 1500W, 376V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2	Trans Voltage Suppressor Diode, 1500W, 145V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2	Trans Voltage Suppressor Diode, 1500W, 214V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2	Trans Voltage Suppressor Diode, 1500W, 300V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)
Parts packaging code	DO-201AE	DO-201AE	DO-201AE	DO-201AE	DO-201AE
package instruction	PLASTIC PACKAGE-2	O-PALF-W2	O-PALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Contacts	2	2	2	2	2
Reach Compliance Code	not_compliant	compliant	compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Maximum breakdown voltage	315 V	462 V	179 V	263 V	368 V
Minimum breakdown voltage	285 V	418 V	162 V	237 V	332 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-201AE	DO-201AE	DO-201AE	DO-201AE	DO-201AE
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak reverse power dissipation	1500 W	1500 W	1500 W	1500 W	1500 W
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
Maximum power dissipation	5 W	5 W	5 W	5 W	5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	256 V	376 V	145 V	214 V	300 V
surface mount	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Breakdown voltage nominal value	300 V	440 V	-	250 V	350 V
Maximum clamping voltage	414 V	603 V	-	344 V	482 V
Humidity sensitivity level	1	-	1	1	1
