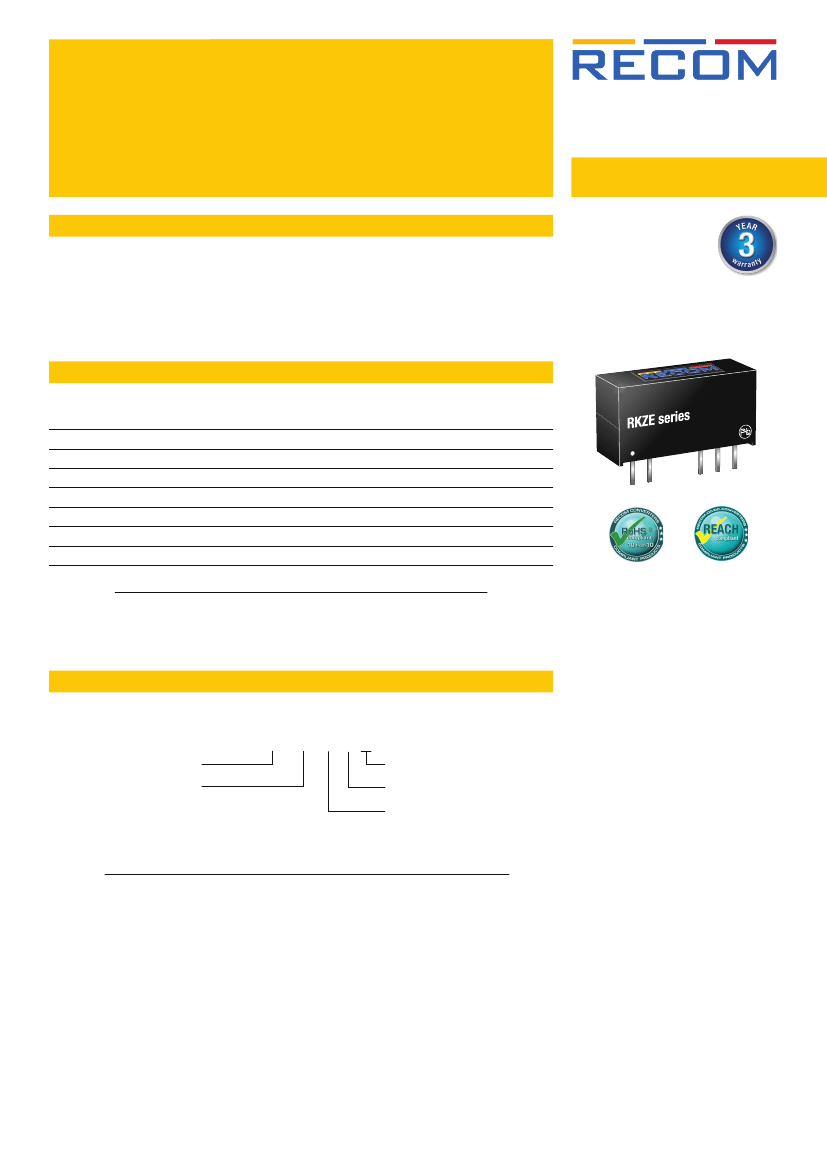

Unregulated DC/DC Converter; In-V: 24; Out-V: 05; In V MIN: 21.6; In V MAX: 26.3999999999999; Out V MIN: 5; Out V MAX: 5; Out-mA: 400; Isolation: 3kV; Output: single; Power Watts or Amps: 2W; Package: SIP7; Short Circuit Protec: Yes; MC INPUT-V: 24; MC OUTPUT-V: 5; Length: 19.65 mm; Width: 7.05 mm; Height: 10.2 mm; Packaging Type: Tube
Unregulated DC/DC Converter; In-V: 24; Out-V: 05; In V MIN: 21.6; In V MAX: 26.3999999999999; Out V MIN: 5; Out V MAX: 5; Out-mA: 400; Isolation: 3kV; Output: single; Power Watts or Amps: 2W; Package: SIP7; Short Circuit Protec: Yes; MC INPUT-V: 24; MC OUTPUT-V: 5; Length: 19.65 mm; Width: 7.05 mm; Height: 10.2 mm; Packaging Type: Tube
Audio/video, information and communication technology equipment.
Safety requirements
RoHs 2+
Report / File Number
pending
Standard
EN62368-1
RoHs 10/10, 2011/65/EU + AM2015/863
EMC Compliance
Electromagnetic compatibility of multimedia equipment –
Emission Requirements
Information technology equipment - Radio disturbance
characteristics - Limits and methods of measurement
Condition
pending
pending
Standard / Criterion
EN55032, Class A
EN55032, Class B
EN55024
DIMENSION and PHYSICAL CHARACTERISTICS
Parameter
Material
Dimension (LxWxH)
Weight
continued on next page
www.recom-power.com
REV.: 0/2018
ECO-4
Type
case
potting
Value
black plastic, (UL94V-0)
epoxy, (UL94V-0)
19.65 x 7.05 x 10.20mm
2.8g typ.
RKZE
DC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
Dimension Drawing (mm)
embossed Logo
Series
19.65
7.05
Pin Connections
Pin #
1
2
Single
+Vin
-Vin
-Vout
No Pin
+Vout
Dual
+Vin
-Vin
-Vout
Com
+Vout
10.20
Marking
5
6
7
4.10
0.5
0.5
+0.10/-0.05
0.25
±0.05
XX.X ± 0.5mm
XX.XX ± 0.25mm
Recommended Footprint Details
2.54
1 2
2.00
5 6 7
6 x 2.54 =15.24
1.27
Bottom View
1 2
2.54
Top View
5 6 7
PACKAGING INFORMATION
Parameter
Packaging Dimension (LxWxH)
Packaging Quantity
Storage Temperature Range
Storage Humidity
Type
tube
tube
Value
520.0 x 16.0 x 9.0mm
25pcs
-55°C to +125°C
5% to 95% RH
The product information and specifications may be subject to changes even without prior written notice.The product has been designed for various applications; its suitability lies in the responsibility of each customer. The
products are not authorized for use in safety-critical applications without RECOM’s explicit written consent. A safety-critical application is an application where a failure may reasonably be expected to endanger or cause
loss of life, inflict bodily harm or damage property. The applicant shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized
use of RECOM products in such safety-critical applications.
