High Value Multilayer Ceramic Capacitors (High dielectric type)
TMK105B7104MV-FR
Features
Item Summary
0.1uF±20%, 25V,
X7R, 0402/1005 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
500 MΩ·μF
Yes
Yes
Yes
Reflow
0.1 uF ± 20 %
0402/1005
25 V
10 %
X7R
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.0 ±0.05 mm
0.5 ±0.05 mm
0.5 ±0.05 mm
0.25 ±0.10 mm
2018.03.10
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

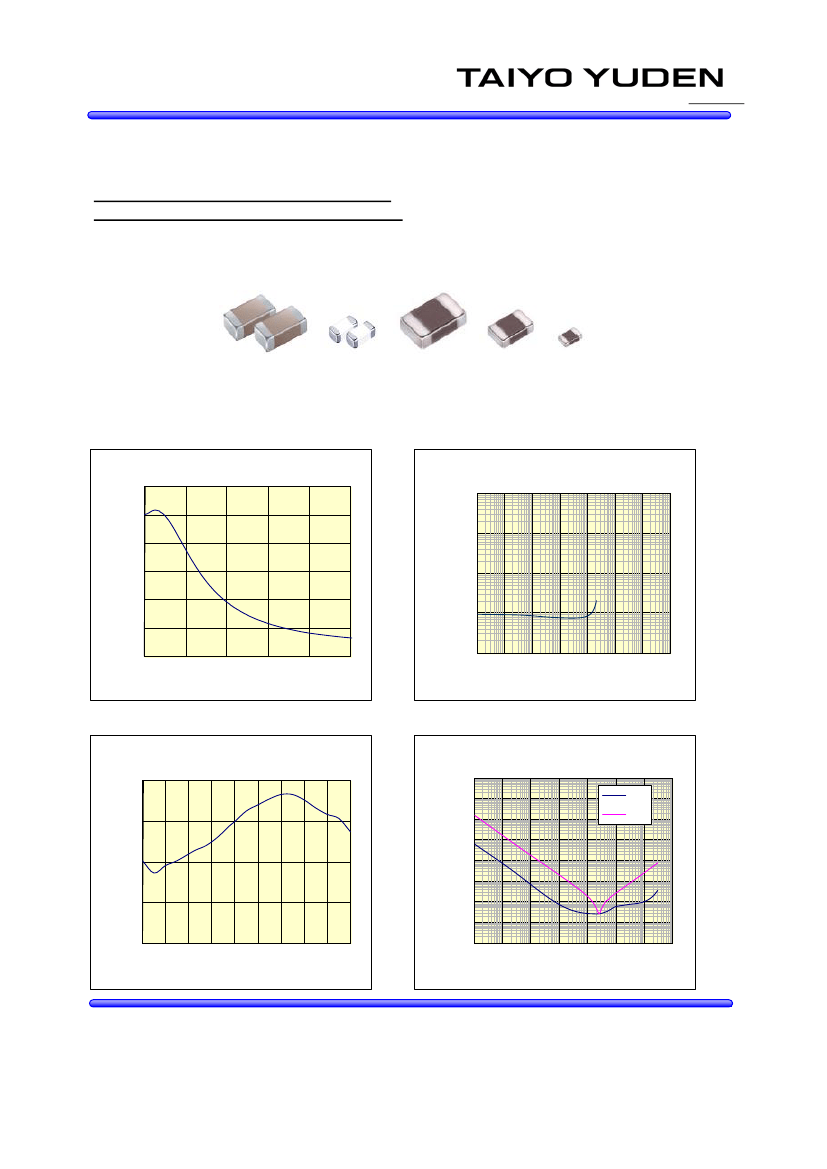

Multi Layer Ceramic Capacitor
○TMK105B7104MV-FR
25V 1005 X7R 0.1uF +/- 20% t=0.55mmMAX
25V 0402 X7R 0.1uF +/- 20% t=0.022inchMAX
-Electrical Characteristics Data-
16R2A04
RoHS compliance product
20
0
TMK105B7104MV-FR
DC Bias Char.
100
TMK105B7104MV-FR
Capacitance Freq.
-40
-60
-80
-100
0
5
10
15
20
DC Bias Voltage[V]
25
Capacitance[uF]
-20
10
dC/C[%]
1
0.1
0.01
0.001 0.01 0.1
1
10
100 100010000
Frequency[MHz]
TMK105B7104MV-FR
Capacitance Temp.
10
100000
10000
0
1000
TMK105B7104MV-FR
Impedance,ESR Freq.
ESR
Z
Z,ESR[OHM]
dC/C[%]
100
-10
10
1
0.1
0.01
-20
-30
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
0.001
0.001 0.01 0.1
1
10 100 100010000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
Notice for TAIYO YUDEN Products
