1000B-5003FT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 1000B-5003FT

1000B-5003FT: DescriptionDatacom Transformer, 10/100/1000 BASE-T Application(s), 1:1,; CategoryPower management transformer; File Size621KB，6 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

1000B-5003FT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1000B-5003FT	-	-	View	Buy Now

1000B-5003FT Overview

Datacom Transformer, 10/100/1000 BASE-T Application(s), 1:1,

1000B-5003FT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HEIGHT DIMENSION INCLUDES TERMINALS ALSO
application	10/100/1000 BASE-T
high	8.66 mm
length	27.94 mm
Installation features	SURFACE MOUNT
Number of functions	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L27.94XB7.54XH8.66 (mm)
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1
width	7.54 mm

Preview

Download Datasheet

View All

Military / Aerospace Grade

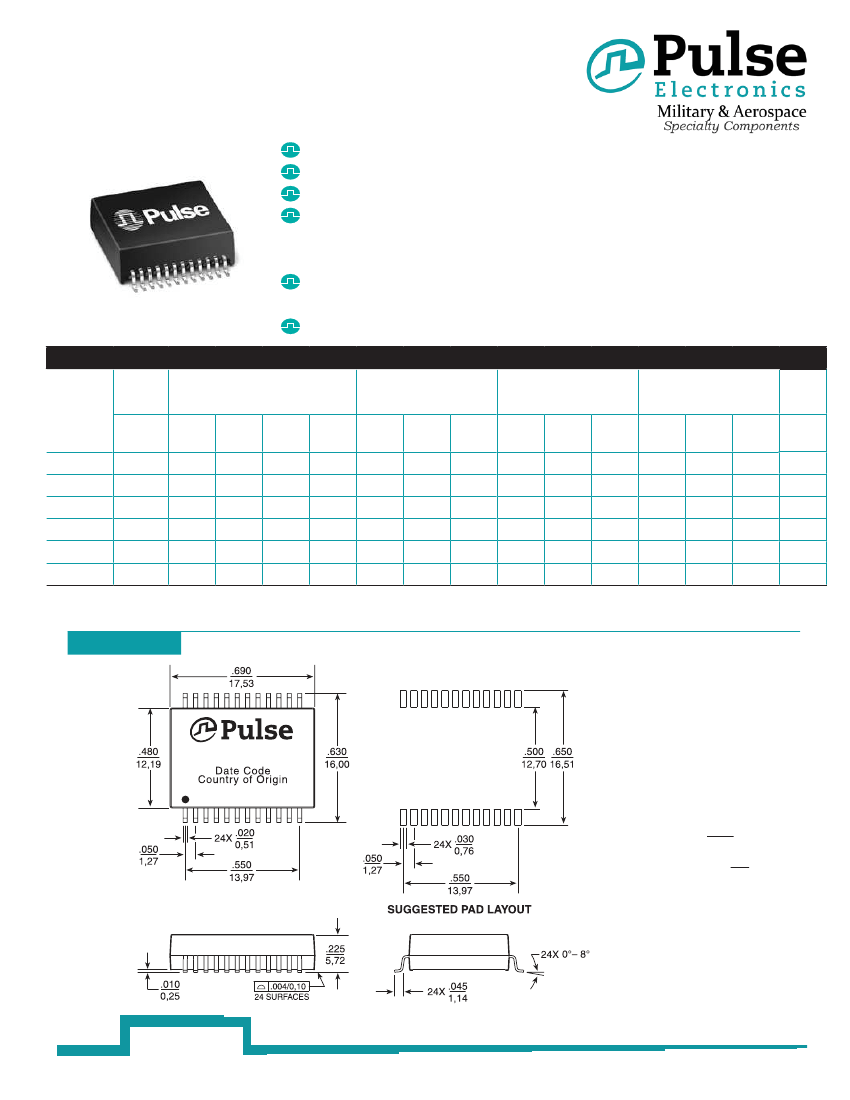

10/100/1000BASE-T SINGLE &

DUAL-PORT TRANSFORMER MODULES

Compliant with IEEE 802.3ab for 1000Base-T

350µH OCL with 8mA bias at extended temperatures

Storage temperature: -55ºC to +125ºC

Operating temperature:

1000B-5001F/5002F/5003F: -40ºC to +85ºC

1000B-5001FX/5002FX/5003FX: -55ºC to +125ºC

IC grade transfer-molded package withstands 235°C peak

temperature pro le RoHS version withstands 245°C

MSL: 3

Electrical Specifications @ 25°C

Part

Number

Insertion

Loss

(dB Min)

0.1-100

Mhz

-1.20

-1.40

-1.20

Mhz

-18

Return Loss

(dB Max)

Mhz

-12

-14

Mhz

-10

-12

-11

100

Mhz

-10

-8

-10

-9

Mhz

-43

Crosstalk

(dB Max)

Mhz

-37

100

Mhz

-33

Mhz

-40

CM to CM

Rejection Ratio

(dB Max)

Mhz

-35

100

Mhz

-30

Mhz

-43

DM to CM

Rejection Ratio

(dB Max)

Mhz

-37

100

Mhz

-33

HiPot

(Vrms

MIN)

@60HZ

(1MIN)

1500

1000B-5001F

1000B-5001FX

1000B-5002F

1000B-5002FX

1000B-5003F

-1.20

-18

-14

-11

-9

-43

-37

-33

-40

-35

-30

-43

-37

-33

1000B-5003FX

Note: 1. Add suffix NL for RoHS compliant part; i.e. 1000B-5001F becomes 1000B-5001FNL. 2. For Tape and Reel Packaging, add “T” suffix at the end

of the part number; i.e. 1000B-5001FXT

Mechanical

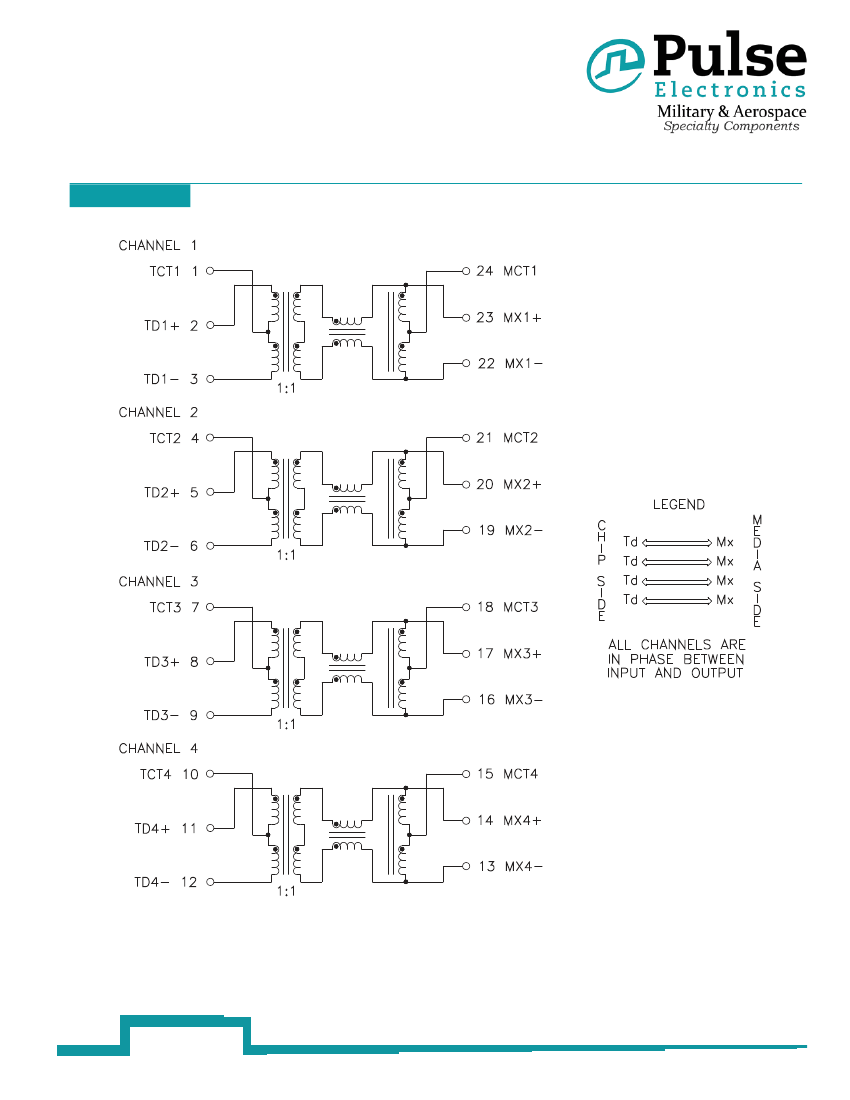

1000B-5001F/X

Weight . . . . . . . . . . . . . . . . . . . 3.0 grams

Tape and Reel . . . . . . . . . . . . . . .300/reel

Tube . . . . . . . . . . . . . . . . . . . . . . . 25/tube

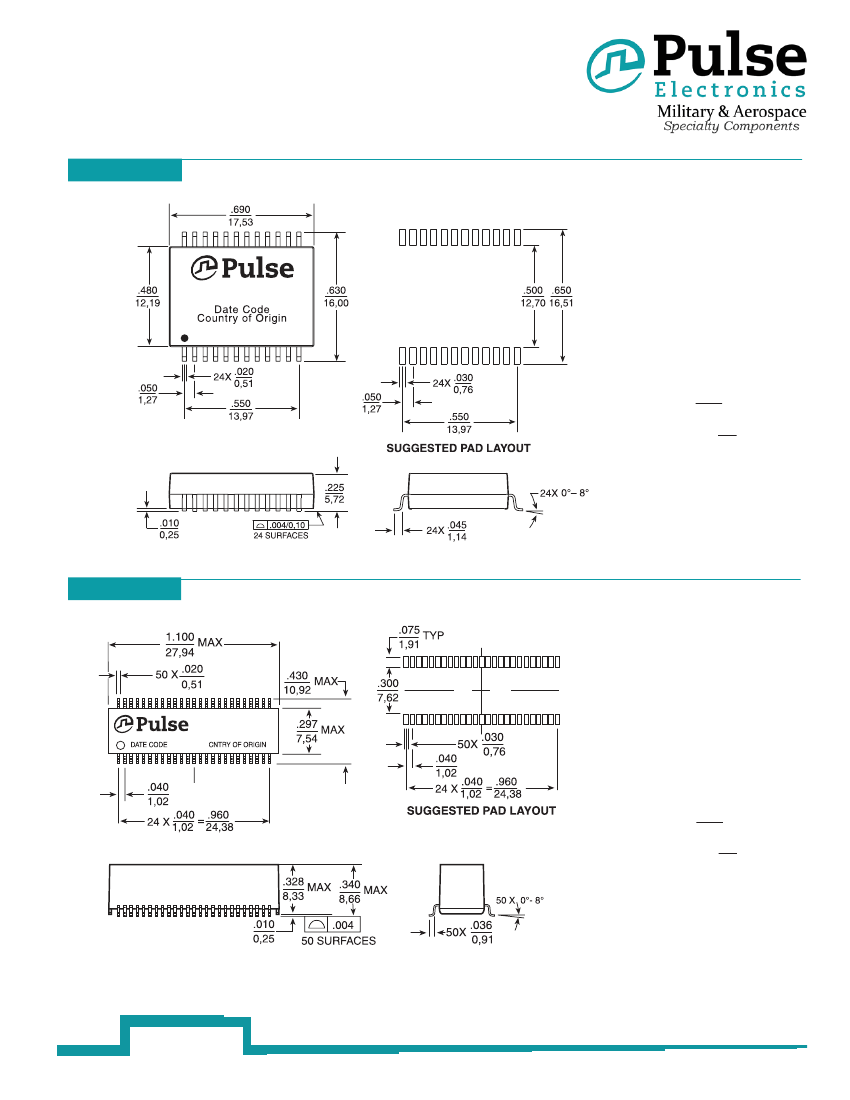

1000B-5001F/X

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

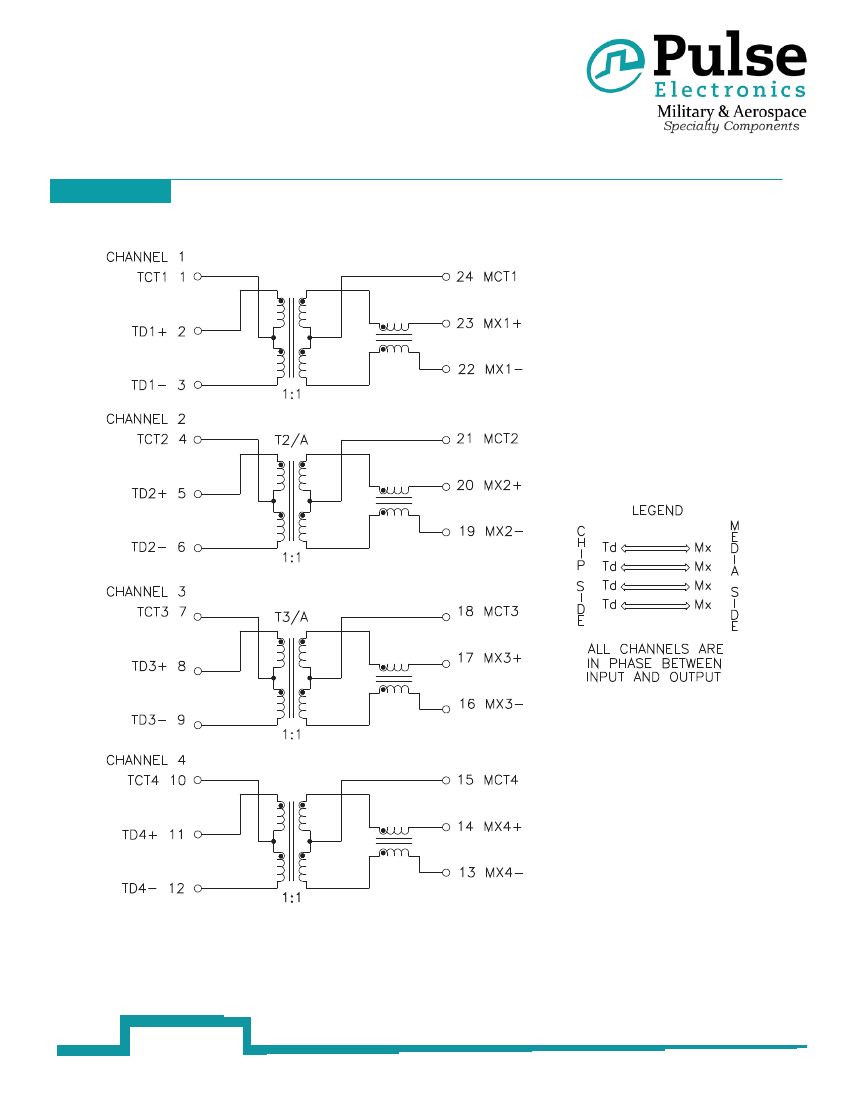

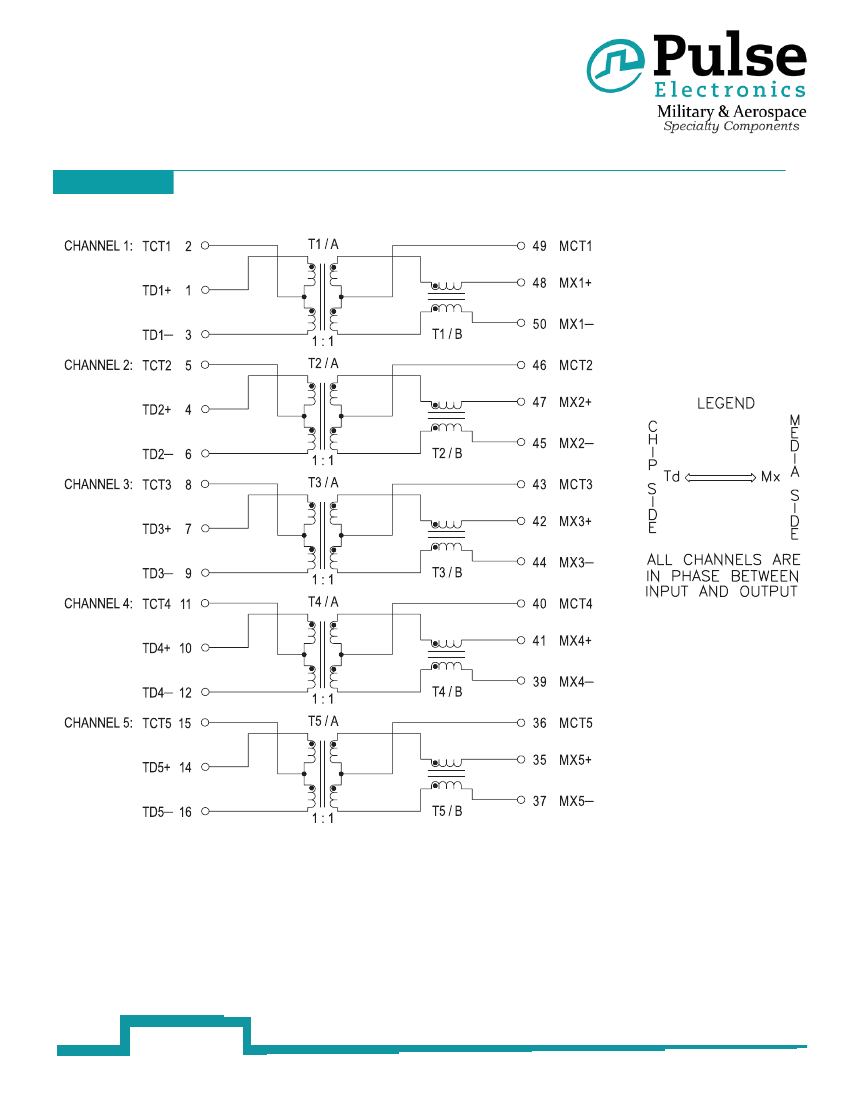

pulseelectronic-milaero.com

M106.I (12/17)
