3401-004 Coaxial / 3401-040 Power D*M Contacts
Features/Benefits
•
Coaxial contact Up to 1GHz
•
Power Contacts from 10 to 40 A
•
Straight or 90° solder or crimp
•

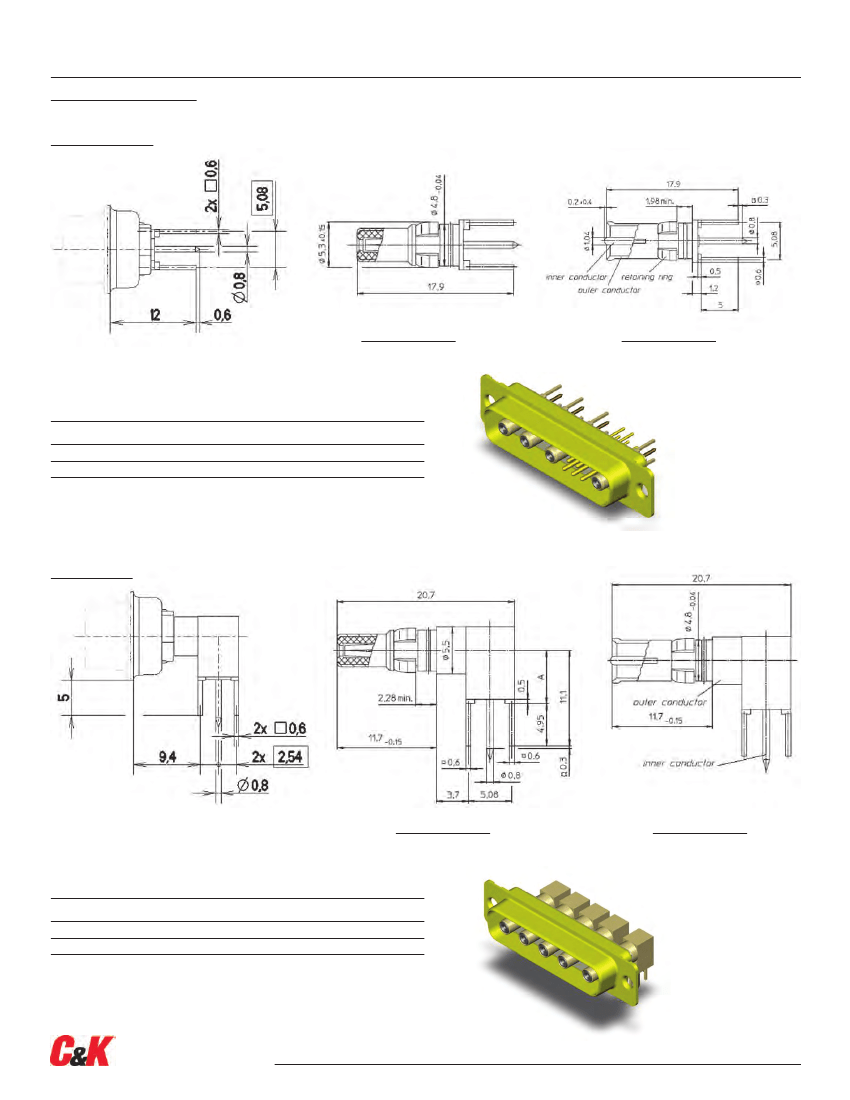

Straight or 90° PCB termination
Product Features
Loose size 8 contacts for combination arrangement D*M connectors
must be ordered separately.
NO NMC type available.
Signal contacts are installed in factory.
Signal contact are solder bucket type. Other type could be asked under request.
Coaxial contacts, straight or 90°, solder or crimp type
- Plug (male), with female center contact, for installation on D*M plug connectors (and on the central cavity of receptacle connectors 3WK3)
- Receptacle (female), with male center contact, for installation on D*M receptacle connectors (and on the central cavity of plug connectors 3WK3)
Power contacts, straight, or 90°, solder or crimp type
- Plug (male), for installation on D*M plug connectors (and on the central cavity of receptacle connectors 3WK3)
- Receptacle (female), for installation on D*M receptacle connectors (and on the central cavity of plug connectors 3WK3)
Packaging unit
- 1 piece (plastic bag) for ESA/ESCC quality level
- 25 pieces (plastic bag) for FR023 quality level
- 25 pieces (plastic bag) for FR022 quality level
Typical Applications
•
Space equipment
•
Avionics/Military
•
Industrial applications
Specific Performance Specifications
All Contacts
Contact Retention in Insert
Contact Insertion Force (from the rear)
Retainer Force (from the front)
Residual magnetism level
65 N max / contact axial displacement 0,50 (.020) max
55 N min (locking) / 65 N max (no damage)
50 N min (no unlocking)
NMB (200 Gamma max)
Coaxial Contacts
VSWR (up to 1 GHz)
RF Insertion Loss at 1 GHz
Soldering Temperature
Contact Engagement Force
Contact Separation Force
Contact Resistance (center contact)
Frequency Range
1.4
0.2 dB
260 °C / 10 seconds max
Outer contact (Receptacle): 0.83 N min, pin dia 3,86 (.152) / 6.87 N max, pin dia 3,86 (.152)
Center contact (Plug): 0.28 N min, pin dia 0,99 (.039) / 3.33 N max, pin dia 1,04 (.041)
Center contact (Plug): 0.28 N min, pin dia 0,99 (.039) / 2.22 N max, pin dia 1,04 (.041
Outer contact (Receptacle): 0.83 N min, pin dia 3,86 (.152) / 6.87 N max, pin dia 3,86 (.152)
Up to 1 GHz
Voltage Proof (center / outer contacts)
8.5 mW max (low level current) / 7.0 mW max (rated level current)
1000 Vrms (straight rear end) / 800 Vrms (90° rear end)

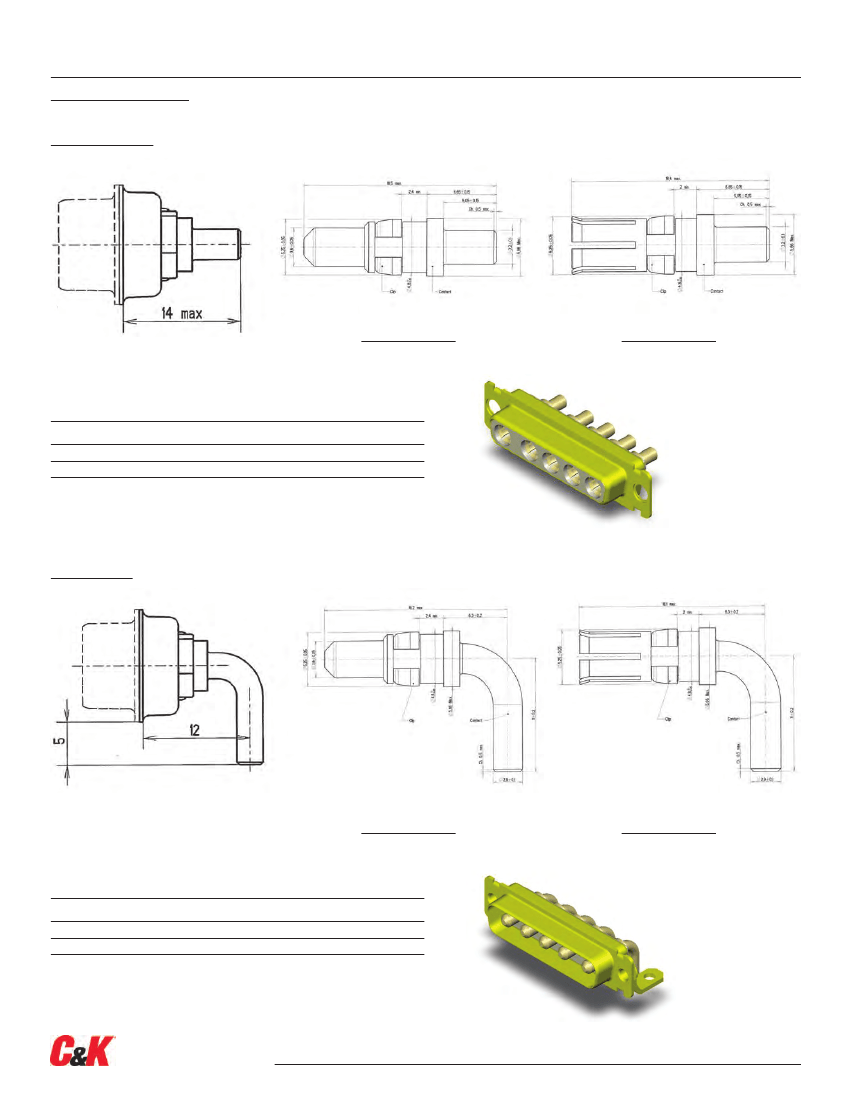

Power Contacts
Contact Engagement Force
Contact Separation Force
Contact Resistance
Rated Current
Soldering Temperature
40 A at T amb 60°C max / Limitation by the current carrying capability of the cable
260 °C / 10 seconds max
(Receptacle): 0.83 N min, pin dia 3,58 (.141) / 6.87 N max, pin dia 3,63 (.143)
(Receptacle): 0.83 N min, pin dia 3,58 (.141) / 5.56 N max, pin dia 3,63 (.143)
2.5 mW max (low level current) / 2.0 mW max (rated level current)
Dimensions are shown in mm (inch)
Dimensions subject to change
A8-1
www.ck-components.com
Rev. 23APR13

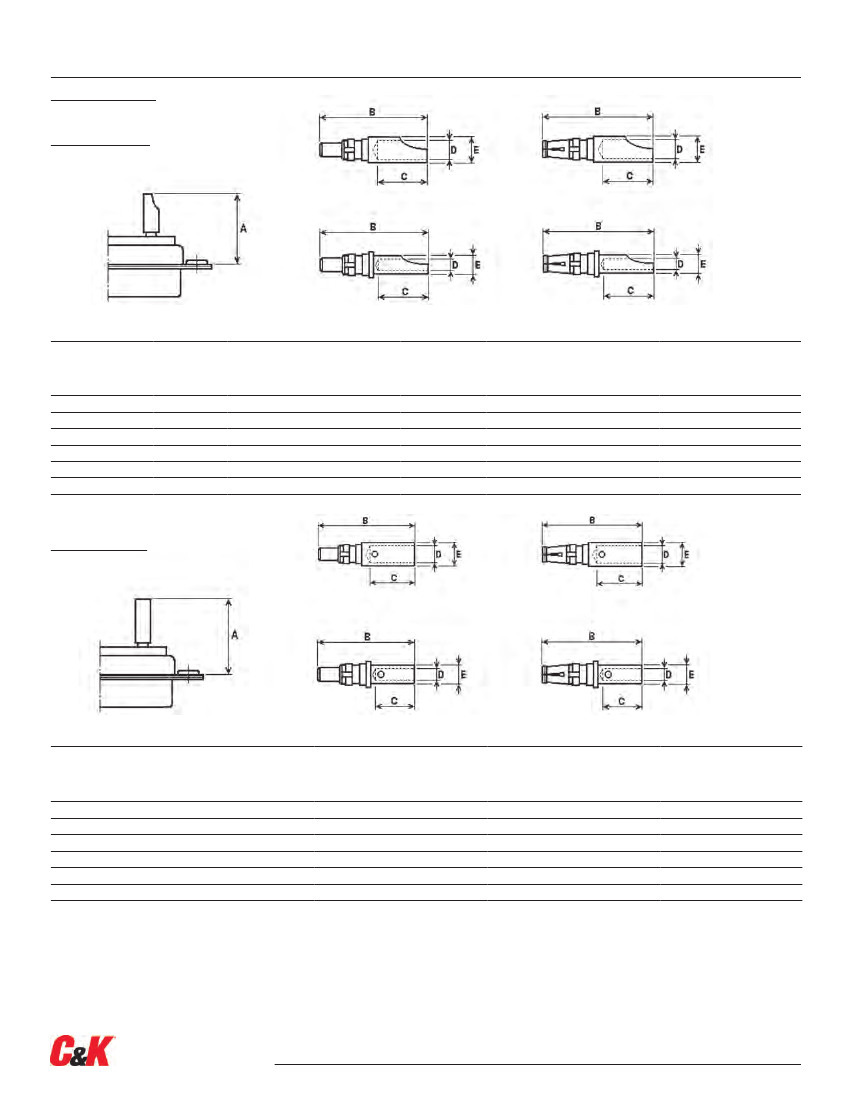

3401-004 Coaxial / 3401-040 Power D*M Contacts

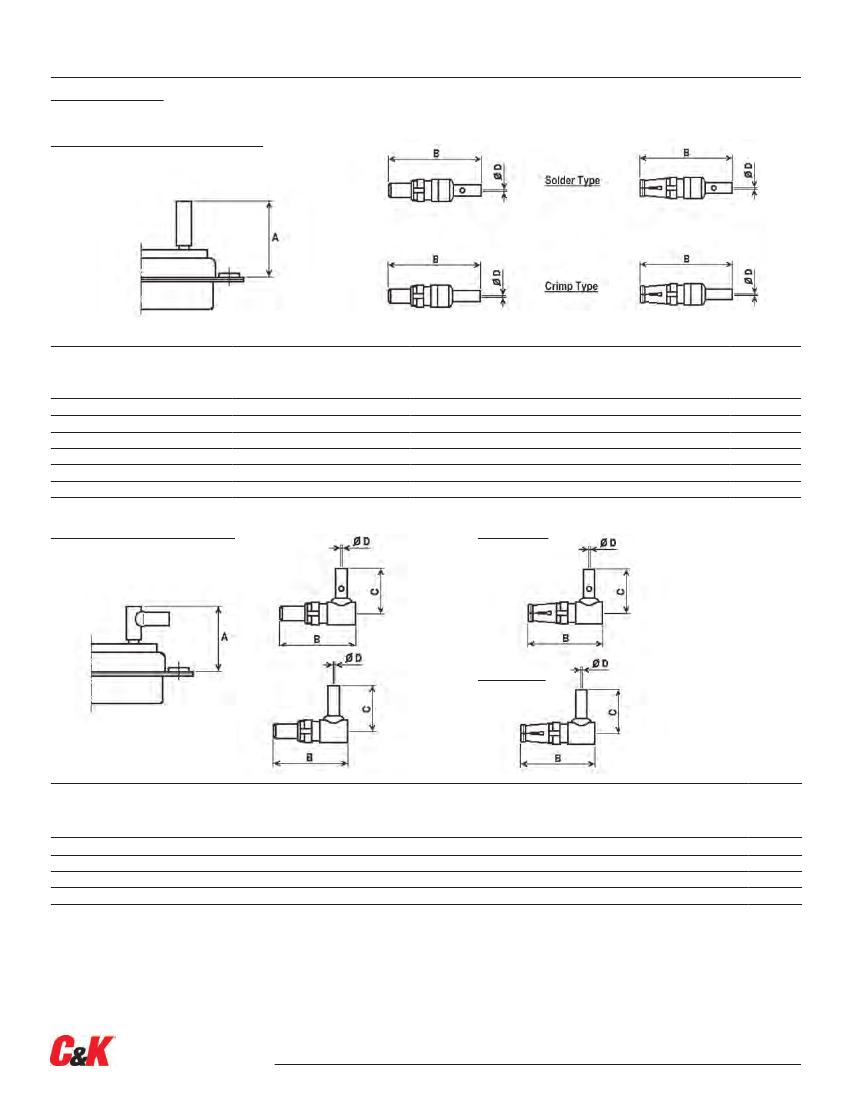

Coaxial Contacts
Straight Solder/or Crimp Braid Type
ESCC
Variants 01/05/09
ESCC
Variants 02/06/10
ESCC
Variants 11/15/19
ESA/ESCC
3401 -004 xx
Variant
01 (solder) / 11 (crimp)
02 (solder) / 12 (crimp)
05 (solder) / 15 (crimp)
06 (solder) / 16 (crimp)
09 (solder) / 19 (crimp)
10 (solder) / 20 (crimp)
ESCC
Variants 12/16/20
Max
Weight
(grams
)
1.4
1.5
1.4
1.5
1.5
1.7
Type
Male
Female
Male
Female
Male
Female
A
max
18,80 (.740)
18,80 (.740)
18,80 (.740)
18,80 (.740)
21,50 (.846)
21,50 (.846)
B
±
0,60 (.024)
23,62 (.930)
23,90 (.941)
23,62 (.930)
23,90 (.941)
26,34 (1.037)
26,83 (1.056)
D
±
0,13 (.005)
1,02 (.040)
1,02 (.040)
1,70 (.067)
1,70 (.067)
2,79 (.110)
2,79 (.110)
Accepted Cables
178 B/U - 196 A/U - KX 21A
178 B/U - 196 A/U - KX 21A
179 B/U - 316 U - 188 A/U - KX 22A - 50 CIS
179 B/U - 316 U - 188 A/U - KX 22A - 50 CIS
180 B/U
180 B/U
90° Solder/or Crimp Braid Type
Solder Type
ESCC
Variants 03/07
ESCC
Variants 04/08
Crimp Type
ESCC
Variants 13/17
ESCC
Variants 14/18
ESA/ESCC
3401 -004 xx
Variant
03 (solder) / 13 (crimp)
04 (solder) / 14 (crimp)
07 (solder) / 17 (crimp)
08 (solder) / 18 (crimp)
Type
Male
Female
Male
Female
max
13,60 (.535)
13,60 (.535)
13,60 (.535)
13,60 (.535)
A
B
±
0,45 (.018) Typical
18,67 (.735)
18,98 (.747)
18,67 (.735)
18,98 (.747)
12,50 (.492)
12,50 (.492)
12,50 (.492)
12,50 (.492)
C
D
±
0,13
(.005)
1,02 (.040)
1,02 (.040)
1,70 (.067)
1,70 (.067)
Accepted Cables
178 B/U - 196 A/U - KX 21A
178 B/U - 196 A/U - KX 21A
179 B/U - 316 U - 188 A/U - KX 22A - 50 CIS
179 B/U - 316 U - 188 A/U - KX 22A - 50 CIS
Max
Weight
(grams
)
2.0
2.2
2.0
2.2
Dimensions are shown in mm (inch)
Dimensions subject to change
A8-2
www.ck-components.com
Rev. 23APR13
