3JS600 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3JS600

Preview

3JS600: DescriptionElectric Fuse, Time Lag Blow, 0.6A, 350VAC, 140VDC, 100A (IR), Through Hole,; CategoryCircuit protection Circuit protection; File Size95KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

3JS600 Overview

Electric Fuse, Time Lag Blow, 0.6A, 350VAC, 140VDC, 100A (IR), Through Hole,

3JS600 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 140 VDC: 150 A
Fusing characteristics	TIME LAG
body height	18 mm
Body length or diameter	6.2 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	2 J
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK; TAPE AND REEL
physical size	6.2mm x 18mm
Rated breaking capacity	100 A
Rated current	0.6 A
Rated voltage (AC)	350 V
Rated voltage (DC)	140 V
Guideline	CE; CSA; UL
surface mount	NO
Terminal surface	TIN
Terminal shape	PIN WIRE

Preview

Download Datasheet

View All

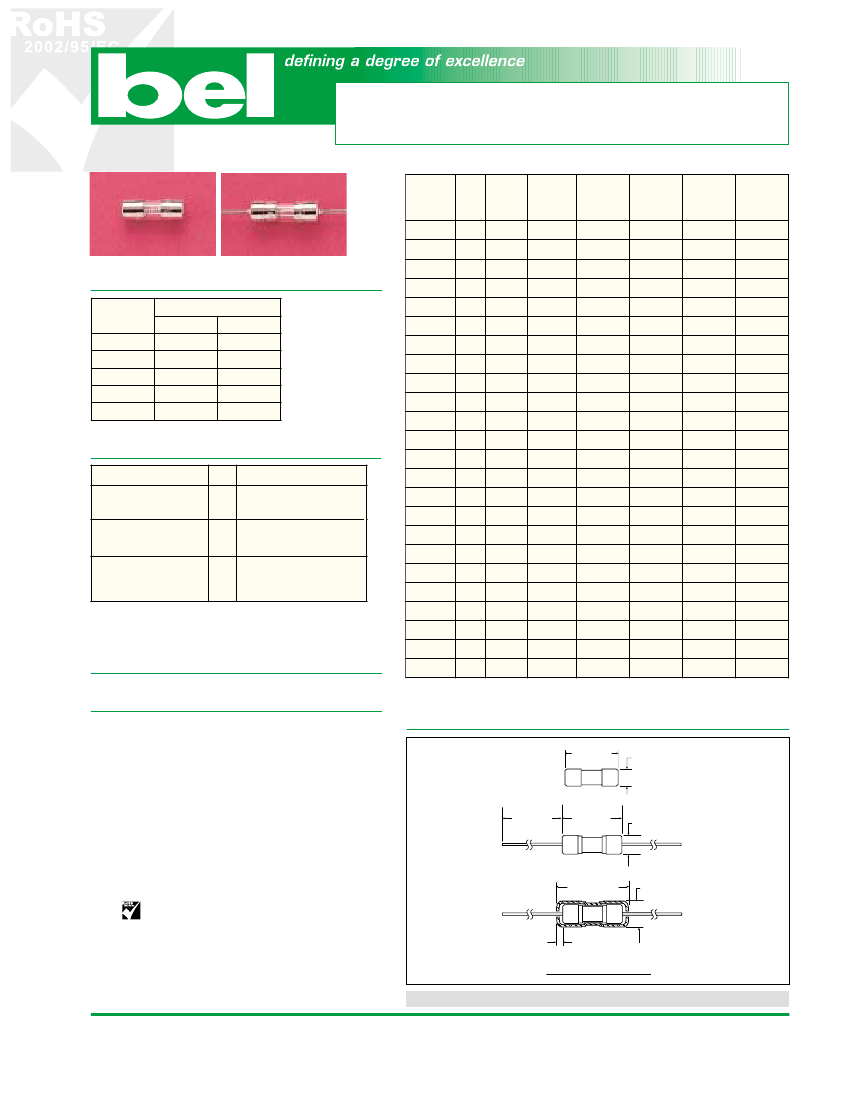

Type 2JS / 3JS

JSD0505

WJSD0505-A1

5 x 15mm Glass Tube

RoHS Compliant

Time-lag Fuse Series

Catalog

Number

RoHS Ampere

Suffix Rating

Typical

Volt-drop Melting I

2

T

Cold

@100%

In

< 10 mSec

Resistance

(ohm)

(Volt) max. (A

2

Sec)

Melting I

2

T

@10

In

(A

2

Sec)

Maximum

Power

Dissipation

(W)

JS 100

JS 125

JS 150

-R

100mA

125mA

150mA

200mA

250mA

300mA

350mA

400mA

500mA

600mA

700mA

750mA

800mA

1A

1.25A

1.5A

2A

2.5A

3A

3.5A

4A

5A

6A

7A

12.8

7.6

5.3

3.7

2.54

1.50

1.05

0.98

0.57

0.44

0.34

0.310

0.220

0.190

0.127

0.096

0.064

0.045

0.036

0.029

0.023

0.019

0.014

0.012

1.88

1.44

1.17

1.02

0.89

0.78

0.72

0.67

0.59

0.53

0.49

0.48

0.42

0.39

0.34

0.29

0.26

0.22

0.19

0.18

0.17

0.15

0.13

0.12

0.068

0.107

0.167

0.26

0.41

0.64

0.80

0.99

1.55

2.20

3.00

3.04

5.00

5.93

9.30

14.5

22.6

35.3

55.2

69

86

135

211

263

0.088

0.138

0.216

0.34

0.53

0.83

1.03

1.29

2.03

2.30

4.00

3.97

7.00

7.76

12.2

19.0

29.8

46.6

72.9

91

114

179

279

350

0.22

0.24

0.27

0.30

0.34

0.36

0.40

0.42

0.47

0.49

0.54

0.55

0.60

0.64

0.71

0.80

0.89

0.99

1.10

1.16

1.22

1.36

1.51

1.60

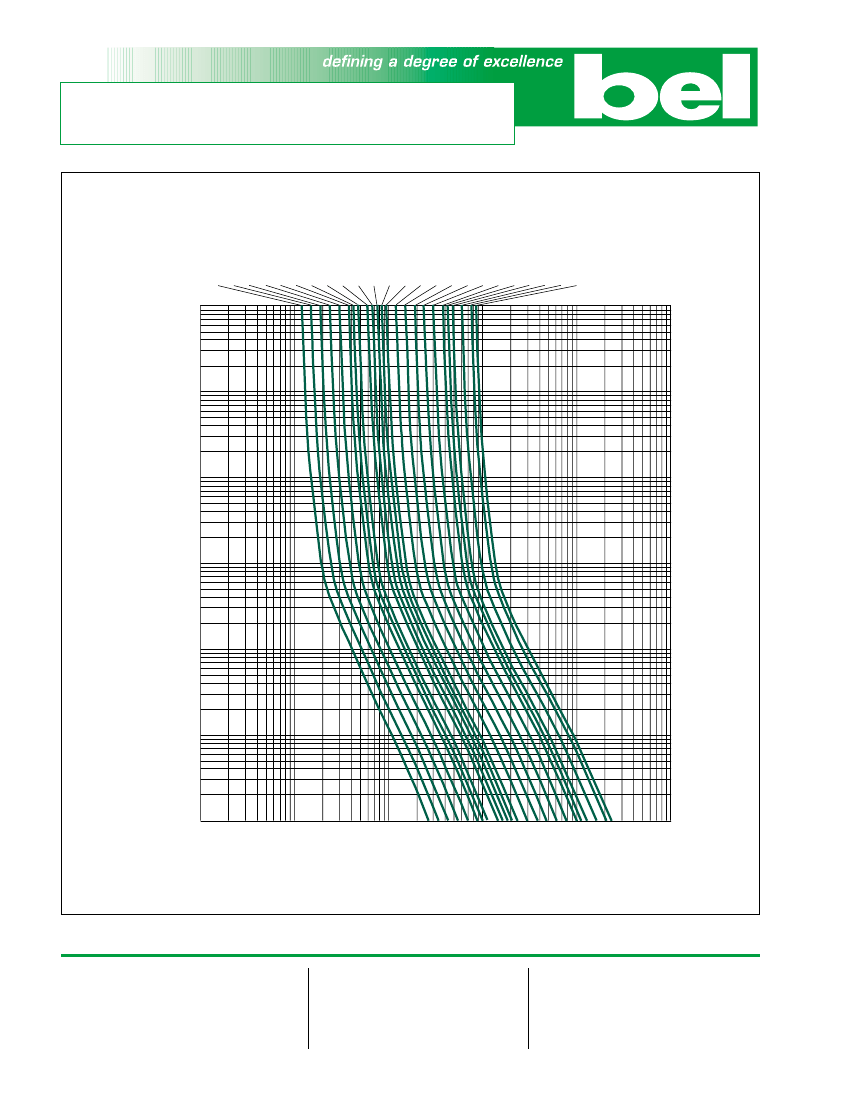

Electrical Characteristics

Testing current

100%

135%

200%

500%

1000%

Blow Time

Minimum

4 hrs.

N/A

3 sec

100 msec

30 msec

(UL/CSA STD. 248-14)

JS 200

JS 250

JS 300

JS 350

JS 400

JS 500

JS 600

JS 700

JS 750

JS 800

JS 1

JS 1.25

JS 1.5

JS 2

JS 2.5

JS 3

JS 3.5

JS 4

JS 5

JS 6

JS 7

Maximum

N/A

1 hr

20 sec

1.5 sec

300 msec

Approvals

Safety Agency Approvals

r

Spc

Type Amp range / Volt @ I.R. ability

2JS/3JS

100mA - 7A / 350V AC@ 100A

100mA - 7A / 125V AC@ 10,000A

100mA - 7A / 140V DC@ 150A

100mA - 7A / 350V AC@ 100A

2JS/3JS

100mA - 7A / 125V AC@ 10,000A

1A - 5A / 12 5V AC@ 500A

>5A - 15A / 125V AC@ 300A

r

Recognized File No. E20624

S

Acceptance File No. LR39772

p

File No. JET1037-31003-1001,

2JS/3JS

JET1037-31003-1003

File No. JET1037-31003-1002

2JS

RoHS Compliant Product

For RoHS Compliant Version, add suffix “R” after catalog number

Operating Temperature

-55°C to +125°C

Consult manufacturer for other ratings

Physical Specification

Materials

Glass body / Nickel Plated Brass Caps

Lead Wire:

Tin plated Copper, Diameter 0.032"

Option

With Heat Shrink Tubing (VW-1) over body

Marking

On fuse:

“bel”, “JS”, “Current Rating”, “Voltage Rating”

“Appropriate Safety Logos”, “✔” (RoHS Version)

On label:

“bel”, “2JS” or “3JS”, “Current Rating”, “Voltage Rating”

“Interrupting Rating”, “Appropriate Safety Logos” and

“

”+ suffix “R” for RoHS Version

Packaging

1. In bulk:

2JS

- 2,000 pcs;

3JS

- 500 pcs per box

2. On Axial Tape & Reel: 1,500 pcs per reel

3. Tape & Reel specification: per EIA-296-E & IEC 286-1

@ 10mm Pitch and 52.4mm inside Tape Spacing

*2JS are cartridge fuses

3JS are pigtail fuses

Mechanical Dimensions

0.54"±0.02"

(13.8±0.5mm)

2JS

0.20"±0.004"

(5.1±0.1mm)

3JS

0.710"±0.080"

(18.0±2.0mm)

0.244"±0.008"

(6.2±0.2mm)

0.590"±0.020"

(1.5±1.0mm)

WITH INSULATION SLEEVE

ORDERING INFORMATION SEE PAGES 67 & 68

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 • Tel: 201-432-0463 • Fax: 201-432-9542 • E-Mail: belfuse@belfuse.com

Website: www.belfuse.com

31

Specifications subject to change without notice

1.50"±0.08"

(38.1±2.0mm)

0.59"±0.02"

(15.0±0.5mm)

0.217"±0.004"

(5.5±0.1mm)

3JS600 Related Products

	3JS600	3JS700	3JS800
Description	Electric Fuse, Time Lag Blow, 0.6A, 350VAC, 140VDC, 100A (IR), Through Hole,	Electric Fuse, Time Lag Blow, 0.7A, 350VAC, 140VDC, 100A (IR), Through Hole,	Electric Fuse, Time Lag Blow, 0.8A, 350VAC, 140VDC, 100A (IR), Through Hole,
Maker	Bel Fuse	Bel Fuse	Bel Fuse
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	RATED BREAKING CAPACITY AT 140 VDC: 150 A	RATED BREAKING CAPACITY AT 140 VDC: 150 A	RATED BREAKING CAPACITY AT 140 VDC: 150 A
Fusing characteristics	TIME LAG	TIME LAG	TIME LAG
body height	18 mm	18 mm	18 mm
Body length or diameter	6.2 mm	6.2 mm	6.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
JESD-609 code	e3	e3	e3
Joule integral nominal	2 J	3 J	5 J
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
method of packing	BULK; TAPE AND REEL	BULK; TAPE AND REEL	BULK; TAPE AND REEL
physical size	6.2mm x 18mm	6.2mm x 18mm	6.2mm x 18mm
Rated breaking capacity	100 A	100 A	100 A
Rated current	0.6 A	0.7 A	0.8 A
Rated voltage (AC)	350 V	350 V	350 V
Rated voltage (DC)	140 V	140 V	140 V
Guideline	CE; CSA; UL	CE; CSA; UL	CE; CSA; UL
surface mount	NO	NO	NO
Terminal surface	TIN	TIN	TIN
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE
Base Number Matches	-	1	1
