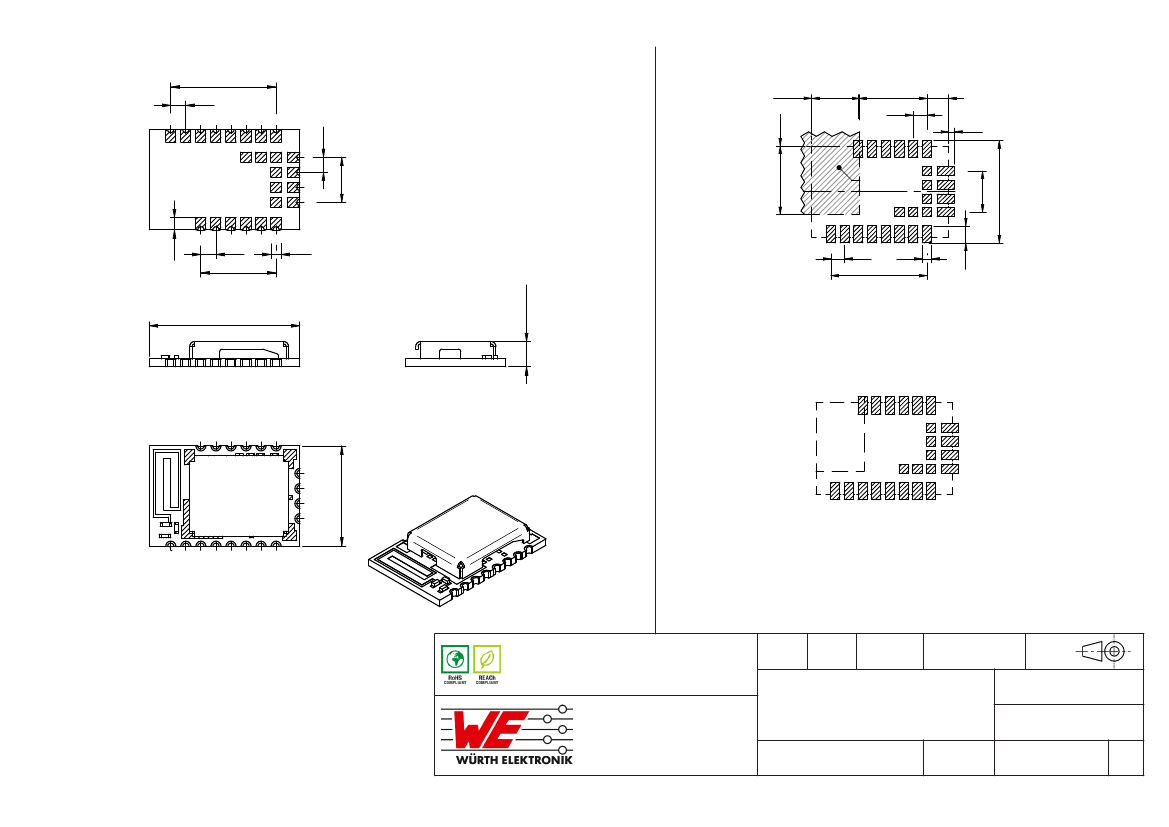

General Properties:
Properties
Communication Protocol/
Standard
Antenna Connector Type
Microcontroller
Radio Chipset
Memory Size (Flash)
Memory Size (RAM)
Radio channel min.
Radio channel max.
Interface 1
Interface 1 Bitrate Range
Number of I/O Ports
IO
1
IO
1 Bitrate
latest FW revision
IO
Ports
latest FW revision
0
39
UART
115.2
6
kbps
ANT
Conn
µC
RF-IC
Test conditions
Bluetooth Low Energy 5.1
RF pad and internal antenna
SoC
Nordic - nRF52840
1048576
262144
B
B
Value
Unit
RF-Electrical Properties:
Properties
Line of Sight Range
Line of Sight Conditions:
Antenna Height
RF Bitrate max.
Supply Current
Transmitting
Supply Current Receiving
Output Power 50 Ohm
RX sensitivity max.
RX sensitivity Condition
Bitrate
Pin
R
b, max.
I
TX
I
RX
P
Tx, 50 Ω
latest FW revision
VDD = 3 V,TAMB = 25 °C, RH = 60 %, PTX =
8 dBm
VDD = 3 V,TAMB = 25 °C, RH = 60 %
TAMB = 25 °C, RH = 60 %
Test conditions
Two-ray ground-reflection model
Value
400
2
2000
18.9
7.7
6
-92
1000
Unit
m
m
kbps
mA
mA
dBm
dBm
kbps
Rx
sens, 50 Ω
TAMB = 25 °C, RH = 60 %
Rx
sens, kbps
latest FW revision
Pad
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Description
RF connection to PCB antenna
Ground
Serial wire clock (SWD Interface)
Serial wire data (SWD Interface)
Reset
Boot
Positive supply voltage
Operation mode pin
Busy pin
RF transmit indication
RF receive indication
UART transmit
UART receive
Request to send
I/O
RF
Supply
SWD
SWD
Input
Input
Supply
Input
Output
Output
Output
Output
Input
Output
Electrical Properties:
Properties
Operating Supply Voltage Min.
Operating Supply Voltage Max.
Supply Current Sleep
Test conditions
V
DD min.
TAMB = 25 °C, RH = 60 %
V
DD max.
TAMB = 25 °C, RH = 60 %
I
sleep
VDD = 3 V,TAMB = 25 °C, RH = 60 %
Value
1.8
3.6
0.4
Unit
V
V
µA
ANT
RF
GND
SWDCLK
SWDIO
/RESET
BOOT
-40 up to +85 °C
< 40 °C ; < 90 % RH
VDD
MODE_1
BUSY
LED_1
LED_2
Test conditions
f
min.
f
max.
VDD = 3 V,TAMB = 25 °C, RH = 60 %
VDD = 3 V,TAMB = 25 °C, RH = 60 %
Value
2402
2480
Unit
MHz
MHz
UTXD
URXD
/RTS
50 Ohm RF connection to transceiver RF
Additional General Information:
Operating Temperature
Storage Conditions (in original
packaging)
RF-Electrical Properties:
Properties
Frequency min.
Frequency max.
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
GE
DESCRIPTION
001.000
2020-02-20
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WIRL-BTLE Proteus-III Bluetooth
5.1 module T&R
BUSINESS UNIT
ORDER CODE
2611011024000
STATUS
PAGE
eiSmart
Valid
2/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Pin
/CTS
WAKE_UP
GND
B1
B2
B3
B4
B5
B6
Pad
16
17
18
B1
B2
B3
B4
B5
B6
Description
Clear to send
Wake-up from sleep
Negative supply voltage
Programmable GPIO
Programmable GPIO
Programmable GPIO
Programmable GPIO
Programmable GPIO
Programmable GPIO
I/O
Input
Input
Supply
I/O
I/O
I/O
I/O
I/O
I/O
Certification:
RoHS Approval
REACh Approval
Compliant [ 2011/65/EU&2015/863 ]
Conform or declared [ (EC)1907/2006 ]
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
GE
DESCRIPTION
001.000
2020-02-20
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WIRL-BTLE Proteus-III Bluetooth
5.1 module T&R
BUSINESS UNIT
ORDER CODE
2611011024000
STATUS
PAGE
eiSmart
Valid
3/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

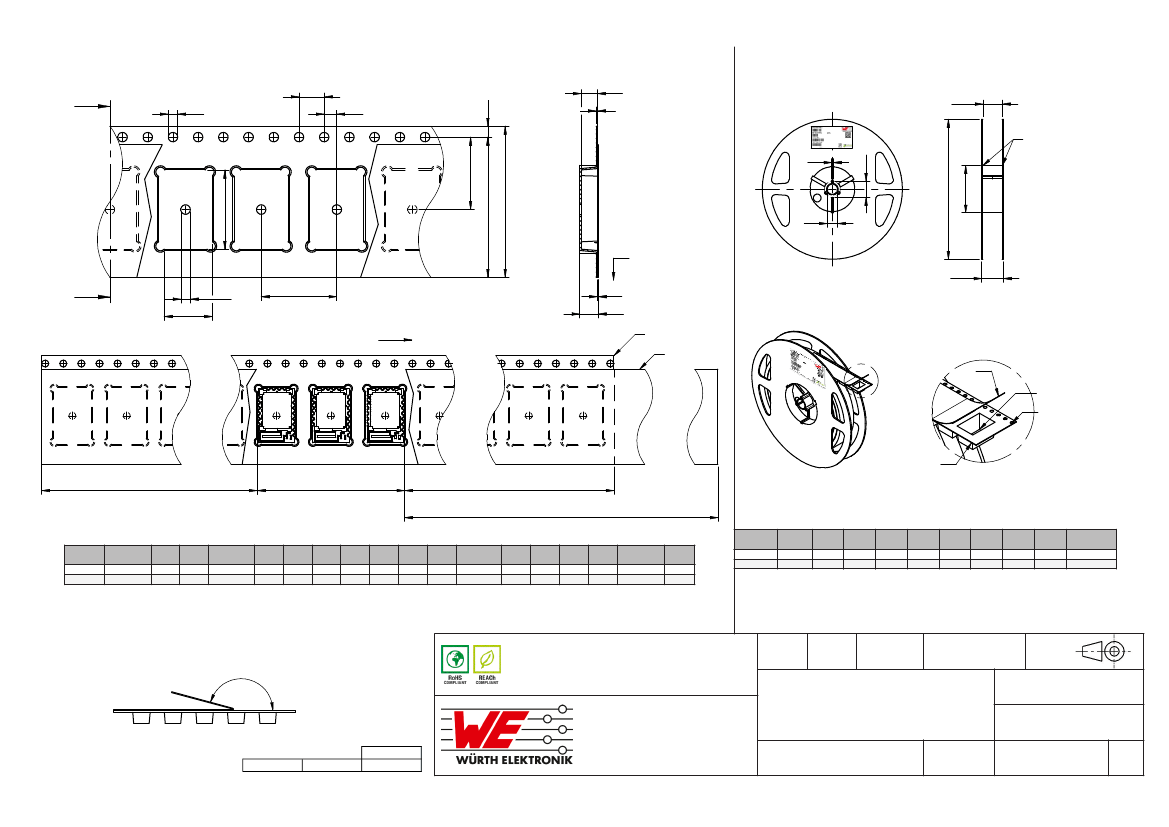

Packaging Specification - Tape and Reel: [mm]
P0
D0
P2
E1
K0
T
W3
W1
close to center
B
A
F
D
B0
E2
W
C
Top Cover
Tape
W2
A
A0
End
D1
P1
T1
T2
Feeding direction
Start
Carrier Tape
Cover Tape
B
detail B
Cover Tape
Chip Cavity
Sprocket Hole
Embossment
No Component
min. 160mm
Components
No Component
min. 100mm
Cover Tape
min. 400mm
P0
(mm)
±0,1
4,00
P1
(mm)
±0,1
12,00
P2
(mm)
±0,1
2,00
D0
(mm)
+0,1/ -0,0
1,50
D1
(mm)
min.
1,50
E1
(mm)
±0,1
1,75
E2
(mm)
min.
22,25
F
(mm)
±0,1
11,50
Material
Polystyrene
Qty.
(pcs.)
Tolerance
Value
A
(mm)
± 2,0
178,00
B
(mm)
min.
1,50
C
(mm)
min.
12,80
D
(mm)
min.
20,20
N
(mm)
min.
60,00
W1
(mm)
+ 2,0
24,40
W2
(mm)
max.
30,40
W3
(mm)
min.
23,90
W3
(mm)
max.
27,40
Material
Polystyrene
Tape Type
Tolerance
Value
2a
A0
(mm)
±0,1
8,55
B0
(mm)
±0,1
12,55
W
(mm)
+0,3/ -0,1
24,00
T
(mm)
±0,03
0,30
T1
(mm)
ref.
0,10
T2
(mm)
typ.
3,00
K0
(mm)
±0,1
2,60
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
N
A
PROJECTION
METHOD
GE
001.000
2020-02-20
DIN ISO 2768-1m
165° - 180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WIRL-BTLE Proteus-III Bluetooth
5.1 module T&R
BUSINESS UNIT
ORDER CODE
2611011024000
STATUS
PAGE
Pull-of force
Tape width
24 mm
0,1 N - 1,3 N
eiSmart
Valid
4/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product series of wireless
connectivity of Würth Elektronik eiSos GmbH & Co. KG:
General:
• This electronic component is designed and developed with the intention for use in general electronic equipment.
• Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any
equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control,
ship control), transportation signal, disaster prevention, medical, public information network, etc. where higher safety and reliability are
especially required and/or if there is the possibility of direct damage or human injury.
• Electronic components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer.
• The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions
specified in the datasheet are not met, the wire insulation may be damaged or dissolved.
• Do not drop or impact the components, the component may be damaged.
• Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth
Elektronik does not guarantee any customer qualified product characteristics beyond Würth Elektroniks’ specifications, for its validity and
sustainability over time.
• The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the
authority of the customer. All technical specifications for standard products also apply to customer specific products.
• Conformal coating may affect the product performance.
Storage Conditions:
• A storage of Würth Electronik products for longer than 12 months is not recommended. Within other effects, the terminals may suffer
degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of
shipment.
• Do not expose the components to direct sunlight.
• The storage conditions in the original packaging are defined according to DIN EN 61760-2.
• If there is a moisture sensitive component, the storage condition in the original packaging is defined according to IPC/JEDEC-J-
STD-033. It is also recommended to return the component to the original moisture proof bag and reseal the moisture proof bag again.
• ESD prevention methods need to be followed for manual handling and processing by machinery.
• The storage conditions stated in the original packaging apply to the storage time and not to the transportation time of the components.
Handling:
• Violation of the technical product specifications such as exceeding the nominal rated current, will void the warranty.
• Violation of the technical product specifications such as but not limited to exceeding the absolute maximum ratings will void the
conformance to regulatory requirements.
• The edge castellation is designed and made for prototyping, i.e. hand soldering purposes only.
• Non-antenna modules must be equipped with a proper antenna having specific characteristics.
• The applicable country regulations and specific environmental regulations must be observed.
• Do not disassemble the product. Evidence of tampering will void the warranty.
These cautions and warnings comply with the state of the scientific and technical knowledge and are believed to be accurate and reliable.
However, no responsibility is assumed for inaccuracies or incompleteness.
All topics are described in a more detailed manner in the manual for each product.
Product specific:
Soldering:
• The solder profile must comply with the technical product specifications. All other profiles will void the warranty.
• All other soldering methods are at the customer’s own risk.
Cleaning and Washing:
• Washing agents used during the production to clean the customer application might damage or change the characteristics of the
component. Washing agents may have a negative effect on the long-term functionality of the product.
• Using a brush during the cleaning process could break the module. Therefore, we do not recommend using a brush during the PCB
cleaning process.
Potting and Coating:
• If the product is potted in the customer application, the potting material might shrink or expand during and after hardening. Shrinking
could lead to an incomplete seal, allowing contaminants into the component. Expansion could damage components. We recommend a
manual inspection after potting to avoid these effects.
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
GE
DESCRIPTION
001.000
2020-02-20
DIN ISO 2768-1m
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WIRL-BTLE Proteus-III Bluetooth
5.1 module T&R
BUSINESS UNIT
ORDER CODE
2611011024000
STATUS
PAGE
eiSmart
Valid
5/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
The Chinese data sheet of F14XF16XF5XXX. Friends who don't like to read the E-text can download it and take a look. In addition, please follow the post to supplement it. Thank you[[i]This post was las...
Every year, all walks of life across the country participate in the selection of corporate QC and management innovation achievements. This selection is highly valued by corporate leaders. If you can w...
nRF24L01 is a single-chip wireless transceiver chip that works in the 2.4~2.5GHz universal ISM frequency band. The wireless transceiver includes: frequency generator, enhanced SchockBurstTM mode contr...
Help: Regarding the simulation software TINA 9 in the CD, I encountered a problem. There is no "Symbol." item under my "Analysis" option, which is the one that can generate the transfer function....
On June 28, Brother Niu went to the Beijing International Convention Center to attend the Avnet ARM System Design Strategy Seminar. This is the first stop of the Avnet ARM System Design Strategy Semin...
1. Overview
Will passive devices
produce nonlinear intermodulation distortion? The answer is yes! Although there is no systematic theoretical analysis, it has been found in engineerin...[Details]
1. Introduction
This design was made for participating in an electronic design competition. It effectively solved the problem of the operation and control of an electric car on a seesaw. The s...[Details]
With the advent of increasingly powerful processors, image sensors, memory, and other semiconductor devices, as well as the algorithms that enable them, computer vision can be implemented in a wide...[Details]
introduction
The emergence of high-performance, low-power embedded CPUs and high-reliability network operating systems has made it possible to implement applications with large amounts of comp...[Details]
I. Introduction
Since RS232 has a short communication distance (only 15 meters according to EAT/TAI-232 standard), and can only perform point-to-point communication, it cannot directly f...[Details]
1 Introduction
Water resources are the basic conditions for human survival and the lifeline of economic development. The reality shows that due to the global shortage of water resources and th...[Details]
Digital array radar (DAR) uses digital beam forming (DBF) in both receiving and transmitting modes to achieve flexible distribution and reception of RF signal power in the airspace, obtain excellent t...[Details]
Nippon Electric Works and Volvo Technology Japan have developed a wireless power supply system for electric vehicles (EVs). Using this system, the two companies have successfully conducted an exper...[Details]
TC9012F is a universal CMOS large-scale integrated circuit for infrared remote control signal transmission, suitable for remote control of TV, VTR, laser player and other equipment. In the market, ...[Details]
At very low temperatures, certain metals and alloys lose their resistance to electric
current
and become
superconductors
. Two parameters that are often measured are the transition ...[Details]
As people's requirements for safety and comfort in the process of driving cars continue to increase, automotive radars are widely used in the car's adaptive cruise system, collision avoidance syste...[Details]
0 Introduction
Wireless Sensor Network (WSN) monitors the target by deploying a large number of sensor nodes in the target area. WSN realizes the positioning and tracking of the target, determi...[Details]
1 Development of LED Film and Television Lighting
1.1 The significance of developing film and television lighting
Lighting power consumption accounts for a large proportion of the total p...[Details]
Mobile phones, MP3s, tablet computers, laptops, digital cameras, handheld game consoles, navigation devices, etc., all these mobile devices are powered by mobile batteries, and the battery life is ...[Details]
1 Introduction
Fieldbus is a serial, digital, multi-point communication data bus between field equipment/instruments installed in the production process area and automatic control devices/syst...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
